RFID Keypad Access Control System – 2000 Users, IP65 Outdoor

Asia-Teco IP65 RFID Keypad Standalone Access Control System – 2000 Users

Take command of your entry points with the Asia-Teco SB-K5EM / SB-K5MF RFID Keypad Access Control System — a robust, weatherproof standalone controller built for offices, warehouses, apartment buildings, parking facilities, and any outdoor or semi-outdoor doorway. Supporting up to 2,000 users, this unit combines a proximity card reader with a backlit PIN keypad into one compact, anti-vandal metal enclosure.

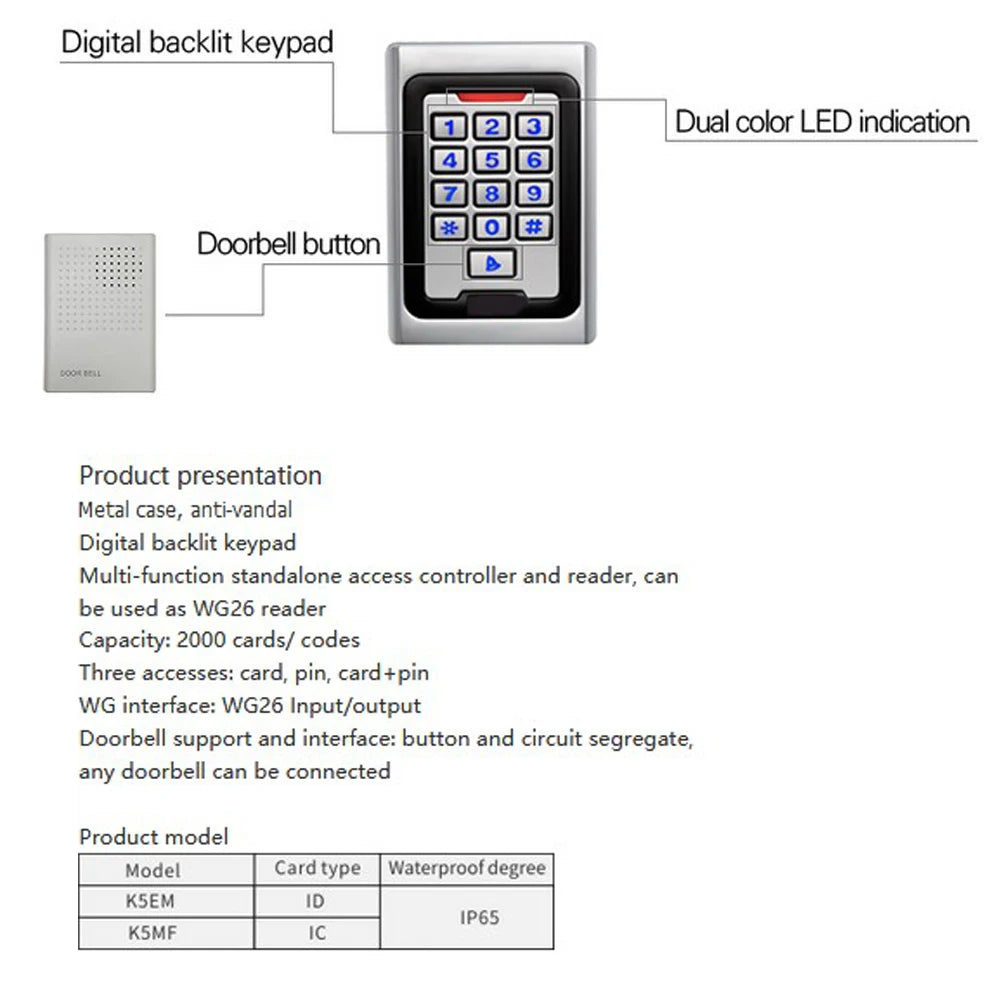

Key Features

• IP65 Weatherproof Rating — fully protected against dust ingress and low-pressure water jets, making it ideal for outdoor installations in all weather conditions.
• Anti-Vandal Metal Case — heavy-duty construction resists tampering and physical damage for long-term reliability.
• Digital Backlit Keypad — clearly visible in low-light environments for convenient after-hours access.
• Three Flexible Access Modes — grant entry via card only, PIN only, or card + PIN for a layered approach to entry management.
• 2,000-User Capacity — store up to 2,000 unique card credentials or PIN codes directly on the device — no PC or server required.
• Standalone Operation — works independently out of the box; no ongoing network connection needed for day-to-day access.
• Wiegand WG26 Input/Output — seamlessly integrates with third-party access control panels, time-attendance systems, and door controllers via standard WG26 interface.
• Multi-Function Reader Mode — can operate as a WG26 proximity card reader when connected to a larger access control system.
• Doorbell Support — dedicated doorbell button interface with electrically segregated circuit; compatible with virtually any doorbell.
• Fail-Safe Security Mode with Signal — designed to maintain the correct door state during power interruption events.
• Proximity (RFID) Technology — fast, contactless card reading for smooth, high-traffic entry management.

Specifications

Ideal Applications

• Office building main entrances and server rooms
• Apartment complexes and gated communities
• Warehouses, storage facilities, and loading docks
• Parking garages and vehicle access gates
• Schools, gyms, and recreational facilities

Learn More About Physical Access Control

For guidance on best practices in physical security and access control, visit the Cybersecurity & Infrastructure Security Agency (CISA) or review workplace safety standards at OSHA.gov.

Frequently Asked Questions

Q: Can the Asia-Teco RFID keypad system be installed outdoors?

A: Yes. The SB-K5EM / SB-K5MF carries an IP65 weatherproof rating, meaning it is fully protected against dust and water spray from any direction — making it well-suited for outdoor gate posts, building entrances, and other exposed locations.

Q: How many users can this RFID access control system store?

A: The system supports up to 2,000 individual users, each identifiable by a proximity card, a PIN code, or both. All credentials are stored locally on the device — no internet connection or external server is required.

Q: Does this unit work with existing access control panels?

A: Yes. The built-in WG26 Wiegand Input/Output interface allows the unit to integrate with most third-party access control panels or to function as a standalone WG26 proximity card reader, giving you maximum installation flexibility.

Q: What access modes are available on this keypad controller?

A: The system offers three access modes: card only (tap to enter), PIN only (enter your code), and card + PIN (dual-factor, for higher-security areas). Administrators can configure each user's mode independently.

Q: Can I connect a doorbell to this access control unit?

A: Yes. The unit features a dedicated doorbell interface with a button and an electrically segregated circuit, allowing you to connect virtually any standard doorbell without affecting the access control circuitry.
