RFID Keypad Access Control System 125kHz – 2000 Users | S603EM

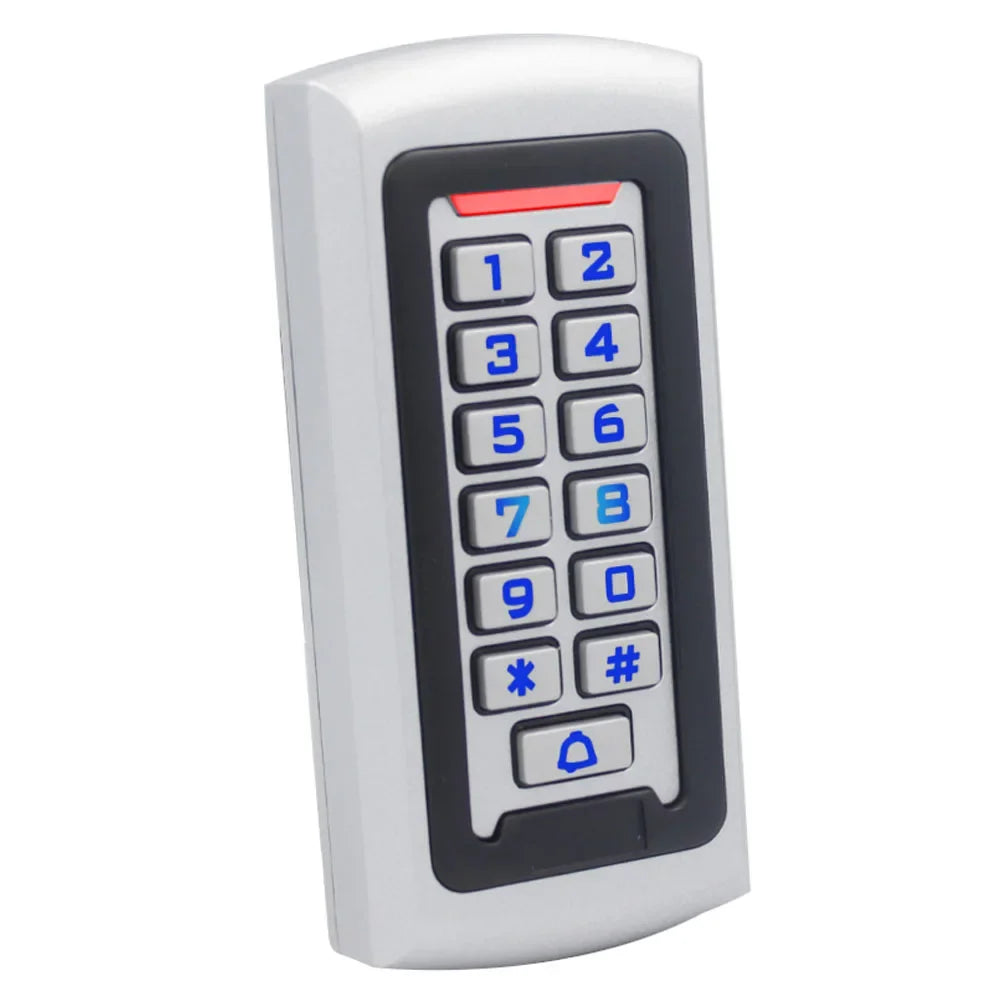

Asia-Teco S603EM Standalone RFID Access Control Keypad

Take command of your entry points with the Asia-Teco S603EM LED Backlight Metal Keypad RFID Access Controller. Engineered for homes, offices, and small businesses, this robust standalone unit supports up to 2,000 users and offers three flexible entry modes — giving you complete control over who comes and goes. Made in Mainland China.

Why Choose the S603EM?

• Durable Zinc Alloy Housing: A rugged metal case provides superior protection against tampering, weather, and daily wear — built to last in demanding environments.

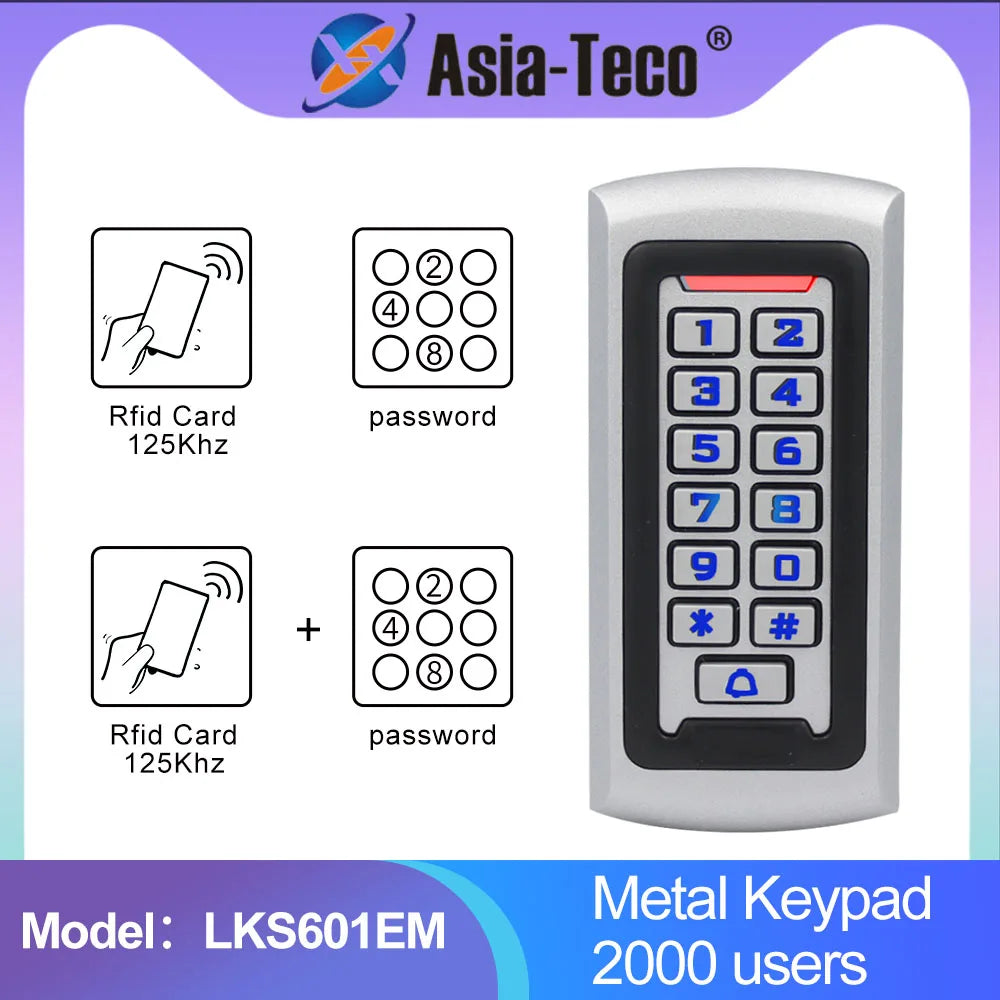

• Three Entry Modes: Choose from PIN code only, RFID proximity card only, or a combined PIN + Card dual-authentication mode for enhanced security.
• 125kHz RFID Proximity Reader: Built-in reader using ASK modulation for fast, reliable card recognition. Compatible with standard 125kHz EM format cards and fobs.
• LED Backlit Keypad: Bright backlight makes nighttime entry effortless. Plastic keys provide comfortable, responsive tactile feedback.
• Up to 2,000 Users: Easily add or delete card numbers on demand — perfect for growing teams or multi-tenant properties.
• 3 User Access Levels: Assign Normal User, Secure User, or Master User privileges to maintain layered security.
• Alarm & Bell Functions: Internal buzzer for instant alerts plus a built-in bell button that connects to an external bell or chime.
• Wiegand Output: Compatible with standard Wiegand access control infrastructure for easy integration with existing systems.
• Relay Lock Output: Programmable lock strike release time with Secure/Normal and NO/NC output modes.
• 8 Auxiliary Modes: Includes door ajar, forced door, shunt, door monitor, normal, and secure configurations for versatile deployment.
• 2 Status/Programming LEDs: Clear visual indicators for system status and programming feedback at a glance.
• CE, FCC & RoHS Certified: Meets international quality and compliance standards for peace of mind.

Technical Specifications

Ideal Applications

The S603EM is the smart choice for offices, server rooms, apartments, retail shops, warehouses, and any space that requires reliable, programmable access management without the complexity of a networked system.

For more information on physical access control standards and best practices, visit the NIST Cybersecurity & Physical Security Resources.

Frequently Asked Questions

Q: What types of RFID cards are compatible with the Asia-Teco S603EM access control reader?

A: The S603EM supports standard 125kHz proximity cards and key fobs using ASK (EM format) modulation — the most widely used RFID format in access control. These are readily available from most security and electronics suppliers. Note: it is NOT compatible with 13.56MHz HF cards such as MIFARE.

Q: Can this RFID access control system work as a standalone unit without a computer or network?

A: Yes! The S603EM is a fully standalone access controller. All user programming — adding or deleting cards and PIN codes — is done directly at the keypad. No computer, software, or network connection is required, making installation straightforward and cost-effective.

Q: What types of locks can be connected to the S603EM door access controller?

A: The unit features a relay lock output with both NO (Normally Open) and NC (Normally Closed) modes, making it compatible with most electric strikes, magnetic locks (maglocks), and electric deadbolts. The lock strike release time is also programmable to suit your specific hardware.

Q: Does the S603EM support Wiegand integration with larger access control panels?

A: Yes. The S603EM includes a standard Wiegand output, allowing it to be used as a reader peripheral connected to a larger access control panel or management system, giving you flexibility for future expansion.
