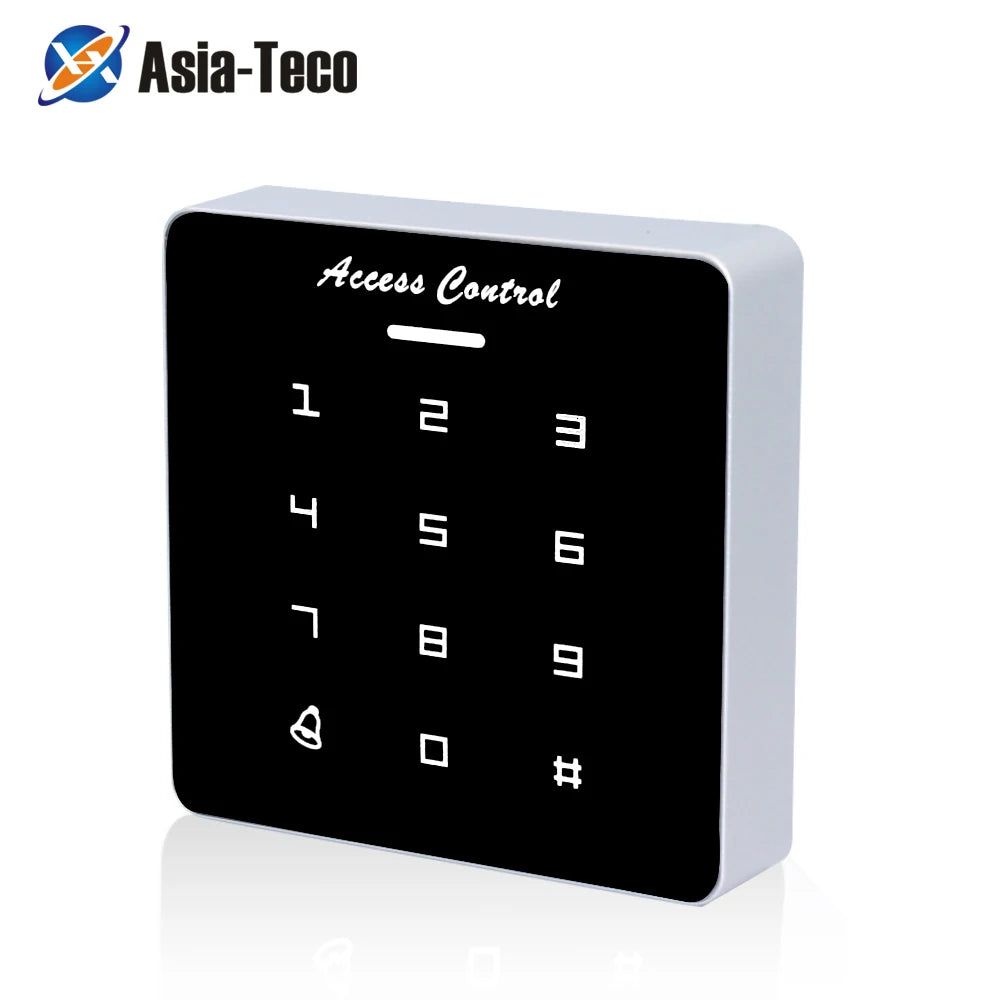

Asia-Teco A86 RFID Keypad Access Control Panel – 1000 Users
Take full control of who enters your space with the Asia-Teco A86 Access Control Panel. This compact, all-in-one keypad and card reader unit supports up to 1,000 users and offers three convenient entry modes — card swipe, PIN code, or card-plus-PIN combined — making it a versatile solution for offices, warehouses, apartments, server rooms, and more. Made in Mainland China.
Key Features
- Triple Entry Modes: Swipe card, enter PIN, or use card + PIN for enhanced security.
- 125KHz RFID Technology: Non-contact induction for fast, reliable card reading.
- Wiegand 26/34 Output: Compatible with a wide range of door lock systems and controllers.
- 1,000 User Capacity: Manage access for large teams or multi-tenant buildings with ease.
- Fail-Safe with Signal: Relay dry contact signals ensure dependable operation even during power changes.

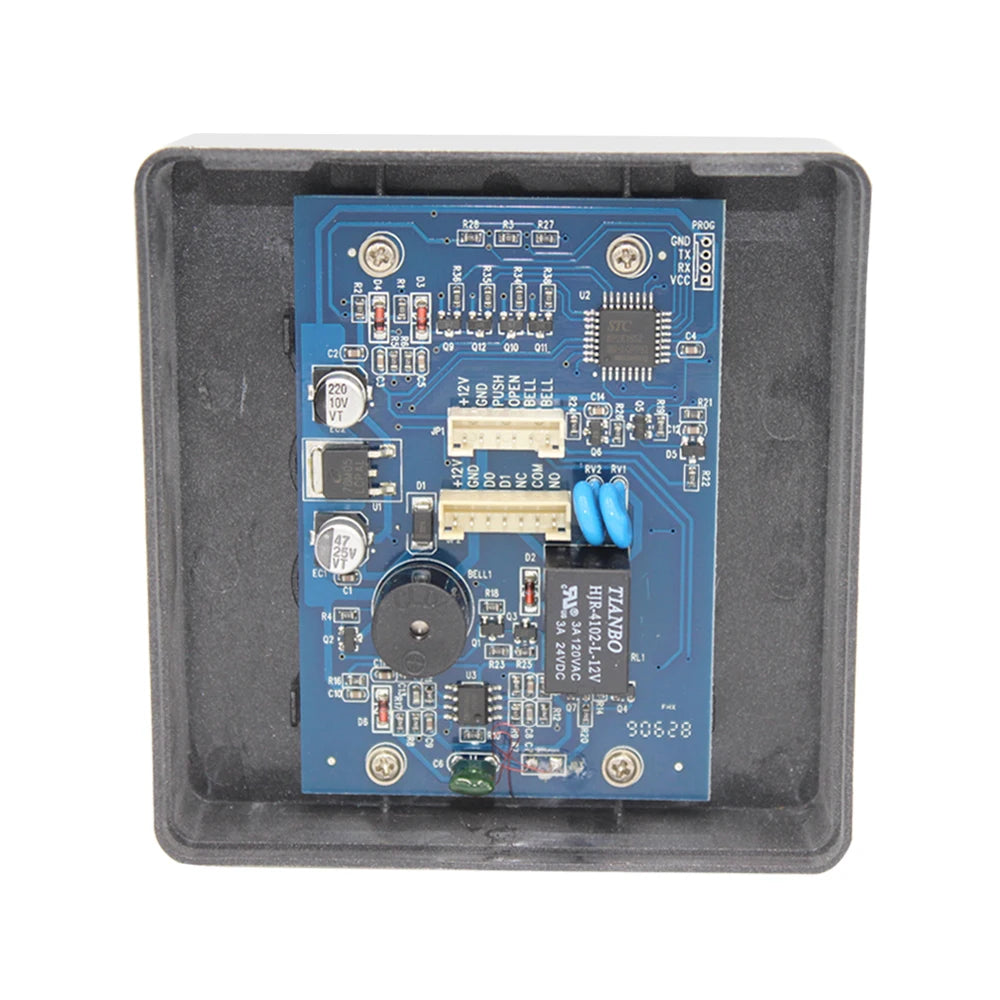

- Multiple Interfaces: Includes relay dry contact signal, ground-level push signal, exit button interface, and doorbell interface.
- Low Power Consumption: Energy-efficient design for long service life and reduced operating costs.
- Easy Installation: Straightforward wiring with clearly labeled terminals.
Specifications
| Brand | Asia-Teco |
| Model | A86 |
| Working Frequency | 125KHz |
| Output Protocol | Wiegand 26 / Wiegand 34 |
| Storage Capacity | 1,000 Users |
| Security Mode | Fail Safe with Signal |
| Entry Methods | Card, PIN, Card + PIN |
| Interfaces | Relay dry contact, ground push signal, exit button, doorbell |
| High-Concern Chemicals | None |
| Country of Origin | Made in Mainland China |
Who Is This For?
The Asia-Teco A86 is ideal for small businesses, residential buildings, co-working spaces, gyms, storage facilities, and any environment requiring reliable, multi-user entry management without complex software setups. Its Wiegand 26/34 output makes it compatible with virtually all industry-standard door access systems.
For more information on building security standards and best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What card types are compatible with the Asia-Teco A86 RFID access control panel?
A: The A86 works with standard 125KHz RFID proximity cards and key fobs, which are widely available and compatible with most EM4100-protocol cards. It does not support 13.56MHz (Mifare/HF) cards.
Q: Can the A86 keypad access control panel be used outdoors?
A: The A86 is primarily designed for indoor installation or sheltered outdoor locations (e.g., under a canopy or overhang). For fully exposed outdoor environments, additional weatherproofing measures are recommended to protect the electronics.
Q: What is Wiegand 26/34 output, and why does it matter?
A: Wiegand 26 and Wiegand 34 are industry-standard communication protocols used to connect card readers to access control panels or door lock controllers. Supporting both formats ensures the A86 is compatible with a wide range of existing security infrastructure, making integration straightforward.
Q: How many users can be stored in the A86 access control system?
A: The A86 can store credentials for up to 1,000 users, making it suitable for medium-to-large facilities including offices, apartment complexes, and commercial buildings.
Q: What does "Fail Safe with Signal" security mode mean?
A: Fail Safe mode means that in the event of a power interruption, the system maintains a defined safe state and sends a signal. This ensures doors behave predictably during outages, which is important for both security and safety planning.
