Asia-Teco SK606 Metal Outdoor Access Control Keypad — RFID & PIN Entry

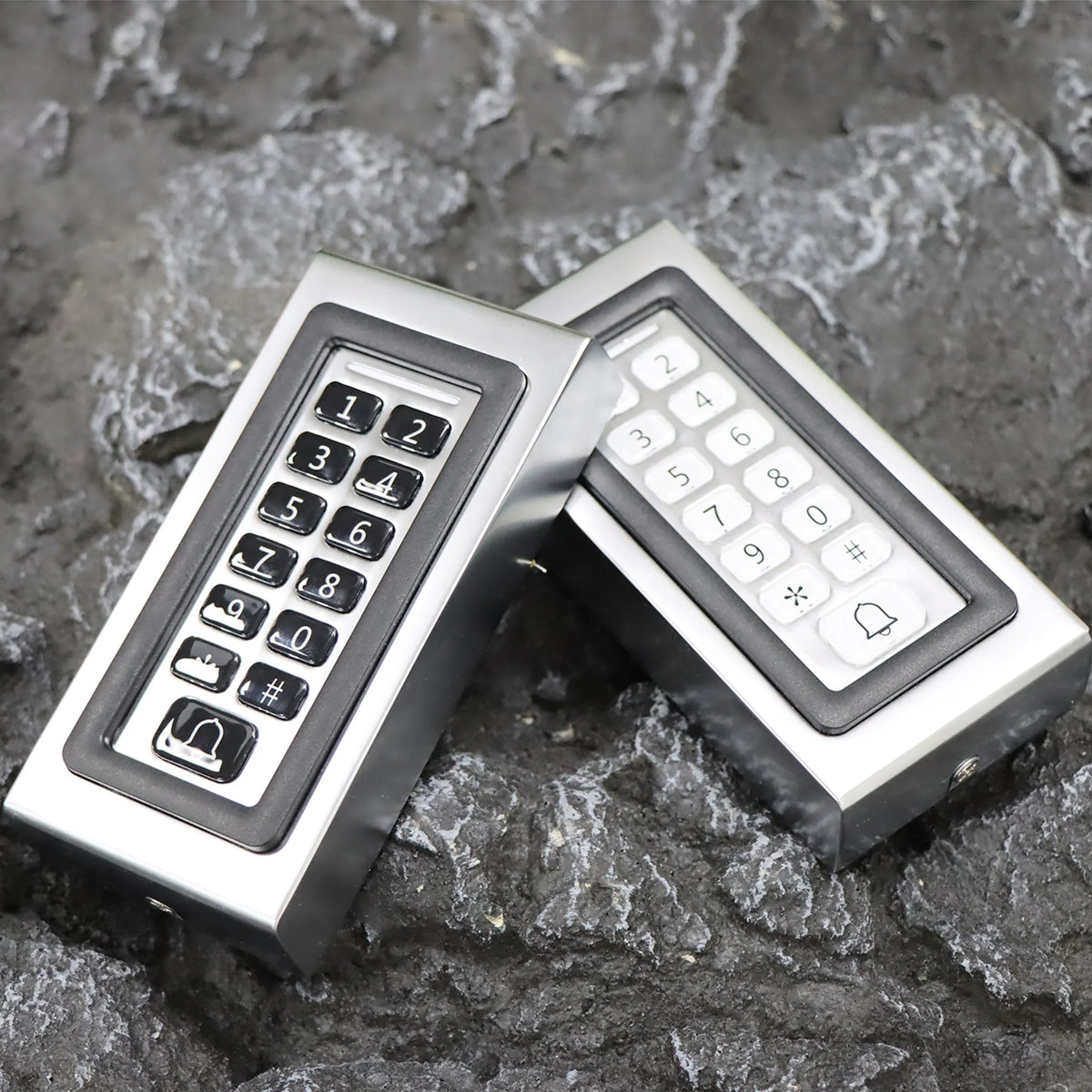

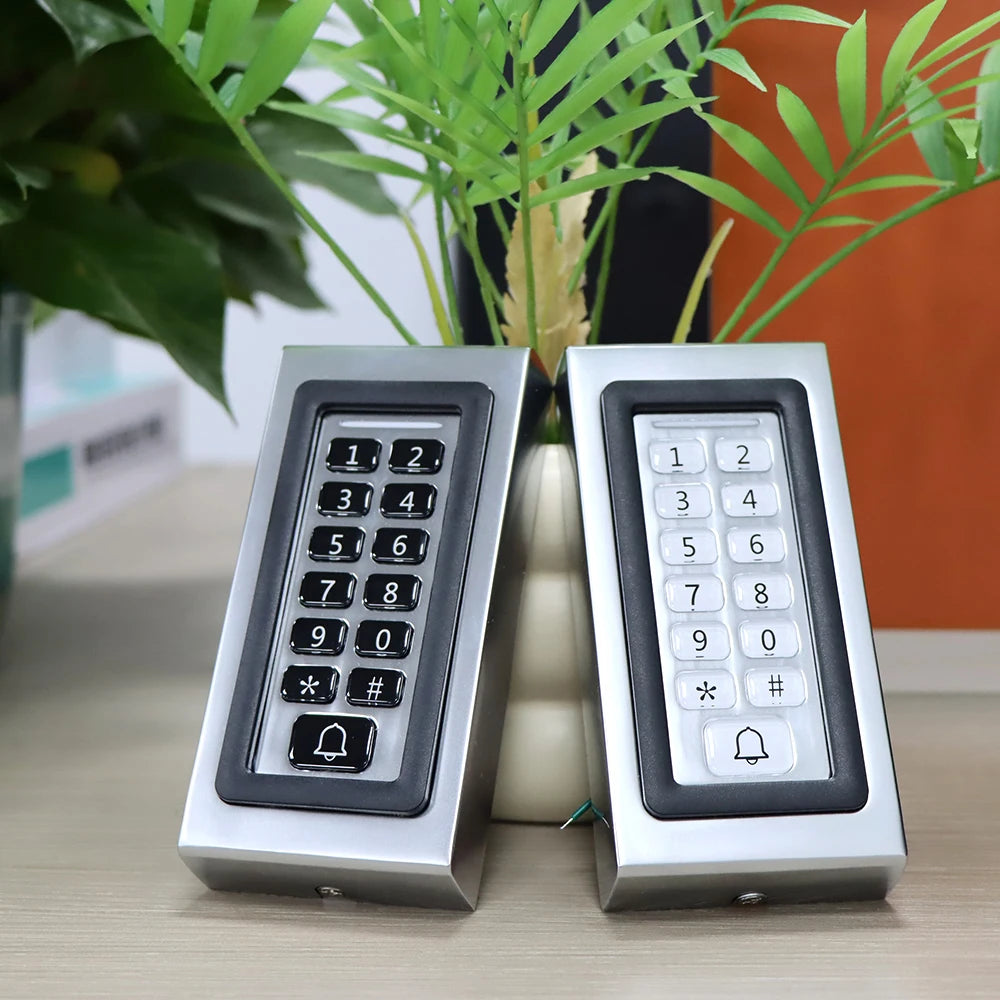

Take command of your property's entry points with the Asia-Teco SK606 Standalone Access Controller. Built from a rugged zinc alloy metal housing with crystal numeric buttons, this outdoor keypad combines a built-in 125 KHz EM/RFID proximity card reader with a PIN code entry system — delivering flexible, multi-layered access control for homes, offices, gates, and commercial doors. Rated IP67 waterproof and CE/FCC certified, it withstands the elements while keeping your entry points secure around the clock.

Key Features

• 3-in-1 Entry Modes: PIN code only, 125 KHz EM card only, or PIN + card combined for maximum versatility
• Up to 1,500 Users: Store and manage up to 1,500 individual card or PIN credentials

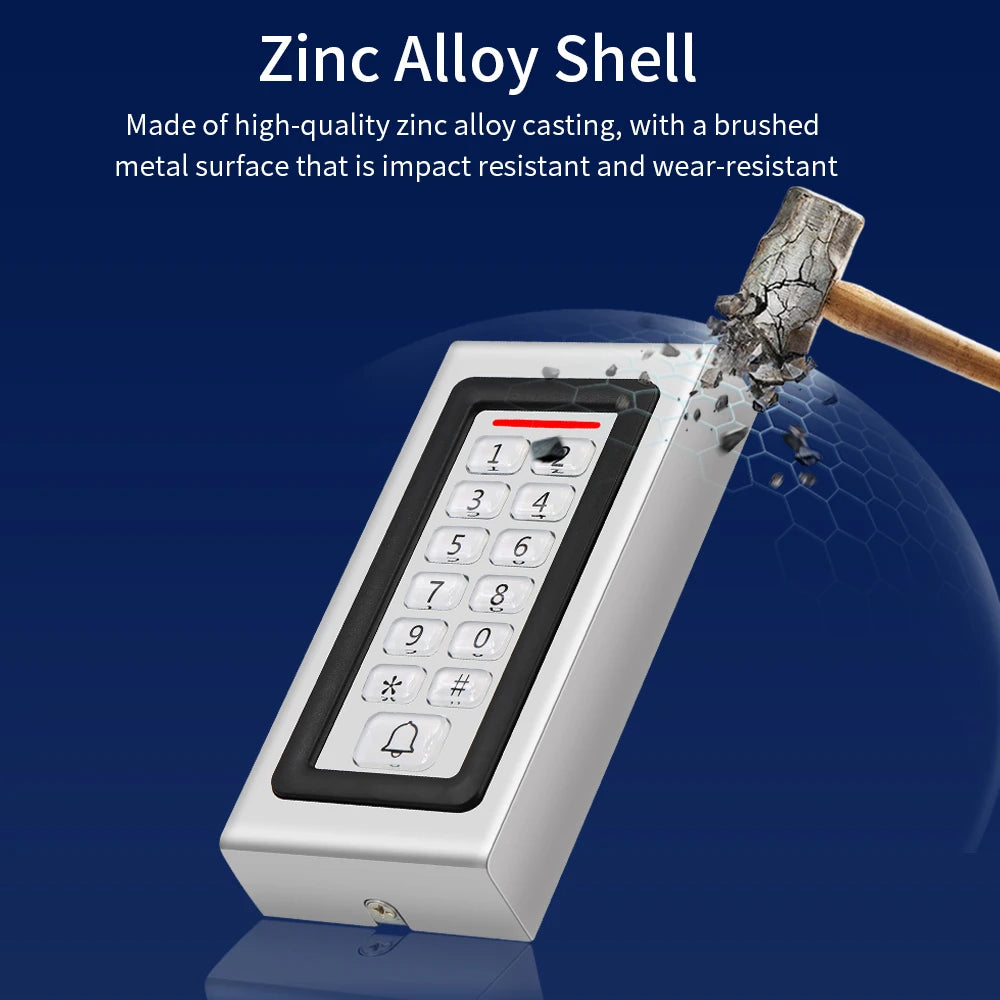

• Zinc Alloy Metal Body: Tough, tamper-resistant enclosure with elegant crystal backlit keypad
• IP67 Waterproof Rating: Fully protected against dust ingress and temporary submersion — perfect for outdoor gates and entrances
• Wiegand 26 Output: Industry-standard interface for easy integration with access control panels and systems

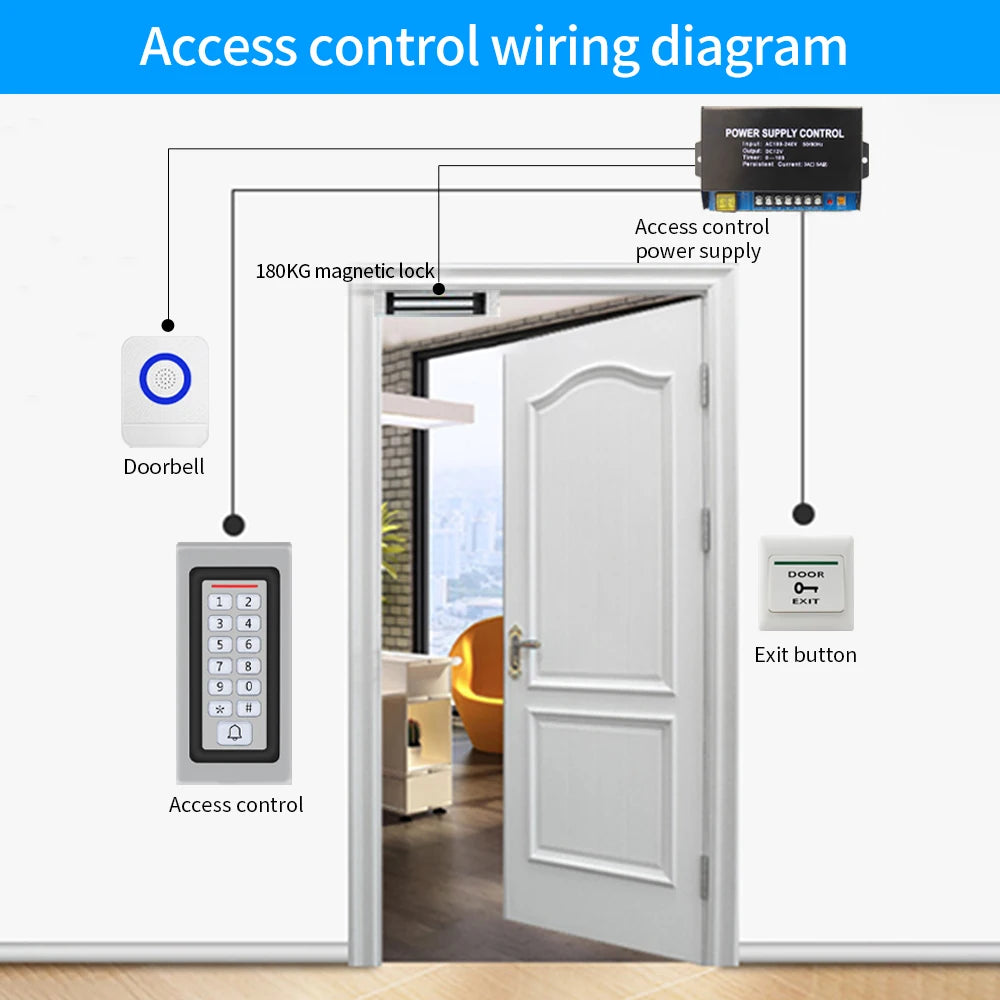

• Lock Relay Output: Supports both NO (Normally Open) and NC (Normally Closed) lock configurations
• 8 Auxiliary Modes: Includes door ajar, forced door, shunt, door monitor, normal/secure, and more
• 3 User Levels: Normal user, secure user, and master user for tiered access management
• Built-in Bell Button: Connect to an external doorbell or chime with ease
• Programmable Backlight: Stay on, stay off, or automatic (normally open / normally closed / auto modes)
• 2 Status LED Indicators: Instant visual feedback for status and programming
• Internal Buzzer: Audible confirmation for keypad entries and system alerts
• Programmable Lock Strike Release Time: Customise the door release duration to suit your setup
• Auxiliary Input & Output: Flexible connectivity for additional security peripherals
• CE & FCC Certified: Meets international safety and electromagnetic compliance standards

Technical Specifications

• Brand: Asia-Teco
• Model: SK606
• Card Frequency: 125 KHz ASK modulation (EM/ID card compatible)
• User Capacity: 1,500 standard users
• Interface: Wiegand 26
• Waterproof Rating: IP67
• Housing Material: Zinc alloy metal
• Certifications: CE, FCC
• Country of Origin: Made in China

Ideal For

The SK606 is perfectly suited for residential gates, office doors, apartment buildings, warehouses, parking lots, and any secured entry point that requires reliable, weatherproof access control with multiple credential options.

For more information on best practices for electronic access control systems, visit the U.S. Consumer Product Safety Commission (CPSC) for safety guidelines on electronic devices.

Frequently Asked Questions

Q: What types of RFID cards are compatible with the Asia-Teco SK606 access control keypad?

A: The SK606 is compatible with standard 125 KHz EM/ID proximity cards and key fobs using ASK modulation. It does not support 13.56 MHz (Mifare) cards. Make sure your cards or fobs operate at 125 KHz for full compatibility.

Q: Can the SK606 keypad be used outdoors in rain or harsh weather?

A: Yes. The SK606 carries an IP67 waterproof rating, meaning it is fully protected against dust and can withstand temporary immersion in water. Its zinc alloy metal body further ensures durability against physical impact and environmental exposure, making it an excellent choice for outdoor gates and entrances.

Q: How does the Wiegand 26 output work and what can I connect it to?

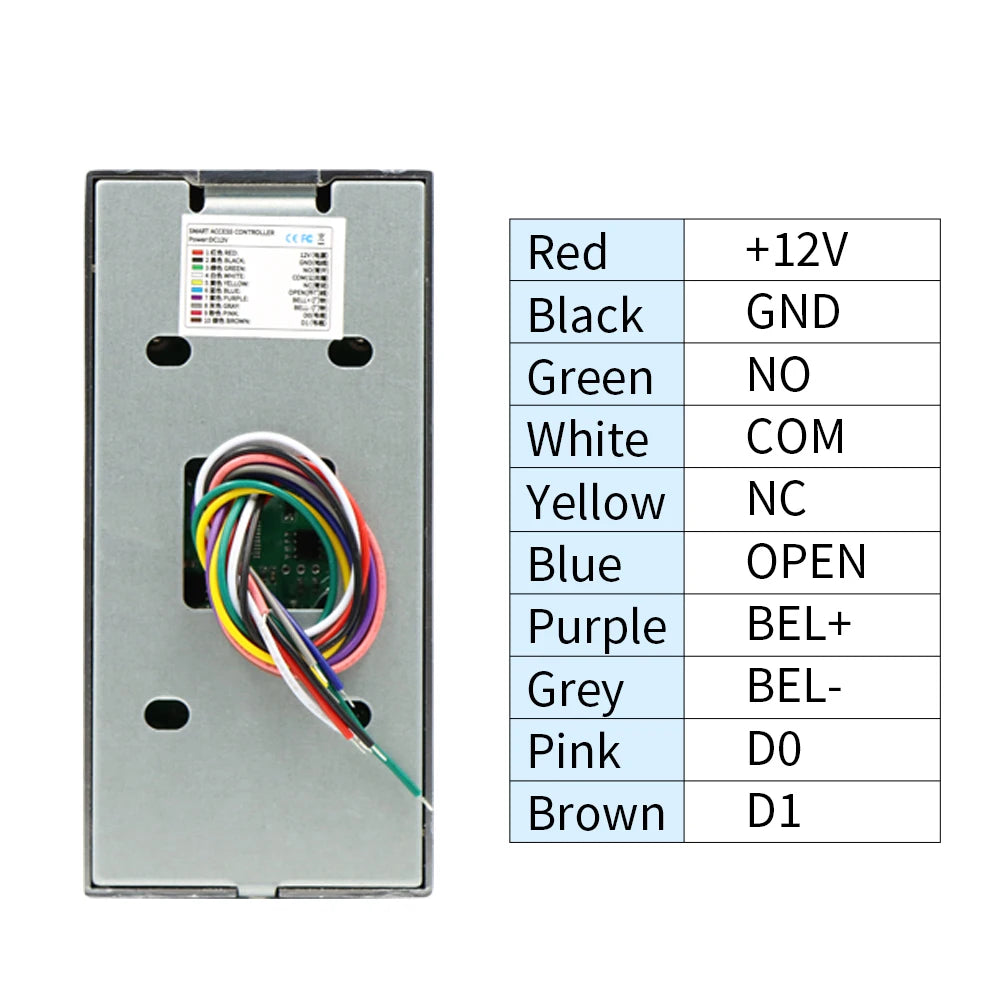

A: Wiegand 26 is an industry-standard communication protocol used in access control systems. The SK606's Wiegand 26 output allows it to connect seamlessly to compatible access control panels, door controllers, and security systems. Simply wire the DATA0 and DATA1 lines to your panel for integrated operation.

Q: How many users can be stored on the SK606, and how do I add or delete cards?

A: The SK606 supports up to 1,500 individual users. Cards and PIN codes can be added or deleted directly via the keypad using the master programming mode — no computer software is required for basic user management.
