JCSMARTS RFID Hotel Door Lock – Smart Card Access System

JCSMARTS RFID Hotel Door Lock – Intelligent Card Access for Hotels, Apartments & Offices

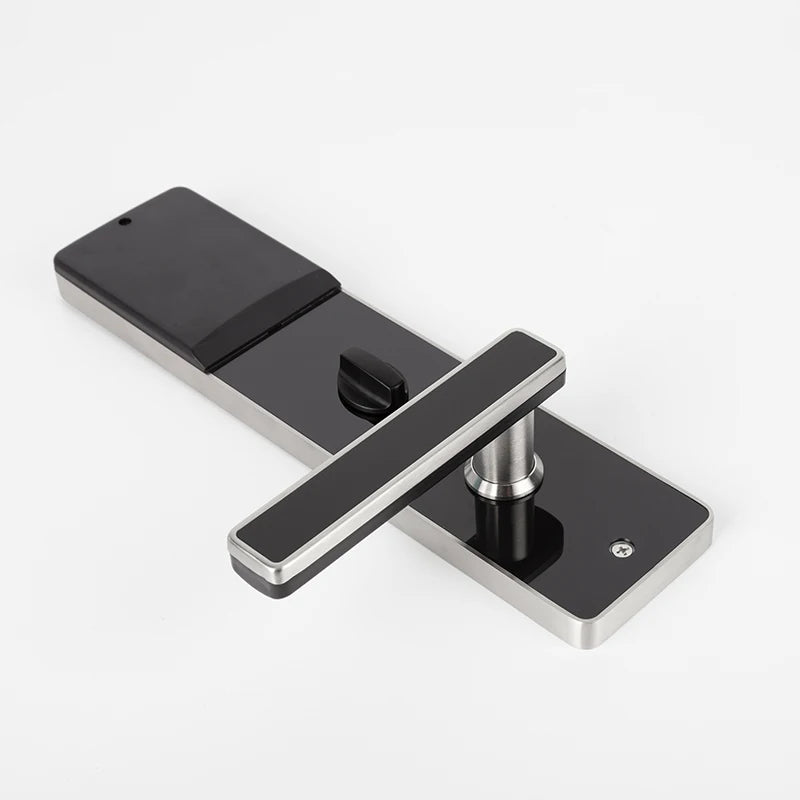

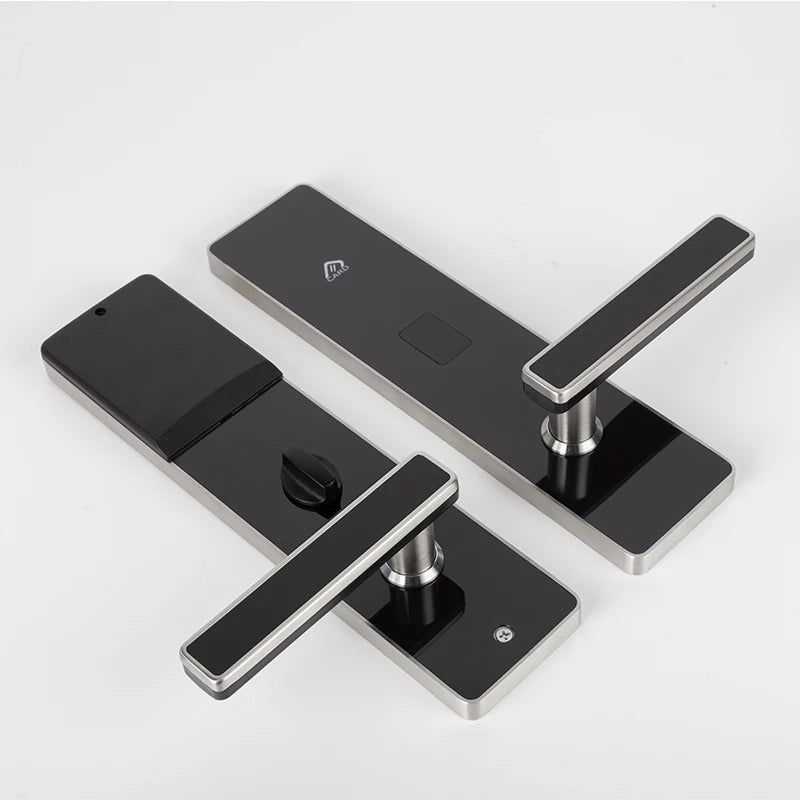

Upgrade your property's security with the JCSMARTS RFID Hotel Door Lock (Model JCHDSR902) — a CE-certified, zinc alloy smart lock engineered for hotels, apartments, offices, schools, and villas. Featuring a robust 5-bolt lock tongue structure and triple-mute lock body, this electronic lock delivers quiet, reliable, and keycard-based access management with a sleek polished finish in silver or gold.

Key Features & Advantages

• 5-Bolt USA-Standard Lock Core – Hierarchical access management for maximum security
• Triple Mute Lock Body – Near-silent operation for a professional environment
• RFID Card + Mechanical Key Access – Unlock via T5557/T5577 RF card, ID card, or traditional mechanical key
• Anti-Static & Anti-Interference Board – Built-in error correction for consistent performance
• Damp-Proof & Dust-Proof Circuit – Pre-treated before shipping for long-lasting durability
• No Power-Off Data Loss – Lock information is retained even when batteries are depleted
• Internal Clock – Controls key card validity periods automatically
• Low Voltage Warning – Alerts you before batteries run out
• Up to 15,000 Unlock Cycles – Built for high-traffic commercial use
• Stores Last 255 Unlock Records – Easy audit trail for property managers
• Fits Door Thickness 36–60mm – Compatible with most standard wooden doors
• Clean Face Design – No exposed rivets or plastic parts for a premium look

Technical Specifications

Hotel IC Card Lock System – What You Need

For a complete hotel lock deployment, the following components are recommended:

• Management Software – Supports English and Thai (additional languages in development). Simulates full front-desk workflows: pre-booking, check-in, room extension, room swap, check-out, and lost card reporting. Win32 Dynamic Library available for custom software integration.
• Card Encoder – Required for issuing guest room cards. Supports multiple simultaneous encoders for larger reception desks.
• Handheld PDA – Optional but recommended. Pre-load all room data on PC, then batch-install locks with the PDA. Also used to sync lock time, view opening records, and upgrade firmware.
• RF Cards – T5557 or M1 cards (not included in standard lock packing). Custom printed cards with your hotel logo available on request.

Optional System Add-Ons

• Energy Saving Switch – Activates room power when a valid card is inserted; reduces utility consumption.
• Public Door Access Reader – Allows guest room cards to open shared entrance doors.
• Elevator Controller – Requires guests to present their room card to activate the elevator for added security.

ID Card Lock Mode (No Software Required)

Ideal for apartments, offices, and schools, the ID card mode requires no software or card encoder. Each lock ships with 1 Master Card and 3 Blue Key Fob User Cards. Simply use the Master Card to add or remove user cards as needed — no technical expertise required.

What's in the Box

• 1× RFID Hotel Door Lock (JCHDSR902)
• 1× Master Card
• 3× Blue Key Fob User Cards
• Mechanical backup keys
• Mounting hardware & installation accessories

Note: RF cards are NOT included with hotel IC card lock orders. Please contact us before ordering hotel locks to confirm configuration details, door opening direction, and door thickness.

Before You Order – Please Confirm:

1. Lock color preference: Silver or Golden

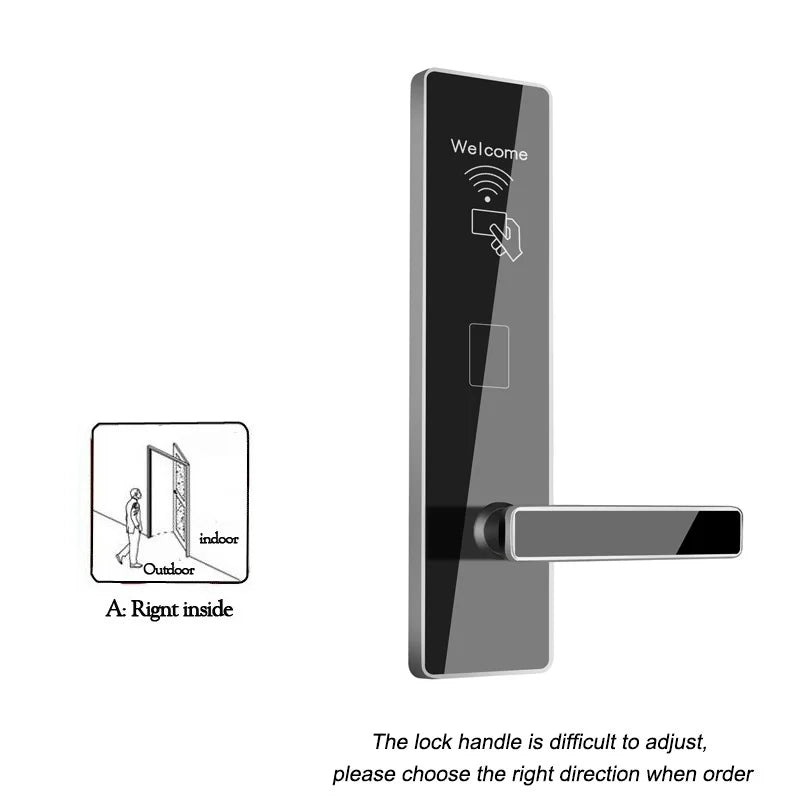

2. Door opening direction (left-hand or right-hand)
3. If your door already has pre-drilled holes, contact us to verify compatibility with existing mortise dimensions

For guidance on commercial building security standards and best practices for access control, refer to the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What type of cards does the JCSMARTS RFID hotel door lock support?

A: The JCHDSR902 RFID hotel door lock supports T5557 and T5577 RF cards, as well as standard ID cards. For hotel deployments, a card encoder is required to issue programmed room cards. The ID card mode (no encoder needed) ships with 1 Master Card and 3 key fob user cards for easy standalone use in apartments and offices.

Q: Does this RFID door lock require wiring or an external power source?

A: No wiring is needed. The lock is powered by 4× AA dry batteries (6V total), making installation straightforward with no electrical work required. A low voltage warning function alerts you when batteries need replacing, and all lock data is retained even when the batteries are depleted.

Q: What door types and thicknesses is this smart lock compatible with?

A: The JCSMARTS RFID hotel door lock is designed for wooden doors with a thickness of 36–60 mm. It is installed via a standard drilling method. If your door already has pre-drilled holes from a previous lock, please contact the seller before ordering to confirm that the existing mortise dimensions are compatible.

Q: Can this lock be used as part of a full hotel management system?

A: Yes. The lock integrates seamlessly with JCSMARTS' hotel management software, which supports check-in/check-out workflows, multi-level card management (management, floor, cleaning, and room cards), lost card cancellation, and detailed reporting. Optional add-ons include energy-saving switches, public door access readers, and elevator controllers for a comprehensive property access solution.

Q: What is the warranty on the JCSMARTS RFID door lock?

A: All JCSMARTS RFID hotel door locks come with a 3-year warranty. Upon receiving your package, please inspect it immediately and photograph any damage. If you experience any issues, contact the seller directly for support — direct communication is the fastest way to resolve any concerns.
