Asia-Teco Mini Metal RFID & Fingerprint Access Control Reader — IP66 Waterproof, 3000 Cards + 100 Fingerprints

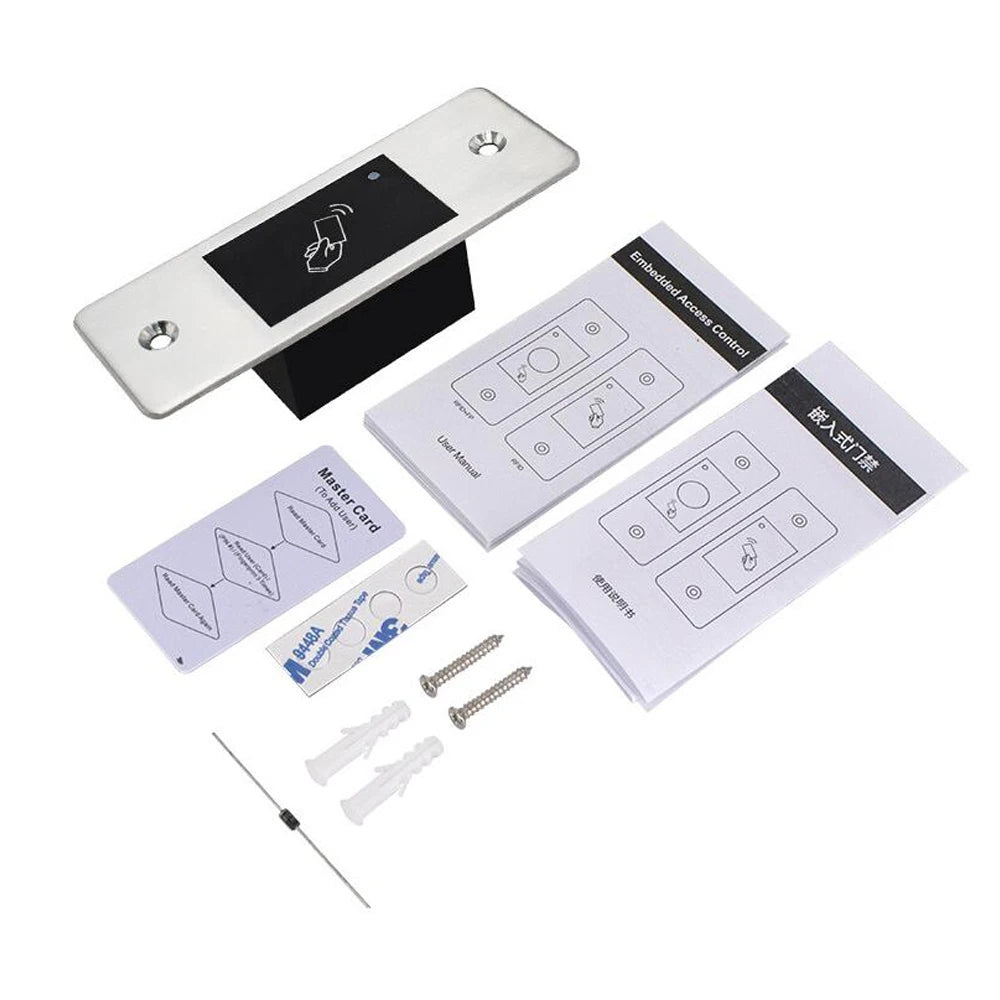

Upgrade your entry points with the Asia-Teco Standalone RFID & Fingerprint Access Control Reader (Model S99/F99). Built into a rugged zinc-alloy metal housing with a slim embedded design, this keyless door opener is engineered for both indoor and outdoor installations. Whether you're securing an office, warehouse, gate, or residential door frame, this compact unit delivers reliable, keyless entry using 125KHz EM proximity cards and semiconductor live-fingerprint identification — with no keys to lose and no codes to forget.
Made in Mainland China.
Key Features
- Dual Authentication Modes: Supports up to 100 fingerprints and 3,000 proximity cards (125KHz EM) for flexible multi-user access management.
- IP66 Weatherproof Rating: Zinc-alloy metal case fully meets IP66 standards — dust-tight and protected against powerful water jets, ideal for outdoor gates and exposed entryways.
- Wide Voltage Input: Operates on DC 9–18V, compatible with most standard access control power supplies.
- Semiconductor Live Fingerprint Detection: Advanced fingerprint sensing quickly verifies authorized users and rejects non-live or copied prints.

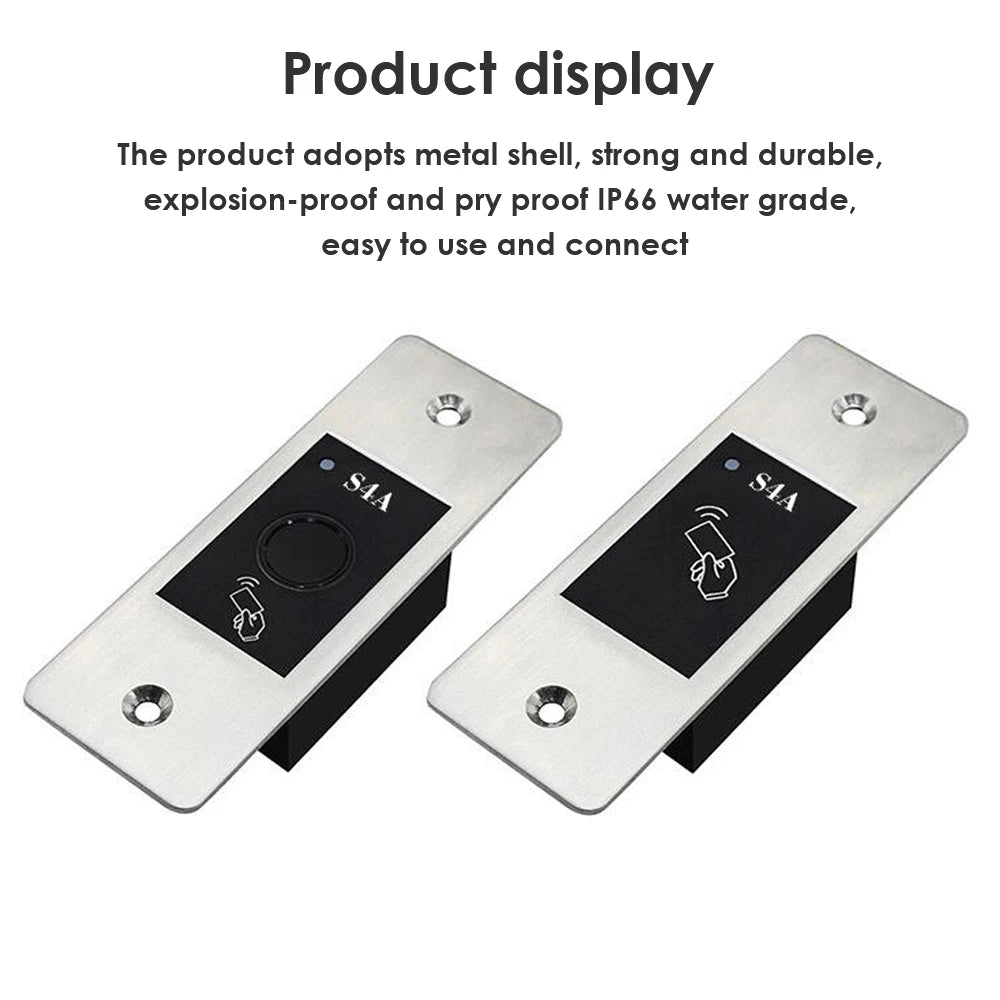

- Embedded / Flush-Mount Design: Ultra-slim profile (115 × 40 × 30 mm) mounts cleanly into door frames for a professional, tamper-resistant finish.
- Latch Mode: Hold-open function keeps a door or gate unlocked for extended access periods — perfect for deliveries or events.
- Tri-Color LED Status Display: Clear visual feedback for granted access, denied access, and standby modes.
- Relay Output: Single relay (NO / NC / Common) with up to 2A lock output load — compatible with electric strikes, magnetic locks, and electric bolts.
- Fail-Secure Mode: Maintains the locked state if power is interrupted, keeping your premises protected at all times.
- Wide Operating Range: Functions reliably from -25°C to 60°C (-13°F to 140°F) and 20%–98% relative humidity.
Technical Specifications
| Model | S99 / F99 |
| Card Capacity | 3,000 Cards |
| Fingerprint Capacity | 100 Fingerprints |
| Card Type | 125KHz EM Proximity Card |
| Read Range | ~2 cm |
| Operating Voltage | DC 9–18V |
| Idle Current | ≤25 mA |
| Active Current | ≤100 mA |
| Relay | 1× (NO, NC, Common) |
| Lock Output Load | 2A Maximum |
| Wiring Connections | Relay Output, Exit Button |
| Security Mode | Fail Secure |
| Weatherproofing | IP66 |
| Operating Temperature | -25°C to 60°C (-13°F to 140°F) |
| Operating Humidity | 20%RH – 98%RH |
| Housing Material | Zinc-Alloy Metal |
| Color | Silver |
| Dimensions | 115 × 40 × 30 mm |
| Country of Origin | Made in Mainland China |
Ideal Applications
- Office and commercial building entryways
- Residential front or back doors and gates
- Warehouses, server rooms, and storage facilities
- Outdoor gates and perimeter access points
- Any location requiring multi-user keyless entry
Learn More About Access Control Standards
For guidance on physical access control systems and security best practices for buildings, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: How many users can this RFID fingerprint access control reader support?
A: The Asia-Teco S99/F99 supports up to 3,000 proximity card users and 100 fingerprint users, making it well suited for small-to-medium businesses, offices, and residential multi-unit properties with varying access needs.
Q: Is this access control reader suitable for outdoor use?
A: Yes. The unit is rated IP66, meaning it is fully dust-tight and protected against powerful water jets. Combined with its zinc-alloy metal housing and operating temperature range of -25°C to 60°C, it is designed to perform reliably in exposed outdoor environments including gates, fences, and building exteriors.
Q: What type of cards does this reader accept?
A: This reader is compatible with 125KHz EM proximity cards, one of the most widely used card formats in access control systems. Standard EM4100/4102 cards and key fobs that operate at 125KHz will work with this unit.
Q: What happens if there is a power outage — will the door stay locked?
A: Yes. The unit operates in Fail Secure mode, which means the door lock remains engaged (locked) in the event of a power loss, ensuring your premises stay protected even during an outage.
Q: What lock types is this access control reader compatible with?
A: The reader includes a single relay output (NO / NC / Common) with a maximum lock output load of 2 Amps. It is compatible with most 12V or 24V electric strikes, electromagnetic locks (maglocks), and electric bolt locks that fall within this current rating.
