RFID Fingerprint Keypad Door Access Control – TTLock App

Smart Access Control with Fingerprint, RFID & TTLock App

Take full command of who enters your space with the LUCKING DOOR RFID Fingerprint Access Control Keypad. This sleek, waterproof smart entry system combines biometric fingerprint scanning, IC card reading, PIN code entry, and Bluetooth smartphone control — all managed through the intuitive TTLock app on iOS or Android. Whether securing an office, warehouse, rental property, or home entrance, this keypad delivers professional-grade access management in a compact, durable package.

Made in Mainland China.

Key Features

• Multiple Access Modes: Unlock via fingerprint, 13.56MHz RFID/IC card, PIN code, TTLock smartphone app, or remote control — maximum flexibility for every user.
• TTLock App Control: Add or delete users, set access schedules, check entry records, and manage permissions remotely — all from your phone. Compatible with Android 4.3+ and iOS 7.0+.
• Biometric Fingerprint Scanner: Stores up to 100 fingerprints for fast, keyless entry.
• RFID IC Card Reader: Supports 13.56MHz Mifare/M1 cards with a capacity for up to 200 card users.
• PIN Code Access: Up to 150 custom passwords and 150 dynamic (one-time) passwords for temporary or guest access.

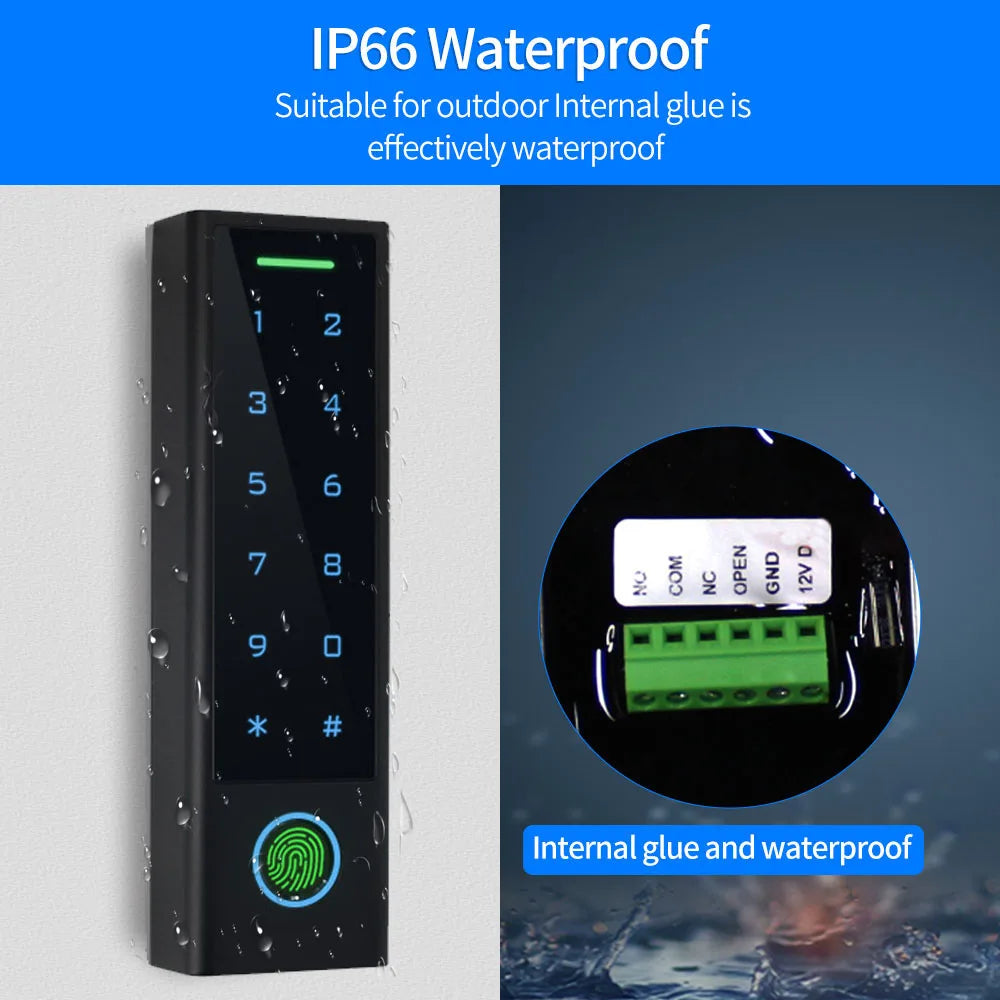

• IP66 Waterproof Rating: Built to withstand rain, dust, and harsh outdoor conditions — ideal for exterior doors and gates.
• Capacitive Touch Keypad: Responsive, backlit touch keys for easy use day or night.
• Smart Home Integration: Compatible with Amazon Alexa and Google Assistant for voice-activated control.

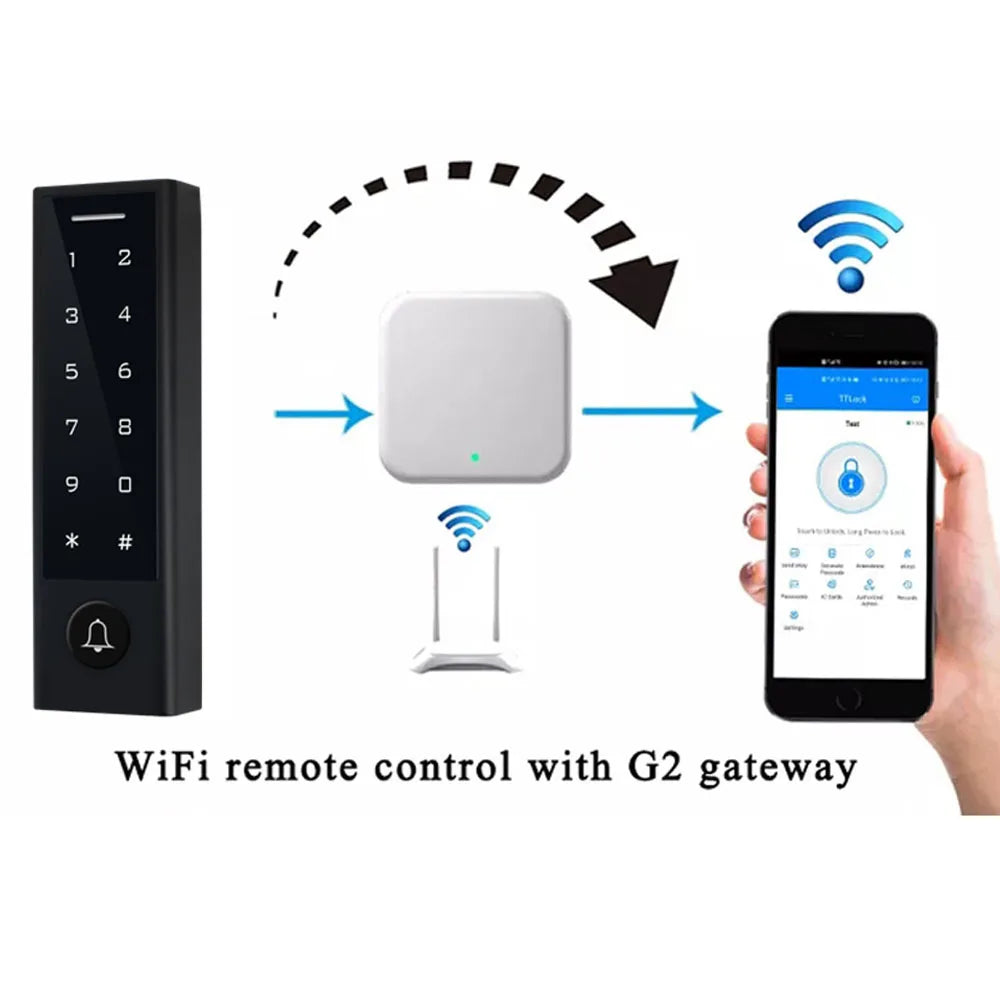

• Wi-Fi Remote Access (Optional): Add a G2 TTLock Bluetooth Gateway (sold separately) to enable full remote management over Wi-Fi from anywhere.
• Time Attendance Logging: Built-in support for time and attendance tracking — perfect for small businesses and offices.
• Wide Operating Range: Functions reliably from -20°C to +60°C (-4°F to 140°F), suitable for extreme climates.
• CE, FCC & RoHS Certified: Meets international safety and environmental standards.
• Multi-Language Support: Available in English, Spanish, French, German, Italian, Russian, Portuguese, Serbian, Malaysian, Japanese, Vietnamese, and more.

Technical Specifications

• Bluetooth: BLE 4.1
• Card Type: 13.56MHz Mifare / M1 IC Card
• Card Reading Distance: 2–4 cm
• Operating Voltage: 12V DC
• Working Current: ≤80mA
• Lock Output Load: ≤2A
• Security Mode: Fail Safe
• Housing Material: ABS
• Color: Black
• Dimensions: 148mm × 43.5mm × 22mm
• Unit Weight: 330g
• Operating Humidity: 0%RH – 85%RH
• Model: CH3-TTLOCK / CF3-TTLOCK

⚠️ Note: For remote Wi-Fi management, you will need a G2 TTLock Bluetooth Gateway (sold separately). The keypad operates via Bluetooth by default.

For general guidance on home and building security standards, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: Does this RFID fingerprint access control keypad work without a Wi-Fi connection?

A: Yes — the keypad communicates via Bluetooth (BLE 4.1) and can be managed directly through the TTLock app when your phone is within Bluetooth range. For full remote management over Wi-Fi (e.g. unlocking from another city), you will need to pair it with an optional G2 TTLock Bluetooth Gateway.

Q: How many users can I register on this access control keypad?

A: The system supports up to 100 fingerprints, 200 RFID/IC card users, 150 custom PIN codes, and 150 dynamic (one-time) passwords — making it suitable for small offices, rental properties, and team environments.

Q: Is this keypad suitable for outdoor use?

A: Absolutely. The keypad carries an IP66 waterproof rating, which means it is fully protected against powerful water jets and heavy dust ingress. It also operates reliably in temperatures ranging from -20°C to +60°C, making it suitable for most outdoor climates.

Q: Is the TTLock app free, and which devices does it support?

A: Yes, the TTLock app is free to download from the App Store and Google Play. It is compatible with Android 4.3 and above, and iOS 7.0 and above.
