RFID Fingerprint Access Control Keypad IP66 Waterproof Metal

Asia-Teco Mini Metal RFID & Fingerprint Access Control System – IP66 Waterproof, Embedded Mount

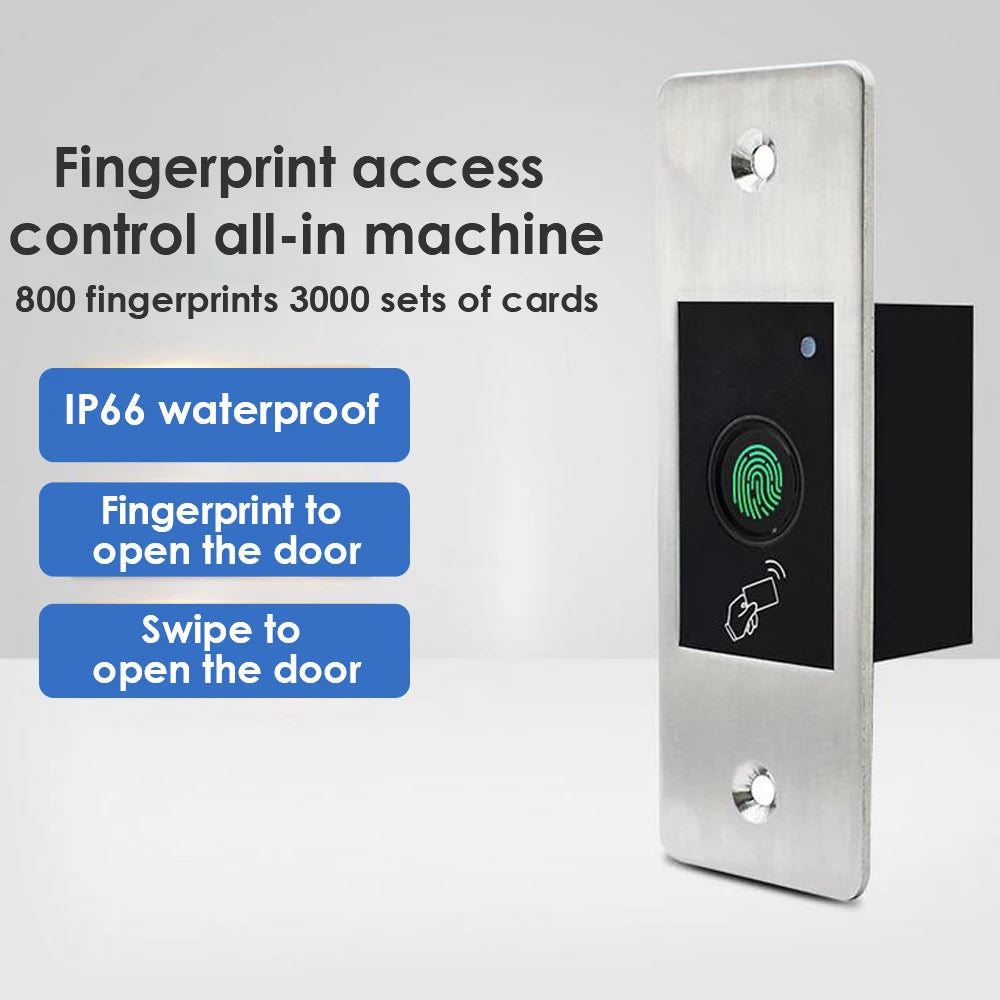

Upgrade your door security with the Asia-Teco F99 Standalone RFID & Fingerprint Access Control Keypad — a compact, heavy-duty solution built for both indoor and outdoor installations. Engineered from durable zinc-alloy metal with an IP66 waterproof rating, this keyless entry system handles everything from office doorways and gate entrances to server rooms and storage facilities. Its embedded, flush-mount design keeps your installation clean and professional-looking.

Supporting up to 3,000 proximity cards and 100 fingerprints, this standalone controller is ideal for businesses, apartment complexes, and commercial properties that need flexible, scalable access management without a network connection.

Key Features

• Dual Authentication: Supports 125KHz EM proximity cards AND semiconductor fingerprint identification for versatile, keyless entry options.
• Large User Capacity: Stores up to 3,000 card users and 100 fingerprint profiles.
• IP66 Waterproof & Weatherproof: Sealed zinc-alloy metal housing stands up to dust, rain, and extreme temperatures from -25°C to 60°C (-13°F to 140°F).
• Embedded / Flush-Mount Design: Mini profile (115 × 40 × 30 mm) installs cleanly into door frames and narrow panels.
• Latch Mode: Configurable to hold a door or gate open for extended access periods.
• Tri-Color LED Status Display: Instantly signals granted access, denied entry, or system status at a glance.
• Relay Output: Single relay (NO / NC / Common) with up to 2A output load for electric strikes, magnetic locks, and door release mechanisms.
• Fail-Secure Mode: Defaults to locked when power is cut, keeping your premises secure during outages.
• Wide Voltage Range: Operates on DC 9–18V for easy integration with standard access control power supplies.

Specifications

Who Is This For?

This access control keypad is an excellent fit for:

• Office buildings and co-working spaces
• Apartment complexes and multi-tenant properties
• Warehouses, storage units, and server rooms
• Outdoor gates, fences, and perimeter entrances
• Any location requiring durable, weatherproof keyless entry

For more information on physical security best practices and electronic access control standards, visit the NIST Physical Security Resources.

Frequently Asked Questions

Q: Does this RFID fingerprint access control keypad work outdoors?

A: Yes. The Asia-Teco F99 is rated IP66, meaning it is fully protected against powerful water jets and dust ingress. Its zinc-alloy metal housing and wide operating temperature range (-25°C to 60°C) make it well-suited for outdoor gates, building entrances, and exposed door frames in virtually any climate.

Q: How many users can this access control system support?

A: The F99 supports up to 3,000 proximity card users and 100 fingerprint profiles simultaneously, making it suitable for medium-to-large commercial installations without the need for network-connected management software.

Q: What type of lock can I connect to this keypad?

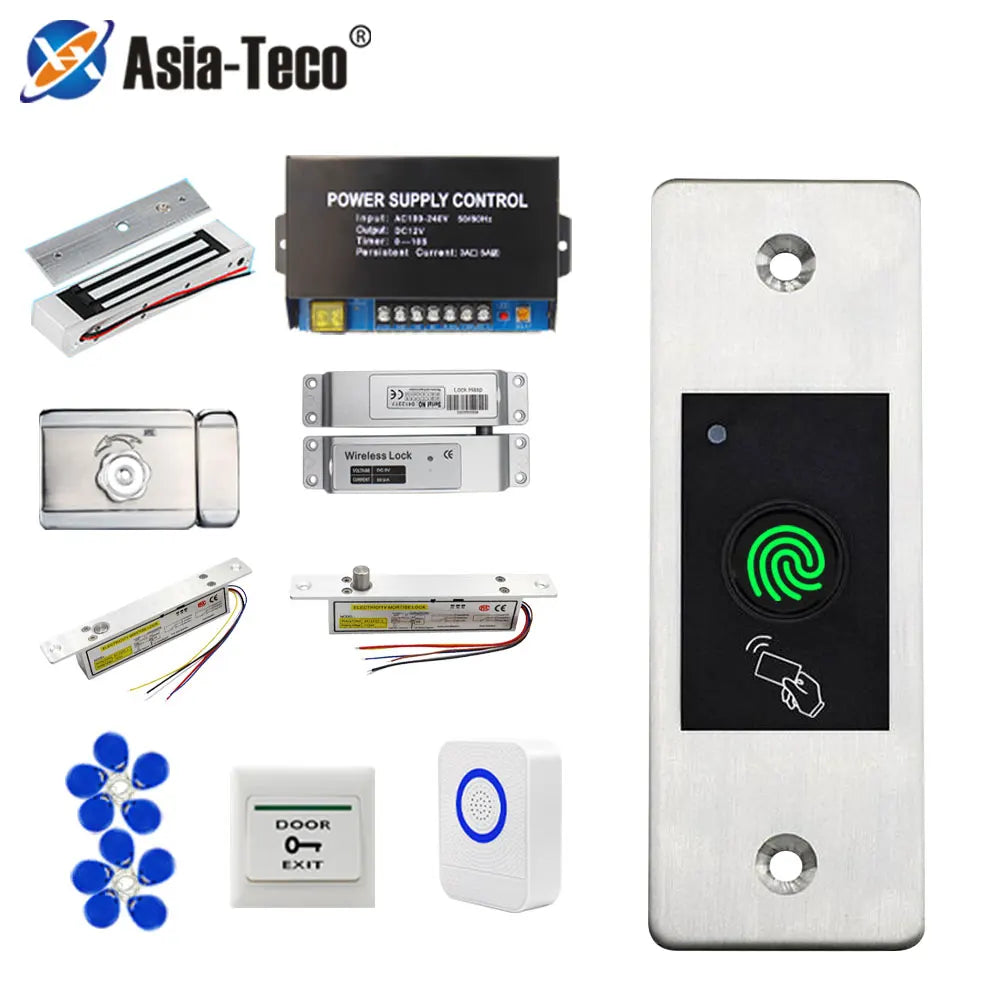

A: The F99 features a single relay output (NO / NC / Common) rated at up to 2 amps. This is compatible with most standard electric strike locks, electromagnetic locks (mag-locks), and electric deadbolt releases powered within the relay's load capacity. Always verify your lock's power requirements before wiring.

Q: Does the unit retain user data if the power goes out?

A: Yes. The F99 operates in Fail-Secure mode — when power is lost, the door remains locked and all stored card/fingerprint data is retained in non-volatile memory. Access is restored automatically when power returns without needing to re-enroll users.

Q: Can I install this keypad flush into a door frame?

A: Absolutely. The F99 is specifically designed for embedded (flush/recessed) installation. Its compact 115 × 40 × 30 mm profile fits neatly into standard door frames and narrow panel cut-outs, resulting in a clean, professional finish.
