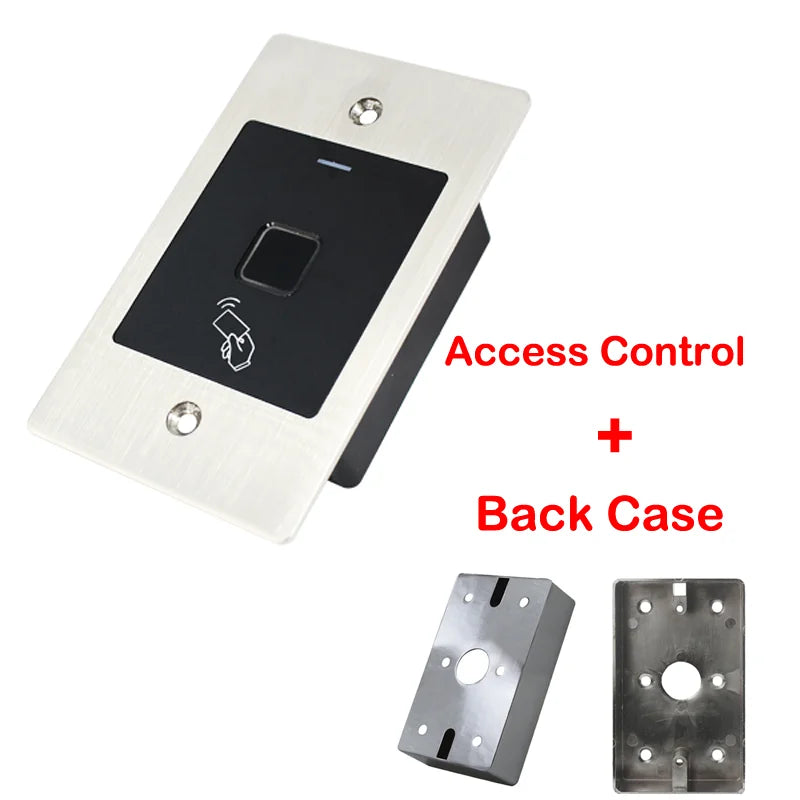

Asia-Teco EF2 Embedded RFID & Fingerprint Access Control System
Take your door security to the next level with the Asia-Teco EF2 — a robust, embedded standalone access control unit combining a 125KHz EM proximity card reader and a high-precision capacitive fingerprint sensor in a single sleek, tamper-resistant metal housing. Whether securing an office, warehouse, server room, or residential entry, this unit delivers fast, reliable, dual-mode access management for up to 1,000 users.
Made in Mainland China.
Key Features
- Dual Authentication Modes: Supports 125KHz EM proximity RFID cards and capacitive fingerprint scanning — use either or both for added security.
- 1,000-User Capacity: Stores up to 100 fingerprint users, 890 card users, and 10 visitor credentials.

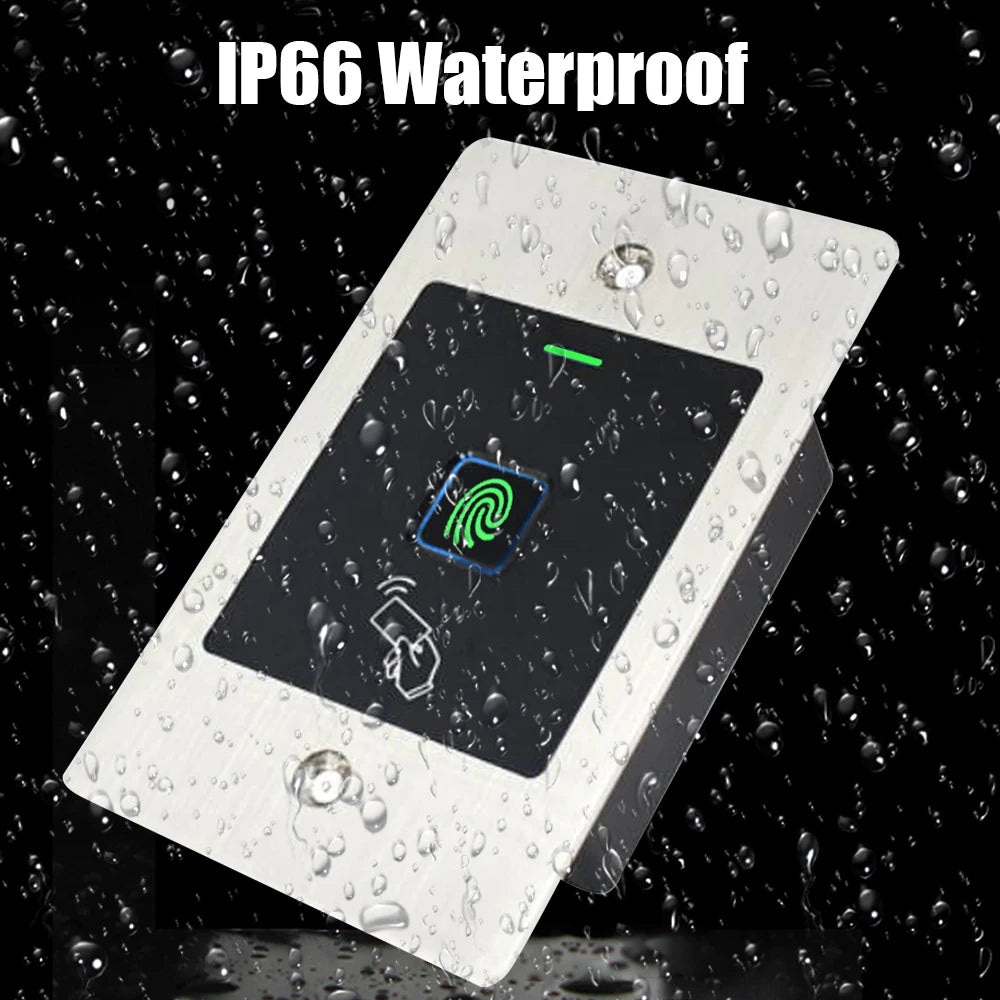

- IP66 Weatherproof Rating: Fully protected against dust ingress and powerful water jets — ideal for outdoor or exposed indoor installations.

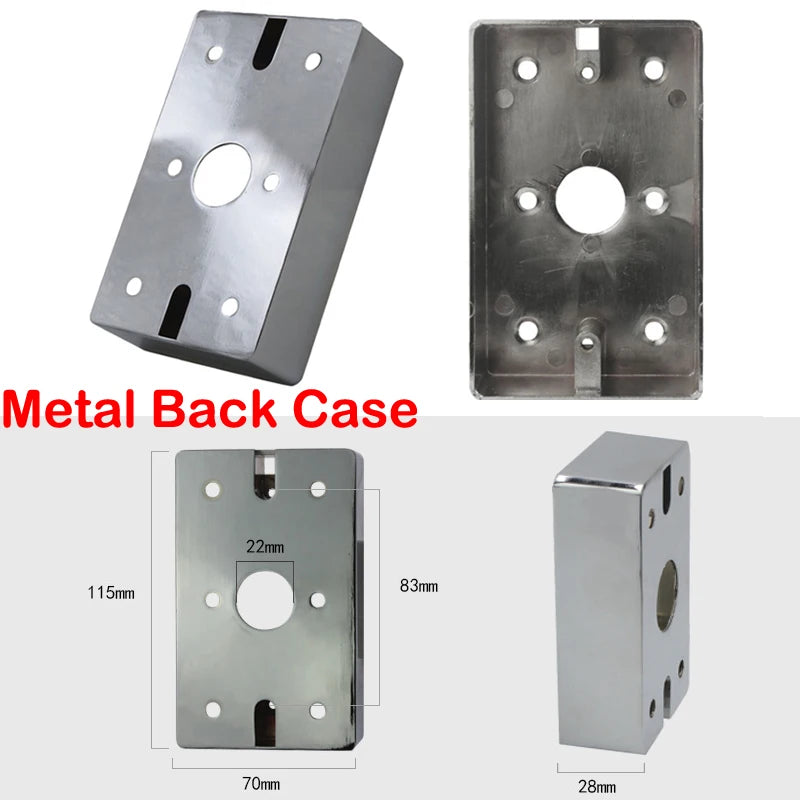

- Embedded / Flush-Mount Design: Concealed installation keeps wiring hidden and gives doors a clean, professional finish.
- Anti-Vandal Metal Case: Stainless steel plate construction resists tampering and stands up to heavy use.
- Wiegand Input & Output: Flexible integration — use as a standalone controller or connect as a Wiegand reader to a third-party access controller.
- Adjustable Relay Output: Configurable lock hold time from 0–99 seconds (default 5 seconds); supports NO, NC, and Common relay configurations up to 2A.
- Sub-1-Second Identification: Fingerprint recognition in under 1 second with FAR <1% and FRR <0.001% for accurate, frustration-free entry.
- Wide Operating Range: Functions reliably from -25°C to 60°C (-13°F to 140°F) and 10%–99% relative humidity.
- Low Power Consumption: Idle current under 30mA; active current under 150mA operating on 12–18V DC.
Full Technical Specifications
| User Capacity | 1,000 Total (100 Fingerprint + 890 Card + 10 Visitor) |
| Operating Voltage | 12–18V DC |
| Idle / Active Current | <30mA / <150mA |
| RFID Technology | 125KHz EM Proximity Card, Read Range 0–6 cm |
| Fingerprint Sensor | Capacitive Module, 500DPI, ID Time <1S, FAR <1%, FRR <0.001% |
| Wiring Connections | Relay output, Exit button, Wiegand (in & out) |
| Relay | One (NO, NC, Common) — 0–99s adjustable, 2A max load |
| Ingress Protection | IP66 |
| Operating Temperature | -25°C ~ 60°C (-13°F ~ 140°F) |
| Operating Humidity | 10%RH ~ 99%RH |
| Housing | Stainless Steel Plate — Silver, Anti-Vandal |
| Dimensions / Weight | 115 x 70 x 25mm / 245g (unit), 285g (shipped) |
| Security Mode | Fail Secure |
| Model | Asia-Teco EF2 |
What's in the Box?
- 1 × Asia-Teco EF2 Embedded RFID & Fingerprint Access Control Unit
- Mounting hardware
Helpful Resources
For guidance on physical access control security best practices, visit the Cybersecurity & Infrastructure Security Agency. You can also review general electronic security standards from NIST Identity & Access Management.
Frequently Asked Questions
Q: Can the Asia-Teco EF2 be used as a standalone unit without a separate controller?
A: Yes. The EF2 functions fully as a standalone access control unit, managing up to 1,000 users on its own. Its Wiegand input and output also allow it to be integrated as a reader with a compatible third-party access controller if preferred.
Q: Is the EF2 suitable for outdoor installation?
A: Absolutely. The EF2 carries an IP66 weatherproof rating, meaning it is fully protected against dust and powerful water jets. Combined with its wide operating temperature range of -25°C to 60°C, it is well-suited for outdoor entrances, gates, parking areas, and other exposed locations.
Q: What RFID card format does this access control reader support?
A: The EF2 is compatible with standard 125KHz EM proximity cards. It supports up to 890 card users plus 10 visitor credentials. It does not support 13.56MHz Mifare cards — ensure your existing cards or new cards are 125KHz EM format for compatibility.
Q: How quickly does the fingerprint reader identify a user?
A: The capacitive fingerprint module identifies enrolled users in under 1 second, with a False Acceptance Rate (FAR) of less than 1% and a False Rejection Rate (FRR) of less than 0.001%, providing both speed and accuracy for smooth daily access.
Q: What is "Fail Secure" mode?
A: In Fail Secure mode, the lock remains locked if power is lost. This is the preferred security mode for high-security environments as it ensures the door cannot be pushed open during a power outage. This is the opposite of "Fail Safe," where the lock releases on power loss.
