RFID Electric Strike Lock – Smart Door Access Control DC 12V
RFID Electric Strike Lock – Smart Door Access Control DC 12V

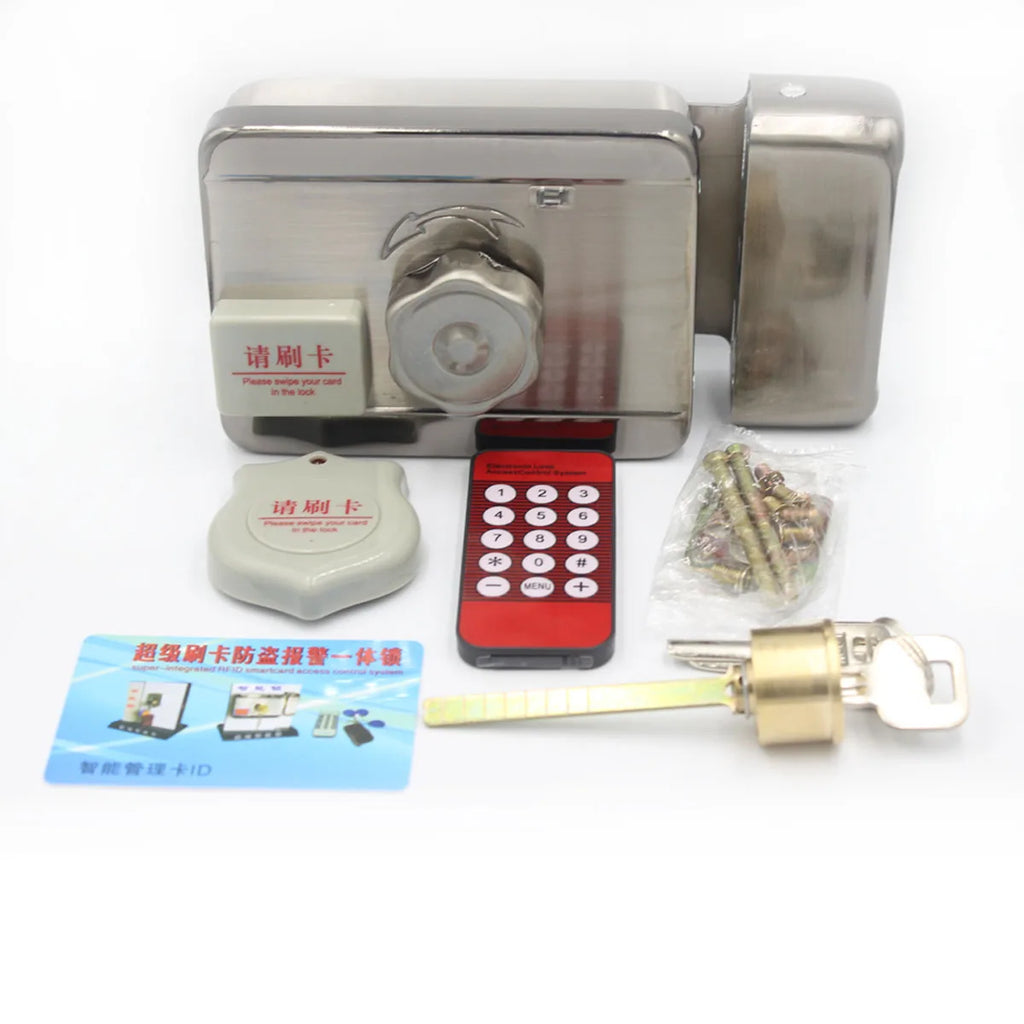

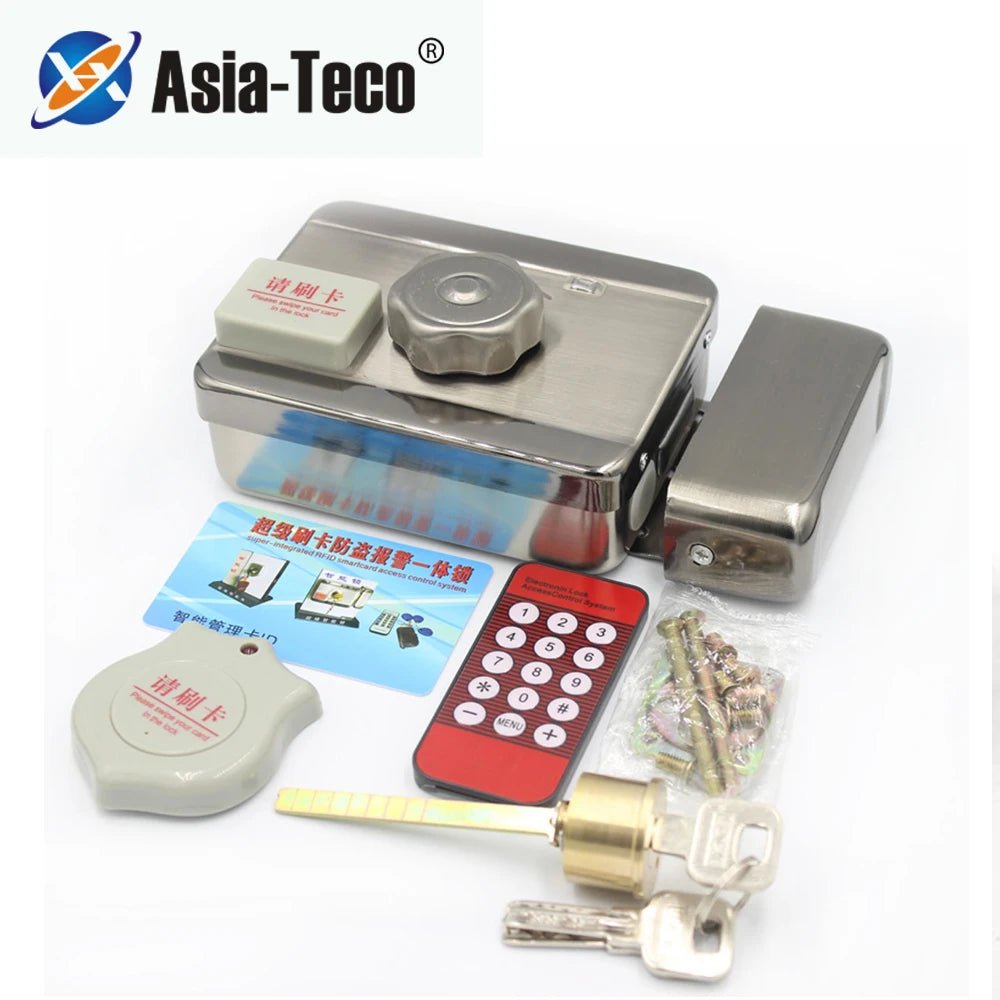

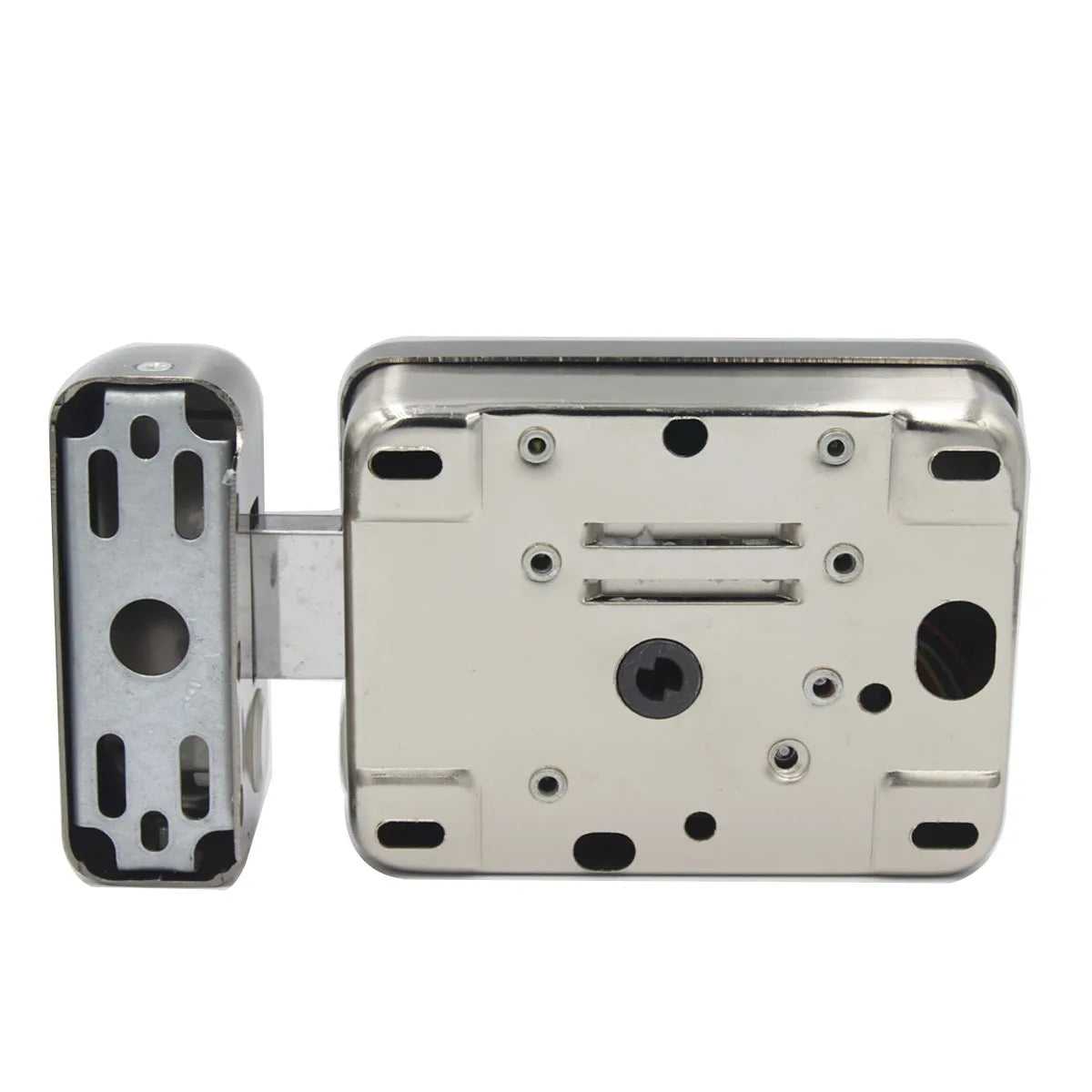

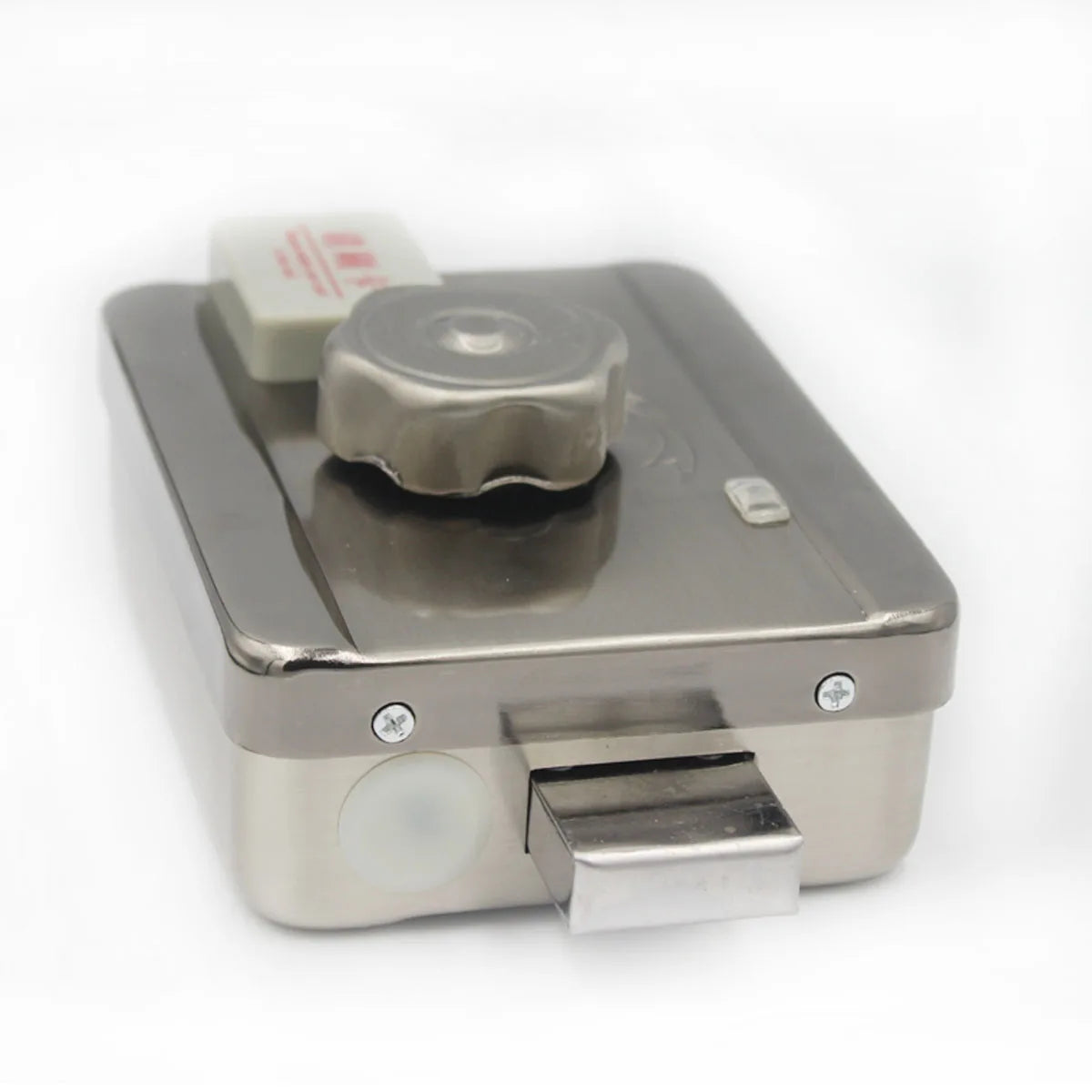

Asia-Teco RFID Electric Strike Lock – Smart Door Access Control System
Upgrade your home, office, or commercial space with the Asia-Teco Electronic RFID Electric Strike Lock (Model LK0096). This intelligent DC 12V smart lock combines magnetic induction technology with RFID keycard access, delivering effortless, keyless entry for a wide range of door types and environments.
Why Choose This Smart Electric Strike Lock?
Whether you're securing a residential building, hotel, school, factory warehouse, or public entrance, this versatile lock offers a seamless blend of convenience, durability, and advanced access control. The stainless steel wire-drawn body is corrosion-resistant and built to last, rated for up to 500,000 unlock cycles.
Key Features
- Universal Compatibility: Works with wooden, steel, and stainless steel doors — compatible with left, right, in-swing, and out-swing configurations.
- Auto-Locking: Automatically locks the door upon closing — no manual engagement required.
- Low Power Consumption: Static current of just 25mA keeps energy costs minimal while maintaining strong, reliable security.
- High Unlock Sensitivity: Unlocks in ≤1 second with virtually silent operation.

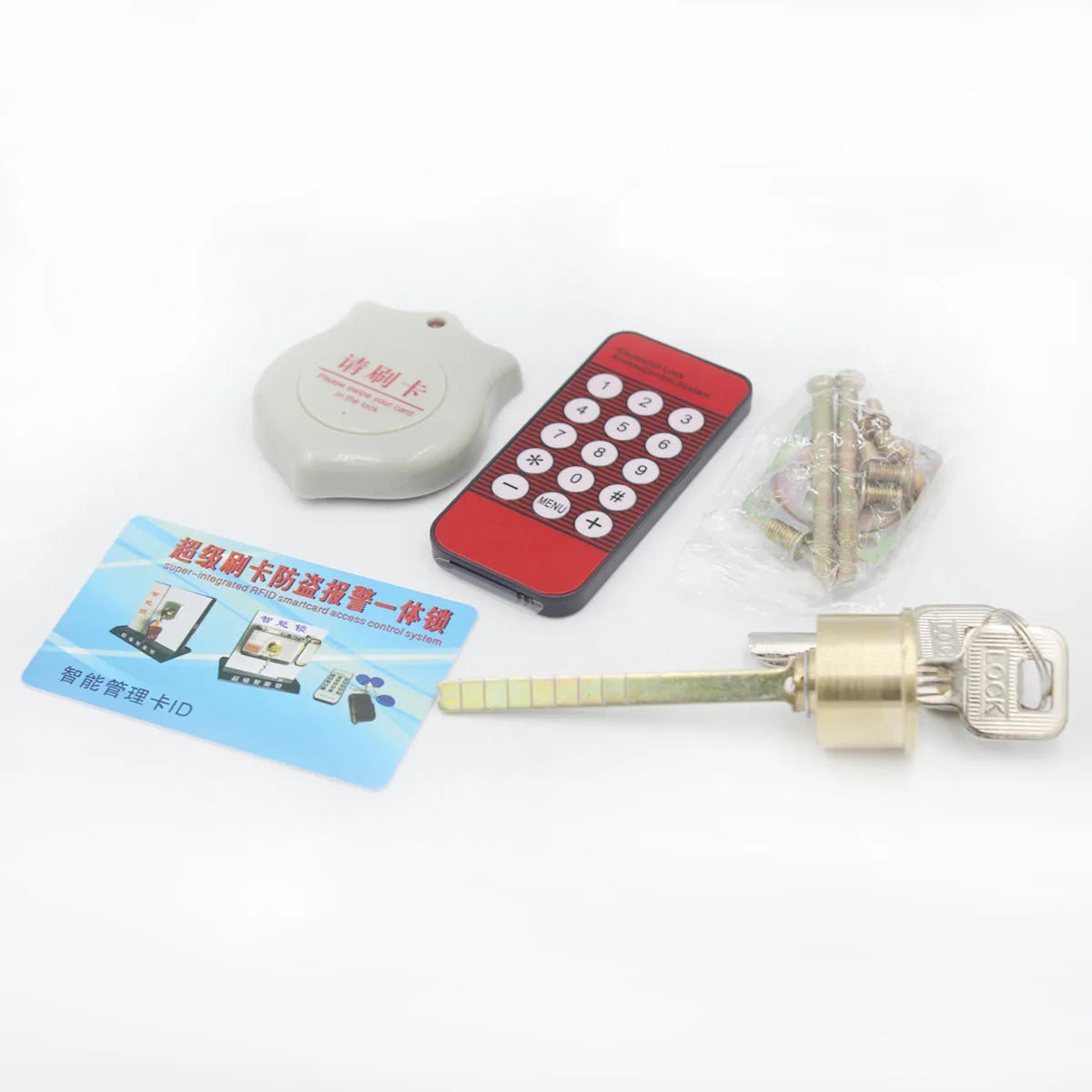

- Multiple Access Methods: Supports electrical control, RFID keycard, or physical key operation — 3 keys included.
- Power Failure Fail-Safe: Can be opened from both inside and outside with a physical key even when power is unavailable.
- Anti-Corrosion Surface Treatment: Steel wire-drawing finish resists wear and maintains a clean, professional appearance.
- Wide Operating Range: Functions in temperatures from -40°C to 50°C and humidity from 10% to 90% RH — ideal for both indoor and outdoor-facing doors.
Specifications
| Working Voltage | DC 12V – 18V |
| Unlock Current | <350mA |
| Static Current | 25mA |
| Rated Lifetime | 500,000 operations |
| Unlock Time | ≤1 second |
| Material | Stainless Steel |
| Lock Bolt Length | >20mm |
| Door Thickness | 4 – 11 cm |
| Operating Temperature | -40°C to 50°C |
| Operating Humidity | 10% – 90% RH |
| Model | LK0096 |
| Brand | Asia-Teco |
Ideal Applications
- Residential homes and apartment buildings
- Hotels and hospitality venues
- Schools and educational facilities
- Office buildings and government offices
- Factories and warehouse facilities
- Public entrances and gate systems
Made in Mainland China.
For guidance on electronic access control standards and best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What door types is this RFID electric strike lock compatible with?
A: The Asia-Teco RFID electric strike lock is compatible with wooden, steel, and stainless steel doors. It supports left-hand, right-hand, in-swing, and out-swing door configurations, making it a truly universal smart lock solution.
Q: What happens if the power goes out — will I be locked out?
A: No. This smart electric strike lock includes a manual key override. Even without power, you can open the door from both inside and outside using one of the 3 included physical keys, ensuring you are never locked out in the event of a power failure.
Q: What input power does this door access control system require?
A: The lock operates on DC 12V to 18V input power. The unlock current is less than 350mA, and the static current is only 25mA, making it energy-efficient for continuous use in residential and commercial access control systems.
Q: Is this lock suitable for outdoor or high-humidity environments?
A: Yes. With an operating temperature range of -40°C to 50°C and a humidity tolerance of 10%–90% RH, this RFID electric strike lock is built for demanding indoor and outdoor-facing environments. The anti-corrosion stainless steel body adds further durability.
