JCSMARTS RFID Keypad Electronic Cabinet Lock | Gym & Drawer
JCSMARTS RFID Keypad Electronic Cabinet Lock | Gym & Drawer
JCSMARTS RFID & Digital Keypad Electronic Cabinet Lock
Upgrade your security with the JCSMARTS JCEM2116 Electronic Cabinet Lock — a versatile, keyless locking solution that works with RFID card, numeric passcode, or both together. Ideal for gym lockers, office drawers, home cabinets, storage boxes, wardrobes, library cubbies, factory tool chests, and more. Made in Mainland China.
Why Choose This Electronic Lock?
- Triple Unlock Methods: Use a password (4–15 digits), an EM4100 RFID card, or a combined password + card for added security.
- Private & Public Modes: Switch between private mode (personal/dedicated use) and public mode (shared/rotating users) to suit any environment.

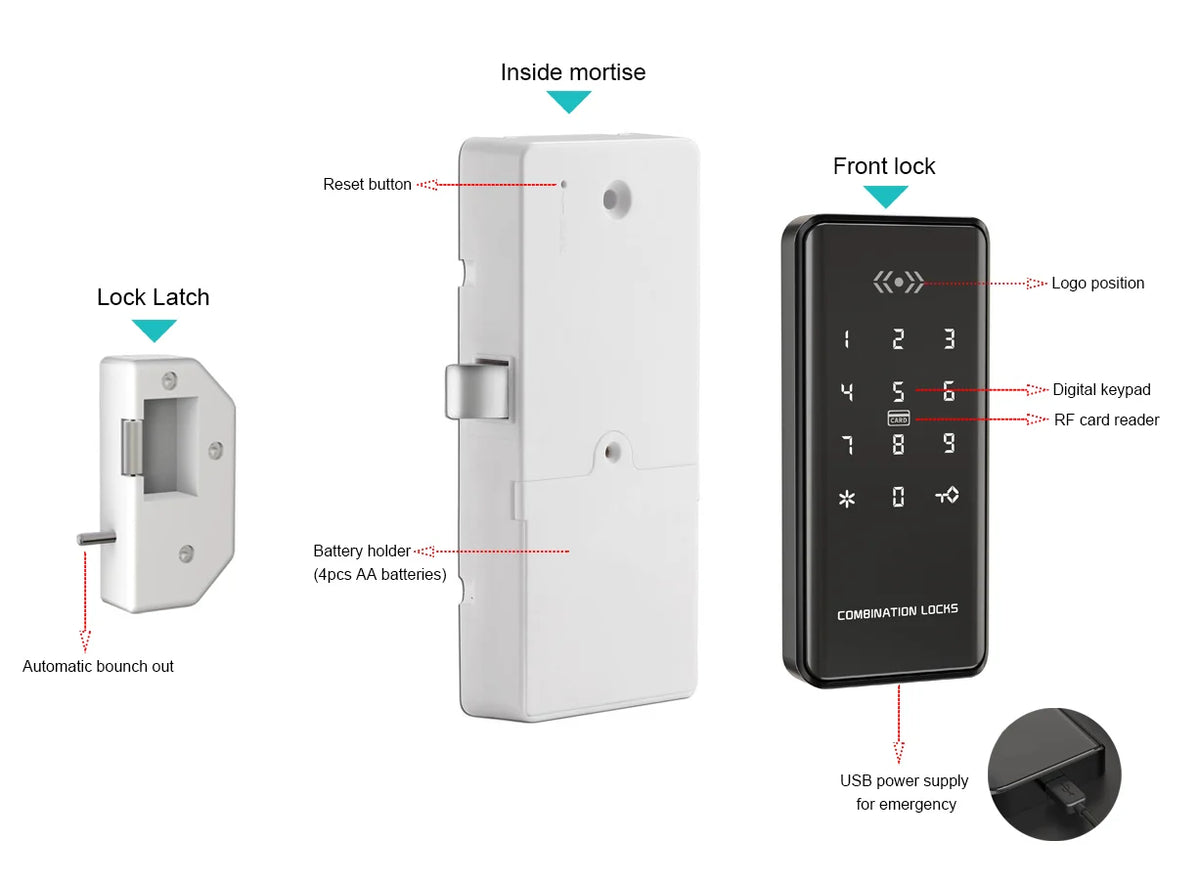

- Durable Construction: Zinc alloy panel resists wear and scratching; stainless steel latch and ABS plastic body are built to resist corrosion.
- Battery Powered & Emergency Charging: Runs on 4 × AA batteries. A micro USB charging port lets you connect a power bank if batteries run low — no lockouts.
- No Wiring Required: Quick drilling installation — simply drill a cable hole and two small fixing holes. No electrician needed.
- High Capacity: Supports up to 200 RFID card users and 200 password users. Includes 1 master card and 1 master password that can unlock all enrolled locks.
- Child Safety Feature: Keeps curious children out of drawers and cabinets, helping maintain a safer home environment.
- Low-Battery Alert: Audible alarm at 4.8V so you always know when to replace batteries.
- Extreme Temperature Tolerance: Operates reliably from -30°C to 80°C.
- Anti-Static Protection: >15,000V antistatic protection — data is retained even in strong static environments.
- OEM/ODM Available: Custom production available for business customers.
Specifications
| Brand | JCSMARTS |
| Model | JCEM2116 |
| Colors | Silver, Black |
| Unlock Methods | Password, RFID Card, Password + Card |
| Card Type | EM4100 ID Card |
| Card Users | Up to 200 |
| Password Users | Up to 200 |
| Password Length | 4–15 digits |
| Power Supply | 4 × AA Batteries |
| Emergency Power | Micro USB (power bank) |
| Low Voltage Alarm | 4.8V |
| Operating Temperature | -30°C to 80°C |
| Relative Humidity | <95% |
| Static Power Consumption | <5μA |
| Dynamic Power Consumption | ~200mA |
| Antistatic | >15,000V |
| Warranty | 3 Years |
| Installation | Drilling (no wiring) |
| Working Modes | Private Mode, Public Mode |
| Country of Origin | Made in Mainland China |
Where Can I Use It?
This versatile electronic lock fits virtually any furniture with a door or drawer panel, including:
- Gym & fitness center lockers
- Office drawers & filing cabinets
- Home wardrobes & bedroom drawers
- Library cubbies & school lockers
- Supermarkets, saunas & swimming facility lockers
- Factory tool storage & security cabinets
What's in the Box?
- 1 × Electronic Cabinet Lock (JCEM2116)
- 1 × Master RFID Card
- Mounting hardware & installation guide
Installation Guide
Drill a hole to route the cable, then drill two small holes to mount the lock panel. For double-door cabinets, secure one door before locking. No wiring or professional tools required — most users complete installation in minutes.
For more information on home and facility security best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What RFID card type does this electronic cabinet lock use?
A: The JCSMARTS JCEM2116 uses EM4100 ID cards. It supports up to 200 registered RFID card users and 200 password users simultaneously, making it ideal for shared gym lockers or office environments.
Q: What happens if the batteries run out while the lock is closed?
A: The lock features a built-in micro USB charging port. Simply connect a standard power bank to the port to provide temporary power, then enter your code or tap your card to unlock. The low-battery alarm at 4.8V gives you advance warning before this happens.
Q: What is the difference between Private Mode and Public Mode?
A: In Private Mode, the lock is assigned to a specific user or set of users — best for personal drawers or dedicated lockers. In Public Mode, the lock resets after each use and can be accessed by different users in rotation, which is perfect for gym lockers, libraries, or shared workspaces where different people use the same locker each day.
Q: Is this lock suitable for outdoor use?
A: This lock is designed primarily for indoor furniture — cabinets, drawers, lockers, and wardrobes. While it tolerates a wide operating temperature range (-30°C to 80°C) and up to 95% relative humidity, it is best used in covered or indoor environments rather than fully exposed outdoor settings.
Q: Can I order custom locks for my business?
A: Yes! JCSMARTS offers OEM/ODM customization for business orders. Contact the vendor directly to discuss your requirements for bulk or customized production.
