RFID Access Control System – Waterproof 125KHz Proximity Controller
RFID Access Control System – Waterproof 125KHz Proximity Controller

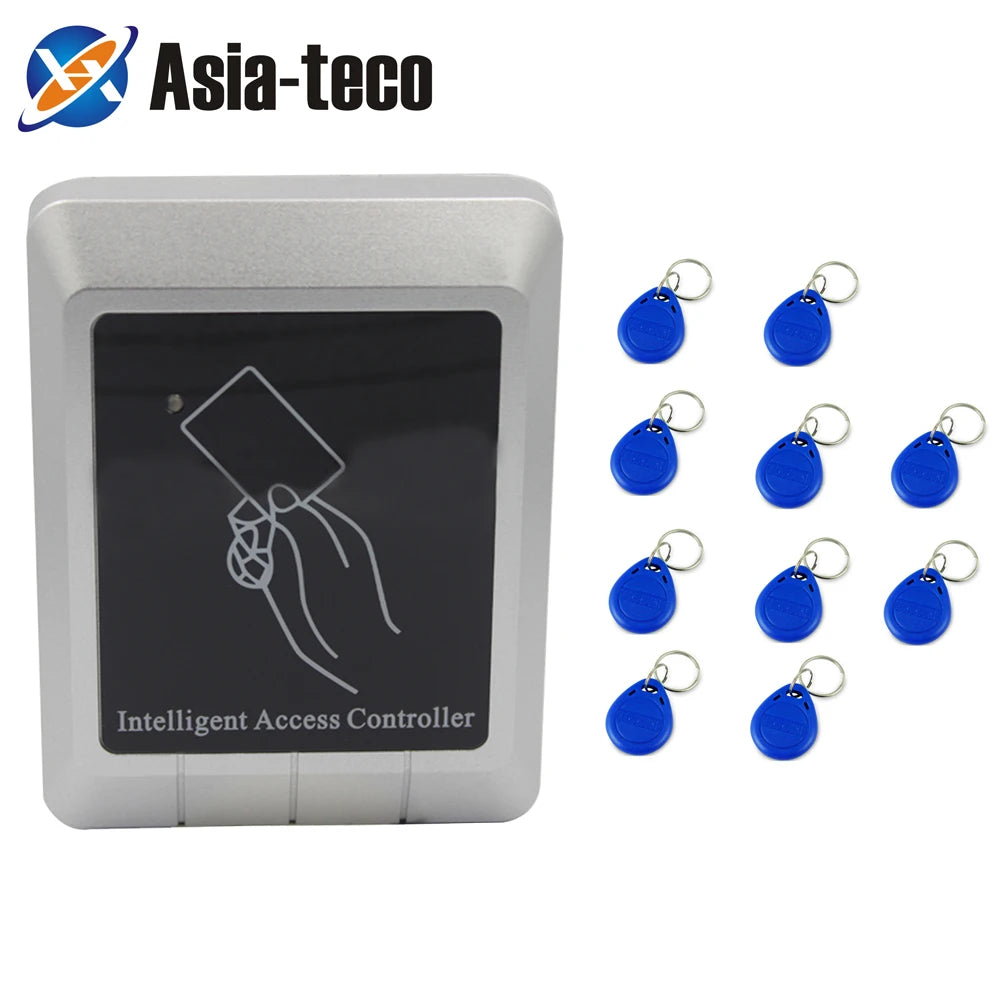

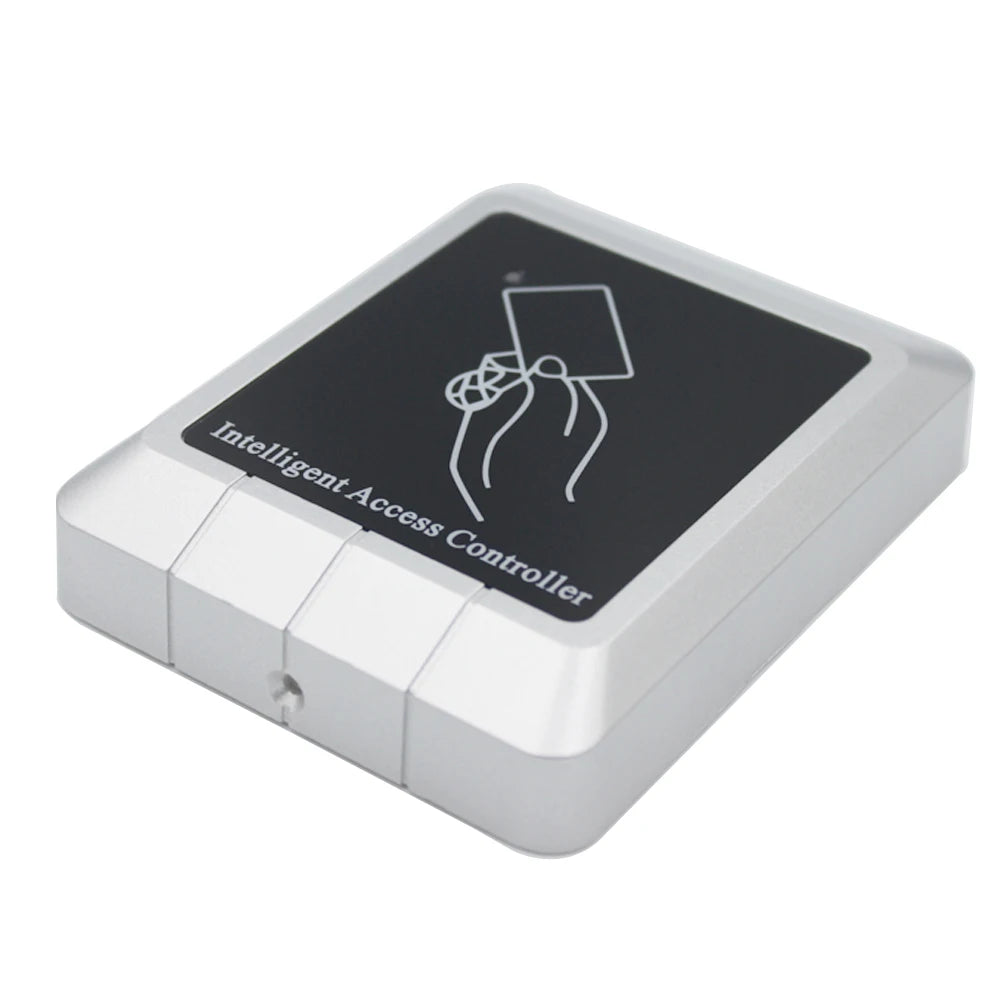

Asia-Teco A3D-EM RFID Access Control System – Keypad-Free, IP55 Waterproof Proximity Entry Controller
Take control of who enters your space with the Asia-Teco A3D-EM 125KHz RFID Access Control System. Designed for homes, offices, apartments, and commercial buildings, this sleek, keypad-free proximity card reader delivers fast, reliable, and secure entry management — no PIN codes required. Simply present your RFID card and gain instant access. Built to IP55 waterproof standards, it performs flawlessly indoors and outdoors in varying weather conditions.
Made in Mainland China.
Key Features
- Keypad-Free Design: Clean, minimal form factor — card-only entry for streamlined access management.
- Up to 2,000 Users: Store credentials for up to 2,000 unique RFID cards — ideal for small to medium-sized organizations or multi-tenant buildings.
- 125KHz EM Card Compatibility: Works seamlessly with standard 125KHz EM proximity cards and key fobs.
- Fast & Sensitive Card Reading: Card read range of 1–10 cm with near-instant response time for smooth, uninterrupted entry.
- IP55 Waterproof Rating: Dust-resistant and splash-proof construction for reliable performance in outdoor or semi-exposed environments.
- Extended Antenna Support: Connect an optional external antenna to extend read range for larger installations or specialized applications.
- Management Card Support: Enroll, delete, and manage user cards directly using a dedicated Management Card — no PC or software required.
- Fail-Safe with Signal Mode: Includes signal-based fail-safe security mode for dependable access control in all situations.
- Compact & Lightweight: Measures just 110mm × 85mm × 22mm and weighs only 140g — easy to mount virtually anywhere.
Technical Specifications
| Model | A3D-EM |
| Brand | Asia-Teco |
| Working Voltage | DC 12V |
| Working Current | ≤ 100mA |
| User Capacity | 2,000 Standard Users |
| RF Frequency | 125KHz EM Card |
| Card Read Distance | 1–10 cm |
| Keypad | None |
| Security Mode | Fail Safe with Signal |
| Working Temperature | -10°C to 60°C |
| Working Humidity | 20% to 80% RH |
| Waterproof Rating | IP55 |
| Dimensions | 110mm × 85mm × 22mm |
| Weight | 140g |
| Origin | Mainland China |
Why Choose the Asia-Teco A3D-EM?
Whether you're securing a server room, office entrance, apartment complex gate, or warehouse door, the A3D-EM offers a plug-and-play proximity access solution that is both robust and cost-effective. Its wide operating temperature range (-10°C to 60°C) makes it suitable for year-round outdoor use, while the IP55 rating ensures moisture and dust won't disrupt operations. Management is entirely card-based — making it incredibly user-friendly even for non-technical administrators.
For guidance on best practices in physical access control and electronic security systems, visit the Cybersecurity and Infrastructure Security Agency (CISA) or review consumer product safety information at CPSC.gov.
Frequently Asked Questions
Q: What type of RFID cards does the Asia-Teco A3D-EM access control system support?
A: The A3D-EM is compatible with standard 125KHz EM proximity cards and key fobs. It does not support higher-frequency cards such as 13.56MHz Mifare cards. When purchasing replacement or additional cards, ensure they are 125KHz EM format for full compatibility.
Q: How do I add or delete users without a computer or keypad?
A: The A3D-EM uses a Management Card system. You simply present the management card to the reader, then present the user card you wish to enroll or delete — no PC, software, or keypad required. This makes day-to-day administration quick and straightforward.
Q: Is this RFID access controller suitable for outdoor installation?
A: Yes. The A3D-EM carries an IP55 waterproof rating, meaning it is protected against dust ingress and low-pressure water jets from any direction. It also operates reliably across a temperature range of -10°C to 60°C, making it well-suited for outdoor entryways, gates, and covered exterior installations.
Q: What power supply does the A3D-EM require?
A: The controller operates on DC 12V with a working current of ≤ 100mA. A standard 12V DC power adapter or access control power supply is required (sold separately). Ensure your power supply is stable and rated for continuous use.
Q: Can I extend the card reading range beyond the standard 1–10 cm?
A: Yes. The A3D-EM supports connection to an optional external/extended antenna, which can increase the card reading distance beyond the built-in 1–10 cm range. This is useful for vehicle access gates or situations where longer-range detection is preferred.
