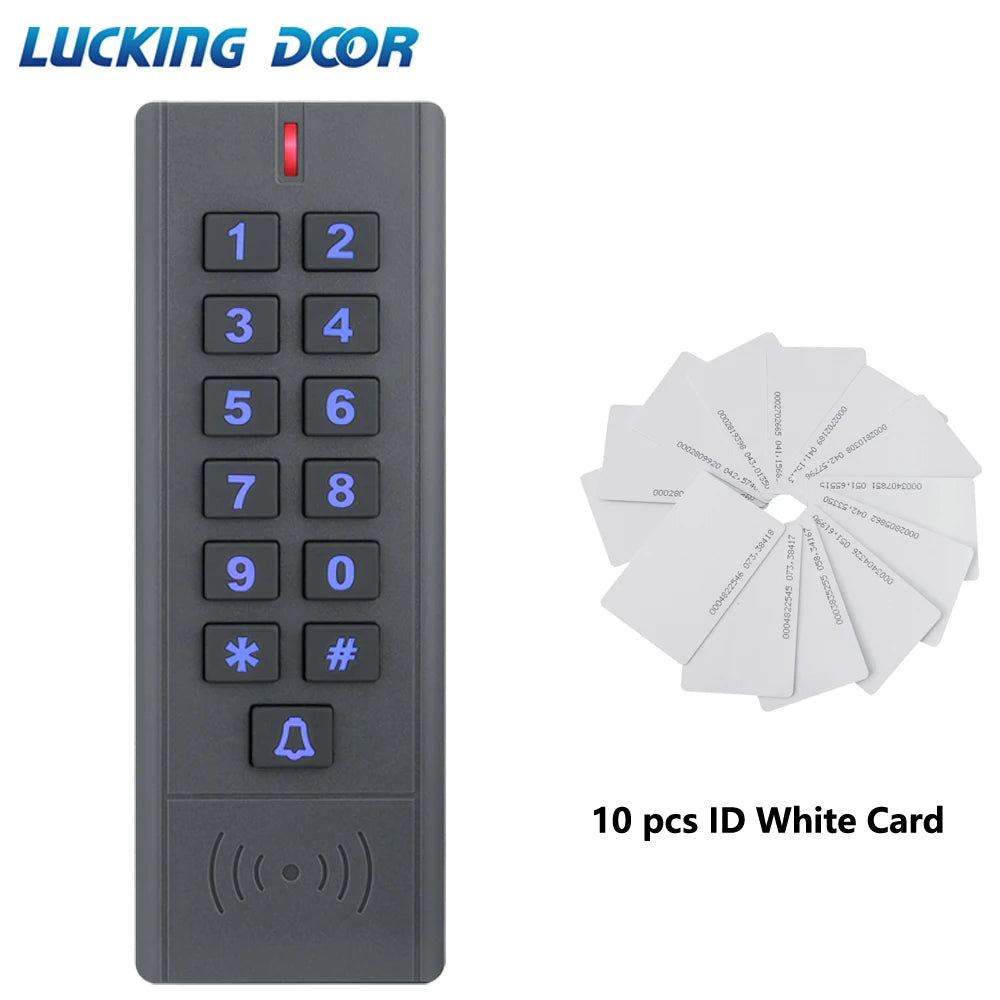

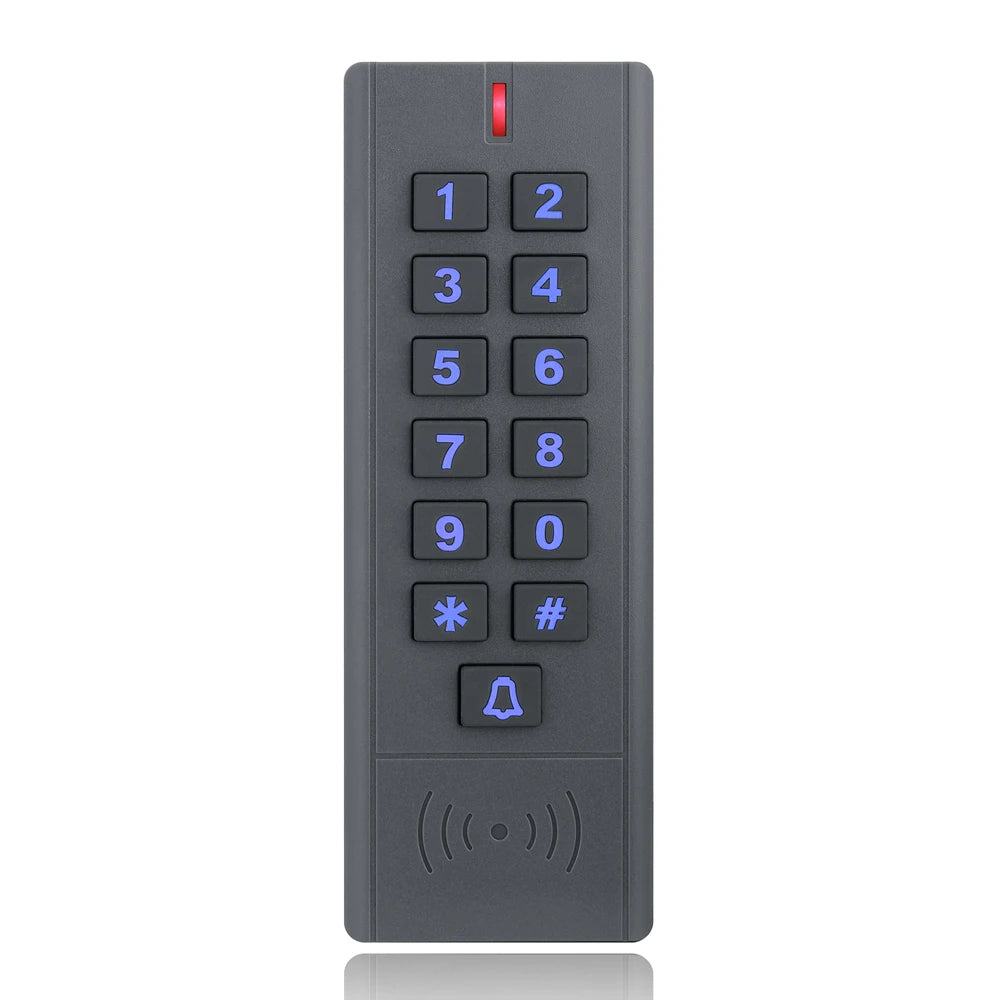

LUCKING DOOR A9-S RFID Access Control Reader — Secure, Weatherproof Entry for Home & Business
Take full control of who enters your property with the LUCKING DOOR A9-S 125KHz RFID Access Control Reader. Designed for both indoor and outdoor installation, this IP67-rated waterproof keypad supports up to 1,000 users via proximity card, PIN code, or combined card + code authentication — making it an ideal security upgrade for offices, warehouses, apartment buildings, and residential gates.
Key Features
- IP67 Waterproof Rating: Fully protected against dust and water immersion — built to withstand rain, humidity, and outdoor conditions year-round.
- 125KHz RFID Proximity Reading: Fast, contactless card recognition for smooth, hands-free entry.
- 1,000-User Capacity: Store up to 1,000 proximity cards and 1,000 individual PIN codes simultaneously.
- Flexible Access Modes: Supports card-only, PIN-only, or dual card + PIN authentication for layered security.
- Administrator Card Management: Use the included administrator card to add or delete user cards without a PC — simple, standalone operation.
- User-Resettable PINs: Individual users can update their own private passwords directly from the keypad.
- Lost Card Deletion via Keypad: Quickly remove lost or stolen cards from the system to maintain access security at all times.
- Continuous Card Enrollment: Enroll multiple cards in sequence without re-entering admin mode — saves significant setup time.
- Short-Circuit Protection: Relay and alarm outputs automatically shut off within 0.1ms if a short circuit is detected.
- Low Power Consumption: Static current draw under 30mA, keeping energy costs minimal.
- Compatible with Electric Locks, Door Bells & Alarms: Versatile output options for integration into your existing door hardware.
- Fail-Safe Security Mode: Defaults to unlocked in the event of a power failure, supporting safe egress.
- Backlit Silver Finish Keypad: Stylish, modern design with LED status indicators (red/green) for clear visual feedback.
- DC 12V–24V Power Input: Broad voltage compatibility for easy integration with standard access control power supplies.
Technical Specifications
| Model | A9-S-EM |
| Brand | LUCKING DOOR |
| Frequency | 125KHz |
| Power Supply | DC 12V – 24V |
| User Capacity | 1,000 Cards / 1,000 Codes |
| Access Modes | Card | PIN Code | Card + PIN |
| Waterproof Rating | IP67 |
| Static Current | <30mA |
| Security Mode | Fail Safe |
| Supported Outputs | Electric Lock / Door Bell / Alarm |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1 × RFID Access Control Keypad (A9-S)
- Administrator Card(s) for user management
- Installation hardware
Need the full installation manual? Contact us after purchase and we'll send it right over.
Why Choose the A9-S?
Whether you're securing a single office door or managing access across a residential complex, the A9-S delivers enterprise-grade reliability in a compact, weather-resistant package. Its standalone operation means no PC or internet connection is required — just power it up, program your cards, and go. The sleek silver backlit design blends seamlessly with modern door hardware, while the IP67 rating ensures lasting performance regardless of climate.
For more information on electronic security and access control best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: How many users can the LUCKING DOOR A9-S RFID Access Control Reader support?
A: The A9-S supports up to 1,000 proximity cards and 1,000 individual PIN codes, making it suitable for small businesses, apartment buildings, office suites, and larger residential properties alike.
Q: Is the A9-S RFID reader suitable for outdoor installation?
A: Yes. The A9-S carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and can withstand water immersion. It is designed for both indoor and outdoor use in a wide range of weather conditions.
Q: What access methods does the A9-S support?
A: The reader supports three access modes: proximity card only, PIN code only, or a combined card + PIN method for dual-factor authentication and enhanced security.
Q: Do I need a computer or special software to program the A9-S?
A: No. The A9-S operates as a completely standalone unit. You can add and delete user cards directly using the included administrator card and the onboard keypad — no PC, software, or internet connection required.
Q: What voltage does the A9-S RFID access control reader require?
A: The A9-S accepts a wide input voltage range of DC 12V to 24V, making it compatible with most standard access control power supplies available on the market.
