Dual-Door RFID Access Control Panel – Cloud IP & Free SDK

Asia-Teco Aopu-Web Cloud+ Dual-Door RFID Access Controller

Take command of your facility's entry points with the Asia-Teco Aopu-Web Cloud+ Double-Way RFID Access Control Panel. This professional-grade controller board manages two independent doors simultaneously, giving security administrators centralized, real-time control from anywhere via HTTP/IP cloud service — no expensive proprietary software required, thanks to the included free SDK.

Whether you're securing an office, server room, warehouse, or multi-tenant building, this system delivers enterprise-level access management at a practical price point. CE and FCC certified for reliability and compliance. Made in Mainland China.

Key Features

• Dual-Door Control: Manage two access points independently from a single controller board.
• Cloud / WAN / HTTP-IP Connectivity: Remote management via web browser or your own application using the free SDK — no proprietary subscription required.
• Wiegand Card Reader Support: Compatible with up to 2 Wiegand RFID card readers for contactless credential management.

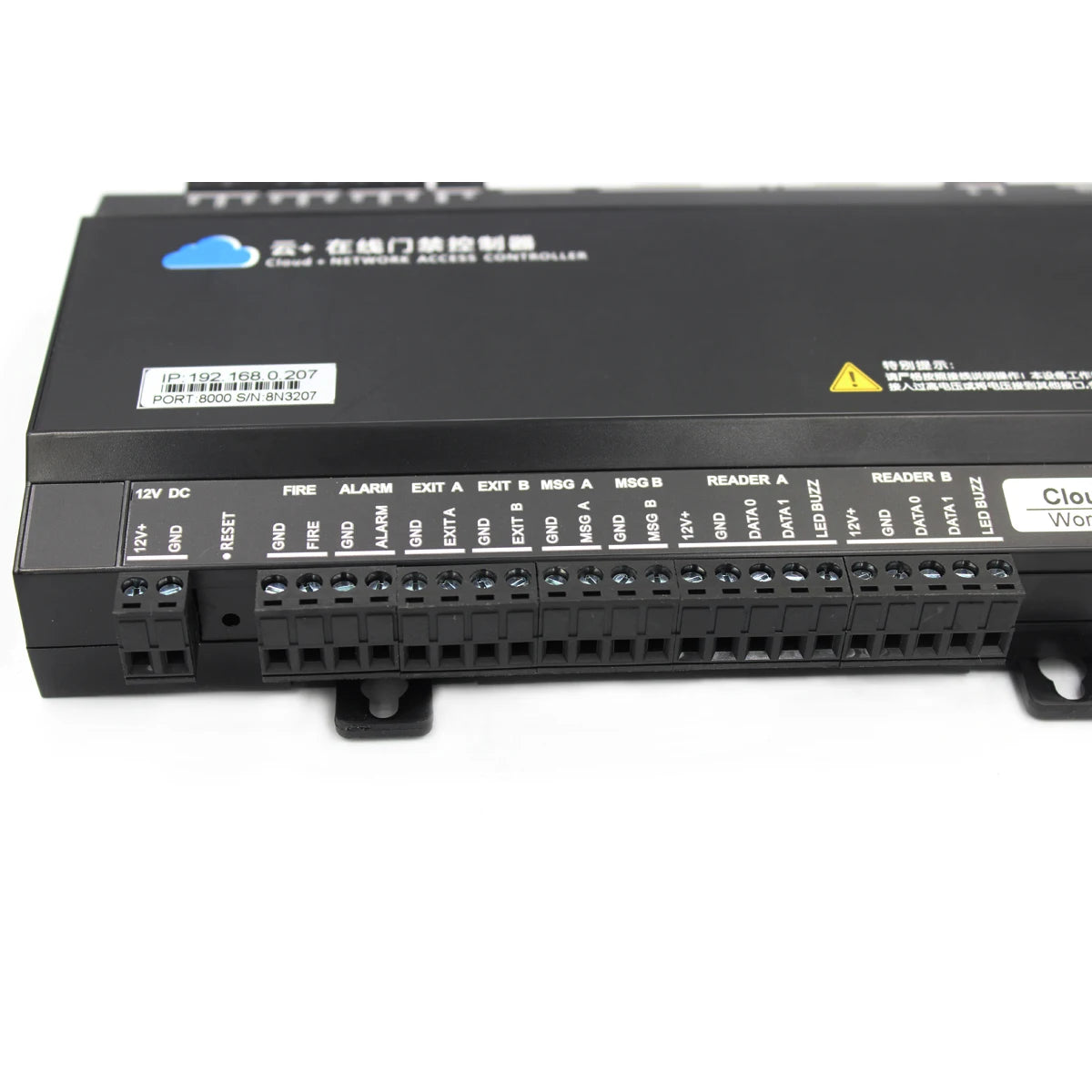

• Multi-Interface Connectivity: RS232, RS485, TCP/IP, and RJ45 ports for seamless integration into existing networks and third-party systems.
• Alarm Output & Fire Alarm Input: Built-in support for alarm output signals and fire alarm input for full safety integration.
• Environmental Monitoring: Onboard temperature and humidity detection for sensitive or regulated environments.
• Power Options: 12V DC power input plus a USB power output for peripheral devices.
• Compact Panel: Space-efficient 210 × 125 × 22 mm form factor — easy to mount in any control cabinet or enclosure.
• CE & FCC Certified: Meets international electromagnetic compatibility and safety standards.
• Free SDK Included: Integrate with your own software, building management system, or custom dashboard without licensing fees.

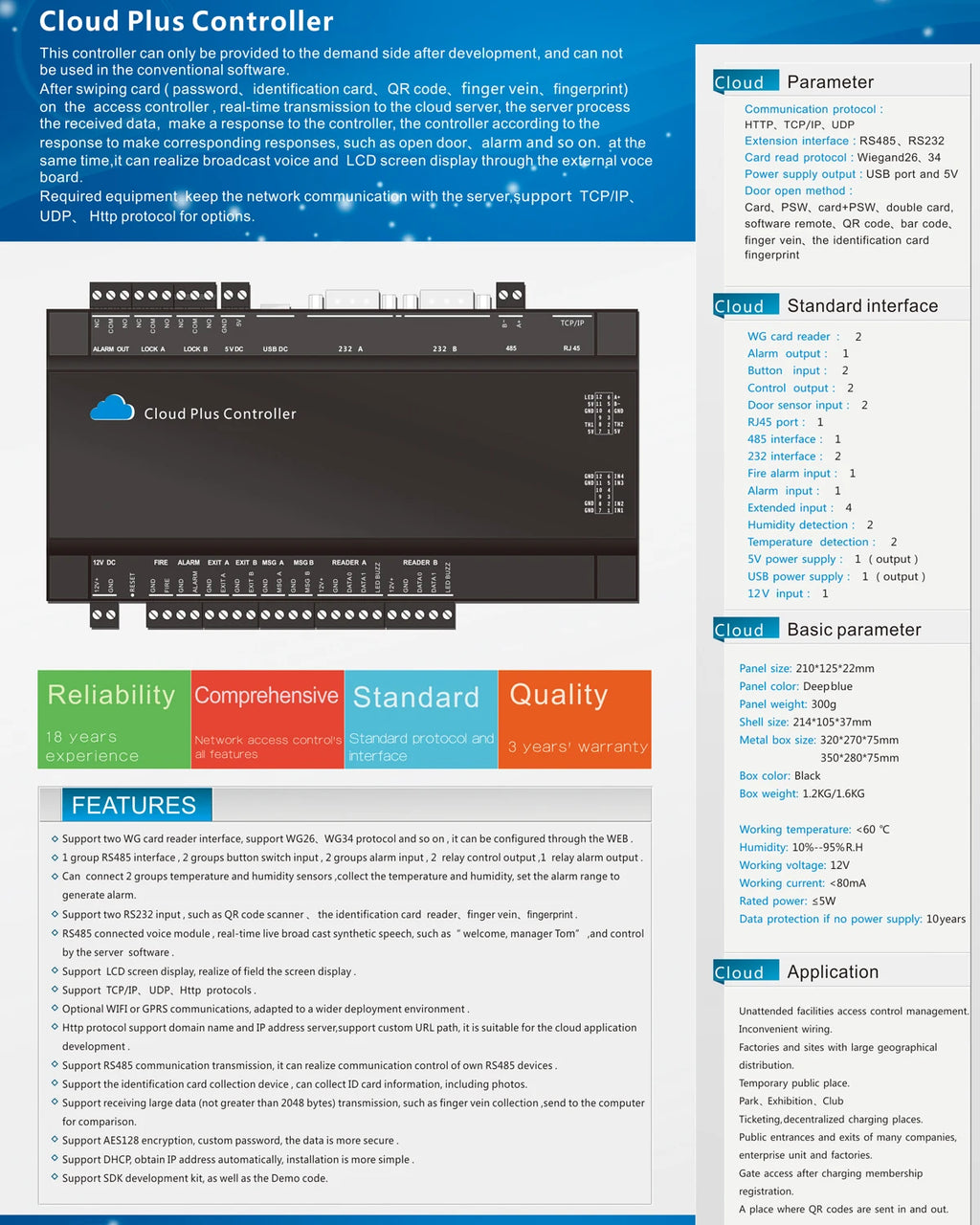

Technical Specifications

Who Is This For?

This controller is ideal for IT managers, security integrators, facilities professionals, and building managers who need a scalable, network-connected access control solution. The open SDK makes it a favourite among developers building custom access management platforms.

Safety & Standards Resource

For guidance on physical security best practices in commercial facilities, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: How many doors can the Asia-Teco Aopu-Web Cloud+ RFID access controller manage?

A: The controller supports two independent doors (double-way), each with its own Wiegand card reader input. Both doors can be monitored and controlled simultaneously from the cloud dashboard or via the SDK.

Q: Does this RFID access control panel require a subscription for cloud access?

A: No. The Aopu-Web Cloud+ provides WAN/HTTP/IP cloud service at no ongoing cost. A free SDK is also included so you can integrate the controller into your own software or building management system without licensing fees.

Q: What network interfaces does the access controller support?

A: The panel features RS232, RS485, TCP/IP, and RJ45 interfaces, making it compatible with a wide range of network infrastructures and third-party security systems.

Q: Is the panel compatible with standard Wiegand card readers?

A: Yes. The controller supports up to 2 Wiegand-protocol RFID card readers, which are among the most widely used readers in commercial access control — ensuring broad compatibility with existing hardware.

Q: What certifications does this access control board hold?

A: The Asia-Teco Aopu-Web Cloud+ holds both CE and FCC certifications, confirming it meets electromagnetic compatibility and safety requirements for use in Europe and North America.
