RFID Access Control Module – Door Lock & Elevator Board 10-24V
RFID Access Control Module – Door Lock & Elevator Board 10-24V
Asia-Teco Embedded RFID Access Control Module – Intercom, Elevator & Door Lock Controller

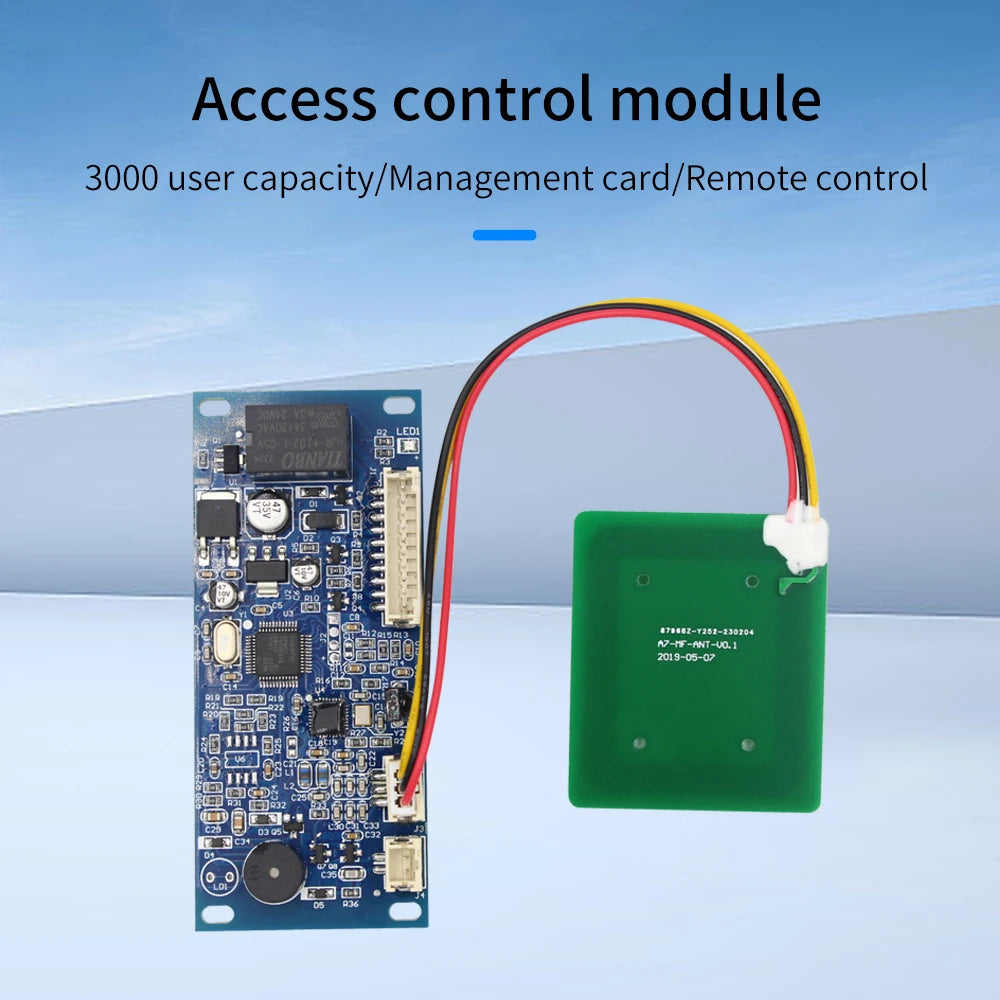

Take full command of your entry points with the Asia-Teco Embedded Access Control Module (H4004D/H4004C). Designed for seamless integration into intercoms, elevators, and door-lock systems, this compact yet powerful board supports up to 3,000 users and reads both 125KHz EM and 13.56MHz Mifare RFID cards — giving you flexibility across virtually any existing card infrastructure.
Whether you're securing a single door or building a multi-door access network, this module delivers enterprise-grade features in an embeddable form factor — all powered from a convenient 10–24V DC supply.
Key Features
- Dual-Frequency RFID Reading: Compatible with 125KHz (EM) and 13.56MHz (Mifare) cards for broad device compatibility.
- 3,000-User Capacity: Store and manage up to 3,000 individual user credentials; user data can be synchronized across multiple linked modules.

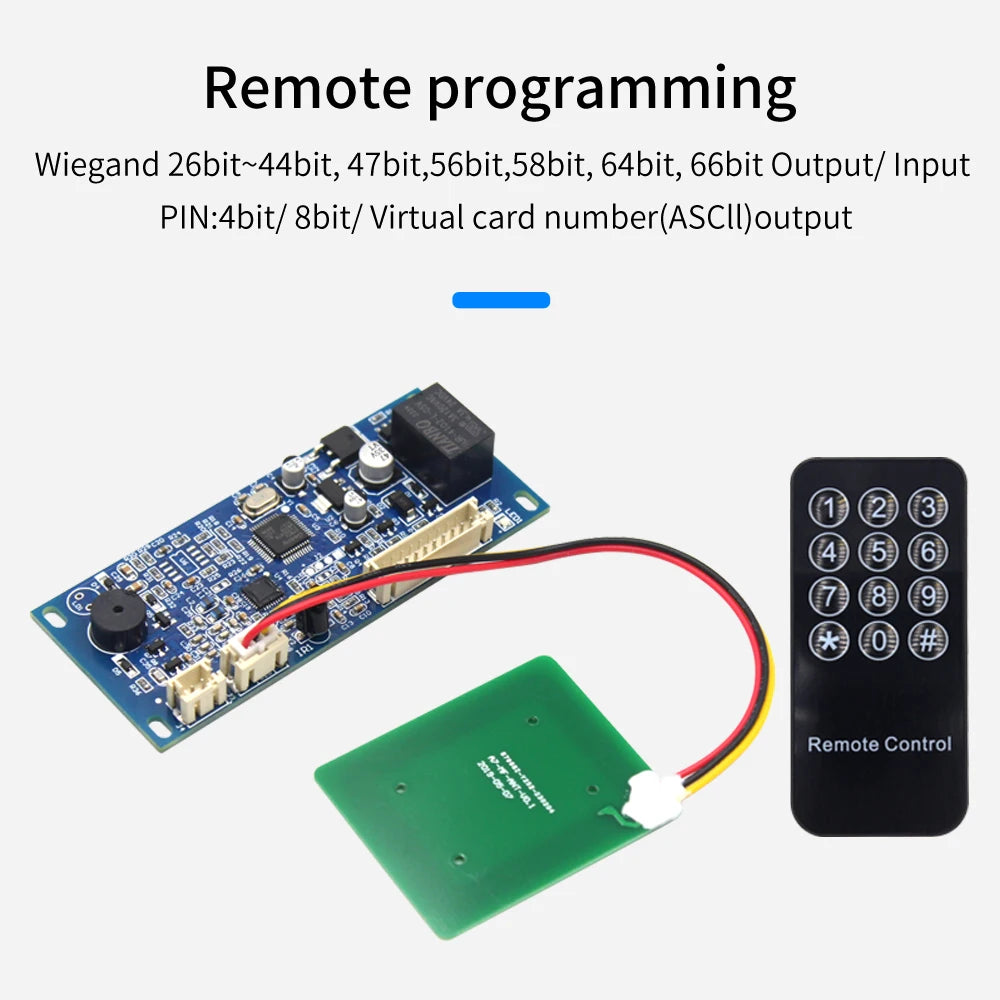

- Administrator & Programmer Included: Ships with a remote control programmer and a master administrator card for quick, out-of-the-box setup.
- Multi-Format Wiegand I/O: Supports multi-format Wiegand output/input for easy integration with third-party access control panels and readers.
- External Door Contact & Alarm Support: Connect external door-contact magnets and alarm devices directly to the board's dedicated terminals.
- Double-Door Interlock Function: Coordinate two doors so only one can be open at a time — ideal for air-lock or mantrap-style entry points.
- Visitor User Mode: Grant time-limited or single-use access to visitors without modifying your main user database.
- Coercion Prevention: Built-in protection detects forced-entry scenarios and triggers the alarm output.
- Pause Mode & Toggle Mode: Flexible door-control modes — including toggle-switch mode — let you tailor operation to your application.
- Super Administrator / Super Password: Override capability allows an authorized super-admin to open doors under any condition.
- Automatic Duty Function: Scheduled access routines reduce manual intervention during regular operating hours.
- Wide Operating Range: Functions reliably from -40°C to +60°C (-40°F to 140°F) and 10%–98% RH — suitable for indoor and outdoor installations.
- CE Certified: Meets CE conformity standards for electromagnetic compatibility and safety.
Technical Specifications
| Model | H4004D / H4004C |
| Operating Voltage | 10–24V DC |
| Idle Current | ≤40mA |
| Working Current | <100mA |
| Lock Output Load | <2A |
| Alarm Output Load | <500mA |
| Card Frequency | 125KHz / 13.56MHz |
| Card Types | EM / Mifare / EM+Mifare |
| Read Range | <10cm |
| User Capacity | 3,000 |
| Operating Temperature | -40°C to +60°C (-40°F to 140°F) |
| Operating Humidity | 10%–98% RH |
| Certification | CE |
| Country of Origin | Made in China |
What's in the Box

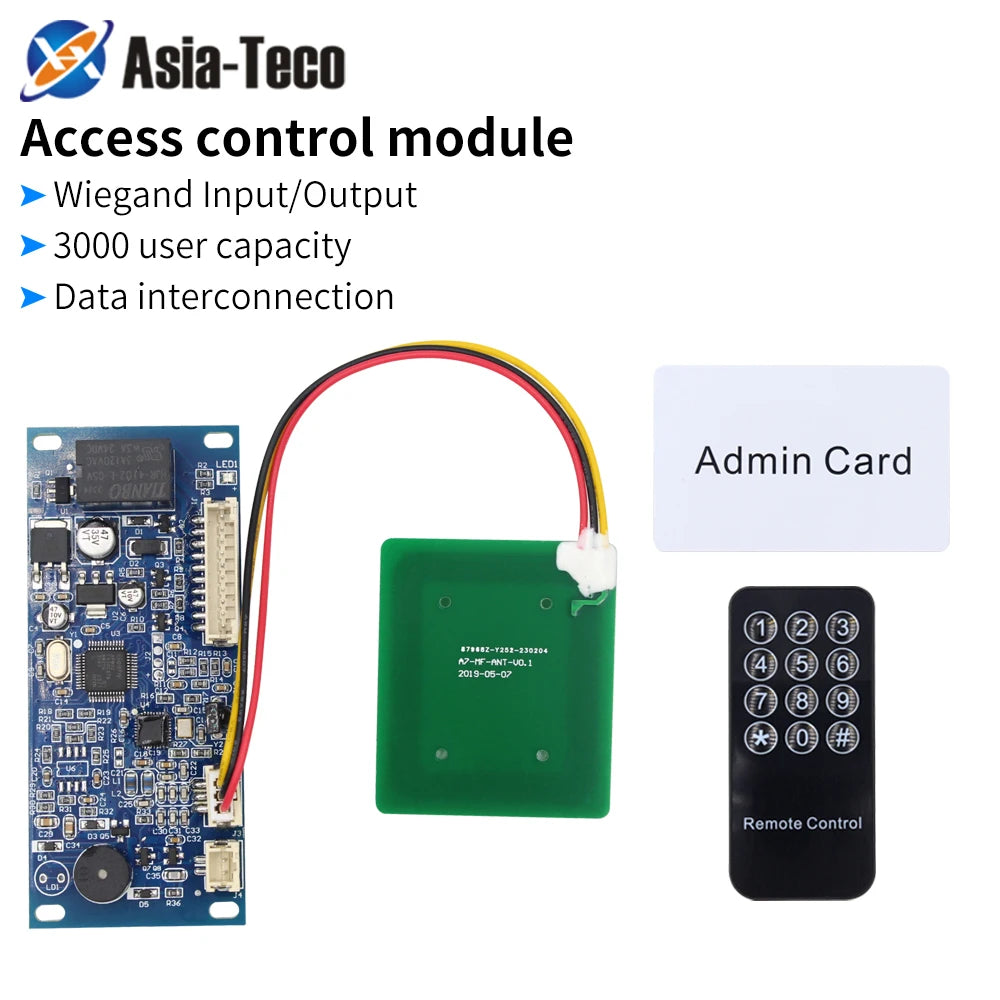

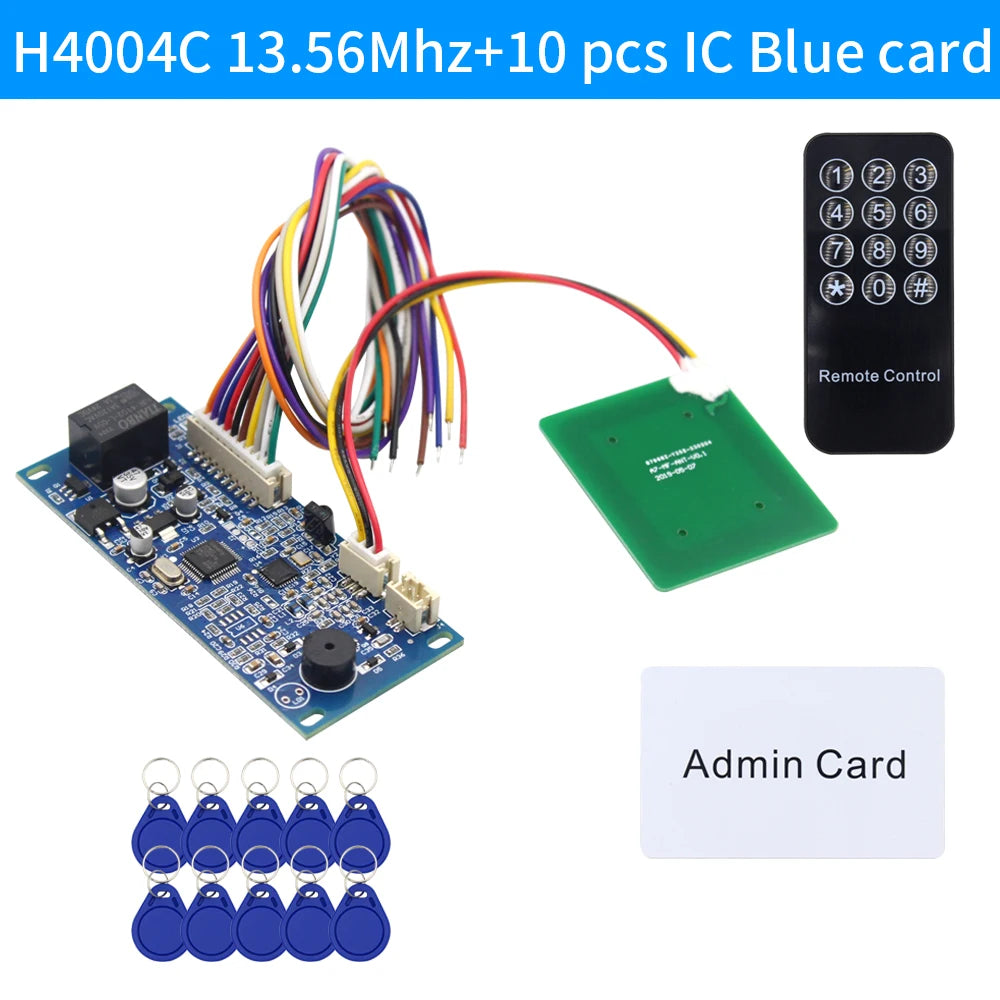

- 1 × Access Control Module Board (H4004D or H4004C)
- 1 × Remote Control Programmer
- 1 × Administrator/Master Card
Learn More About Access Control Standards
For guidelines on electronic security systems and best practices for access control installation, visit the U.S. Consumer Product Safety Commission (CPSC) and OSHA's Electrical Safety resources for safe wiring and installation practices.
Frequently Asked Questions
Q: What RFID card types are compatible with the Asia-Teco H4004D/H4004C access control module?
A: The module supports 125KHz EM cards, 13.56MHz Mifare cards, and combined EM+Mifare cards. This dual-frequency capability makes it compatible with the vast majority of standard RFID access cards and key fobs used in commercial and residential systems.
Q: How many users can be stored on this RFID access control board?
A: The module stores up to 3,000 individual user credentials. User data can also be synchronized across multiple linked modules, making it scalable for larger multi-door deployments.
Q: Can this module be integrated with an existing intercom or elevator control system?
A: Yes. The embedded design and multi-format Wiegand input/output allow the module to connect to intercom systems, elevator controllers, and third-party access panels. It also supports external door-contact magnets and alarm devices via dedicated terminals.
Q: What power supply does the access controller require?
A: The board operates on 10–24V DC, making it compatible with a wide range of standard security power supplies. Idle current draw is ≤40mA and working current is under 100mA, so it is energy-efficient in continuous operation.
Q: What is the double-door interlock function and when would I use it?
A: The double-door interlock ensures that only one of two connected doors can be unlocked at any given time. This is ideal for security vestibules, air-lock entries, or mantrap configurations where you need to confirm one door is fully closed and secured before the second can be opened.
