RFID Access Control Module 2500 Users – 125KHz & 13.56MHz

Dual-Frequency RFID Embedded Access Control Module – 2500 User Capacity

Upgrade your building's entry system with this compact, embedded RFID proximity access control module. Compatible with both 125KHz EM/ID cards and 13.56MHz IC cards, this standalone module supports up to 2,500 registered users — making it ideal for offices, apartments, intercom systems, and multi-door installations. With a straightforward card enrollment process and flexible user management, you can add or remove credentials in seconds without any special software.

Key Features

• Dual-Frequency Support: Works with both 125KHz EM/ID cards and 13.56MHz IC cards for maximum compatibility
• 2,500 User Capacity: Store and manage up to 2,500 unique card credentials directly on the module

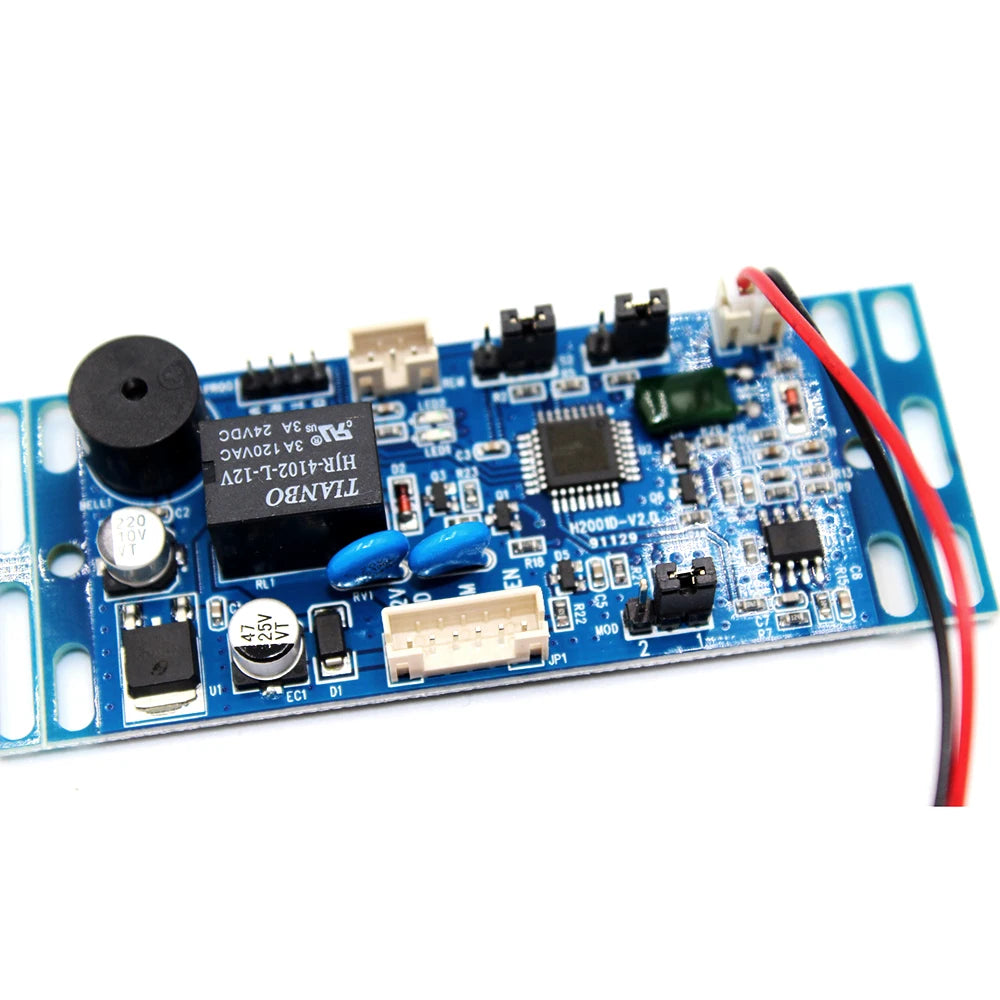

• Compact & Embeddable: Lightweight at just 80g, designed to be embedded into building intercom systems or standalone door controllers
• Wide Card Read Range: Reads cards at a distance of 1–10cm for reliable, contactless access
• Low Power Consumption: Operates at DC 12V with a working current of less than 100mA — energy-efficient and cost-effective
• Wide Operating Temperature: Functions reliably in environments from -20°C to +60°C
• Simple User Management: Easily add or delete individual users or wipe all users using card-based commands — no PC required
• Model: H2002D

Technical Specifications

How to Set Up & Manage Cards

Initial Card Setup

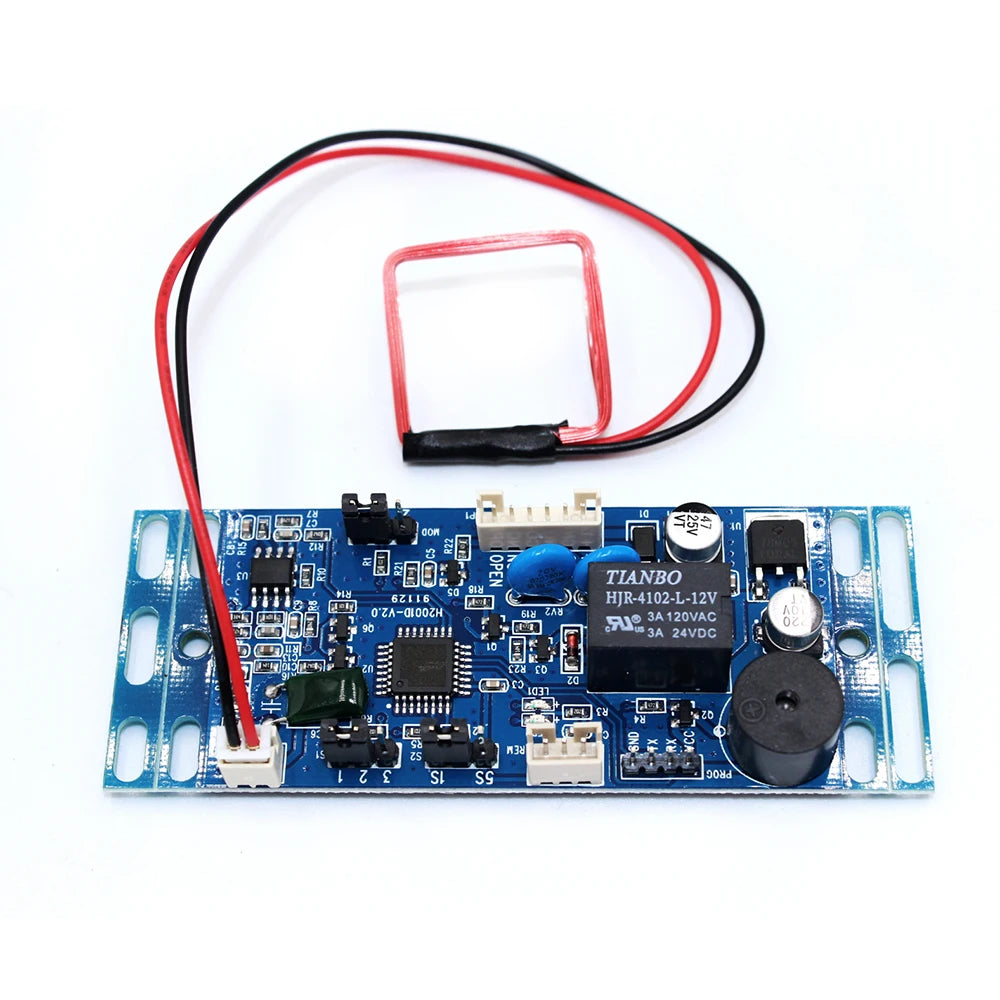

1. Power off the device. Connect the S1 jumper cap to pins 2–3, then restore power. Wait for the green LED to flash three times.

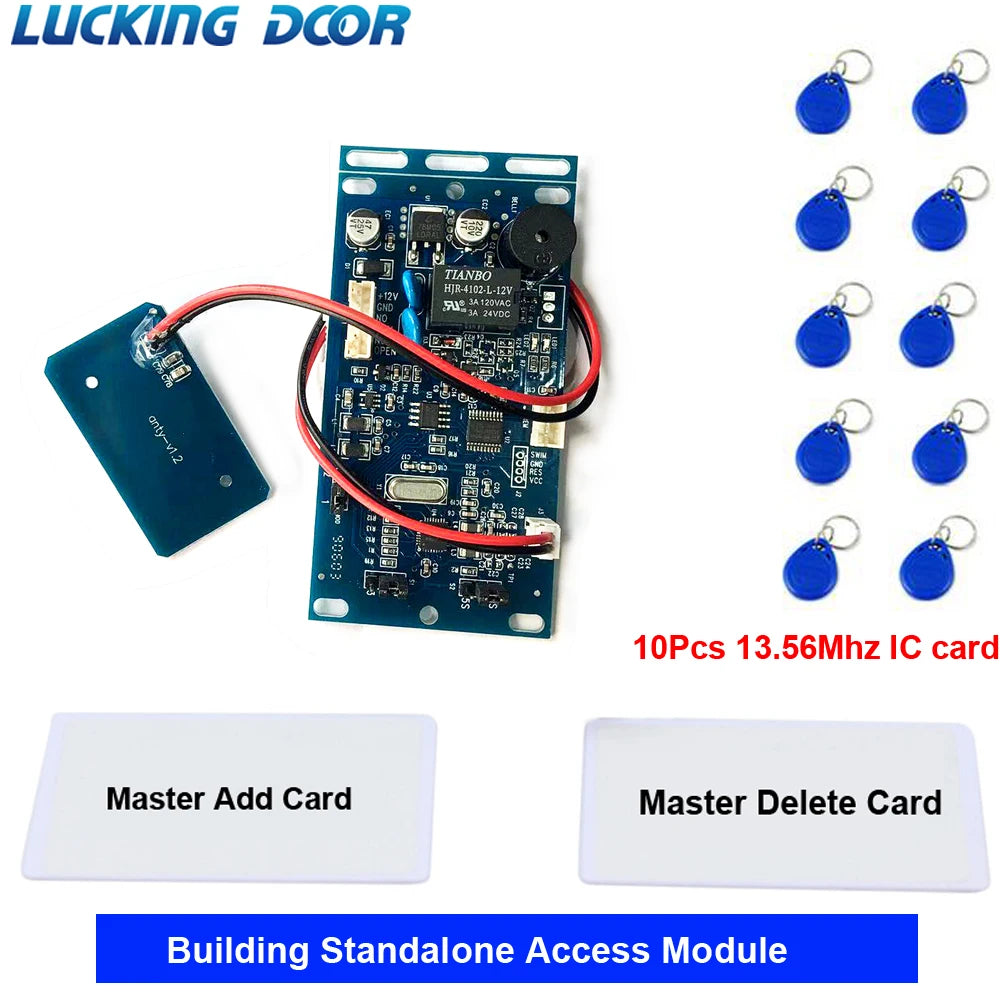

2. Consecutively swipe two blank cards (the first card becomes the "Add Card"; the second becomes the "Delete Card"). The red LED will flash in short bursts to confirm.
3. Power off again, reconnect the jumper cap to pins 1–2, restore power — your master cards are now registered.

Adding Users

In standby mode: swipe the Add Card → swipe the user card(s) you want to register → swipe the Add Card again to exit.

Deleting Users

In standby mode: swipe the Delete Card → swipe the user card(s) to remove → swipe the Delete Card again to exit.

Delete All Users

In standby mode: swipe the Delete Card → swipe the Add Card → swipe the Delete Card to exit. All registered users will be cleared.

Ideal Applications

• Apartment building intercom systems
• Office and commercial door access control
• Embedded OEM access control projects
• Multi-unit residential entry systems
• Standalone single-door controllers

Made in Mainland China.

For more information on electronic access control standards and best practices, visit the National Institute of Standards and Technology (NIST) – Cybersecurity.

Frequently Asked Questions

Q: What card types are compatible with this RFID access control module?

A: This module supports both 125KHz EM/ID cards and 13.56MHz IC cards, giving you broad compatibility with the most common RFID card formats used in access control systems today.

Q: How many users can this RFID access control board store?

A: The H2002D module can store credentials for up to 2,500 individual users, making it well-suited for medium to large residential buildings, offices, and multi-door installations.

Q: Does this module require a computer or special software to manage users?

A: No. All user management — adding, deleting individual users, or wiping all users — is performed entirely through card-swipe commands directly on the reader. No PC or proprietary software is required.

Q: What power supply does the RFID access control module need?

A: The module operates on a standard DC 12V power supply and draws less than 100mA, making it energy-efficient and compatible with most standard access control power supplies.

Q: Can this module be embedded into an existing building intercom system?

A: Yes. This module is specifically designed as an embedded access control board for integration into building intercom systems, standalone door controllers, or custom OEM access control enclosures.
