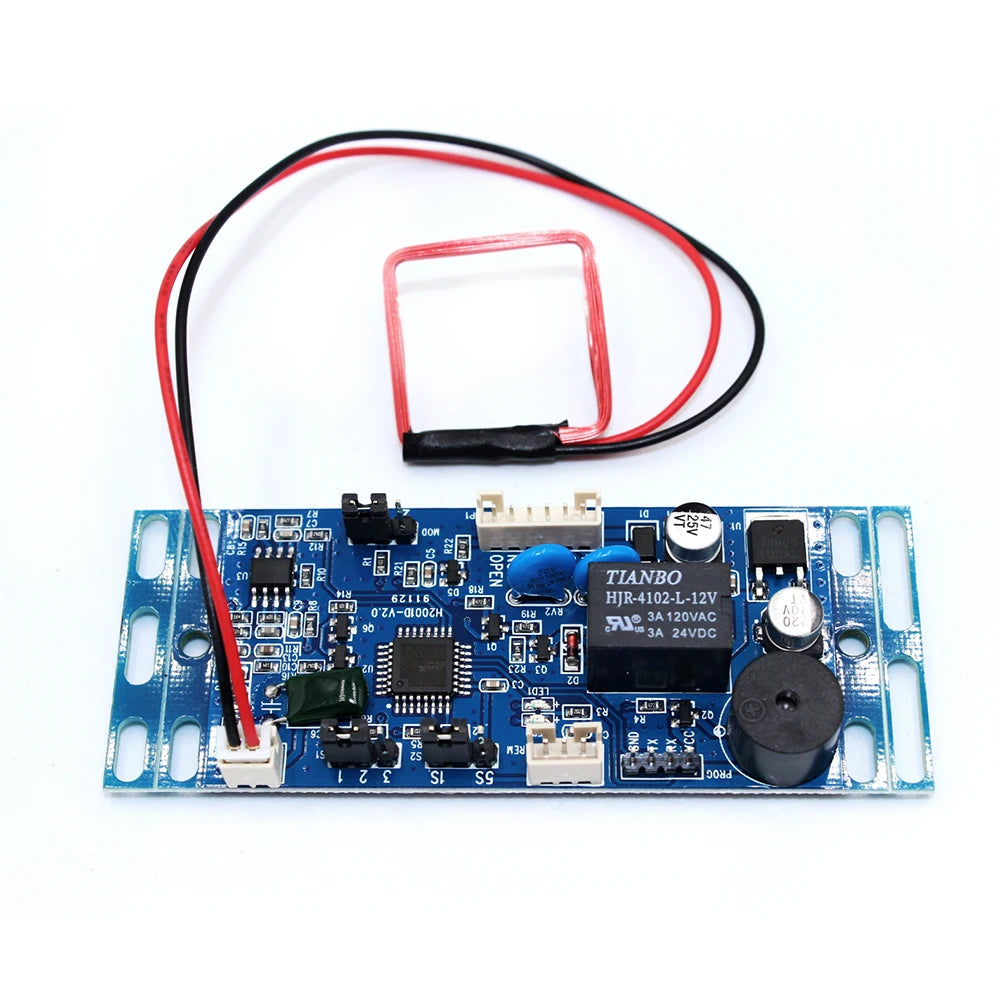

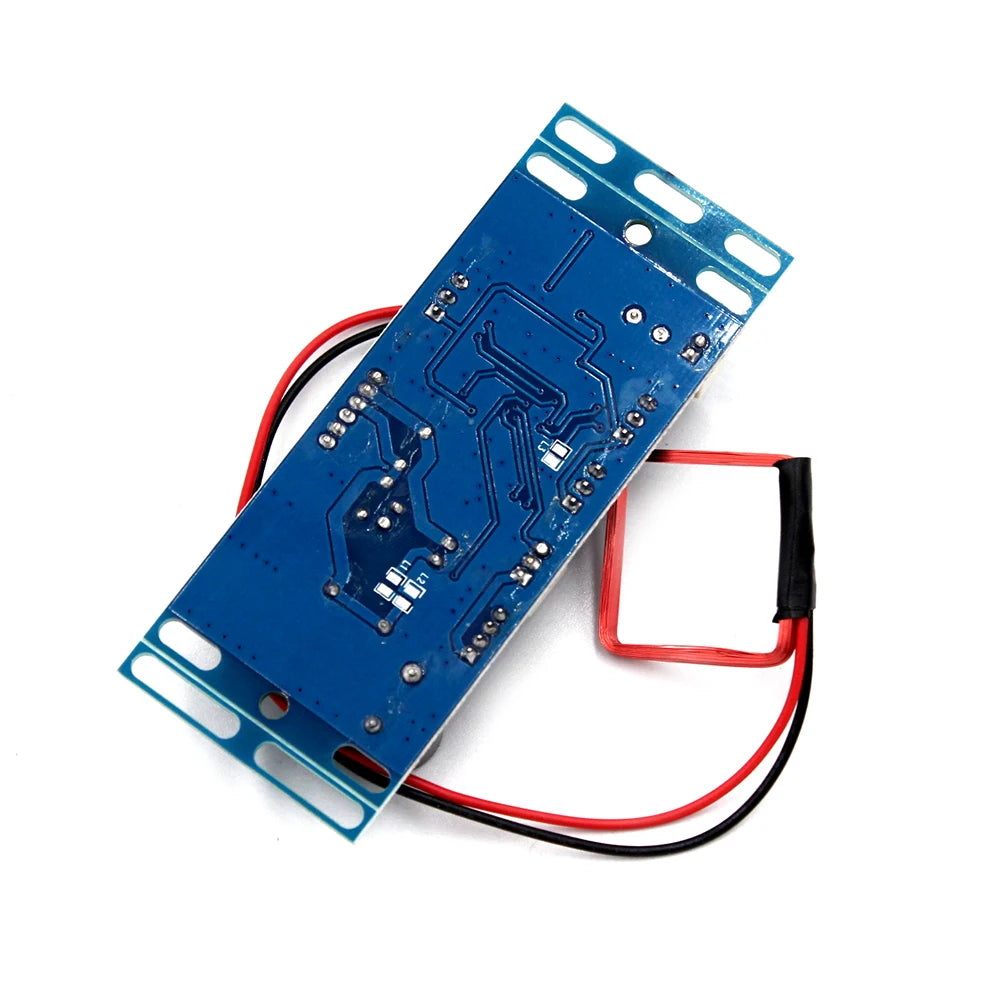

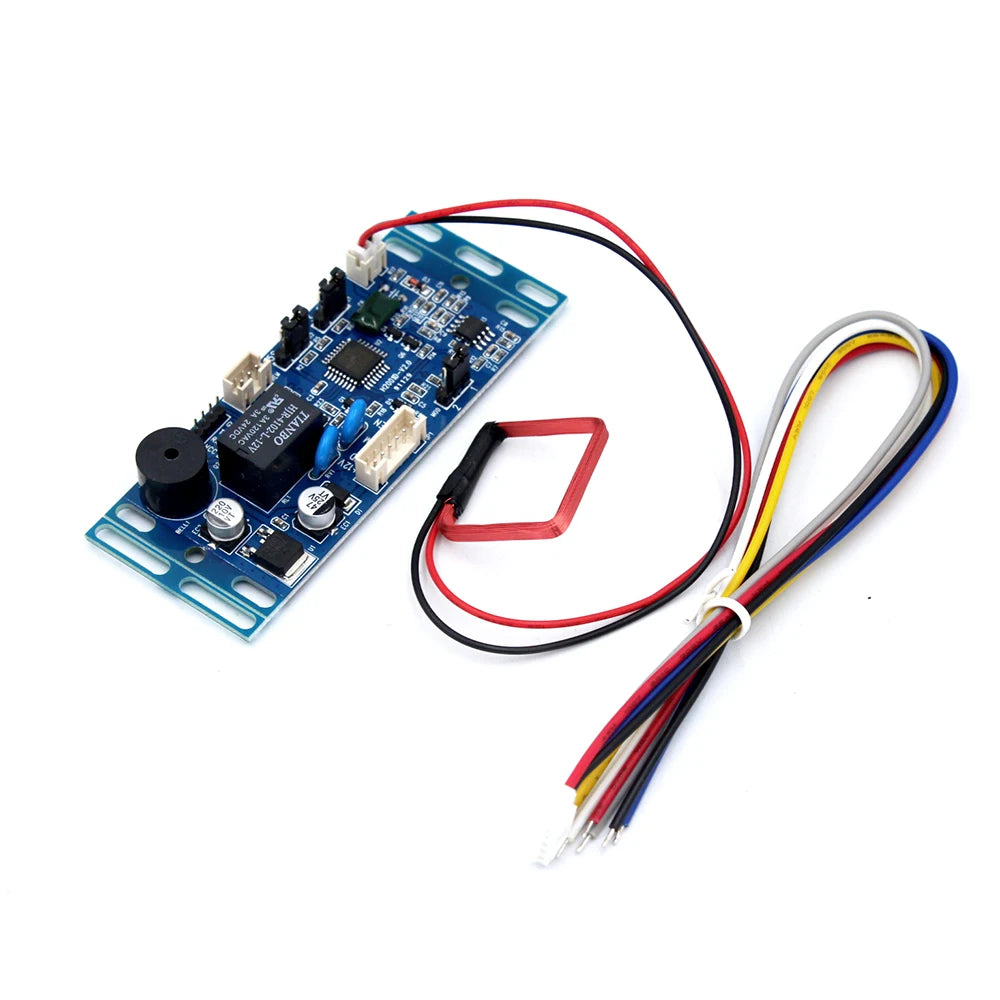

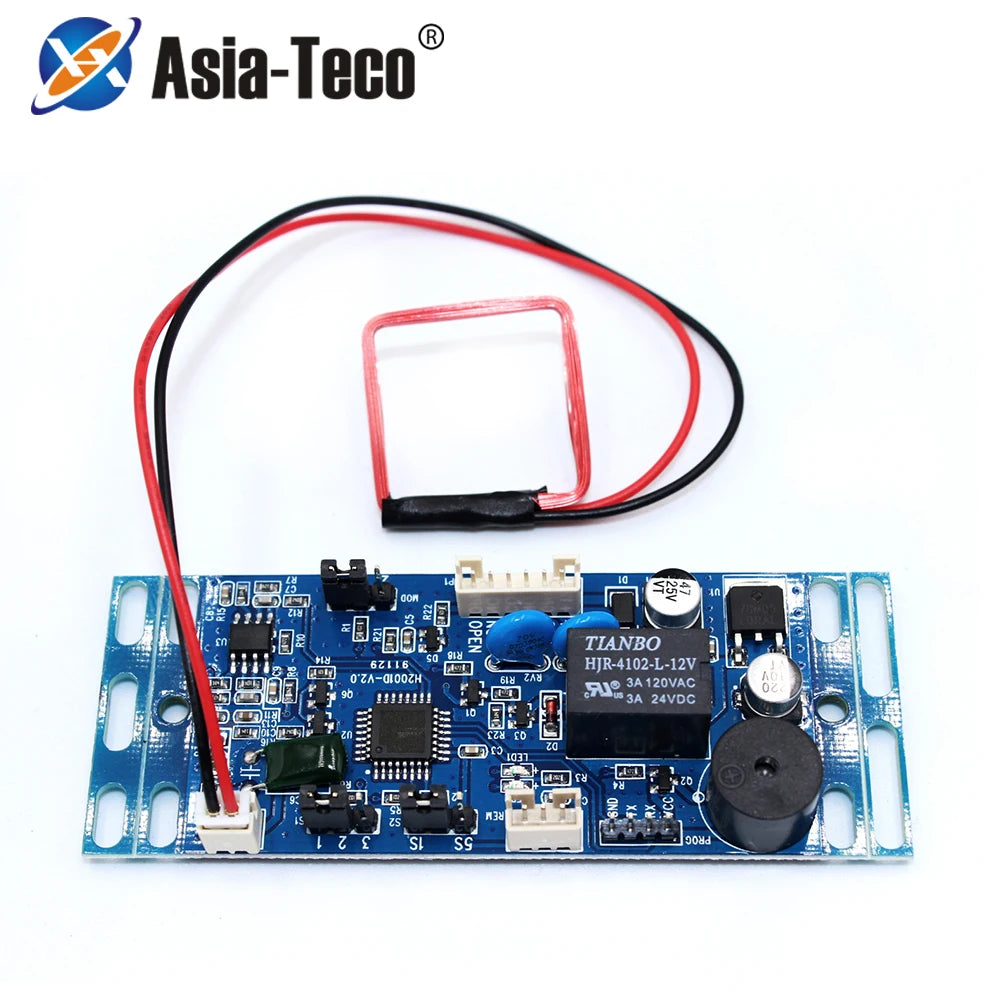

Asia-Teco H2002D Dual-Frequency RFID Embedded Access Control Module

The Asia-Teco H2002D is a compact, standalone RFID access control board designed for seamless integration into building intercom systems and door entry installations. Supporting both 125KHz EM/ID cards and 13.56MHz IC cards, this dual-frequency module stores up to 2,500 users and operates entirely without a PC or network connection — making it an ideal embedded solution for residential buildings, offices, and secure facilities.

Made in Mainland China.

Key Features

• Dual-Frequency Compatibility: Reads both 125KHz EM/ID cards and 13.56MHz IC cards for flexible credential management.
• Large User Capacity: Stores up to 2,500 user credentials directly on the module — no server required.
• Standalone Operation: Fully embedded design integrates directly into building intercom systems or door control panels.
• Quick Card Read Range: Reads cards from 1–10 cm for smooth, contactless access.
• Low Power Consumption: Operates on DC 12V with a working current under 100mA.
• Wide Temperature Range: Functions reliably from -20°C to 60°C, suitable for indoor and semi-outdoor environments.
• Lightweight Build: Weighs only 80g for easy installation in tight spaces.

Technical Specifications

How to Set Up the Master Card

1. Step 1: Power off the module. Connect the S1 jumper cap to pins 2–3. Restore power — the green LED will flash three times.
2. Step 2: Consecutively swipe two blank cards (the first becomes the "add card," the second becomes the "delete card"). The red LED will flash in short bursts to confirm.
3. Step 3: Power off again. Reconnect the jumper cap to pins 1–2. Restore power. Master card setup is complete.

Adding & Removing Users

• Add a User: In standby mode, swipe the "Add Card," then swipe each user card to be enrolled, then swipe the "Add Card" again to exit.
• Delete a User: In standby mode, swipe the "Del Card," then swipe the user card(s) to remove, then swipe the "Del Card" again to exit.
• Delete All Users: In standby mode, swipe the "Del Card," then the "Add Card," then the "Del Card" again to exit.

Ideal Applications

• Residential apartment building intercom integration
• Office and commercial door access systems
• Embedded OEM access control board projects
• Gated community entry points
• Any installation requiring contactless card-based entry management

For general guidance on electronic security systems and access control standards, refer to the U.S. Consumer Product Safety Commission (CPSC) and NIST Cybersecurity Resources for best practices in secure system deployment.

Frequently Asked Questions

Q: What types of RFID cards are compatible with the H2002D access control module?

A: The H2002D supports two card frequencies: 125KHz EM/ID cards and 13.56MHz IC cards. This dual-frequency design makes it compatible with a wide range of standard proximity credentials used in building intercom and door access systems.

Q: How many users can the RFID access control board store?

A: The H2002D embedded access control module can store up to 2,500 user credentials directly on the board without requiring an external server or software, making it ideal for medium-to-large residential and commercial installations.

Q: Can this module work as a standalone unit without a computer or network?

A: Yes. The H2002D is a fully standalone embedded module. All user management (adding, deleting, and clearing users) is performed using master cards and jumper settings directly on the board — no PC, internet connection, or management software is needed.

Q: What is the reading range of this RFID access control module?

A: The card read distance is 1 to 10 centimeters, enabling smooth and reliable contactless card detection for door entry and intercom access applications.
