RFID Access Control Kit – Encrypted Uncopyable Cards & Wiegand Reader

Asia-Teco Encrypted RFID Access Control Reader Kit

Upgrade your door security with the Asia-Teco Anti-Copy RFID Access Control Kit — a complete, professional-grade solution featuring encrypted, uncopyable RFID cards, a USB card sensor, and a Wiegand card reader. Engineered with registering encryption and anti-piracy technology, this kit ensures that your access credentials cannot be duplicated or cloned, giving you peace of mind and robust entry management for offices, apartments, warehouses, and more.

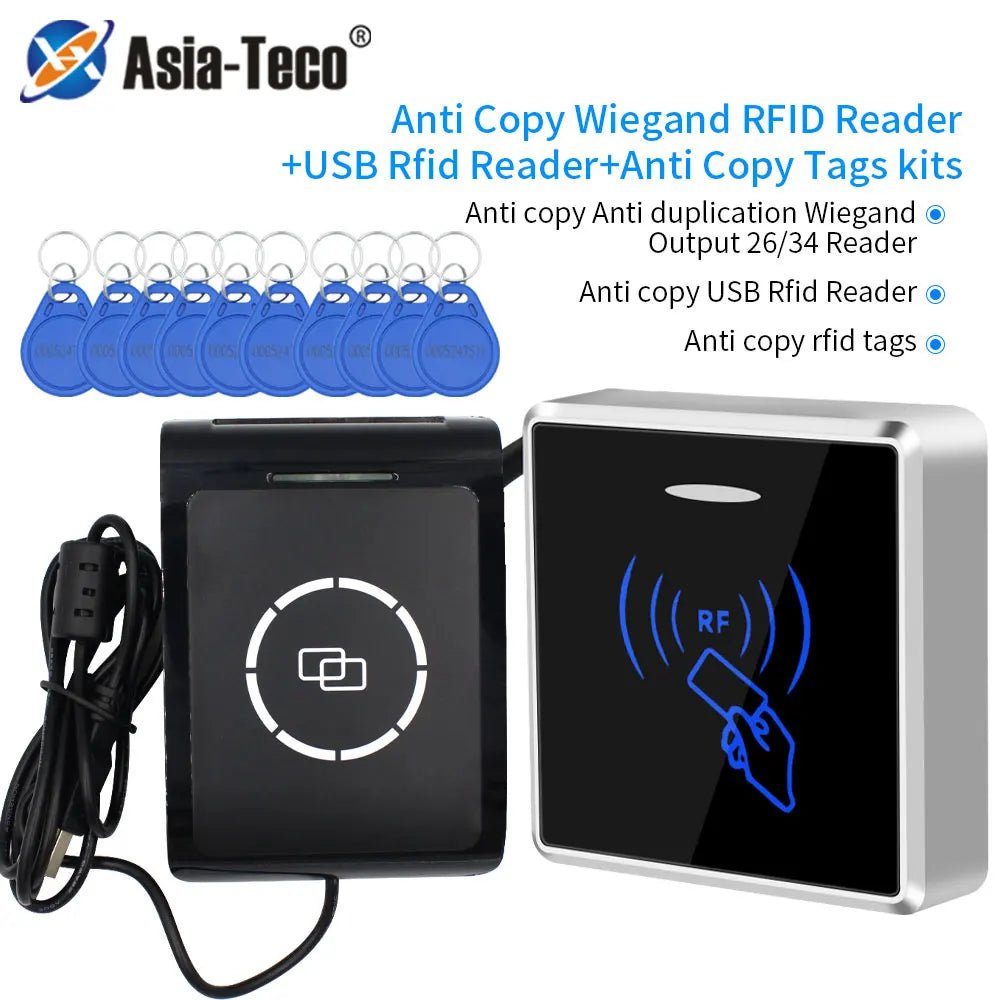

What's Included

• Anti-Replication RFID ID Cards – 125 kHz encrypted cards that cannot be copied by standard card duplicators
• USB Card Sensor (JH-R02) – Registers and manages card credentials; output format 6H8D
• Wiegand Card Reader – Supports WG26/WG34 transfer formats for broad compatibility with access control systems

Key Features

• 🔒 Registering Encryption Technology – Each card is individually registered and encrypted, making unauthorized duplication virtually impossible
• 📡 125 kHz RFID Frequency – Reliable and fast read range of 2–8 cm for smooth, contactless access
• ⚡ Wide Voltage Compatibility – Operates on DC 9–12V with a static current of less than 100 mA for energy-efficient performance
• 🌡️ Wide Operating Temperature – Functions reliably from -20°C to 50°C, suitable for both indoor and outdoor installations
• 🔗 Wiegand WG26/WG34 Output – Easily integrates with most commercial access control panels and systems
• ✅ FCC Certified – Meets regulatory standards for safe and compliant operation

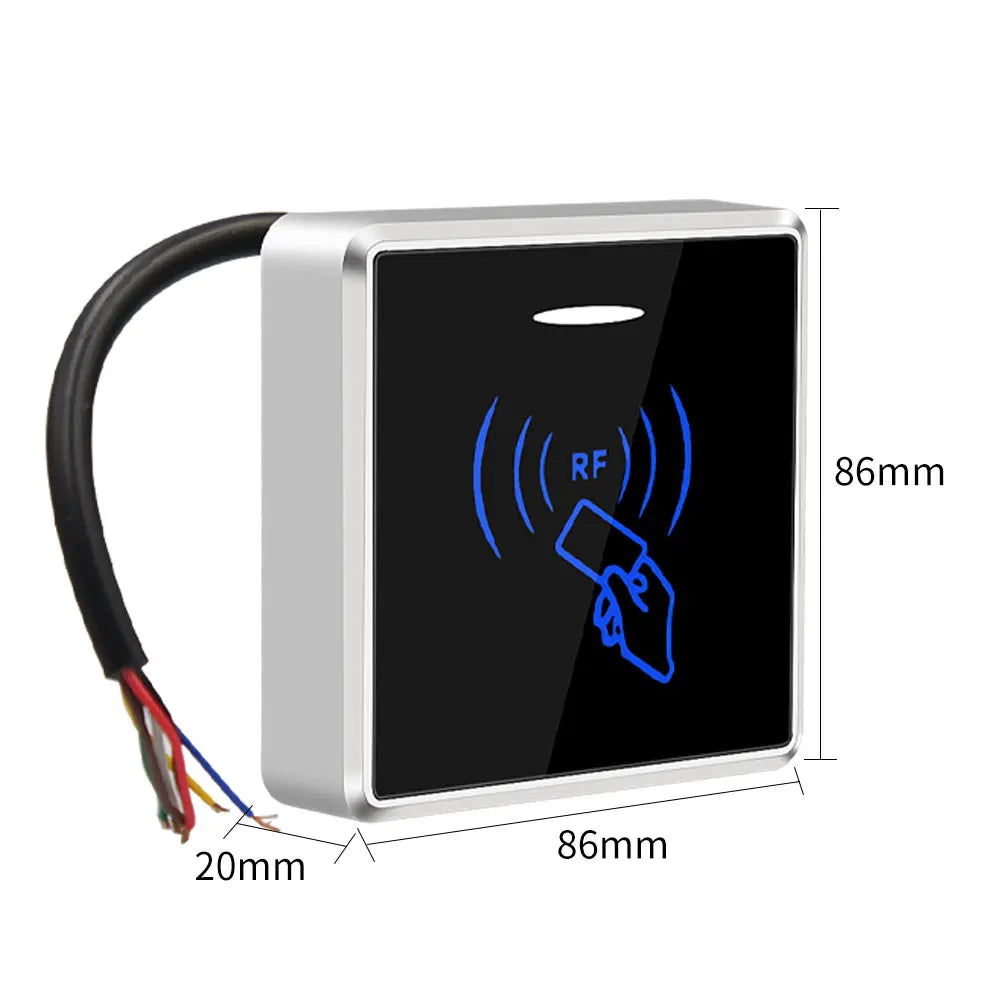

• 📐 Compact Design – Reader dimensions 86 × 86 × 20 mm for easy wall mounting

Why Choose This Kit?

Conventional RFID cards can be cloned in seconds with readily available devices — a serious vulnerability in any access control setup. The Asia-Teco Anti-Copy Kit solves this with proprietary encryption at the point of registration, meaning each card is uniquely paired and cannot be replicated. Combined with the plug-and-play USB card sensor and a standard Wiegand reader interface, this kit is both a security upgrade and a seamless integration into existing systems.

Specifications

Learn More About Access Control Security

For guidance on physical security best practices and access control standards, visit the U.S. Cybersecurity and Infrastructure Security Agency (CISA). You can also learn about electronic security standards at NIST Cybersecurity Resources.

Frequently Asked Questions

Q: Can the RFID cards in this kit be copied or cloned by standard card duplicators?

A: No. The Asia-Teco Anti-Copy RFID cards use registering encryption technology that makes them resistant to duplication by standard 125 kHz card cloners. Each card is individually registered and encrypted, so unauthorized copies will not be recognized by the system.

Q: What access control panels is the Wiegand reader compatible with?

A: The Wiegand reader supports both WG26 and WG34 output formats, which are the most widely used standards in commercial and residential access control systems. It is compatible with the vast majority of access control panels that accept Wiegand input.

Q: What does the USB card sensor (JH-R02) do?

A: The USB card sensor connects to a PC and is used to register and enroll the encrypted RFID cards into your access control system. It outputs data in 6H8D format, making it straightforward to add, remove, or manage card credentials without specialized hardware.

Q: Can this kit be used outdoors?

A: Yes. The reader is rated to operate in temperatures ranging from -20°C to 50°C, making it suitable for outdoor installations in most climates. We recommend verifying the IP rating of your specific installation environment and ensuring appropriate weatherproofing for exposed outdoor use.

Q: What power supply does the Wiegand reader require?

A: The reader operates on a standard DC 9–12V power supply with a static current draw of less than 100 mA, making it compatible with most access control power supplies already used in professional installations.
