RFID Access Control Keypad 13.56MHz Wiegand – 1000 Users
RFID Access Control Keypad 13.56MHz Wiegand – 1000 Users
K1T810M RFID Reader Access Control Keypad — Secure Door Entry for Up to 1,000 Users
The K1T810M RFID Access Control Keypad is a robust, standalone door-entry station designed for homes, offices, and commercial premises. Supporting 13.56 MHz M1 and CPU RFID cards with Wiegand 27/35 output, it integrates seamlessly with Hikvision systems and a wide range of third-party access control setups. Whether you prefer card-only, PIN-only, or combined card + PIN authentication, this unit has you covered — all in a durable ABS plastic and silicone keypad housing built for everyday use.
Key Features

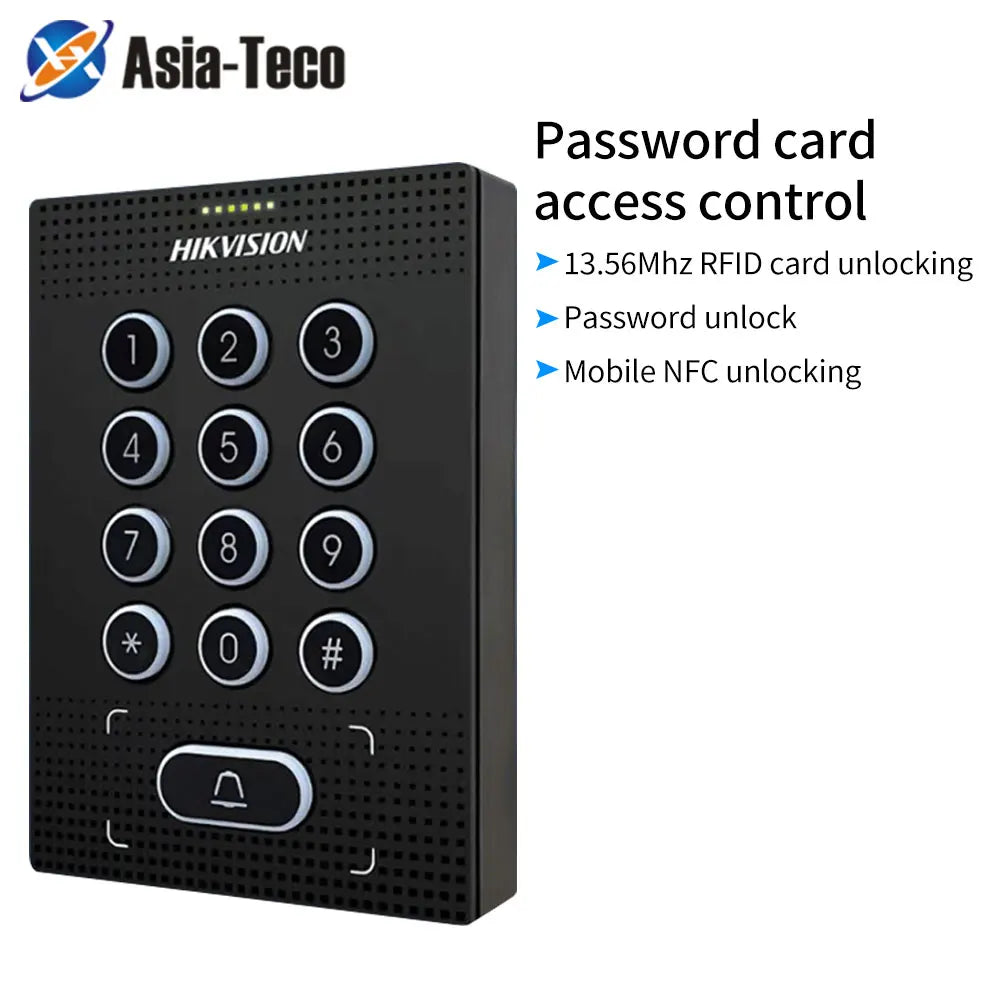

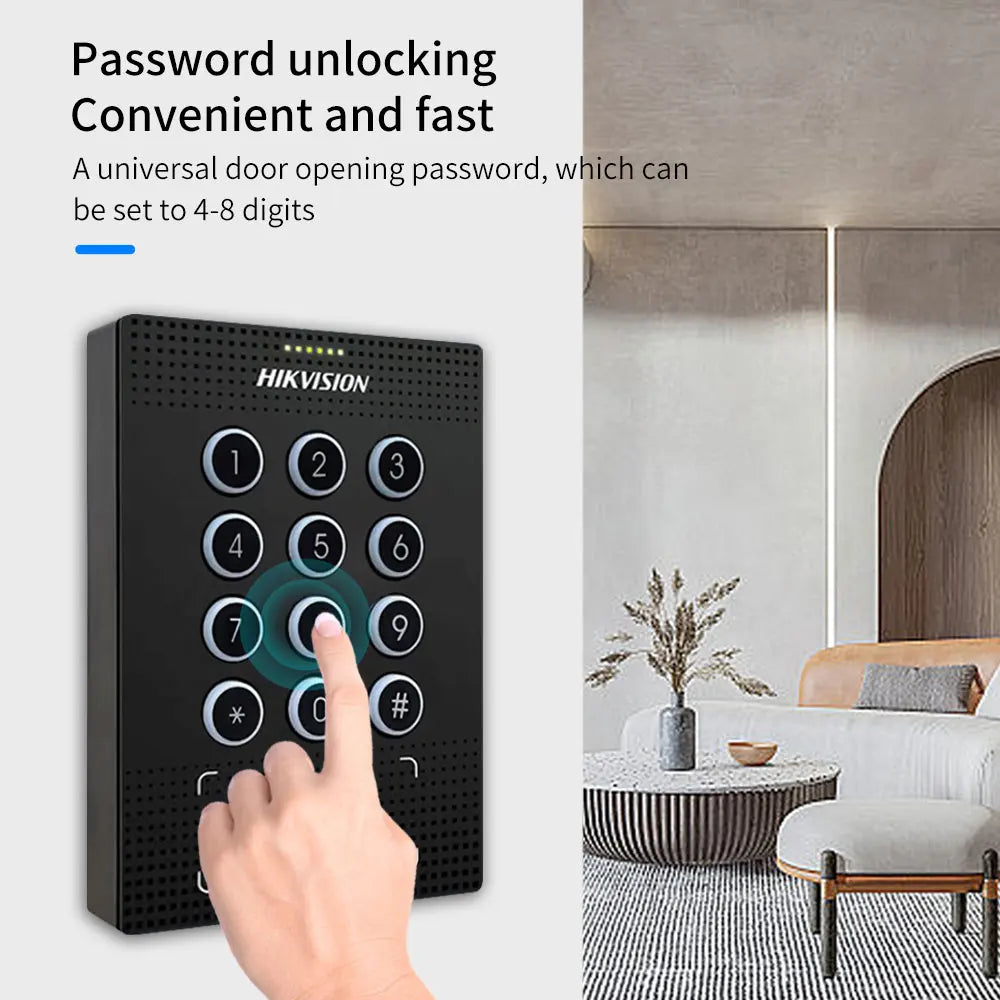

- Triple Entry Modes: Password Only, RFID Card Only, or Password + RFID Card for flexible, layered access.

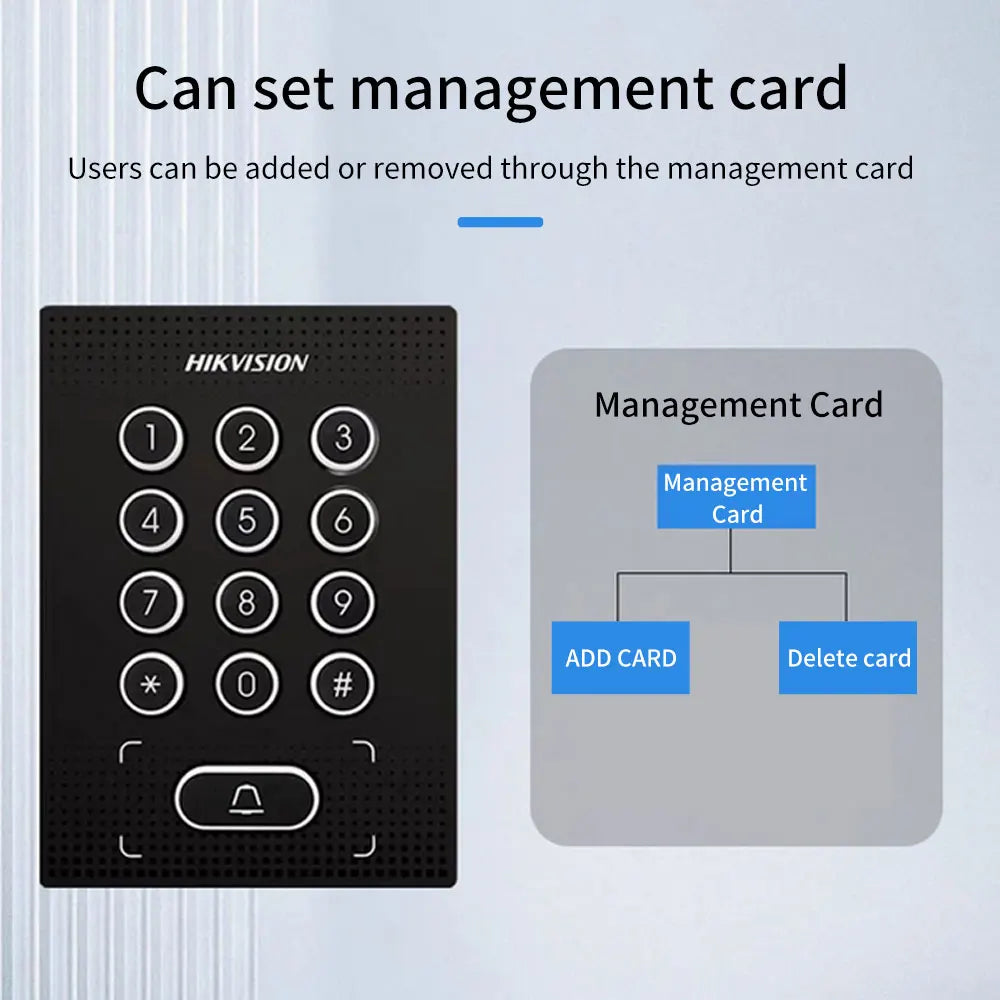

- 1,000 User Capacity: Store and manage up to 1,000 card credentials directly on the device — add or delete cards on demand.
- 13.56 MHz Proximity Reading: Compatible with M1 and CPU card formats; read distance of 0–3 cm for secure, close-range authentication.
- Wiegand 27/35 Output: Universally compatible with major access controllers including Hikvision panels.
- LED Backlit Keypad: Silicone keys with backlight for comfortable use in low-light environments.
- Built-in Alarm Function: Configurable alarm output for tamper or forced-entry events.
- Lock Relay Output: Supports both Secure and Normal modes with NO/NC relay switching for electric strikes, magnetic locks, and more.
- External Bell Support: Built-in bell button connects to an external doorbell for complete door-station functionality.
- Wide Operating Temperature: Rated for –10 °C to 55 °C, suitable for indoor and sheltered outdoor installations.
- ABS Plastic + Silicone Construction: Sturdy, lightweight housing that stands up to daily use.
Technical Specifications
| Model | K1T810M |
| RFID Frequency | 13.56 MHz |
| Card Type | M1 / CPU |
| Read Distance | 0 – 3 cm |
| Wiegand Output | Wiegand 27 / Wiegand 35 |
| User Capacity | 1,000 |
| Power Supply | DC 12V |
| Operating Temperature | –10 °C to 55 °C |
| Material | ABS Plastic + Silicone Keypad |
| Backlight | Supported |
| Country of Origin | Made in China (Mainland) |
What's in the Box?
- 1 × K1T810M RFID Access Control Keypad
- Installation hardware & wiring guide
Learn More About Access Control Security
For guidance on physical security best practices and electronic access control systems, visit the U.S. Cybersecurity & Infrastructure Security Agency (CISA) or consult the NIST Physical Security resources for standards and recommendations.
Frequently Asked Questions
Q: Is the K1T810M RFID keypad compatible with Hikvision access control systems?
A: Yes. The K1T810M outputs Wiegand 27 and Wiegand 35 signals, which are natively supported by Hikvision access controllers and most other major brands that accept standard Wiegand input.
Q: What RFID card types does this keypad support?
A: The K1T810M reads 13.56 MHz proximity cards in M1 and CPU card formats. Standard 125 kHz EM cards are not compatible — please ensure your cards match the 13.56 MHz frequency before purchasing.
Q: Can I use this keypad as a standalone unit without an additional access controller?
A: Yes. The K1T810M functions as a fully standalone access controller storing up to 1,000 users locally. You can add or delete card credentials directly on the device. It also has a built-in relay output to control an electric door lock without any additional hardware.
Q: What entry modes are available on the K1T810M?
A: The keypad supports three entry modes: PIN (password) only, RFID card only, or a combined PIN + RFID card mode for two-factor door access — giving you the flexibility to match your security requirements.
Q: What type of door lock can I connect to this unit?
A: The built-in relay supports both Normally Open (NO) and Normally Closed (NC) outputs in Secure or Normal mode, making it compatible with electric strikes, electromagnetic locks (mag-locks), and most standard electronic door-lock hardware powered at DC 12V.
