Asia-Teco RFID Standalone Access Control Keypad – Metal, Weatherproof & Versatile
Secure your home, office, or facility entrance with the Asia-Teco M1 EM/Mifare RFID Standalone Keypad — a professional-grade, waterproof access control system built for demanding indoor and outdoor environments. Constructed from rugged zinc alloy with an IP67 weatherproof rating, this keypad is designed to withstand harsh conditions while delivering reliable, contactless entry management for up to 3,000 users.
Made in Mainland China.
Key Features & Advantages

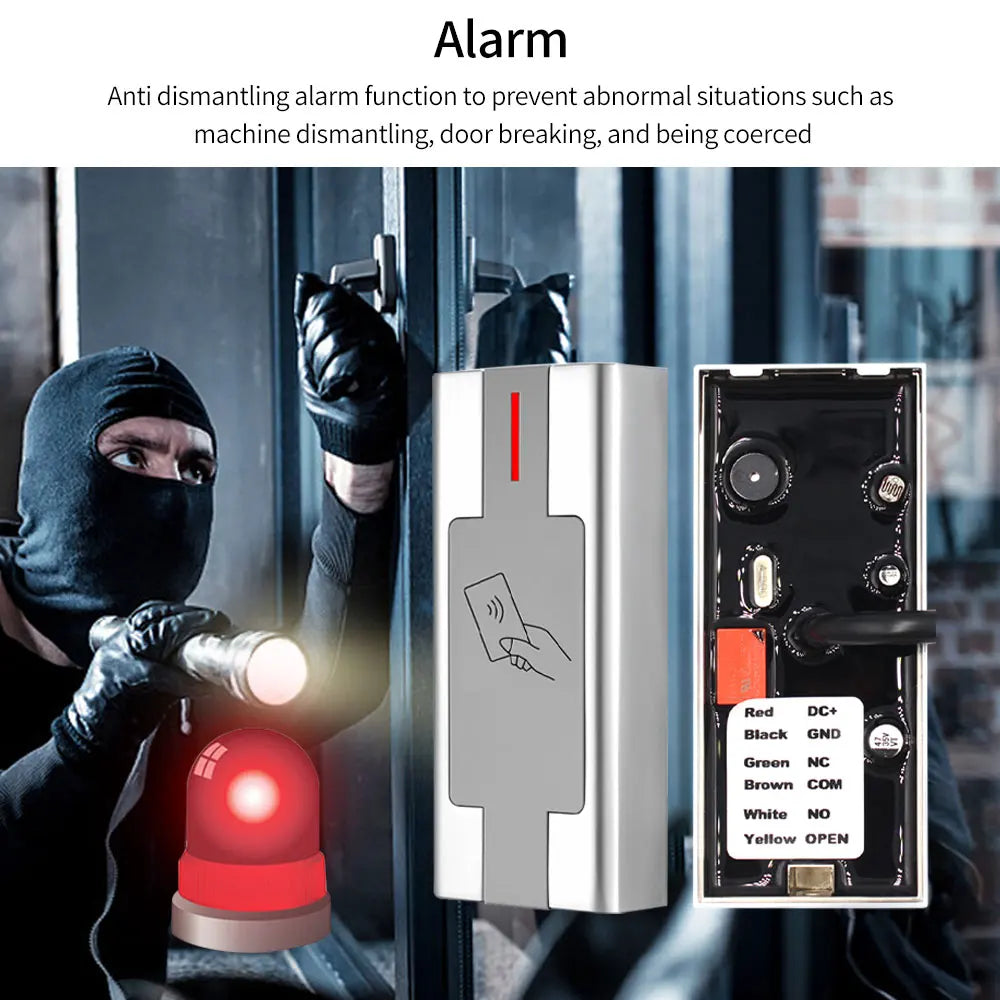

- Heavy-Duty Zinc Alloy Construction – Anti-vandal and impact-resistant housing built to last in high-traffic or exposed locations.
- IP67 Weatherproof Rating – Fully protected against dust ingress and water immersion, making it ideal for outdoor gates, parking facilities, and building entrances.
- Wide Card Compatibility – Supports EM (125KHz), Mifare (13.56MHz), or EM & Mifare combined card formats — choose the configuration that suits your infrastructure.
- Large User Capacity – Manage up to 3,000 registered users plus 10 dedicated visitor/guest user slots for flexible access management.
- Wiegand Input & Output – Supports Wiegand 26–44 bit, 56 bit, and 58 bit (Mifare) and Wiegand 26-bit (EM) for seamless integration with existing access control systems.
- Standalone or Card Reader Mode – Operate independently or configure as a card reader for multi-panel systems.
- Data Upload & Download – Easily transfer card user data for efficient management of large user bases.
- Pulse & Toggle Output Modes – Compatible with a wide range of electronic locks and door controllers.
- Wide Voltage Range – Operates on DC 10–24V, accommodating varied power supply setups.
- Extreme Temperature Operation – Reliable performance from -40°C to 60°C (-40°F to 140°F).
Technical Specifications
| Model | H2-X-EM / H2-X-MF / H2-X-EM+MF |
| Brand | Asia-Teco |
| Material | Zinc Alloy |
| Card Frequency | 125KHz (EM) / 13.56MHz (Mifare) |
| Card Capacity | 3,000 Users + 10 Visitor Users |
| Read Range | 30–80mm |
| Operating Voltage | DC 10–24V |
| Active Current | ≤150mA |
| Working Current | ≤80mA |
| Idle Current | ≤45mA |
| Weatherproof Rating | IP67 |
| Security Mode | Fail Safe |
| Operating Temperature | -40°C to 60°C |
| Country of Origin | Mainland China |
Who Is This For?
Whether you're securing a residential gate, commercial building, warehouse, parking lot, or industrial facility, this keypad delivers the durability and flexibility professionals expect. Its standalone capability means no PC or network connection is required for day-to-day operation — simply enroll cards and go.
For guidance on best practices for electronic access control and physical security, visit the Cybersecurity and Infrastructure Security Agency (CISA) or refer to building security resources at CPSC.gov.
Learn more: Card reader
Frequently Asked Questions
Q: Is the Asia-Teco RFID keypad suitable for outdoor use in all weather conditions?
A: Yes. This access control keypad carries an IP67 weatherproof rating, meaning it is fully protected against dust and can withstand temporary water immersion. It also operates in temperatures ranging from -40°C to 60°C, making it suitable for year-round outdoor installation.
Q: What types of RFID cards does this keypad support?
A: The keypad is available in three configurations: EM cards only (125KHz), Mifare cards only (13.56MHz), or a combined EM & Mifare model that supports both card types simultaneously. Choose the model that matches your existing card infrastructure.
Q: Can this RFID keypad be integrated with an existing access control system?
A: Yes. The device supports Wiegand input and output (26-bit for EM; 26–44 bit, 56 bit, and 58 bit for Mifare), allowing seamless integration with most standard access control panels. It can also operate in standalone mode without any external controller.
Q: How many users can be registered on this keypad?
A: The keypad supports up to 3,000 registered card users plus 10 visitor/guest user slots, making it well suited for small to medium-sized facilities and multi-tenant buildings.
