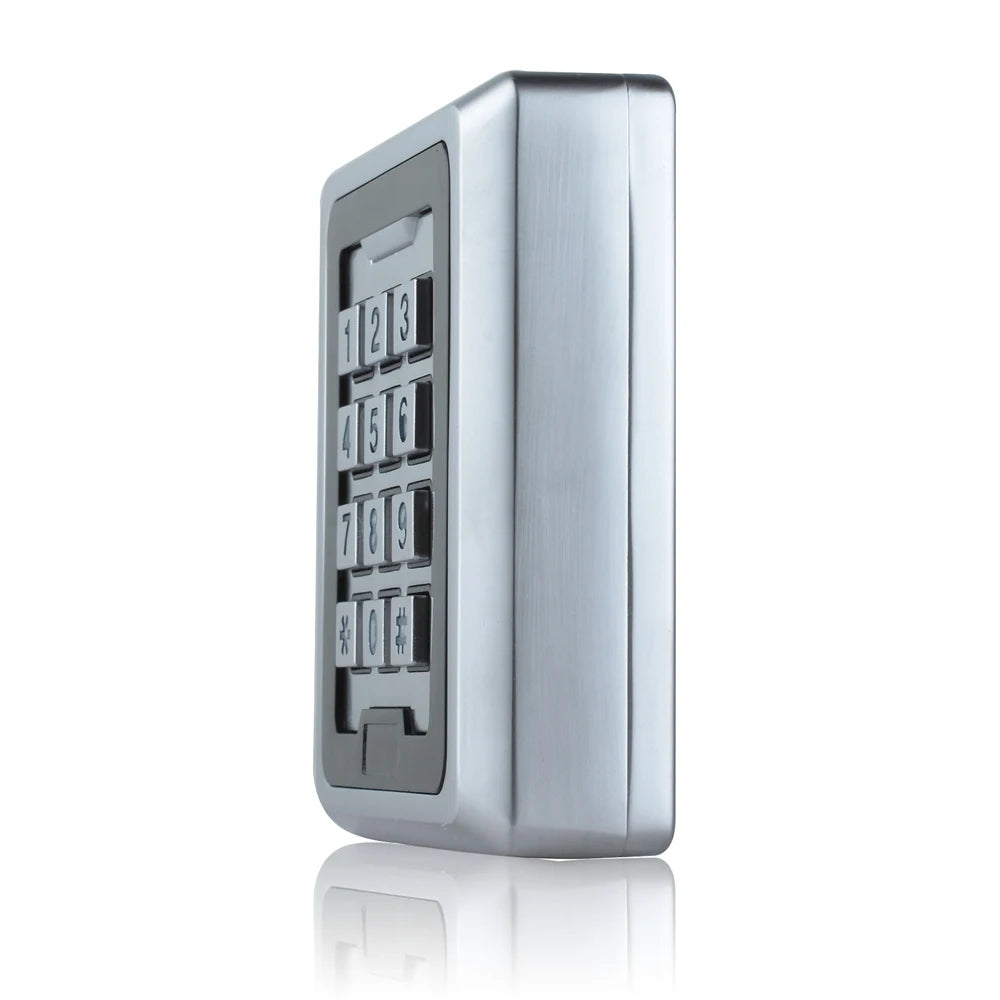

Asia-Teco Standalone RFID Door Access Control System – IP68 Waterproof Metal Case
Secure any single door with this robust standalone RFID access control keypad from Asia-Teco (Model LKK86). Built from heavy-duty zinc alloy with an aluminum alloy finish, it supports up to 8,000 proximity cards and/or PIN codes — making it ideal for shops, homes, offices, factories, warehouses, laboratories, banks, and more. Made in Mainland China.
Key Features
- IP68 Waterproof Rating – Fully sealed for reliable outdoor and indoor use in demanding environments
- 3 Access Modes – Card only, PIN code only, or card + PIN for added security
- 8,000 User Capacity – Store up to 8,000 proximity cards and 8,000 PIN codes independently
- Backlit Keypad – Fashion silver finish with illuminated keys for easy use day or night
- Anti-Vandal Construction – Strong zinc alloy electroplated case resists tampering and physical damage
- Anti-Tamper Alarm – Built-in light-dependent resistor (LDR) triggers alarm if the cover is removed
- Fast Processing – Response time under 20ms with 2,000 active users
- Wiegand Output – WG26 (W26 for cards, W34 for codes) for integration with third-party systems
- Short-Circuit Protection – Relay/alarm output shuts off within 0.1ms in the event of a short circuit
- Full Keypad Programming – Configure all settings directly from the keypad without a PC
- Adjustable Timers – Customize door output time, alarm time, and door open duration
- Low Power Consumption – Static current under 30mA
- Wide Temperature Range – Operates from -45°C to 60°C (-49°F to 140°F)
Technical Specifications
| Power Supply | 12V DC ±10% |
| Unlock Relay | 12V DC / 2A |
| Electric Lock Output | Max 3A |
| Alarm Output | Max 20A |
| Short-Circuit Protection | Max 0.1ms |
| User Card Capacity | 8,000 cards / 8,000 codes |
| PIN Code Length | 4-digit |
| Card Frequency | 125 kHz (EM or compatible) |
| Read Range | 3–6 cm |
| Ambient Temperature | -45°C to 60°C |
| Relative Humidity | 10%–90% RH |
| Wiegand Interface | WG26 (W26 card / W34 code) |
| Dimensions | 85 × 85 × 25 mm |
| Material | Aluminum Alloy / Zinc Alloy |
| Waterproof Rating | IP68 |
| Model | LKK86 |
What's in the Box
- 1 × Asia-Teco LKK86 RFID Access Control Keypad
- Mounting hardware
- Installation manual
Learn More About Physical Security Standards
For guidance on building security best practices and electronic access control, visit the U.S. Consumer Product Safety Commission (CPSC) for consumer safety resources.
Frequently Asked Questions
Q: How many users can this RFID access control system support?
A: The Asia-Teco LKK86 supports up to 8,000 proximity card users and 8,000 PIN codes simultaneously, making it suitable for small businesses, offices, warehouses, and large households.
Q: Is this access control keypad suitable for outdoor installation?
A: Yes. The unit carries an IP68 waterproof rating — the highest standard for dust and water ingress protection — and operates across a wide temperature range (-45°C to 60°C), making it fully suitable for outdoor and harsh-environment installations.
Q: What type of proximity cards does this system use?

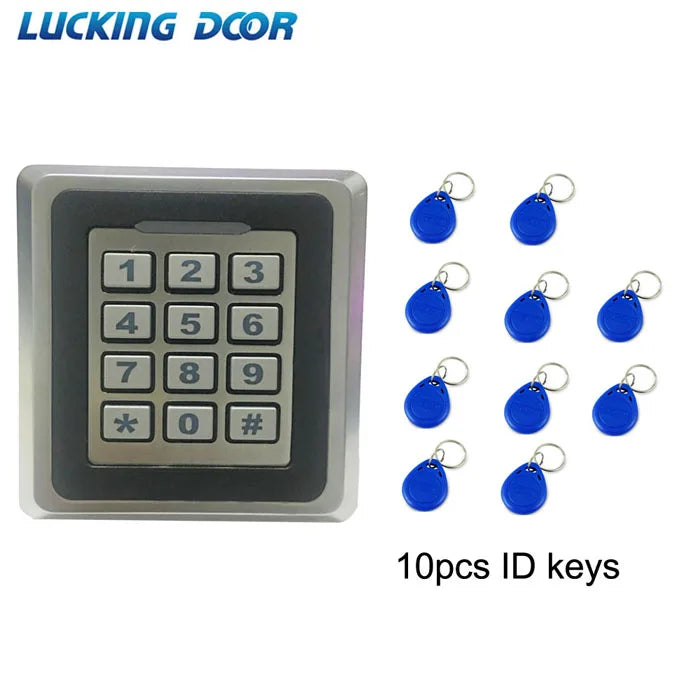

A: The LKK86 reads 125 kHz EM-type proximity cards (or compatible equivalents) at a read range of 3–6 cm. Cards, PIN codes, or a combination of both can be used for access.
Q: Can this controller be integrated with an existing security system?
A: Yes. The unit features a Wiegand WG26 output (W26 for cards, W34 for codes), allowing it to function as a standalone controller or as an external reader connected to a broader access control or security panel.
Q: Does the system have tamper protection?
A: Yes. The LKK86 includes a built-in light-dependent resistor (LDR) for anti-tamper detection, an anti-theft alarm output for connecting external alarm devices, and a ruggedized zinc alloy anti-vandal enclosure.
