Asia-Teco Standalone RFID & Fingerprint Access Control Keypad — IP66 Waterproof, Metal Circular Design
Take full control of who enters your property with the Asia-Teco Standalone RFID Access Control Keypad. Built from a robust zinc-alloy enclosure and rated IP66 waterproof, this compact circular reader is engineered for reliable outdoor performance in the harshest conditions — from scorching summers to frigid winters as low as -40°C (-40°F).
Whether you're securing a home gate, office entrance, or industrial facility, this versatile keypad supports up to 1,000 users (990 standard + 10 visitor slots) with flexible access modes including card, PIN, card + PIN, or multi-card/PIN combinations. An optional Bluetooth-enabled version allows smartphone app-based entry for ultimate convenience.
Note: This listing includes the keypad unit only. RFID cards are not included.
Key Features
- 🔒 IP66 Waterproof Rating — Fully sealed against dust and powerful water jets; ideal for outdoor installations

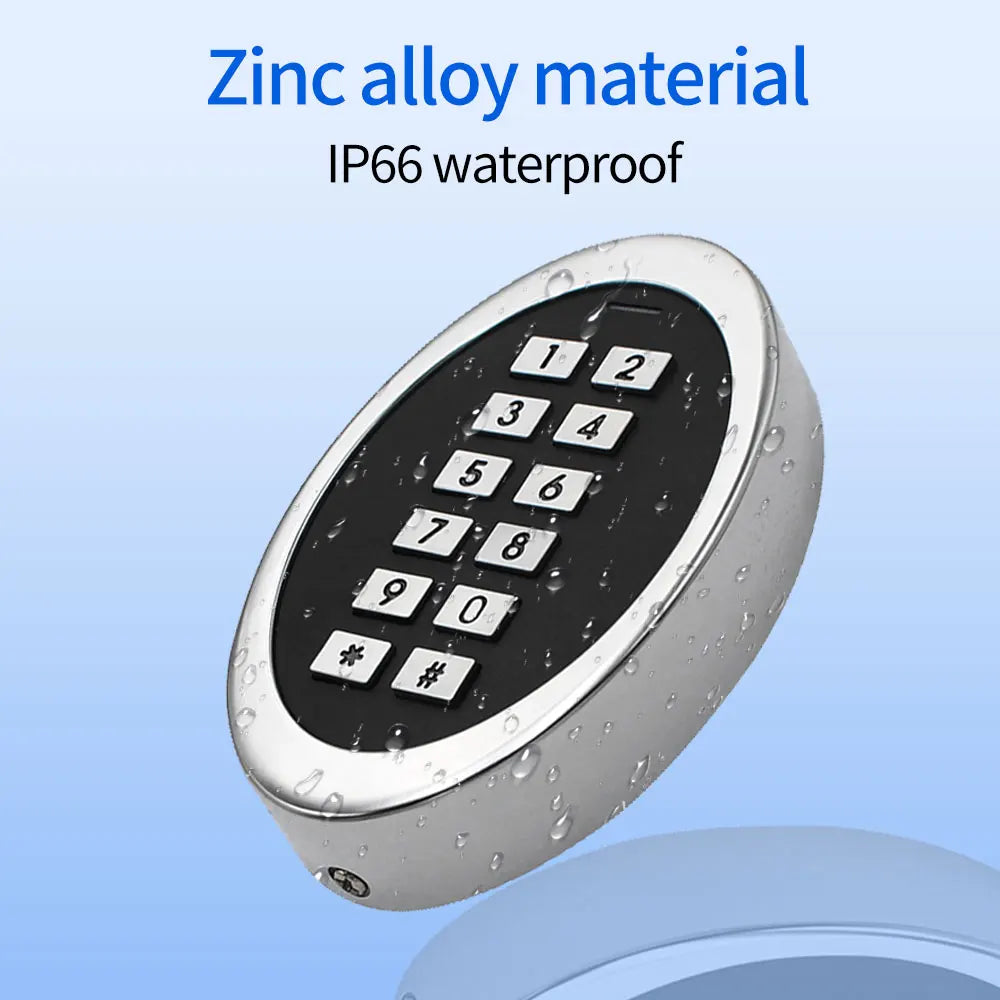

- 🏗️ Vandal-Resistant Zinc-Alloy Enclosure — Durable metal housing in a sleek silver circular or ellipse design
- 👤 1,000 User Capacity — 990 standard users + 10 visitor access slots

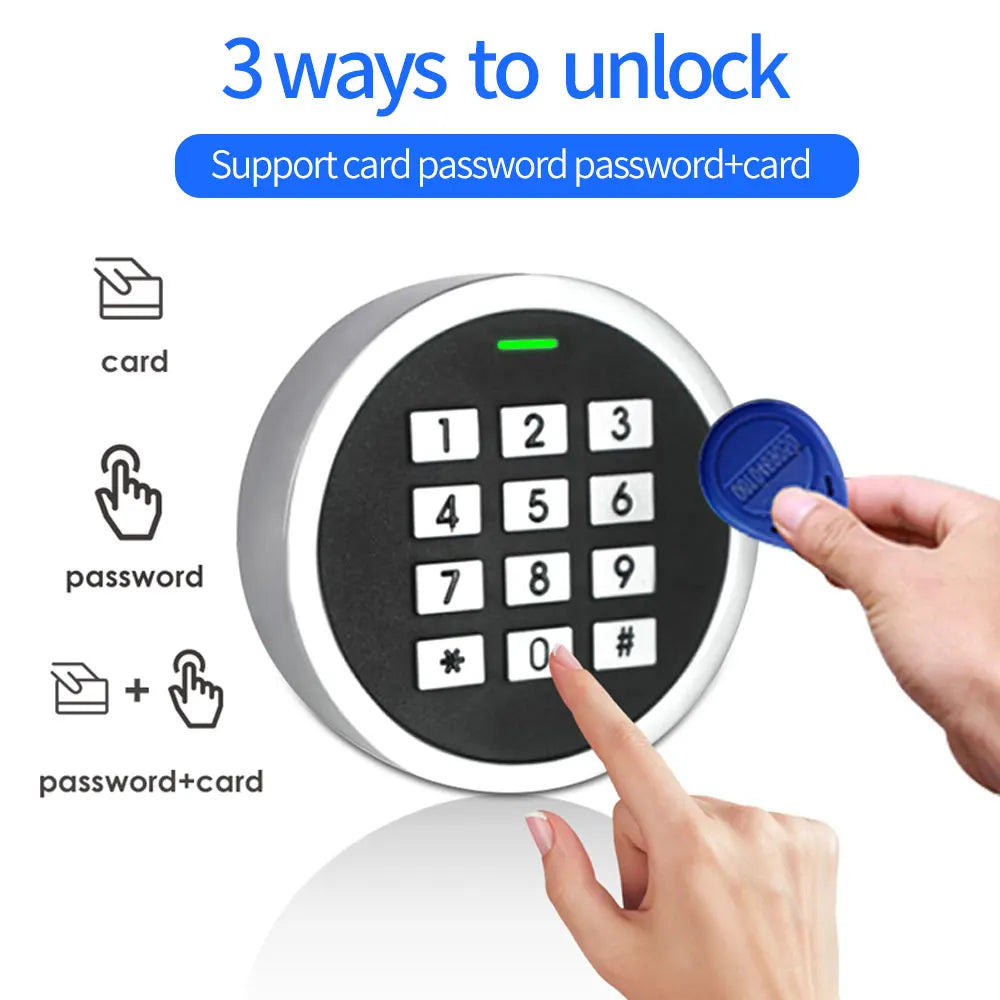

- 🔑 Multiple Access Modes — Card only, PIN only (4–6 digits), Card + PIN, or multi-card/PIN
- 📡 Dual Card Compatibility — Supports 125KHz EM/ID cards; optional 13.56MHz Mifare card version available
- 🔗 Wiegand Interface — Wiegand 26-bit output; Wiegand 26/34-bit input with automatic identification
- 🌡️ Extreme Temperature Resistance — Operates from -40°C to 60°C (-40°F to 140°F)
- 💡 Tri-Color LED Status Display — Clear visual feedback for access events
- ⚙️ Adjustable Relay Output — 0–99 seconds (default 5 seconds), max 2A load; supports Pulse and Toggle modes
- 📱 Optional Bluetooth App Access — Manage and unlock via smartphone (refer to APP manual)
- 🔋 Low-Power Circuit Design — Extends service life with energy-efficient operation (Atmel MCU)
- 📦 Card Block Enrollment — Easily manage and revoke access credentials
Specifications

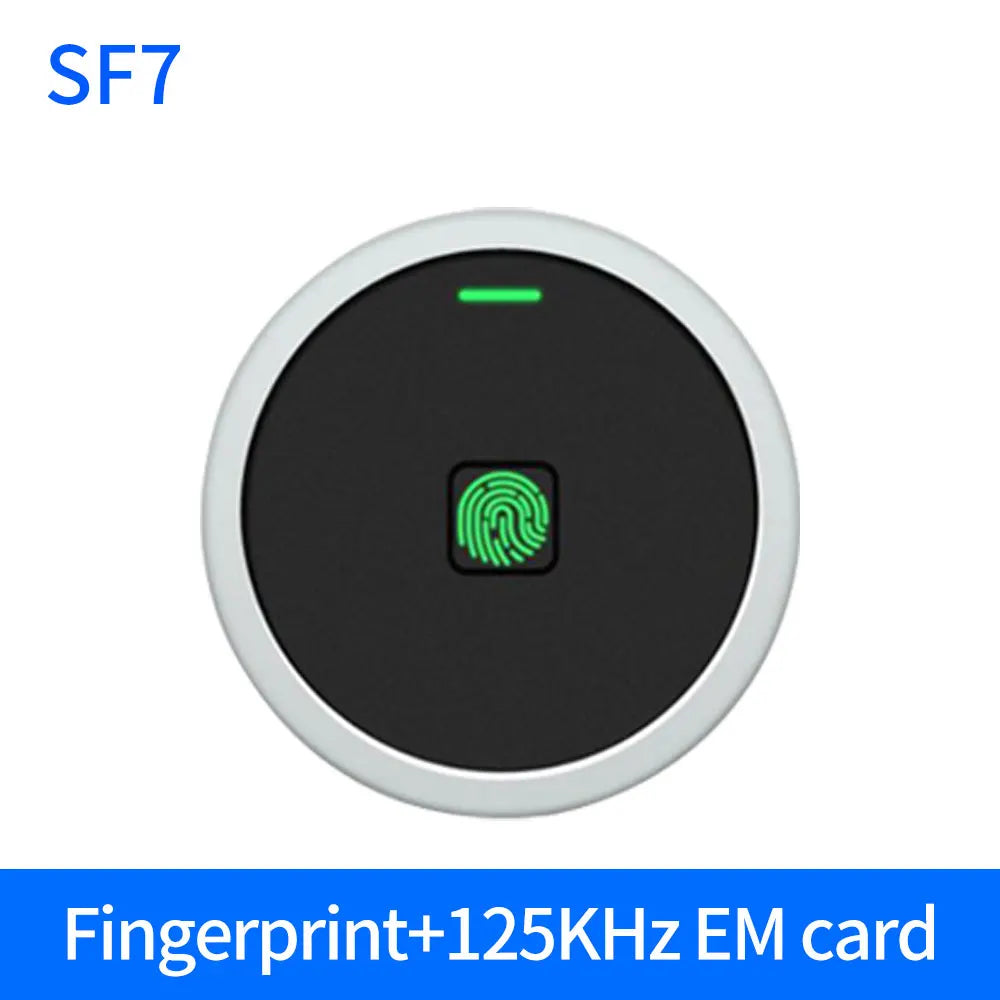

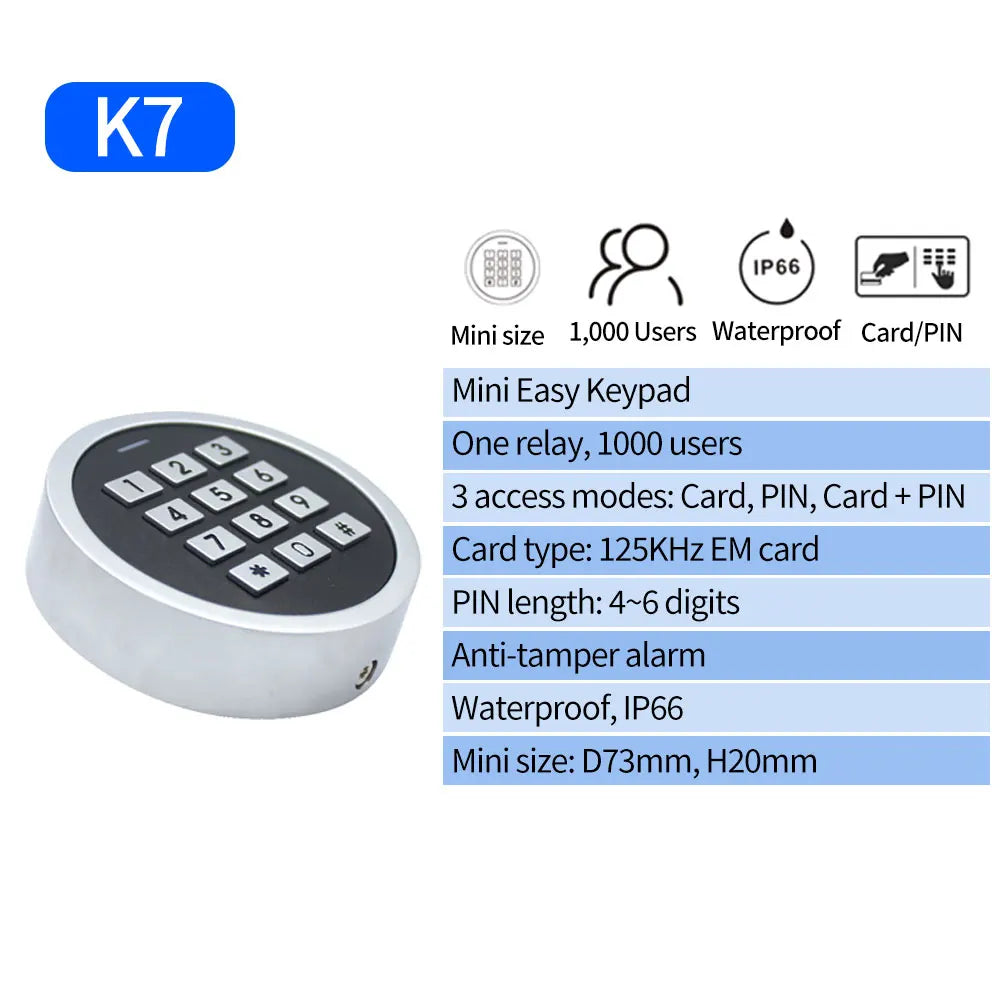

| Models Available | K7 / K8 / S7 / SF7 / SF8 |
| Color | Silver |
| Dimensions (Round) | Ø73mm × 20mm thick |
| Dimensions (Ellipse) | 69mm × 105mm × 20mm |
| Power Input | 9–18V DC |
| Relay | 1× NO/NC/Common relay |
| Relay Output Load | 2A maximum; 0–99 sec adjustable (default 5 sec) |
| Card Frequency | 125KHz RFID EM Card (13.56MHz optional) |
| Wiegand | 26-bit output; 26/34-bit input (auto ID) |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Humidity | 0%RH – 98%RH |
| Enclosure | Zinc-Alloy |
| Weight (Round / Ellipse) | 185g / 275g |
| Country of Origin | Made in China |
Ideal For
Residential gates & garage doors · Office building entrances · Apartment complexes · Industrial facilities · Storage units · Server rooms · Any door requiring secure, weatherproof access control
For best practices on physical access control and security system installation, visit the U.S. Consumer Product Safety Commission (CPSC) for guidance on safe installation of electrical and electronic devices.
Frequently Asked Questions
Q: Is the Asia-Teco RFID access control keypad suitable for outdoor use in rain or extreme temperatures?
A: Yes. The keypad carries an IP66 waterproof rating, meaning it is fully protected against dust ingress and powerful water jets from any direction. It also operates across an extreme temperature range of -40°C to 60°C (-40°F to 140°F), making it suitable for outdoor installations in virtually any climate — from Arctic-cold winters to desert-hot summers.
Q: What access methods does this keypad support?
A: The keypad supports multiple access modes: RFID card only, PIN only (4–6 digits), card + PIN combined, or multi-card/multi-PIN scenarios. An optional Bluetooth-enabled version also allows smartphone app-based access. It accommodates up to 1,000 users (990 standard + 10 visitor accounts), making it flexible for both small homes and larger commercial sites.
Q: Does this unit work with my existing access control system via Wiegand?
A: Yes. The keypad features a standard Wiegand 26-bit output and supports Wiegand 26/34-bit input with automatic identification, making it compatible with the vast majority of existing access control panels and readers that use the Wiegand interface. It can also operate in fully standalone mode without a separate controller.
Q: Are RFID cards included with the keypad?
A: No — this listing is for the keypad unit only. RFID cards (125KHz EM/ID format, or optional 13.56MHz Mifare) are not included and must be purchased separately.
Q: What relay output options are available?
A: The built-in relay supports one NO/NC/Common configuration with an adjustable output time of 0–99 seconds (factory default is 5 seconds) and a maximum load of 2 Amps. Both Pulse mode and Toggle mode are supported, giving you flexibility for electric strikes, magnetic locks, and other door hardware.
