Asia-Teco K8 RFID Access Control Keypad — Secure, Standalone Entry for Home & Office

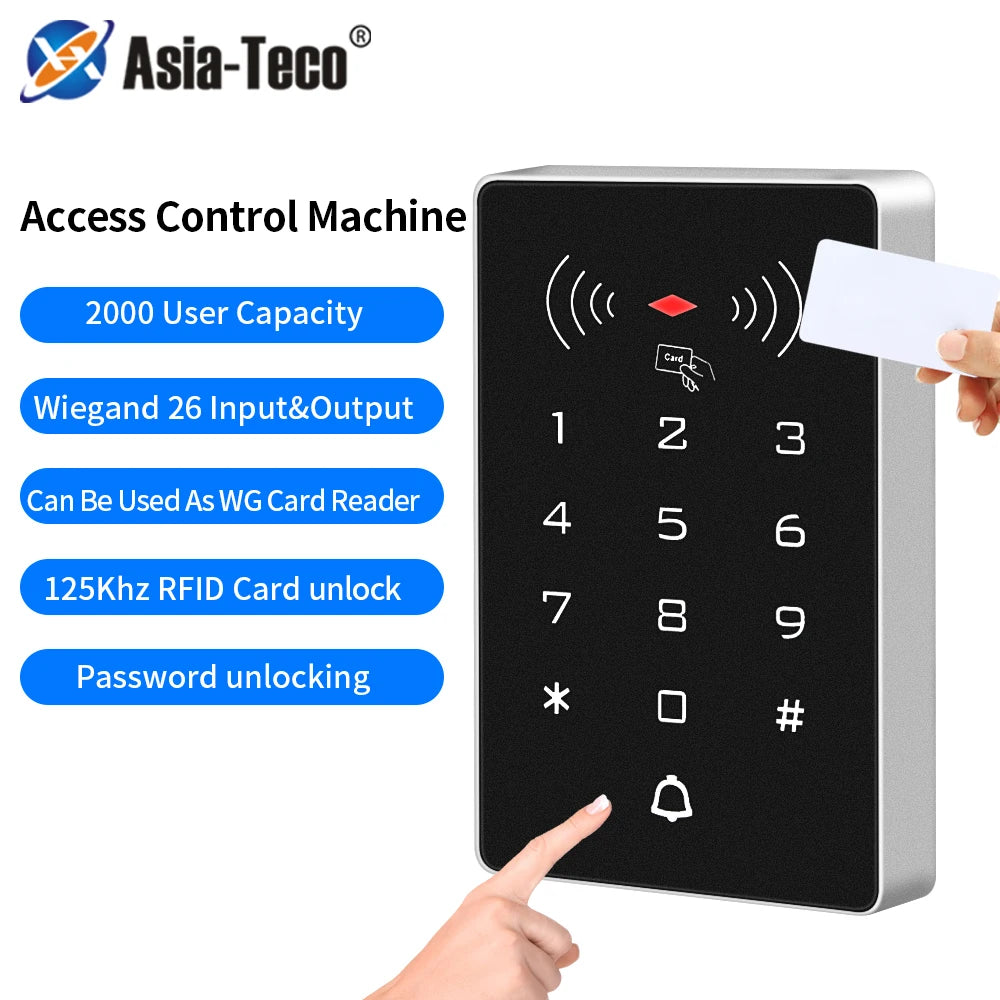

Take full control of who enters your space with the Asia-Teco K8 Standalone RFID Access Control Keypad. Designed for homes, offices, hotels, apartments, and factories, this all-in-one unit combines a card reader, PIN keypad, and door relay controller in a single sleek panel — no PC or network connection required. Made in Mainland China.
Why Choose the K8 Access Control Keypad?
- 2,000 User Capacity — Store up to 2,000 unique card or PIN credentials, making it ideal for small to mid-size facilities.
- Flexible Entry Methods — Supports card-only, PIN-only, or combined card + PIN authentication for layered security.
- Wiegand 26 (WG26) Protocol — Functions as a fully standalone controller or as a Wiegand slave reader connected to a larger access control system.
- Dual Frequency Support — Available in 125 kHz (EM) or 13.56 MHz (MF/Mifare) versions to match your existing card infrastructure.
- Adjustable Door Relay Time — Set the door unlock duration anywhere from 0 to 99 seconds to suit your door hardware.
- Built-in Doorbell Button — Visitors can alert occupants without needing a separate doorbell unit.
- Wide Temperature Range — Operates reliably from -40 °C to +60 °C, suitable for outdoor and harsh-environment installations.
- Low Power Draw — Standby current ≤ 30 mA keeps energy costs minimal on a standard DC 12 V supply.
- Quick Card Read Response — Reading distance up to 10 cm for fast, hands-free card presentation.
Full Specifications
| Model | K8-EM (125 kHz) / K8-MF (13.56 MHz) |
| User Capacity | 2,000 users |
| Working Voltage | DC 12 V |
| Working Current | < 100 mA |
| Standby Current | ≤ 30 mA |
| Lock Output Load | ≤ 3 A |
| Protocol | Wiegand 26 (WG26) |
| Card Reading Distance | 0–10 cm |
| Door Relay Time | 0–99 seconds (adjustable) |
| Working Temperature | -40 °C to +60 °C |
| Working Humidity | 10%–90% RH |
| Dimensions | 74 × 114 × 17 mm (W × H × D) |
| Country of Origin | Made in Mainland China |
Ideal Applications
The K8 keypad is a versatile fit for a wide range of entry-point scenarios:
- Residential front doors & gate systems
- Office & co-working space entrances
- Hotel room corridors
- Apartment building lobbies
- Factory & warehouse access gates
Safety & Installation Resources
For guidance on best practices when installing electrical access control hardware, refer to the OSHA Electrical Safety Standards and the U.S. Consumer Product Safety Commission (CPSC) for general consumer product safety information.
Frequently Asked Questions
Q: Does the K8 RFID access control keypad require a computer or internet connection to operate?
A: No. The K8 is a fully standalone access controller. It stores all user credentials (up to 2,000) internally and operates independently without any PC, software, or network connection. It can also be used as a Wiegand 26 slave reader if you choose to integrate it into a larger access control system later.
Q: What is the difference between the K8-EM and K8-MF models?
A: The K8-EM operates at 125 kHz and is compatible with EM4100-type proximity cards. The K8-MF operates at 13.56 MHz and is compatible with Mifare (ISO 14443A) cards and key fobs. Choose the model that matches your existing card stock, or select one and purchase compatible cards accordingly.
Q: What types of door locks is the K8 keypad compatible with?
A: The K8 supports electric strike locks, magnetic locks (maglocks), and electric bolt locks — any lock that accepts a 12 V relay trigger signal with a load of up to 3 A. Always verify your lock's power requirements before wiring.
Q: Can I use both a card and a PIN together for two-factor entry?
A: Yes. The K8 supports three entry modes: card only, PIN only, or card + PIN combined. The combined mode requires both a valid card presentation and a correct PIN, providing an extra layer of access security.
Q: Is the K8 keypad suitable for outdoor installation?
A: The K8 is rated for an operating temperature range of -40 °C to +60 °C and humidity of 10%–90% RH, making it suitable for covered outdoor environments. For fully exposed outdoor use, we recommend installing it under a weather-protective housing or canopy.
