RFID Access Control Keypad 125KHz Card Reader – 2000 Users
RFID Access Control Keypad 125KHz Card Reader – 2000 Users

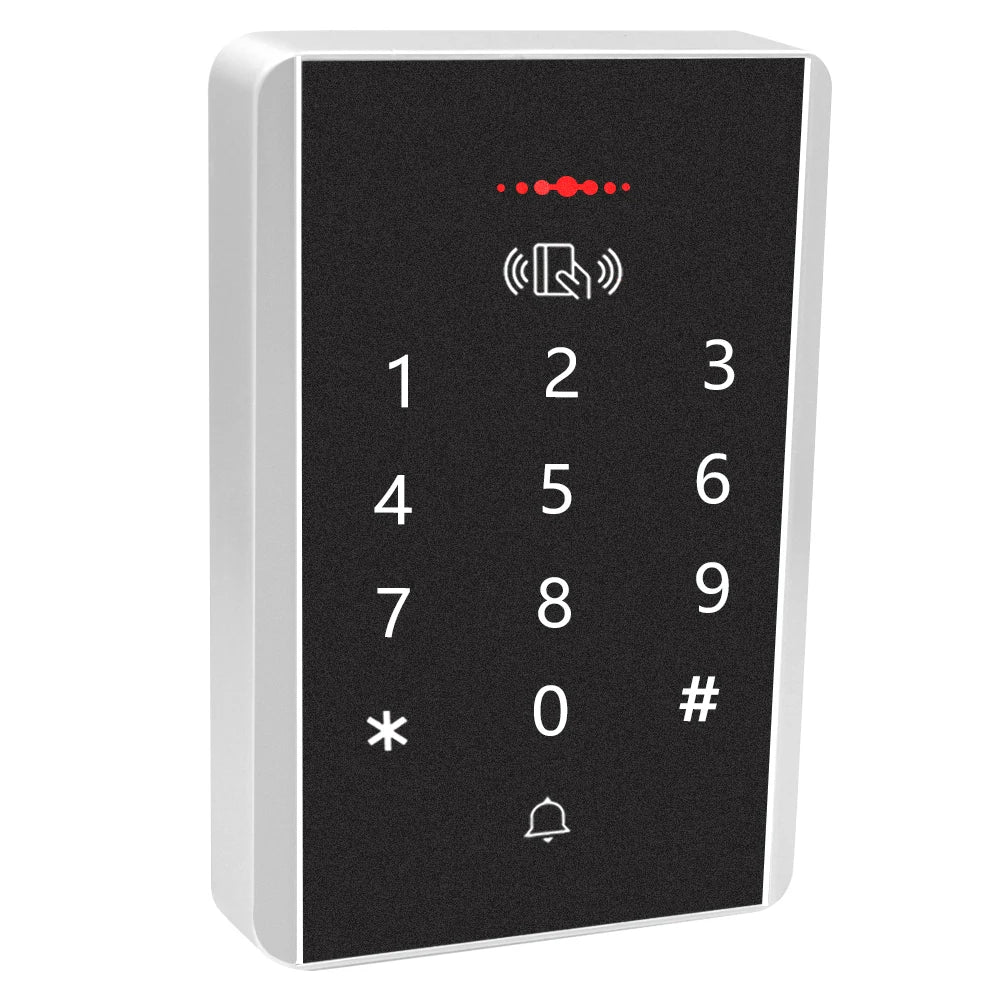

Standalone RFID Access Control Keypad – 125KHz Card Reader with Digital Panel
Take control of who enters your home, office, hotel, or apartment with the Asia-Teco K806-EM Standalone RFID Access Control Keypad. This compact, self-contained unit supports up to 2,000 users and works entirely on its own — no computer or network connection required. With three flexible unlocking modes and a wide operating temperature range, it's built for reliable, everyday security.

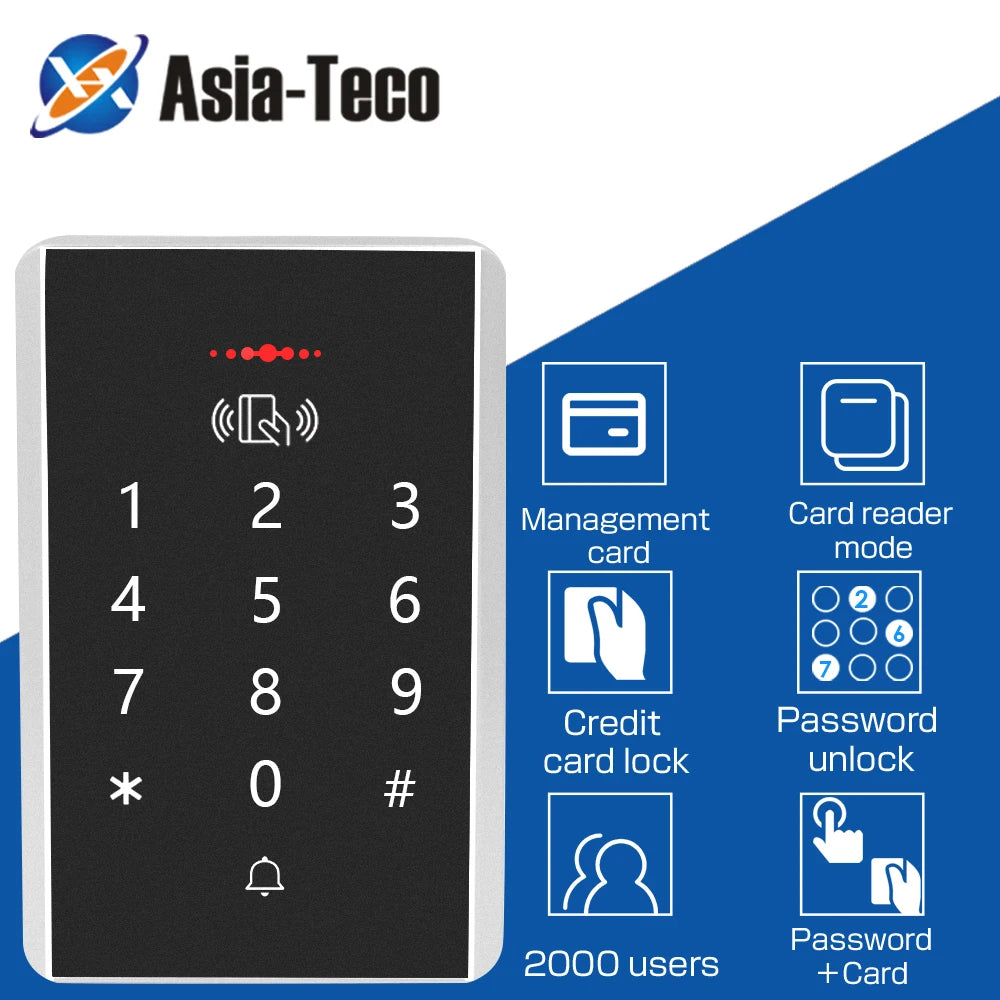

Key Features
- 2,000 User Capacity – Easily manage large teams, families, or tenant lists without additional hardware.

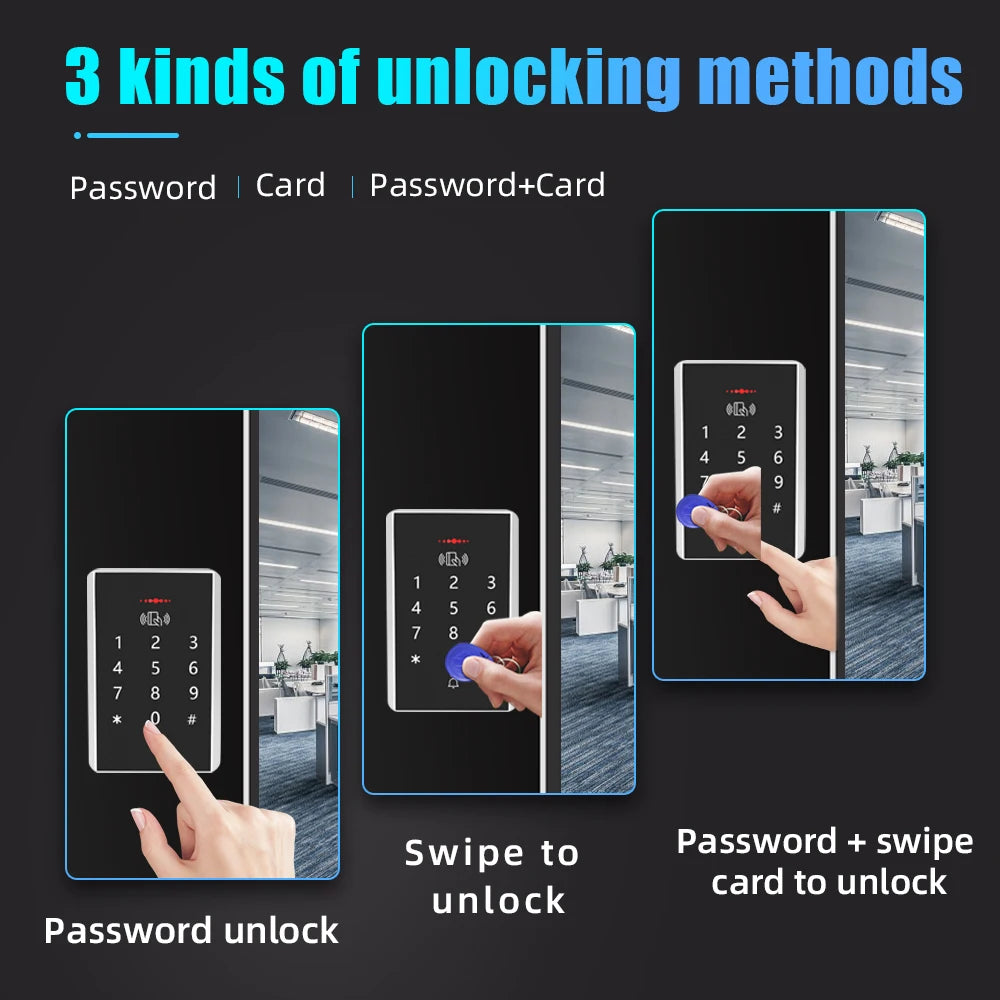

- 3 Unlocking Modes – Use RFID card only, PIN password only, or card + PIN combination for added security.
- 125KHz / 13.56MHz Frequency Options – Compatible with standard ID cards and IC cards (version selectable).
- Standalone Operation – No PC or network needed; functions independently right out of the box.

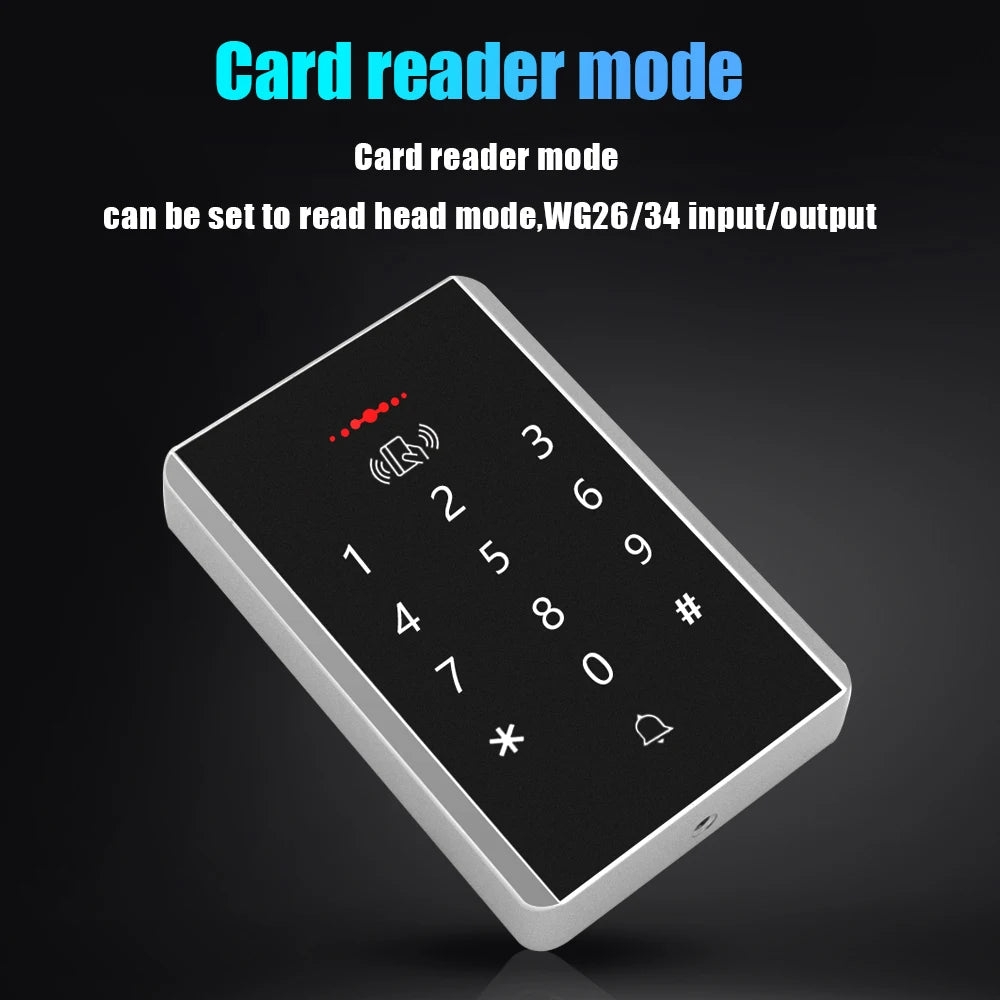

- Card Reader Mode Conversion – Supports relay mode and can be switched to card reader mode for integration flexibility.
- Built-in Doorbell Button – Convenient visitor notification built directly into the panel.
- Adjustable Door Open Time – Set lock release duration anywhere from 10 to 99 seconds to suit your door setup.
- Wide Temperature Range – Operates reliably in temperatures from -45°C to +60°C, making it suitable for indoor and outdoor installations.
- Compact, Professional Design – Sleek 115 × 75 × 16 mm panel fits standard wall mount boxes and complements any entryway aesthetic.
- Fast Response – Quick card reading distance of 2–5 cm with short-circuit output protection (≤100μs).
Ideal Applications
Perfect for homes, hotels, offices, apartments, factories, warehouses, and any single-door access control scenario where a simple, dependable, no-fuss solution is needed.
Technical Specifications
| Model | K806-EM |
| User Capacity | 2,000 users |
| Working Frequency | 125KHz / 13.56MHz (optional) |
| Card Reading Distance | 2–5 cm |
| Operating Voltage | DC 12V ±10% |
| Working Current | <100mA |
| Static Current | ≤30mA |
| Electrical Lock Output | <1A |
| Output Short Circuit Protection | ≤100μs |
| Door Open Time | 10–99 seconds (adjustable) |
| Dimensions | 115 × 75 × 16 mm |
| Operating Temperature | -45°C to +60°C |
| Ambient Humidity | 10%–90% RH |
| Country of Origin | Made in China |
Safety & Standards
For guidance on electronic security system installation best practices, refer to the U.S. Consumer Product Safety Commission (CPSC) for relevant safety standards when installing electrical door lock systems.
Frequently Asked Questions
Q: Does this RFID access control keypad require a computer or internet connection to work?
A: No. The Asia-Teco K806-EM is a fully standalone unit. It stores all user credentials onboard and operates independently — no PC, software, or network connection is required at any time.
Q: How many users can this RFID door lock keypad support?
A: The K806-EM supports up to 2,000 users, making it suitable for small homes all the way up to larger offices, hotels, or apartment buildings with many residents or employees.
Q: What types of cards and entry methods are compatible with this keypad?

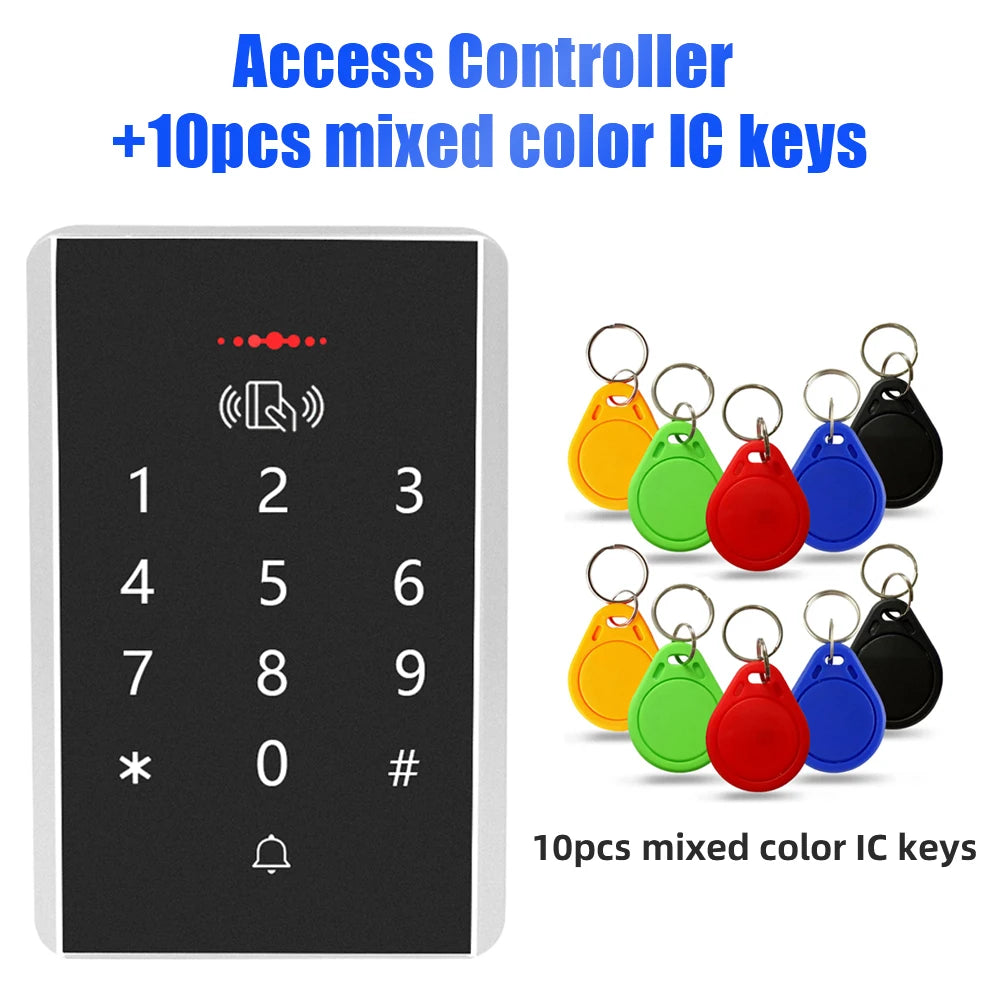

A: The keypad works with 125KHz ID cards (EM format) or 13.56MHz IC cards depending on the version selected. Entry can be granted via RFID card swipe, PIN password entry, or a combination of card plus PIN for dual-factor access.
Q: Can this unit be installed outdoors?
A: Yes. With an operating temperature range of -45°C to +60°C and humidity tolerance of 10%–90% RH, the K806-EM is engineered to handle a wide variety of environmental conditions, making it suitable for covered outdoor entry points.
Q: What is the door open time and can it be adjusted?
A: Yes, the door unlock duration is fully adjustable between 10 and 99 seconds, giving you full flexibility to match the timing to your specific door hardware setup.
