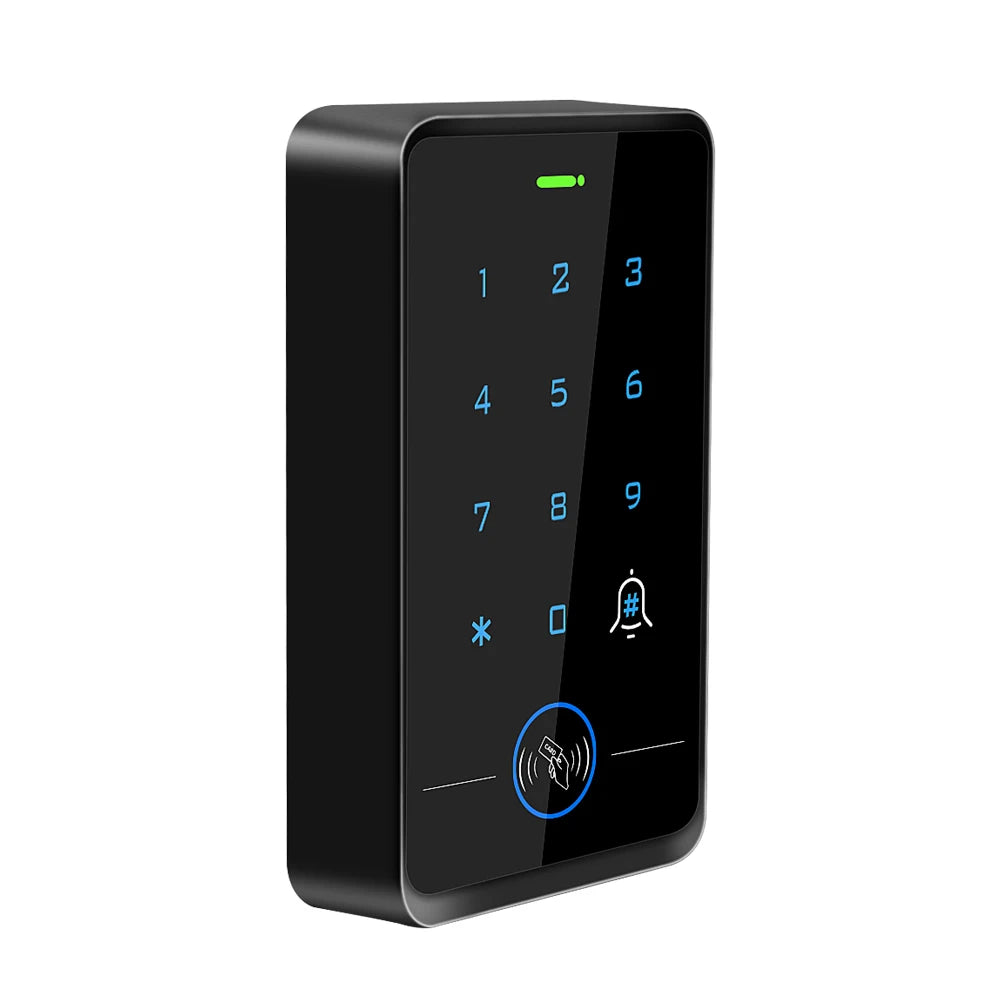

Asia-Teco RFID 125kHz Standalone Access Control Keypad – Outdoor IP66 Waterproof
Take full control of who enters your space with the Asia-Teco T109S-EM-W Standalone RFID Access Control Keypad. Designed for outdoor and commercial environments, this touch-screen panel combines RFID card reading with PIN-code entry, giving you flexible authentication options without the need for a connected PC or controller. Made in Mainland China.
Why Choose This Access Control Keypad?

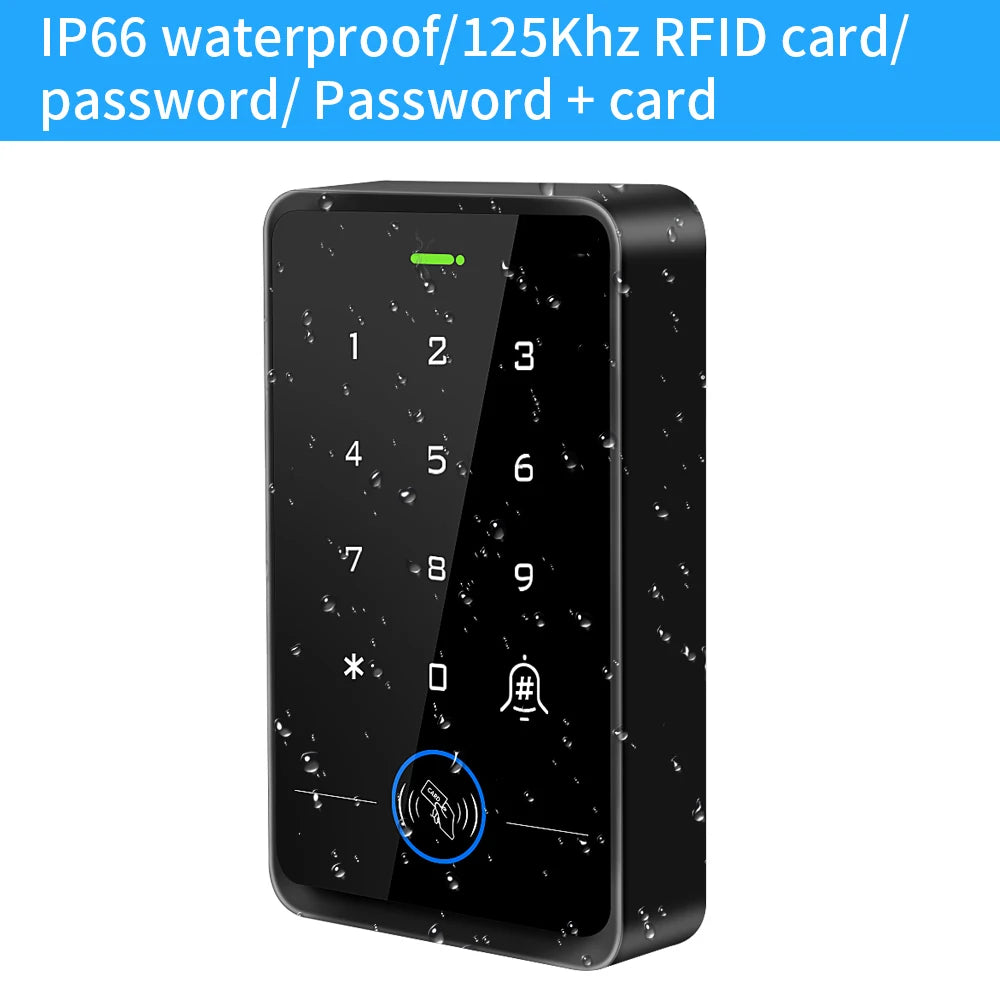

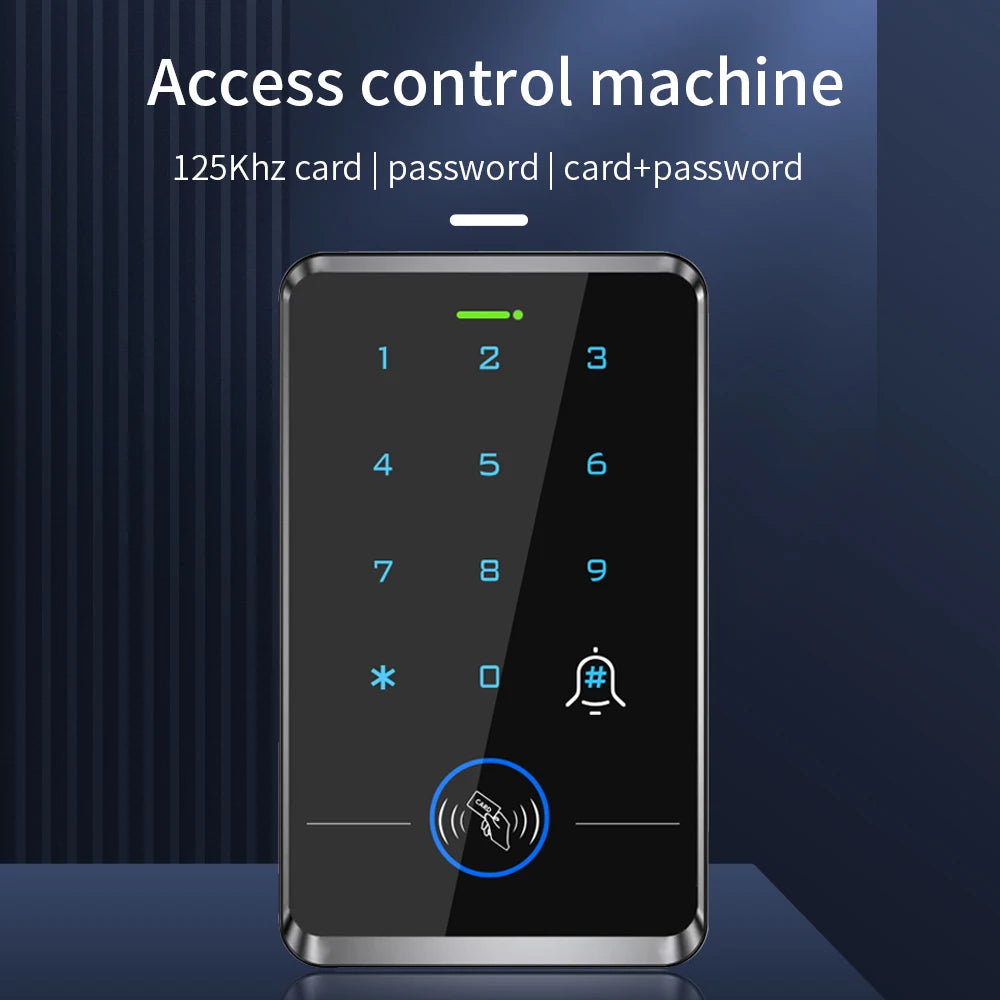

- Triple Authentication Modes: Use an RFID card, a numeric PIN, or a card + PIN combination for added security.
- IP66 Waterproof Rated: Fully weatherproof casing keeps the unit operating reliably in rain, dust, and humidity — ideal for gates, doors, and outdoor entry points.

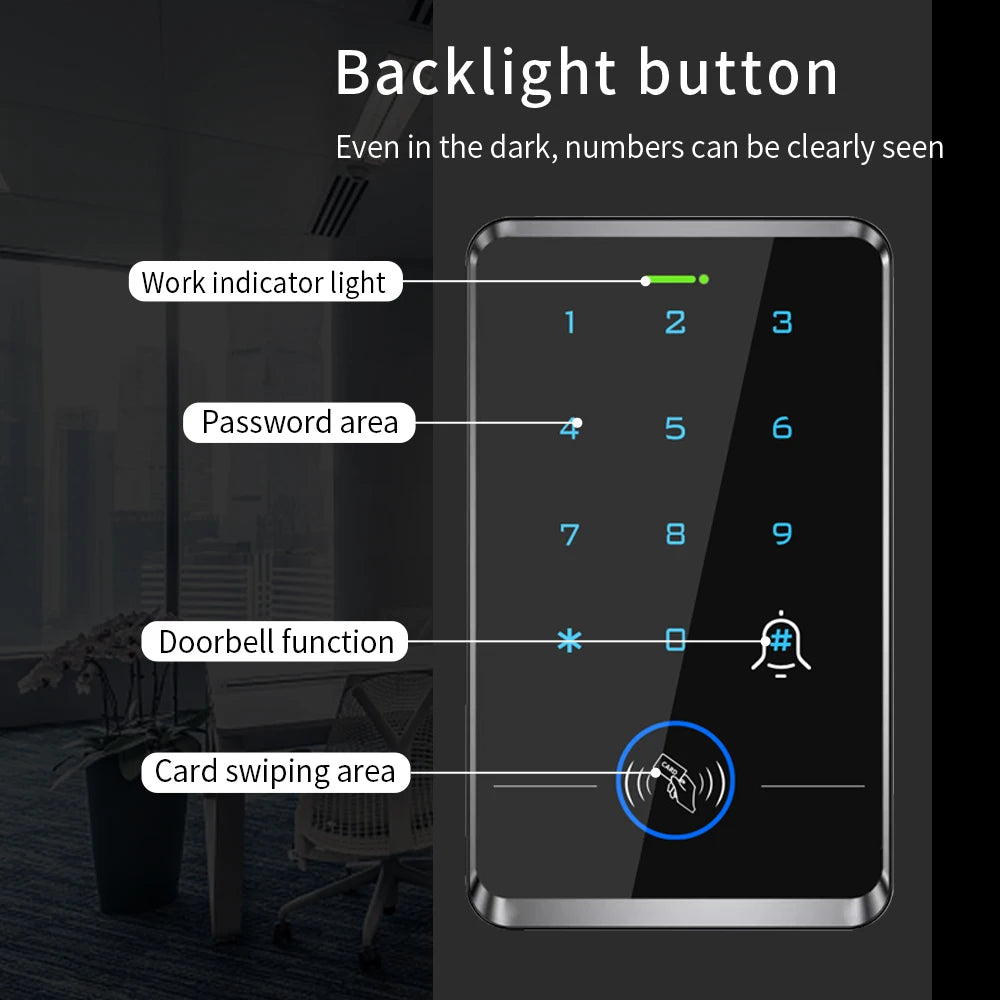

- Backlit Touch Screen: Blue backlight makes nighttime entry easy with a smooth, responsive touch-screen keypad.
- Wiegand 26/34 Output: Seamlessly integrates with most existing access control systems via standard WG26 or WG34 signal output.
- Standalone Operation: No PC or separate controller needed — fully self-contained for simple installation.
- Management Card Support: Add and remove user cards easily using a dedicated management card.
- Optional Wired Doorbell: Built-in doorbell button support for convenient visitor notification.
- Wide Operating Range: Performs reliably from -20°C to 70°C (-4°F to 158°F), making it suitable for extreme climates.

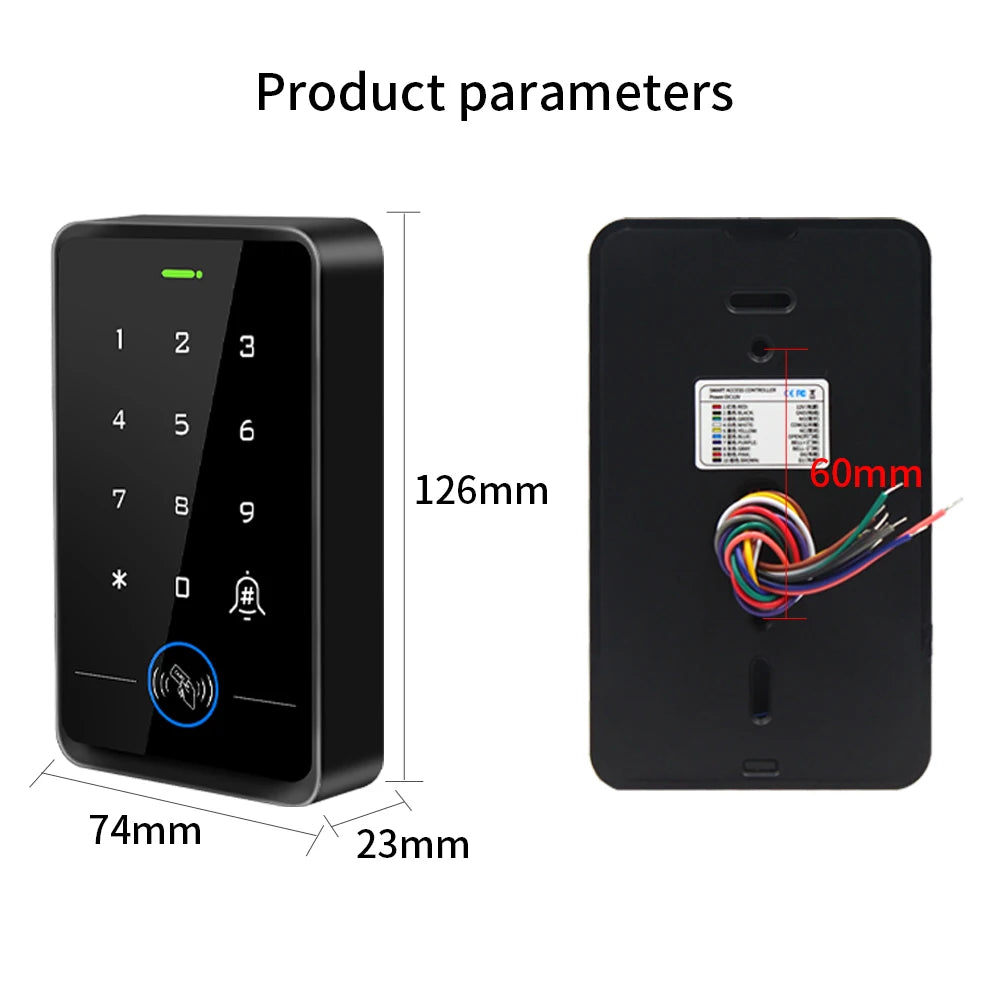

Technical Specifications
| Model | T109S-EM-W |
| Material | High-Quality ABS |
| Waterproof Rating | IP66 |
| Card Frequency | 125 kHz (EM) |
| Card Reading Distance | 0–10 cm |
| Wiegand Output | WG26 / WG34 |
| Backlight | Blue |
| Working Voltage | DC 12V |
| Working Current | ≤ 30 mA |
| Door Open Time | 0–99 Seconds (adjustable) |
| Security Mode | Fail Secure |
| Operating Temperature | -20°C to 70°C |
| Operating Humidity | 20%–90% RH |
| Country of Origin | Made in Mainland China |
Perfect For
- Office and commercial building entry points
- Residential gates and garage doors
- Warehouses, storage facilities, and server rooms
- Schools, gyms, and community access areas
- Any outdoor door requiring weather-resistant access control
Learn More About Access Control & Physical Security Standards
For guidance on physical security best practices in workplace and public environments, visit the OSHA Workplace Security Resource. For consumer product safety considerations, refer to the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Does this RFID access control keypad work without a separate controller?
A: Yes! The Asia-Teco T109S-EM-W is a fully standalone access control keypad, meaning it operates independently without needing a separate controller or PC. Simply wire it to your door lock (12V DC power) and it is ready to use.
Q: What cards are compatible with this 125kHz RFID keypad?
A: This keypad reads standard 125kHz EM-format RFID cards and key fobs. It supports card-only, PIN-only, or card + PIN combination entry modes for flexible access management.
Q: Can I use this access control panel outdoors?
A: Absolutely. The T109S-EM-W model is rated IP66 waterproof, making it fully suitable for outdoor installation. It is designed to withstand rain, dust, and temperatures ranging from -20°C to 70°C.
Q: What is the Wiegand output and why does it matter?
A: Wiegand (WG26/34) is the industry-standard communication protocol used by most access control panels and systems. This keypad outputs both Wiegand 26 and Wiegand 34 signals, ensuring broad compatibility with commercial access control systems.
Q: How many users can this standalone keypad support, and how do I manage them?
A: User management is handled conveniently via a dedicated management card. You can add or remove user cards directly at the device, making it easy to grant or revoke access without any software or computer.
