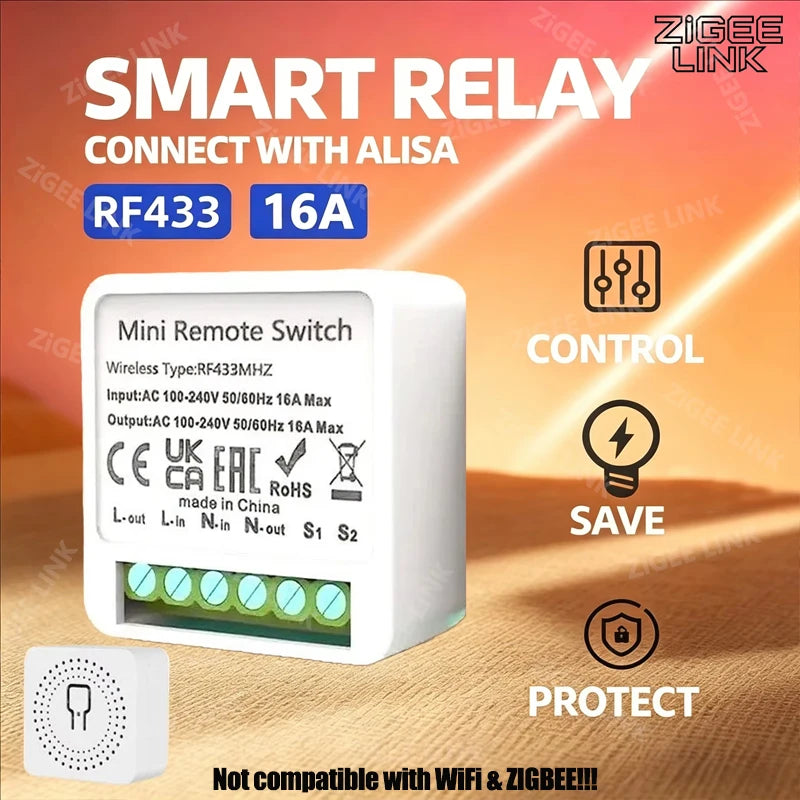

RF 433MHz Smart Switch — Wireless Remote Control Relay Receiver Module
Take control of your home lighting and electrical devices without rewiring or complex smart-home hubs. This compact 433MHz RF relay receiver module lets you toggle lights, LED lamps, and other AC-powered devices wirelessly from up to 100 metres away in open areas — all with a simple DIY installation.
⚠️ Important Compatibility Notice: This module operates exclusively on the 433.92 MHz RF frequency. It is NOT compatible with Wi-Fi or Zigbee systems. It requires a matching 433MHz RF remote controller (sold separately or as a bundle).
Key Features
- Wide Voltage Range: Works on AC 85–240 V, 50/60 Hz — compatible with most global electrical standards
- Strong Signal Reception: Receiving sensitivity of -108 dBm for a reliable, interference-resistant connection
- Long Wireless Range: Up to 20–100 m in open areas
- Ultra-Low Standby Draw: Less than 0.3 W standby power consumption keeps energy use minimal
- 10 A Maximum Load: Suitable for LED lamps, lighting circuits, and low-to-medium load appliances
- Learning Code Technology: Quick and easy self-pairing — no special programmer needed
- Toggle Mode Operation: Single press pairs and toggles your connected device on/off
- Compact Form Factor: Overall size 67 × 41.2 × 25.7 mm — fits inside standard electrical junction boxes
- ASK Modulation: Stable amplitude-shift keying for dependable signal transmission
- Wide Operating Temperature: -10 °C to +70 °C for year-round indoor and outdoor installations
Technical Specifications
| Working Voltage | AC 85–240 V, 50/60 Hz |
| Working Frequency | 433.92 MHz |
| Standby Power | < 0.3 W |
| Maximum Current | 10 A |
| Receiving Sensitivity | -108 dBm |
| Modulation | ASK (Amplitude Shift Keying) |
| Coding Method | Learning Code |
| Operating Temperature | -10 °C to +70 °C |
| Overall Dimensions | 67 × 41.2 × 25.7 mm |
| Body Dimensions | 47.4 × 41.2 × 25.7 mm |
| Wireless Range | 20–100 m (open area) |
| Material | Plastic |
| Country of Origin | Made in China |
How to Pair Your Remote
- Enter Pairing Mode: Press the controller's code key twice. The LED will flash to indicate it is ready to pair.
- Send the Code: Press your RF remote switch twice. The LED confirmation indicates successful pairing — your device is now controlled wirelessly.
- Clear All Codes: Press the controller key 8 times to reset. The LED will flash to confirm all stored codes have been cleared.
Note: Pairing via this method sets the module to Toggle Mode only.
What's in the Box
- 1 × RF 433MHz Relay Receiver Module
RF remote controller sold separately.
For guidance on electrical safety and best practices for DIY wiring projects, visit the U.S. Consumer Product Safety Commission — Electrical Safety Resource.
Frequently Asked Questions
Q: Does the RF 433MHz smart switch module work with Alexa, Google Home, or other smart-home systems?
A: No. This relay receiver module operates solely on the 433.92 MHz RF frequency and uses a standalone learning-code pairing method. It is not compatible with Wi-Fi, Zigbee, Z-Wave, Alexa, or Google Home. It requires a dedicated 433MHz RF remote transmitter to function.
Q: What types of devices can I control with this wireless relay module?
A: The module supports AC 85–240 V loads up to 10 A, making it ideal for LED lamps, fluorescent lights, standard light bulbs, and other low-to-medium load electrical devices. Always ensure the connected device's wattage does not exceed the relay's rated capacity.
Q: How far away can I operate the RF remote control switch?
A: In open, unobstructed areas the wireless range is 20 to 100 metres. Range may be reduced indoors due to walls, metal structures, and other physical obstructions. Placement of the receiver module near a window or away from large metal objects can improve signal reach.
Q: Can I pair multiple remote controls to one receiver module?
A: Yes. The learning-code system allows you to store multiple remote transmitters to a single receiver — simply repeat the two-press pairing process for each additional remote. To remove all paired remotes, press the controller key 8 times to clear all stored codes.
