LUCKING DOOR Standalone Access Control Kit — Relay Controller Board + Mini Card Reader

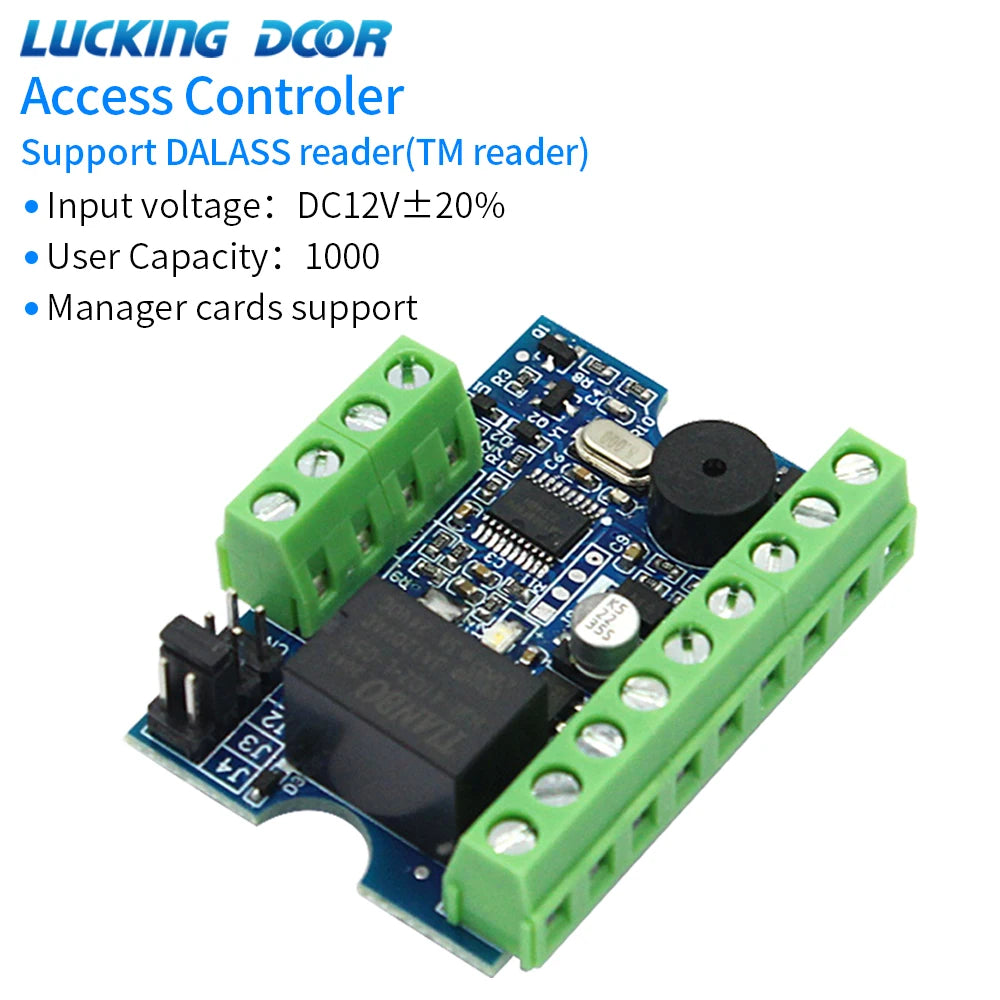

Take full command of your single-door entry with the LUCKING DOOR TM-DALAS Access Control Kit. This compact, all-in-one standalone system pairs a relay access controller board with a mini card reader, giving you a reliable, easy-to-install solution for homes, offices, server rooms, and more. Supports up to 1,000 users and is compatible with both Wiegand 26–44 RFID readers and Touch Memory (TM/iButton) readers. Made in China.
Why Choose This Access Control Kit?
- Dual Reader Compatibility: Works with external Wiegand 26–44 RFID card readers (up to 100 m cable run) and DS1990A Touch Memory readers (up to 15 m cable run).
- Large User Capacity: Stores up to 1,000 authorized user cards or TM keys — ideal for small to medium-sized facilities.
- Relay Output: Drives virtually any electric lock (magnetic, strike, bolt, or motor lock) with up to 3 A relay output current.
- Flexible Unlock Timing: Adjustable unlock time from 1 to 128 seconds to suit your workflow.
- Fail-Safe Security Mode: Operates in Fail-Safe with Signal mode, ensuring your door remains in the correct state during a power event.
- Wide Operating Range: Functions reliably from −35 °C to 60 °C and up to 90% relative humidity (non-condensing).
- Simple Setup: Two included manager cards make enrollment and deletion of user credentials fast and straightforward — no PC or software required.
- Certified Quality: CE, FCC, and RoHS certified for peace of mind.
Technical Specifications
| Model | TM-DALAS |
| Input Voltage | DC 12 V ±20% |
| Quiescent Current | ≤17 mA |
| Electric Lock Output Current | ≤3 A (Relay output) |
| Wiegand Protocol | 26–44 |
| Touch Memory Reader | DS1990A |
| User Capacity | 1,000 users |
| Manager Cards Included | 2 |
| Unlock Time | 1–128 seconds (adjustable) |
| Wiegand Reader Range | ≤100 m |
| Touch Memory Reader Range | ≤15 m |
| Security Mode | Fail-Safe with Signal |
| Operating Temperature | −35 °C to 60 °C |
| Max Humidity | ≤90% RH |

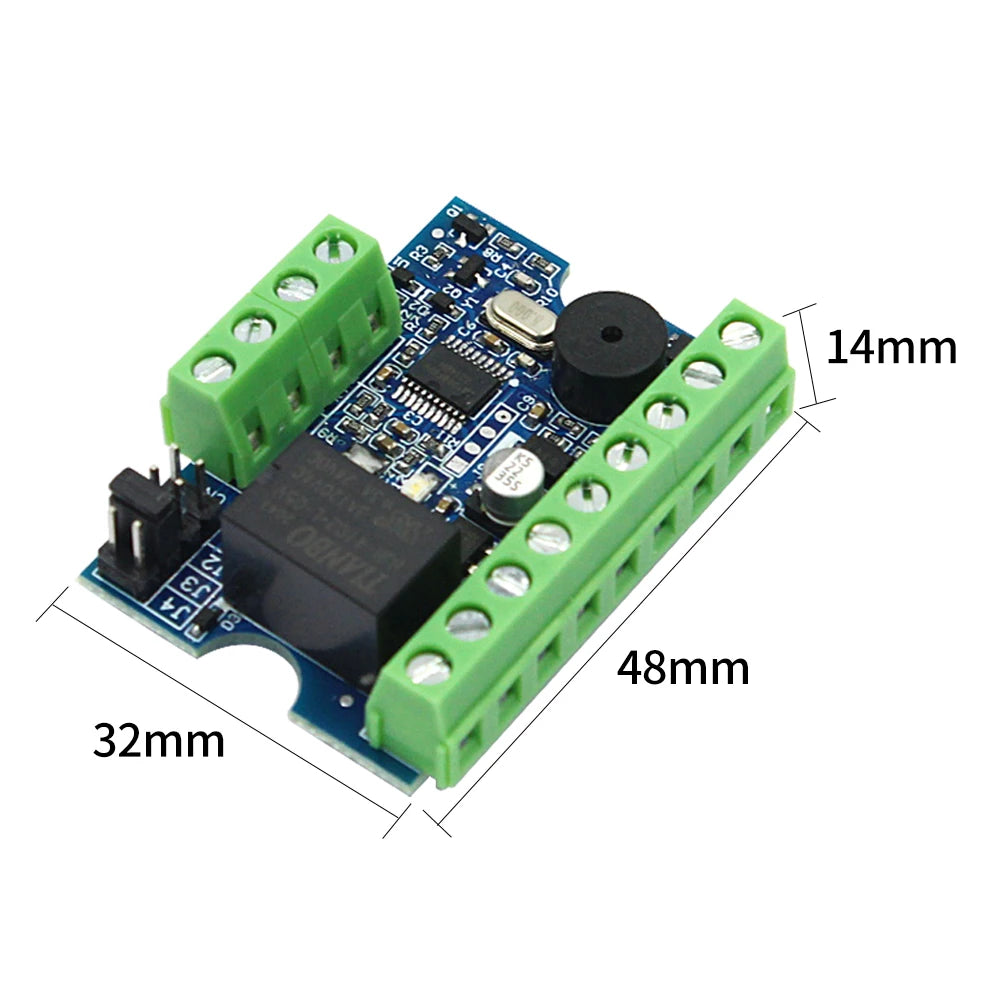

| PCBA Dimensions | 48 × 32 × 14 mm |
| Certifications | CE, FCC, RoHS |
| Country of Origin | Made in China |
What's in the Box?

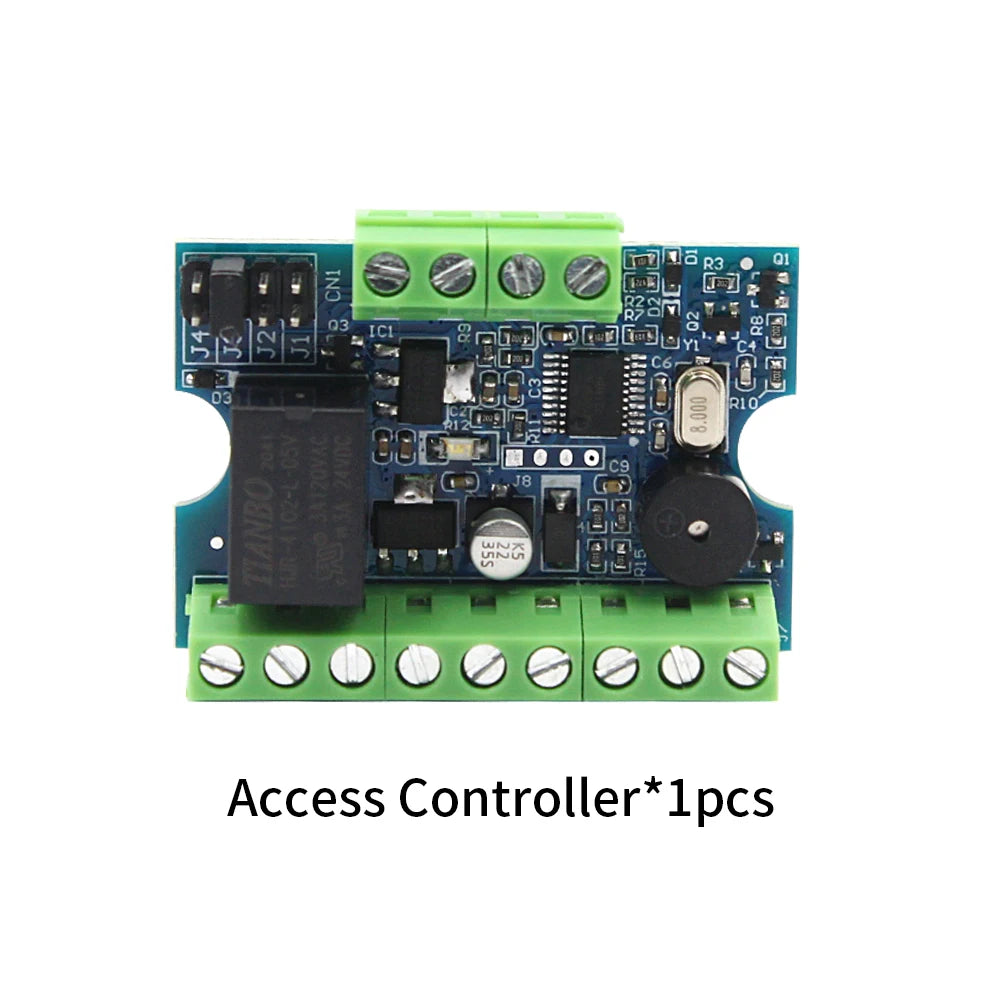

- 1 × Relay Access Controller Board (TM-DALAS)
- 1 × Mini Card / TM Reader
- 2 × Manager Cards
Ideal Applications
- Office and co-working space entry management
- Home garage, gate, or basement access
- Server room and equipment cabinet security
- Warehouse and storage unit access control
- Small apartment building common areas
For general guidance on physical security best practices for electronic access control systems, visit the Cybersecurity & Infrastructure Security Agency or refer to NIST's security resources.
Frequently Asked Questions
Q: What types of electric locks can this relay access controller board work with?

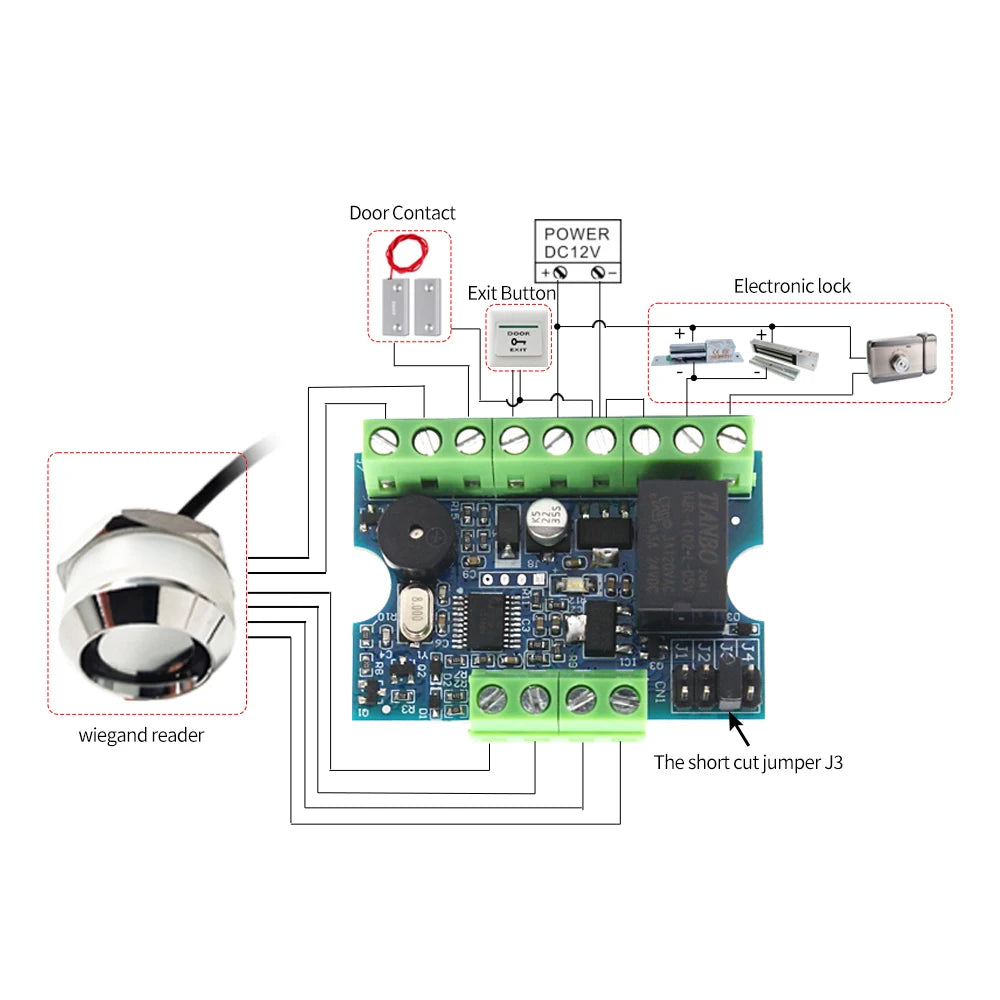

A: The LUCKING DOOR TM-DALAS relay output supports virtually any 12 V electric lock, including electromagnetic locks (maglocks), electric strike locks, electric drop-bolt locks, and electric motor locks, provided the lock's current draw does not exceed 3 A.
Q: Can I use both a Wiegand RFID reader and a Touch Memory reader at the same time?
A: The controller board is designed to connect to one external reader type at a time — either a Wiegand 26–44 compatible RFID reader (up to 100 m away) or a DS1990A Touch Memory reader (up to 15 m away). Select the reader type that best suits your installation environment.
Q: How do I add or delete user cards without a computer?
A: The kit includes 2 manager cards that allow you to add or remove authorized user cards directly at the reader — no PC, software, or network connection required. Simply follow the enrollment procedure outlined in the included instruction guide.
Q: Is this system suitable for outdoor installation?
A: The controller board itself is compact and designed for indoor enclosure mounting. For outdoor use, install the board inside a weatherproof enclosure and use an outdoor-rated Wiegand reader at the door entry point. The system's wide operating temperature range (−35 °C to 60 °C) makes it suitable for most climate conditions.
