Reflective Infrared Detector Sensor — CNB-204E
Upgrade your automatic door system with the CNB-204E Reflective Infrared Detector Sensor. Designed for seamless integration into auto-door control systems, this sensor uses 6 emit rays and 6 receive rays of reflected infrared technology to accurately detect moving objects — triggering smooth, reliable door operation every time.
Whether you're managing a commercial entrance, sliding door, or access-controlled gateway, the CNB-204E delivers professional-grade detection with easy angle adjustment and sensitivity fine-tuning, making it a versatile solution for a wide range of installations.
Key Features
- Reflective Infrared Detection: 6 emit + 6 receive rays for accurate motion sensing
- Adjustable Detection Area: Detector angle adjustable 0–10° via DIP switch for precise coverage
- Sensitivity Fine-Tuning: Customize sensitivity to suit your specific environment
- Wide Power Range: Operates on AC/DC 12–36V for flexible installation options
- LED Status Indicators: Green light for standby, red light when signal is received
- Max Installing Height: Up to 3m (9.84 ft)
- Wide Operating Temperature: -20°C to 60°C (-4°F to 140°F)
- Compact & Durable: Silver finish, 221L × 74W × 35H mm, weighing only 400g
- Relay Output: DC 50V, 0.1A with 2-second output maintaining time
- Includes 2.5m (8.2 ft) Connection Cable for easy setup

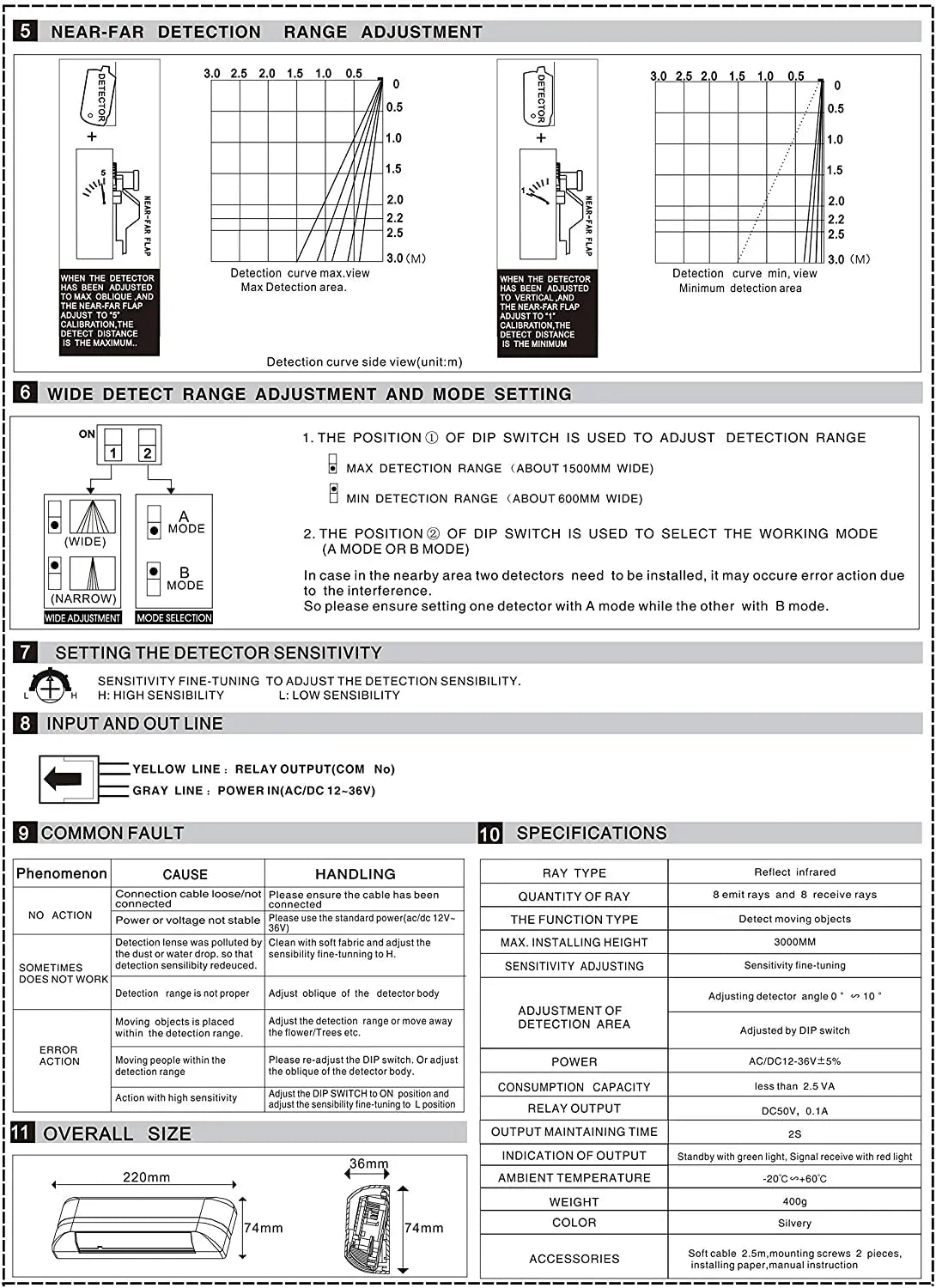

Specifications
| Model | CNB-204E |
| Ray Type | Reflective Infrared |
| Quantity of Rays | 6 Emit + 6 Receive |
| Detection Function | Moving Object Detection |
| Max Installing Height | 3m / 9.84 ft |
| Angle Adjustment | 0–10° via DIP Switch |
| Power Supply | AC/DC 12–36V |
| Power Consumption | Less than 2.5A |
| Relay Output | DC 50V, 0.1A |
| Output Maintaining Time | 2 Seconds |
| LED Indicators | Green (Standby), Red (Signal Received) |
| Operating Temperature | -20°C to 60°C / -4°F to 140°F |
| Dimensions | 221L × 74W × 35H mm / 8.7L × 2.91W × 1.38H in |
| Weight | 400g / 0.88 lb |
| Color | Silver |
| Cable Length | 2.5m / 8.2 ft |
| Country of Origin | Made in China |
What's in the Box
- 1 × CNB-204E Reflective Infrared Sensor
- 1 × Connection Cable (2.5m / 8.2 ft)
For more information on safety standards and electrical equipment guidelines, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What type of doors is the CNB-204E infrared detector sensor compatible with?
A: The CNB-204E reflective infrared detector sensor is designed for automatic door control systems, including sliding doors, swing doors, and access-controlled commercial entrances. Its wide power range (AC/DC 12–36V) and adjustable detection angle make it compatible with a variety of auto-door setups.
Q: How do I adjust the detection area of this infrared sensor?
A: The detection area can be adjusted by changing the detector angle between 0 and 10 degrees using the built-in DIP switch. Sensitivity fine-tuning is also available to tailor the sensor's response to your specific installation environment.
Q: What do the LED indicator lights mean on the CNB-204E sensor?
A: The sensor features two LED status indicators: a green light means the unit is in standby mode and operating normally, while a red light activates when the sensor receives a signal from a detected moving object, indicating the relay output has been triggered.
Q: Can this infrared detector be used outdoors?
A: Yes. The CNB-204E is rated for operating temperatures from -20°C to 60°C (-4°F to 140°F), making it suitable for both indoor and outdoor automatic door control installations within this temperature range. Check your specific environment to ensure it falls within these operating conditions.
