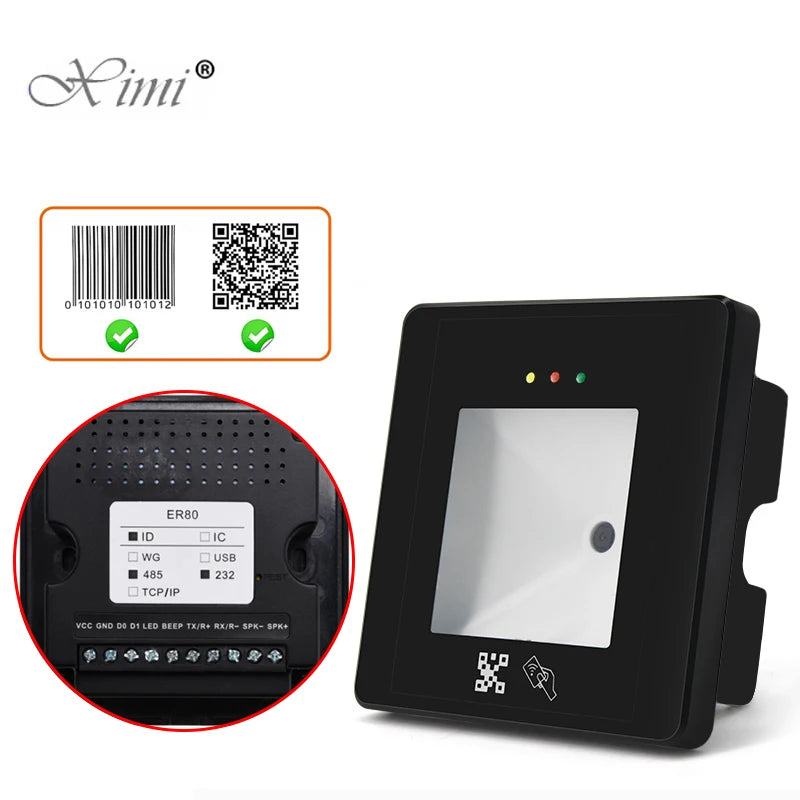

QR Code & RFID Card Reader for Smart Access Control – Model ER80
Upgrade your entry management with the ximiir ER80 QR Code & RFID Card Reader — a versatile, intelligent access reader engineered for offices, communities, smart homes, tourism facilities, and administrative service centers. With support for QR codes, 1D barcodes, RFID/Mifare/HID cards, and multiple communication protocols, this reader integrates seamlessly into virtually any existing access control infrastructure.
Made in Mainland China.
Key Features
- Multi-Format Reading: Supports QR codes, one-dimensional barcodes, EM/Mifare RFID cards, and HID cards — one device handles it all.
- Fast & Accurate: Reading speed under 200ms with a high recognition rate and auto-induction sensing for hands-free, touchless operation.

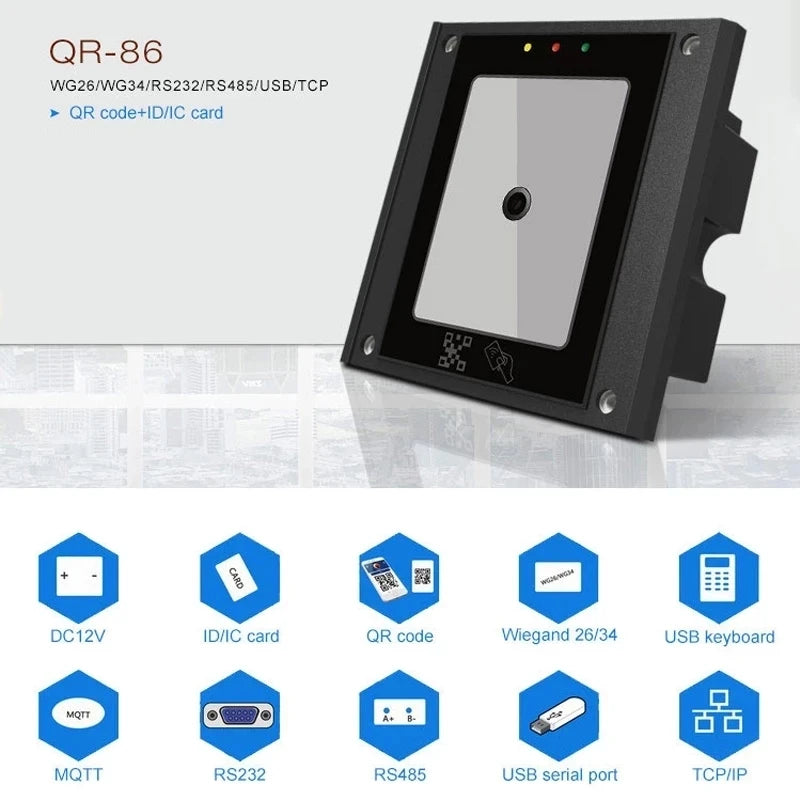

- Wide Compatibility: Connects to any Wiegand WG26/WG34 input controller and optionally communicates via RS232, RS485, USB, or TCP/IP — maximum flexibility for new or legacy systems.

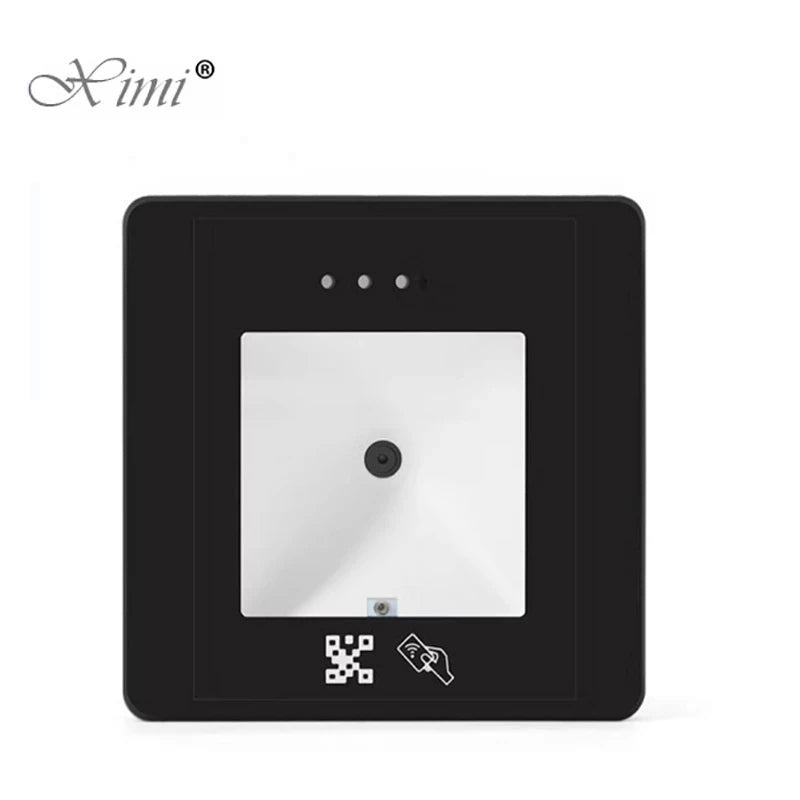

- Tempered Glass Panel: Durable, scratch-resistant tempered glass identification panel for a premium, professional appearance.
- Wide Voltage Input: Operates on DC 4–15V, accommodating a broad range of power setups.
- Anti-Highlight Interference: Built-in LED light source with anti-glare technology ensures reliable scanning even in bright environments.
- Dual LED Status Indicators: Red (working), Green (feedback/confirmation), Light Green (network/internet status) for at-a-glance system monitoring.
- Wide Operating Temperature: Rated from -25°C to +70°C, suitable for indoor and sheltered outdoor installations.
- CE Certified: Meets CE safety and compliance standards.
Technical Specifications
| Model | ER80 |
| Dimensions | 86 × 86 × 42 mm |
| Material | PC body / Tempered glass panel |
| Card Types Supported | RFID / Mifare / HID Card / QR Code / 1D Barcode |
| Default Interface | WG26 / WG34 |
| Optional Interfaces | RS232, RS485, USB, TCP/IP |
| Voltage | DC 4–15V wide voltage input |
| Current | 800 mA |
| QR Read Range | 0–20 cm |
| RFID Card Read Range | 3–6 cm |
| Reading Speed | < 200 ms |
| Operating Temperature | -25°C to +70°C |
| Humidity | 10%–90% |
| Compatible OS | Windows (XP, 7, 8, 10), Linux |
| Unit Weight | 0.15 kg |
| Certification | CE |
| Country of Origin | Mainland China |
Common Applications
- Office & corporate access management
- Community & residential visitor access
- Tourism & event ticketing gates
- Administration & service hall management
- Smart home entry systems
- Upgrading legacy access control infrastructure
Learn More About Access Control Standards
For best practices on building security and access control systems, refer to guidance from the U.S. Consumer Product Safety Commission (CPSC), which provides consumer safety resources for electronic security devices.
Frequently Asked Questions
Q: What card types does the ER80 QR Code RFID Card Reader support?
A: The ER80 supports a wide range of credential formats, including RFID/EM cards (125kHz), Mifare smart cards, HID cards, QR codes, and one-dimensional barcodes — making it highly versatile for mixed-credential environments.
Q: Can this RFID card reader connect to my existing Wiegand-based access controller?
A: Yes. The ER80 defaults to WG26/WG34 (Wiegand) output, which is compatible with the vast majority of access controllers on the market. Optional interfaces including RS232, RS485, USB, and TCP/IP are also available for more advanced integration needs.
Q: What is the reading range for QR codes vs. RFID cards?
A: QR codes and 1D barcodes can be read at a distance of 0–20 cm, while RFID/Mifare cards are detected at a proximity of 3–6 cm. The camera is angled at 45° from center for ergonomic scanning.
Q: Is the ER80 suitable for outdoor use?
A: The reader is rated for temperatures from -25°C to +70°C and humidity between 10%–90%, making it well-suited for sheltered outdoor installations such as covered entryways, parking gates, and lobby access points.
Q: Does the reader work without a computer connected?
A: Yes. When connected via Wiegand to an access controller, the ER80 operates as a standalone reader — no PC required. USB and TCP/IP modes enable direct integration with computers or network-based management software for advanced deployments.
