2-in-1 QR Code & RFID Access Card Reader — Fast, Versatile & Easy to Integrate

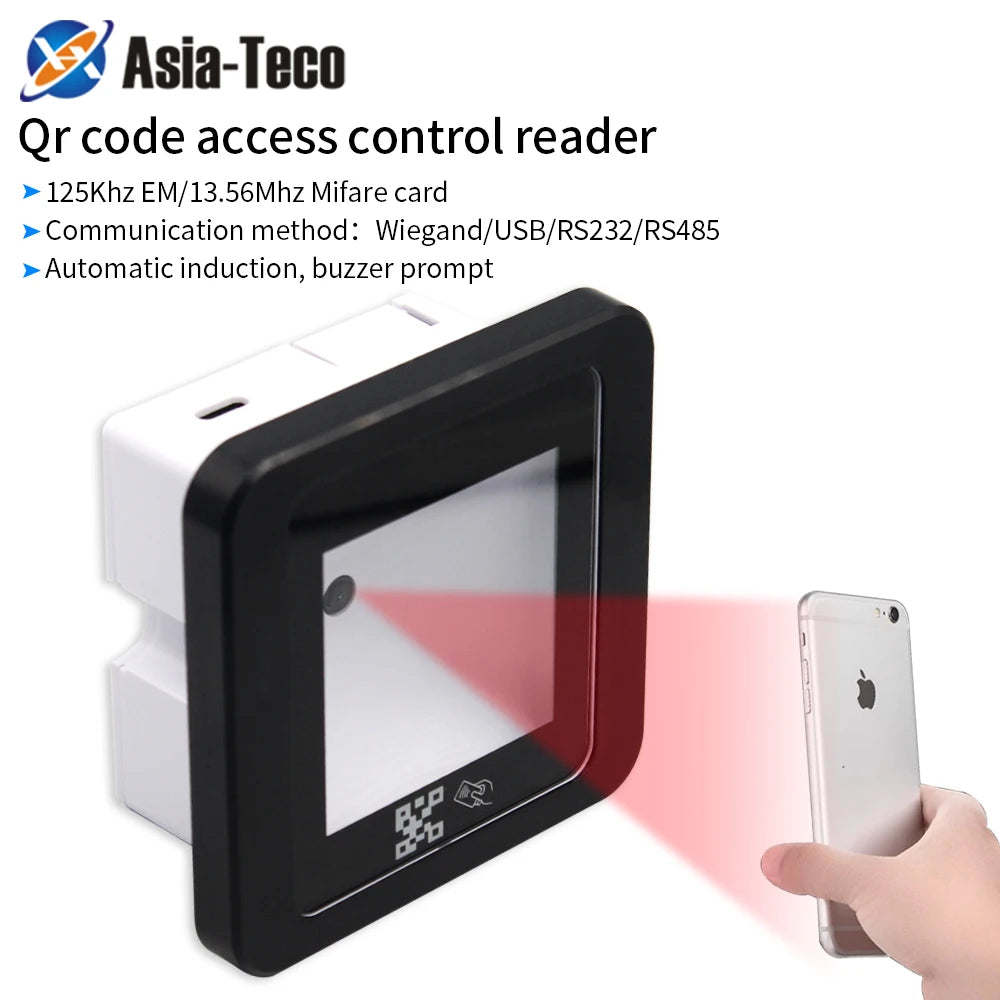

The Asia-Teco R35 series is an intelligent, all-in-one access card reader that combines QR code / 2D barcode scanning with RFID card reading (125 kHz EM or 13.56 MHz Mifare) in a single compact unit. With a reading speed under 200 ms, auto-induction triggering, and support for five interface types — Wiegand 26/34, RS232, RS485, TTL, and USB — it integrates seamlessly into virtually any existing access control or point-of-sale infrastructure. Made in Mainland China.
Key Features
- Dual-mode reading: Scans QR codes, 1D barcodes, and RFID cards (EM 125 kHz or Mifare 13.56 MHz) simultaneously
- Lightning-fast: Card read time under 200 ms; QR/barcode scan range up to 20 cm
- Universal interfaces: Wiegand 26/34, RS232, RS485, TTL, and USB — connects to any Wiegand-input controller
- Wide voltage input: 4–12 V DC, making it compatible with a broad range of power supplies
- Auto-induction & audible beeper: Hands-free detection with instant audio confirmation
- Durable construction: PC & tempered glass casing; operating range -20 °C to 70 °C, humidity 10%–90%
- Multi-OS support: Works with Windows XP, 7, 8, 10, and Linux — plug-and-play via USB
- Compact form factor: 86 mm × 86 mm × 42 mm, 150 g — standard gang-box friendly footprint
- Status LED indicators: Red (working), Green (feedback), Light Green (network/internet)
Model Variants
| Model | Description |
|---|---|
| R35-ID | QR 2D Barcode + EM (125 kHz) |

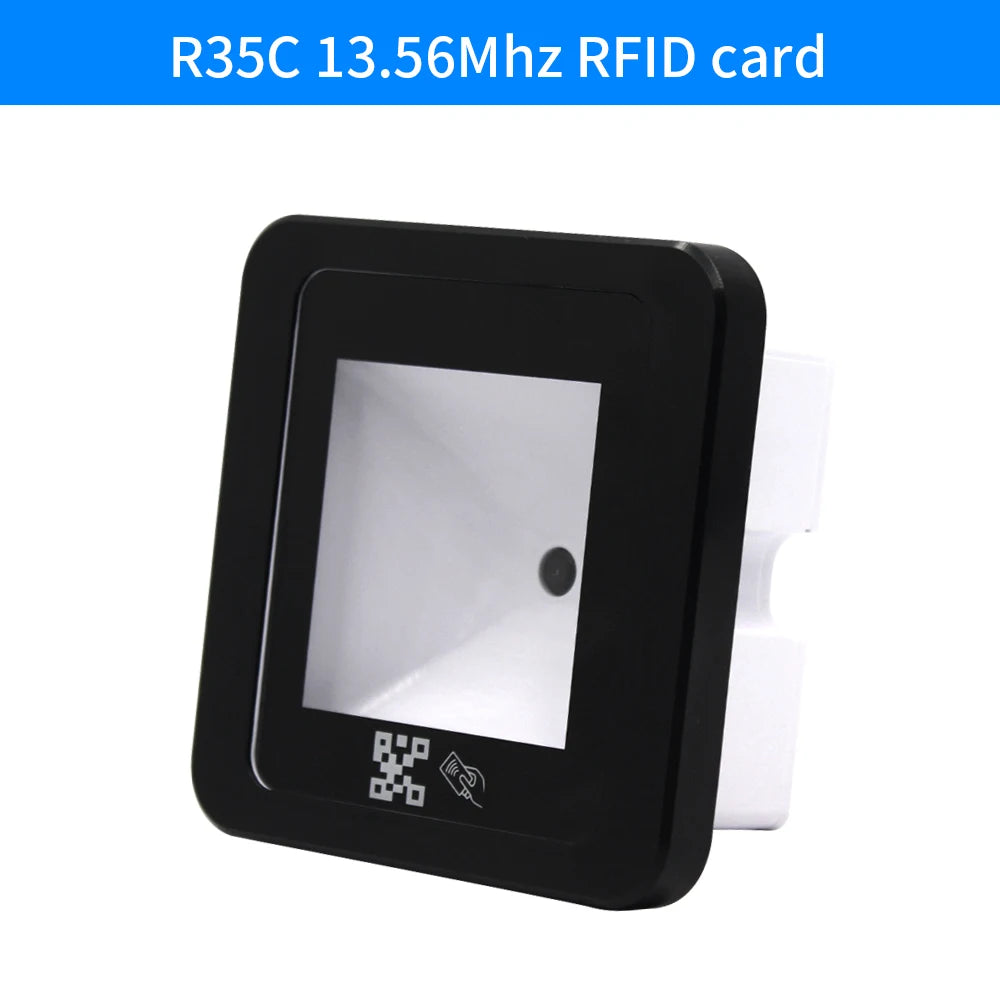

| R35-IC | QR 2D Barcode + Mifare (13.56 MHz) |
Full Technical Specifications
| Card Type | EM or Mifare |
| Code Type | QR Code, 1D Barcode |
| Interface | Wiegand 26/34, RS232, USB, RS485, TTL |
| Decode Mode | Image decoding |
| Reading Direction | Camera-centric, slant 45° |
| Reading Feature | Auto-induction & beeper |
| Voltage | 4–12 V wide voltage input |
| Current | 800 mA |
| RFID Read Range | 3–6 cm |
| Card Reading Speed | < 200 ms |
| QR/Barcode Read Range | 0–20 cm |
| Housing Material | PC & Tempered Glass |
| Humidity | 10%–90% (non-condensing) |
| Operating Temperature | -20 °C to 70 °C |
| Compatible OS | Windows XP / 7 / 8 / 10, Linux |
| Dimensions | 86 mm × 86 mm × 42 mm |
| Weight | 150 g |
| Status Indicators | Red = working; Green = feedback; Light Green = network |
| Country of Origin | Made in Mainland China |
Typical Applications
- Gate access control & community visitor management
- Self-service kiosks & turnstile / brake-gate systems
- Retail POS, cashier stations & mobile coupon scanning
- Ticket validation & event check-in
- Banking, lottery, & administration service halls
- Smart home access & visitor intercom upgrades
Reset Procedure
Insert a sharp-tipped object into the RESET hole on the back of the unit and hold until the reader automatically restarts.
For general guidance on electronic access control standards and best practices, visit the NIST Cybersecurity resource center.
Frequently Asked Questions
Q: What RFID card frequencies does the Asia-Teco R35 QR RFID reader support?
A: The R35 series supports two RFID frequencies. The R35-ID model reads 125 kHz EM cards, while the R35-IC model reads 13.56 MHz Mifare cards. Both models also scan QR codes and 1D barcodes.
Q: Which communication interfaces does this RFID access card reader support?
A: The reader supports Wiegand 26/34, RS232, RS485, TTL, and USB, making it compatible with virtually any access control panel or POS system that has a Wiegand input or serial interface.
Q: Can this QR code RFID reader work with my existing access control system?
A: Yes. Because it supports Wiegand 26/34 output — the most widely used access control standard — it can drop-in replace most existing card readers without changing your controller. Simply wire it to your Wiegand input and configure your controller for the card format you are using.
Q: What operating systems are supported when using the USB interface?
A: The reader is compatible with Windows XP, 7, 8, and 10 as well as Linux. It operates as a standard USB HID device, so no custom driver is required in most setups.
Q: What is the QR code scanning range of this reader?
A: QR codes and 2D/1D barcodes can be read at distances of 0–20 cm from the scanner lens. RFID card reading range is 3–6 cm. The 45° slanted camera angle makes it easy for users to present codes naturally without precise alignment.
