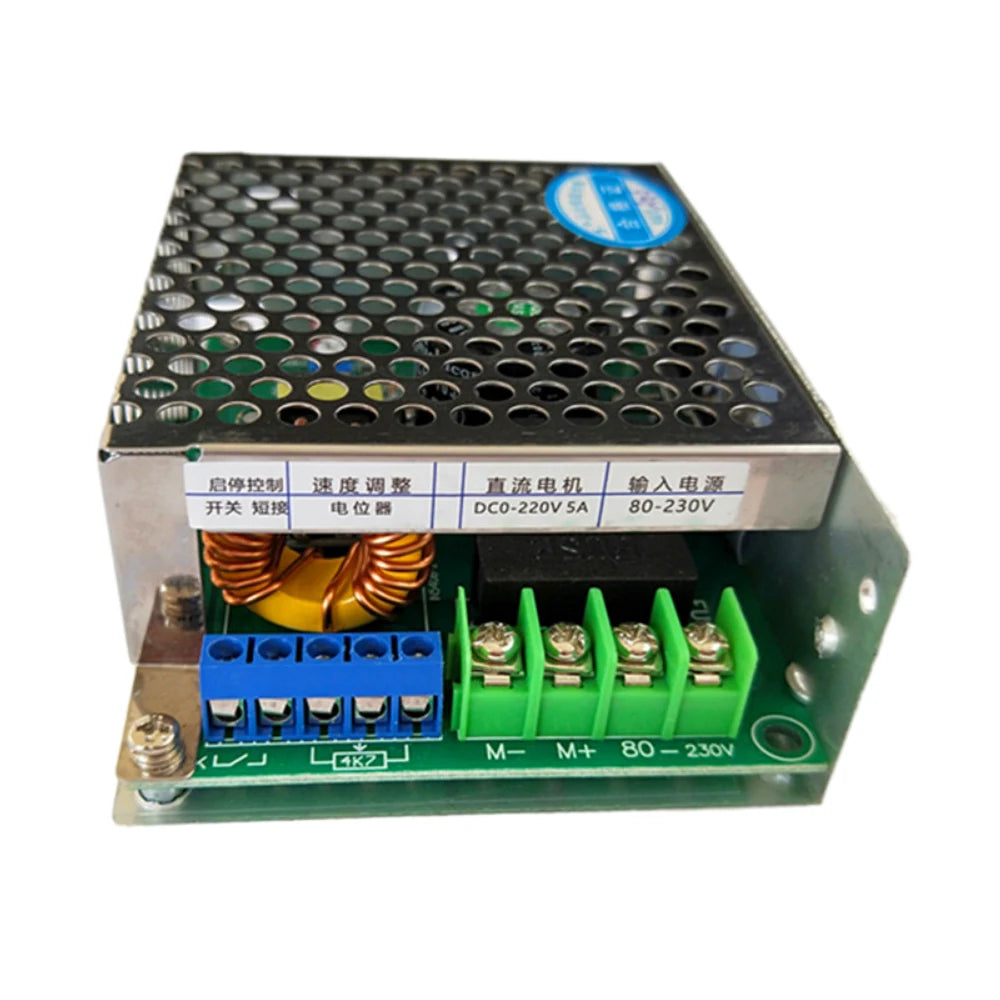

PWM DC Motor Speed Controller AC/DC 80-230V, 0-220V Output

PWM Motor Speed Controller — AC/DC 80–230V Input | 0–220V Adjustable Output

Take full control of your DC permanent magnet motor with this compact, high-performance PWM Motor Speed Controller Board. Designed for a wide range of industrial and workshop applications, this controller module delivers smooth, linear speed adjustment from a complete stop (0V) all the way up to full speed (220V) — all within a rugged metal shell that's easy to mount and install.

Made in China.

Key Features

• Universal Input Compatibility: Accepts both AC and DC power supply in the range of 80–230V, making it highly versatile for different workshop and industrial setups.
• High-Power MOS Tube PWM Drive: Uses pulse-width modulation (PWM) technology — not thyristor — for stable, precise, and near-silent speed regulation.
• Smooth Linear Speed Control: Speed adjusts gradually and uniformly from 0V (stopped) to 220V (full speed) with no sudden jumps or surges.
• Soft-Start Function: Eliminates start-up shocks and vibrations; the motor accelerates gently on power-up and decelerates smoothly on power-off.
• Emergency Pause & Start: Dedicated port-position function for instant pause and restart — ideal for time-sensitive operations.
• Adjustable Output Voltage Range: Output voltage is tunable to match your motor's requirements, allowing you to increase or decrease the operating range as needed.
• Compact Metal Shell: Dimensions of 110mm × 78mm × 35mm make it easy to integrate into existing equipment enclosures.
• Ultra-Low Noise Operation: Engineered for stable performance with minimal electromagnetic noise during motor control.

Technical Specifications

Typical Applications

This controller is well-suited for a wide variety of machinery and equipment, including:

• Clothing and textile equipment
• Hot stamping, painting, and bonding machines
• Food processing machinery and blenders
• Printing and dyeing machinery
• Small milling machines
• Bag-making machines
• Woodworking machinery and polishing equipment
• Line transmission and roller transfer systems
• Automatic welding pads and winding devices

Package Contents

• 1× DC Motor Governor / PWM Controller Board

Important Notes

• Due to lighting and screen variation, the actual color may differ slightly from product images.
• Please allow ±1–3 cm tolerance due to manual measurement.

For general guidance on electrical safety standards and best practices when working with motor drives and control electronics, refer to OSHA's Electrical Safety Guidelines.

Frequently Asked Questions

Q: What type of motors is this PWM motor speed controller compatible with?

A: This controller is designed specifically for DC permanent magnet 2-wire motors rated between 48V and 220V, with motor power ratings from 30W up to 550W. It is not suitable for AC motors or brushless DC motors.

Q: Can I use this motor controller with both AC and DC power supplies?

A: Yes. The controller accepts both AC and DC input in the 80–230V range, giving you the flexibility to use it with a wide variety of power sources in workshop or industrial environments.

Q: How does the soft-start function work on this PWM controller board?

A: The soft-start function gradually ramps up the motor speed upon power-on, preventing sudden mechanical shock or vibration. Similarly, when powered off, the motor decelerates smoothly rather than stopping abruptly, extending the life of your motor and connected equipment.

Q: Is this motor governor easy to install in existing equipment?

A: Yes. The compact metal-shell design (110mm × 78mm × 35mm) makes it straightforward to mount within most equipment enclosures. Its simple 2-wire DC motor output connection keeps wiring minimal and manageable.
