PWM DC Motor Speed Controller 5V–35V 90W LED Dimmer Module
PWM DC Motor Speed Controller 5V–35V 90W LED Dimmer Module
PWM DC Motor Speed Controller & LED Dimmer Module
Take precise command of your DC motors and LED lighting with this compact, high-efficiency PWM Motor Speed Controller. Whether you're building a DIY electronics project, automating a fan, or fine-tuning conveyor belt speeds, this stepless speed regulator delivers smooth, accurate control from a single potentiometer knob — no complex wiring or programming required.
Made in Mainland China.
Key Features
- Precise Stepless Speed Control: Adjustable PWM duty cycle from 1%–100% lets you dial in exactly the motor speed or LED brightness you need — no jumpy steps, just smooth, continuous control.
- Wide Voltage Compatibility: Works across a DC 4.5V–35V input range, making it compatible with 5V, 12V, 24V, and other common power supplies.
- High Power Output: Handles up to 90W maximum output power with a 0–5A output current range — capable of driving a wide variety of DC motors and LED loads.
- Built-In Protection: Equipped with reverse polarity protection, overcurrent protection, and a self-recovering (auto-reset) fuse for safe, worry-free operation.
- Reversible Motor Direction: Easily switch motor rotation direction when the default direction doesn't match your setup requirements.
- Ultra-Low Standby Draw: Quiescent current of only 7µA in standby — virtually zero idle power consumption.
- Compact & Lightweight: At just 30×26×14 mm and 14g (without handle), it fits neatly into tight enclosures and custom builds.
- LED Dimmer Ready: Also functions as a smooth LED dimmer for 12V and 5V LED strips, spotlights, and other DC lighting.
Technical Specifications
| Working Voltage | DC 4.5V – 35V |
| Output Current | 0 – 5A |
| Max Output Power | 90W |
| PWM Duty Cycle | 1% – 100% |
| PWM Frequency | 20 kHz |
| Quiescent Current | 7 µA (standby) |
| Dimensions | 30 × 26 × 14 mm / 1.18 × 1.02 × 0.55 in (without handle) |
| Weight | 14g |
| Protection | Reverse polarity, overcurrent, self-recovering fuse |
| Country of Origin | Mainland China |
What's in the Box

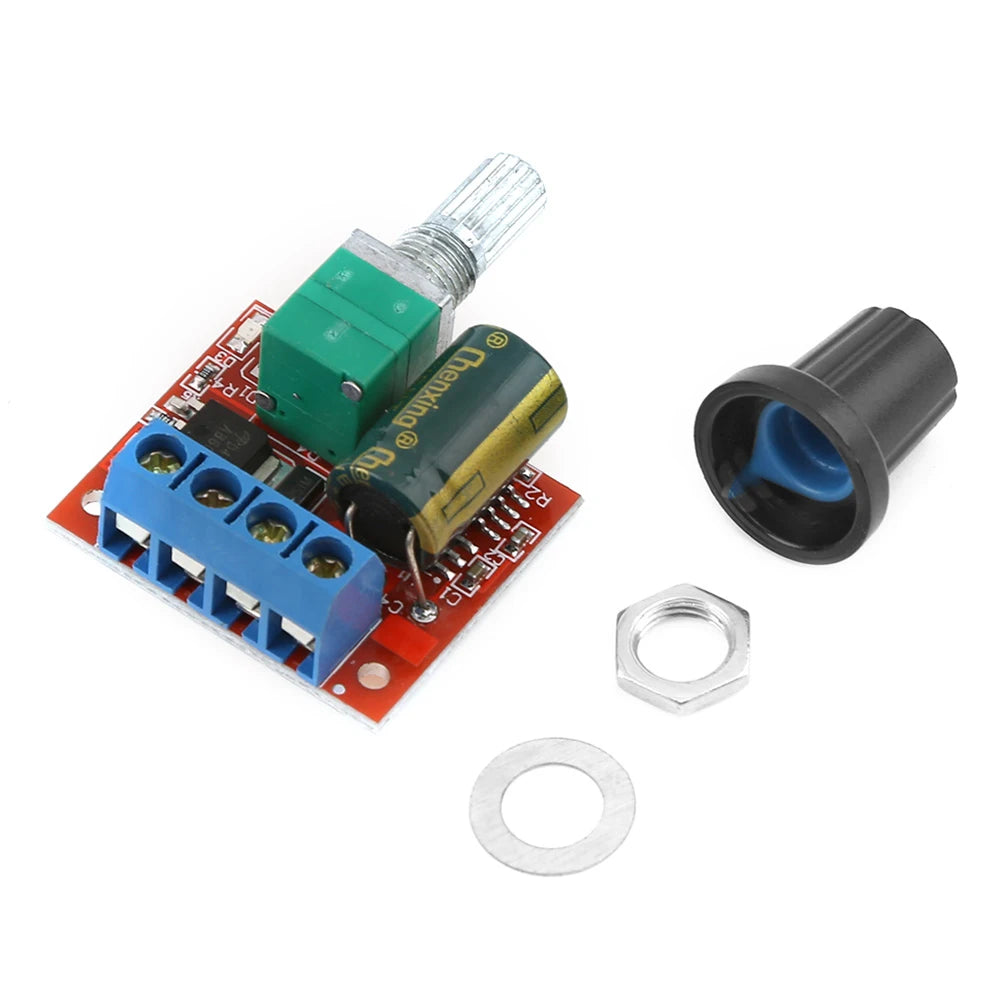

- 1× PWM Motor Speed Controller Module (per unit; available in multi-packs of 5–20 pcs)
Common Applications
- DC fan speed regulation
- DIY robotics and automation
- 12V/5V LED strip dimming
- Conveyor belt and pump motor control
- Arduino, Raspberry Pi, and electronics prototyping projects
Please Note: Actual color may vary slightly from images due to monitor settings and lighting. Please allow ±1–2 cm measuring deviation due to manual measurement.
For guidance on electrical safety when working with electronic components and modules, visit the U.S. Consumer Product Safety Commission – Electrical Safety.
Learn more: Powertrain control module
