PWM DC Motor Speed Controller 12V/24V/36V 40A Adjustable

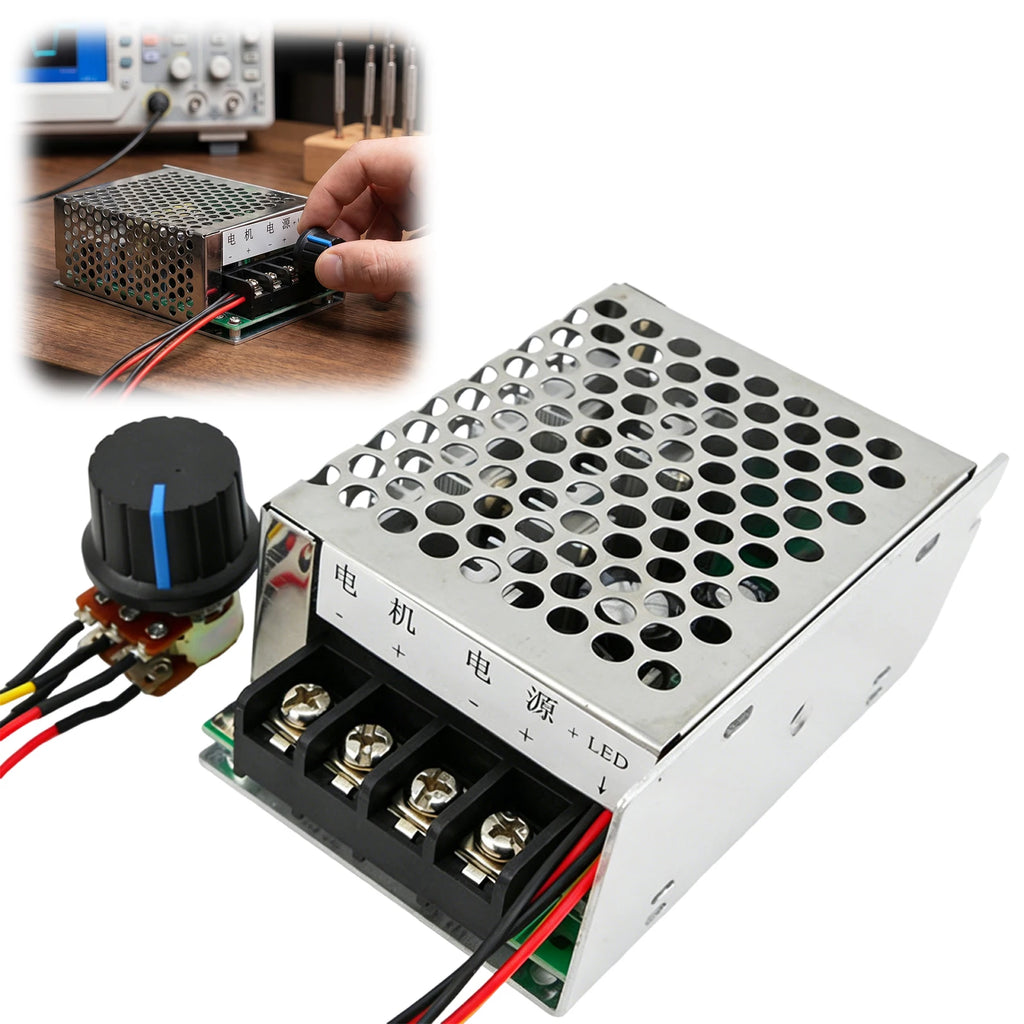

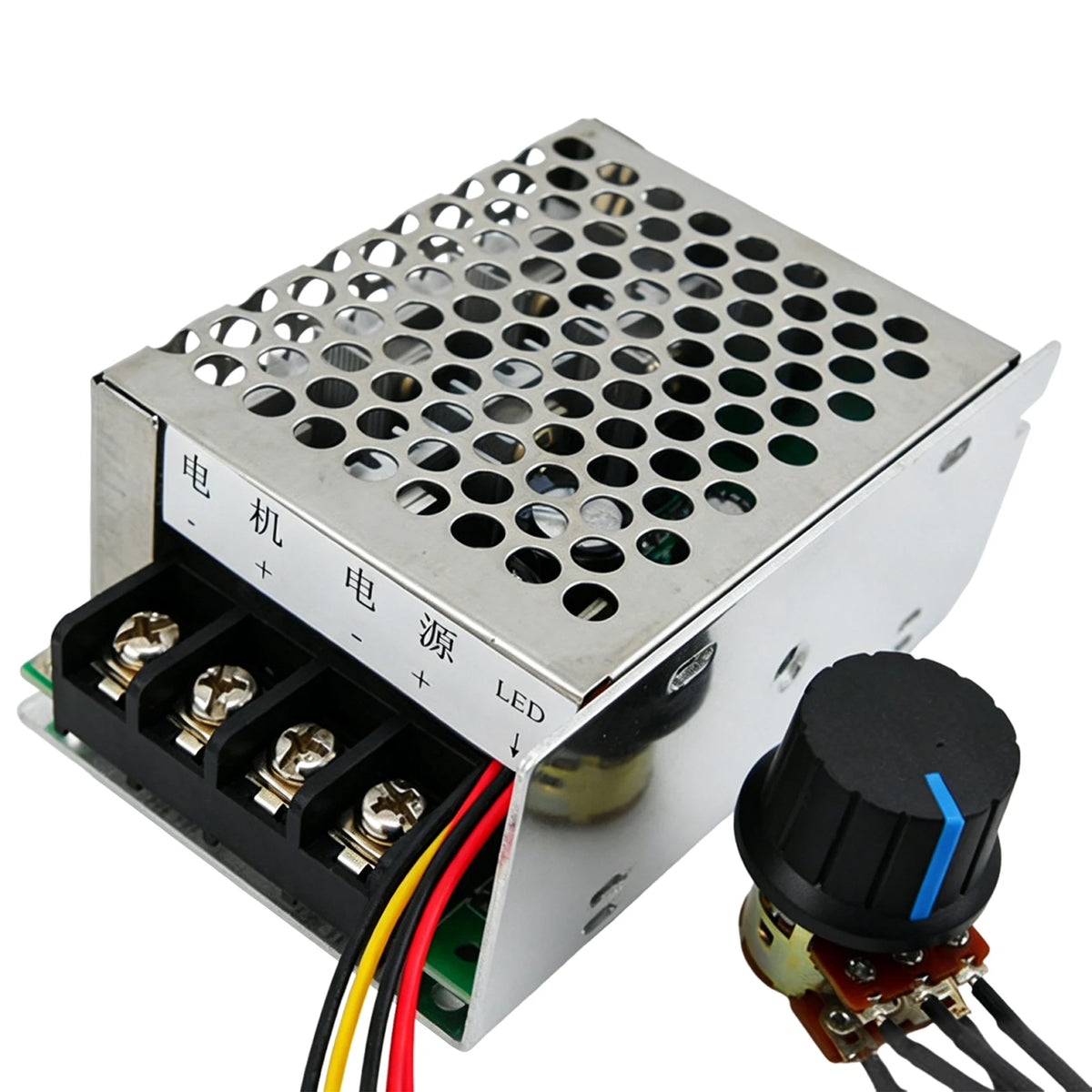

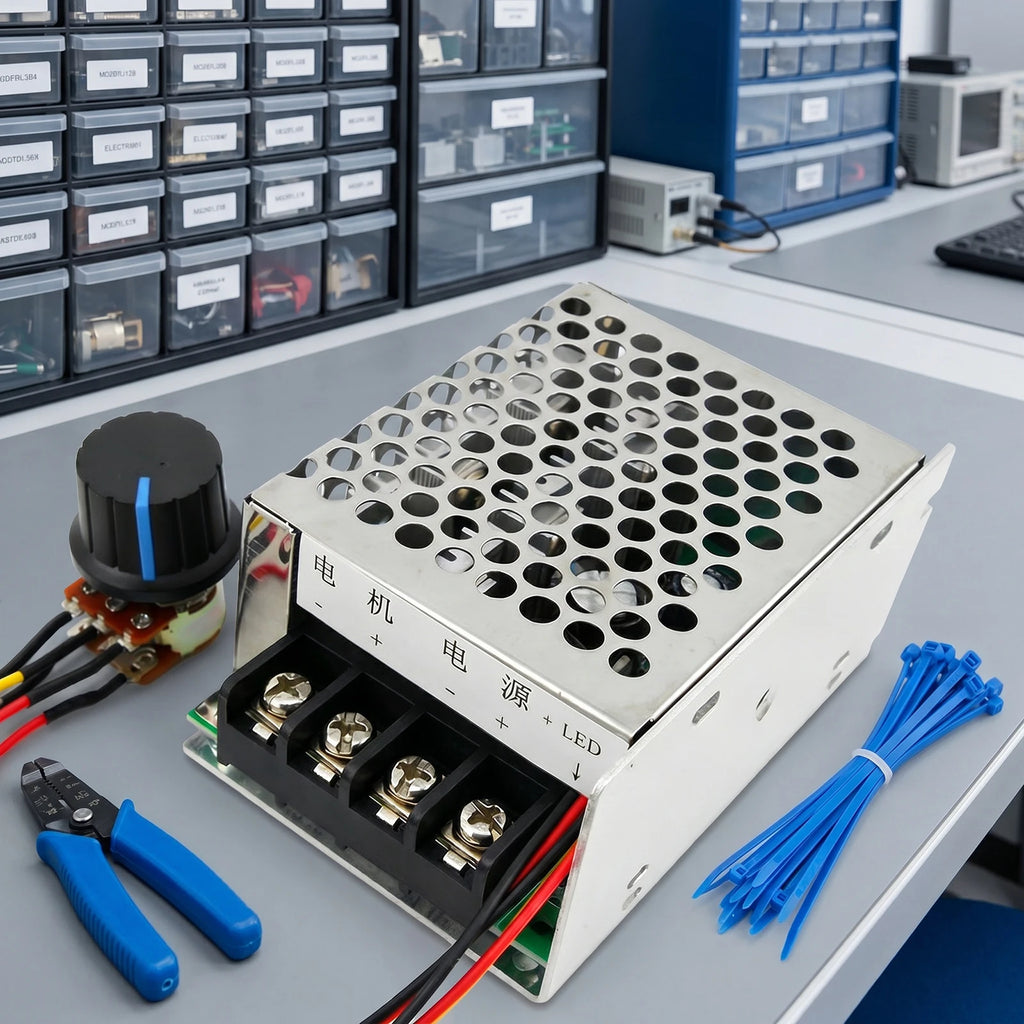

PWM DC Motor Speed Controller — 12V / 24V / 36V, 40A Peak

Take precise control of your brushed DC motors with this compact, high-performance PWM Motor Speed Controller. Designed for a wide range of DC voltages (12V, 24V, and 36V) and capable of handling up to 40A peak current, this controller is an essential component for DIY builds, industrial equipment, robotics, and power tool applications. The built-in tachometer display lets you monitor speed at a glance, while the overload and stall protection circuitry keeps your motor — and your project — safe.

Key Features

• Wide Voltage Compatibility: Works with 12V, 24V, and 36V DC input — simply match the controller input voltage to your motor's rated voltage for optimal performance.
• High Current Capacity: Supports a continuous operating current of up to 30A and a peak current of 40A, making it suitable for demanding motor-drive applications.
• Full 0–100% Speed Range: A smooth, fully adjustable speed range via the precision 7mm control knob allows fine-tuned RPM management at a PWM frequency of 25 kHz for quiet, efficient operation.
• Linear Output Voltage: Output voltage remains stable under load, ensuring consistent motor performance without unexpected speed fluctuations.
• Overload & Stall Protection: Built-in overcurrent and stall protection circuitry automatically safeguards your motor and controller from damage during overload events.
• Tachometer Display: Integrated percentage display provides real-time speed readout so you always know exactly where your motor is running.
• Compact Metal Construction: Measures just 85 × 58 × 38 mm (approx. 3.35 × 2.28 × 1.5 in.) and is built from durable alloy steel — easy to mount in tight spaces.
• No Direction Reversal: This controller does not support forward/reverse switching; it is designed for unidirectional brushed DC motor speed control.

Specifications

What's in the Box

• 1 × PWM DC Motor Speed Controller

Important Notes

Always ensure that the input voltage of the controller matches your motor's rated voltage before connecting. The input current of your power supply must exceed the motor's working current. Due to manual measurement methods, please allow a tolerance of ±1–2 cm. Actual product color may vary slightly from images due to differences in monitor settings and lighting.

For guidance on electrical safety when working with DC power systems and motor controllers, refer to OSHA's Electrical Safety Guidelines.

Frequently Asked Questions

Q: What types of motors are compatible with this PWM DC motor speed controller?

A: This PWM DC motor speed controller is designed specifically for brushed DC motors. It is not compatible with brushless motors, stepper motors, or AC motors. Always verify your motor's rated voltage (12V, 24V, or 36V) and current draw before connecting.

Q: Can this speed controller run motors in both forward and reverse directions?

A: No — this controller supports unidirectional operation only. It does not include a forward/reverse switching function. If bidirectional control is required, you would need an H-bridge motor driver or a controller with directional support.

Q: What does the overload and stall protection do?

A: The built-in overload and stall protection monitors the current drawn by the motor. If the current exceeds safe operating limits — for example, if the motor becomes mechanically jammed — the controller automatically intervenes to prevent damage to both the motor and the controller's internal components.

Q: Is a heatsink required for continuous high-current operation?

A: The controller is rated for a continuous current of 30A. For sustained high-load operation near that limit, ensuring adequate ventilation around the unit is recommended. Adding an external heatsink or small cooling fan can help maintain stable temperatures during prolonged use.
