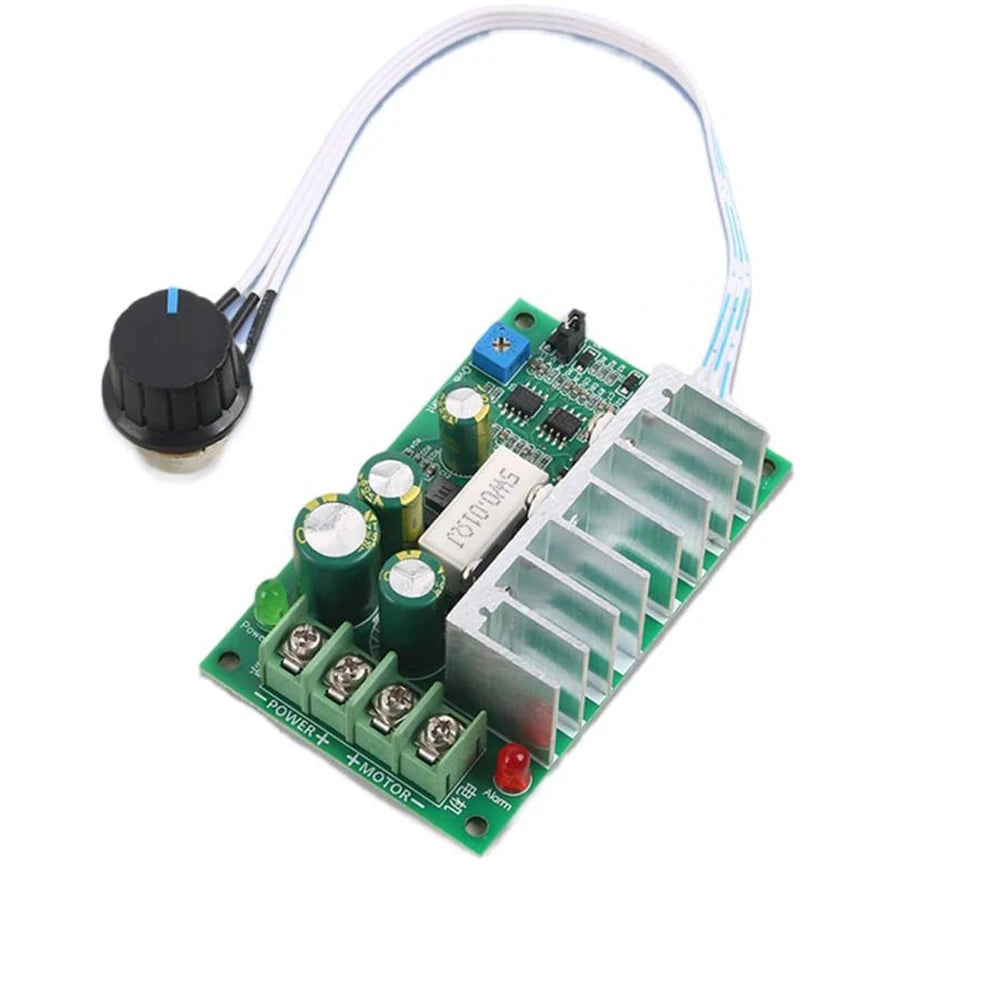

PWM DC Motor Speed Controller — Precise, Adjustable Speed Regulation
Take full control of your DC motor projects with this versatile PWM DC Motor Speed Controller. Operating across a wide voltage range of 10V–60V DC (recommended 12V–48V), this compact regulator delivers smooth, stepless speed adjustment from 0% to 100% — making it ideal for DIY electronics, automation builds, robotics, workshop tools, and industrial machinery.
Built-in overcurrent and overload protection (1A–10A adjustable limiting range) safeguards your motor and circuitry from unexpected surges, giving you confidence during demanding applications. The high-frequency 21kHz PWM signal ensures quiet, efficient operation with minimal electrical noise.
Key Features
- Wide Voltage Range: DC 10V–60V input (recommended DC 12V–48V)
- Full Speed Range: Output adjustable from 0% to 100% of input voltage
- Rated Current: 10A continuous (maximum 15A peak)
- Overcurrent & Overload Protection: Current limiting adjustable from 1A–10A
- PWM Frequency: 21kHz for smooth, quiet motor control
- Potentiometer: B100K, 40cm lead length, requires 8mm mounting hole

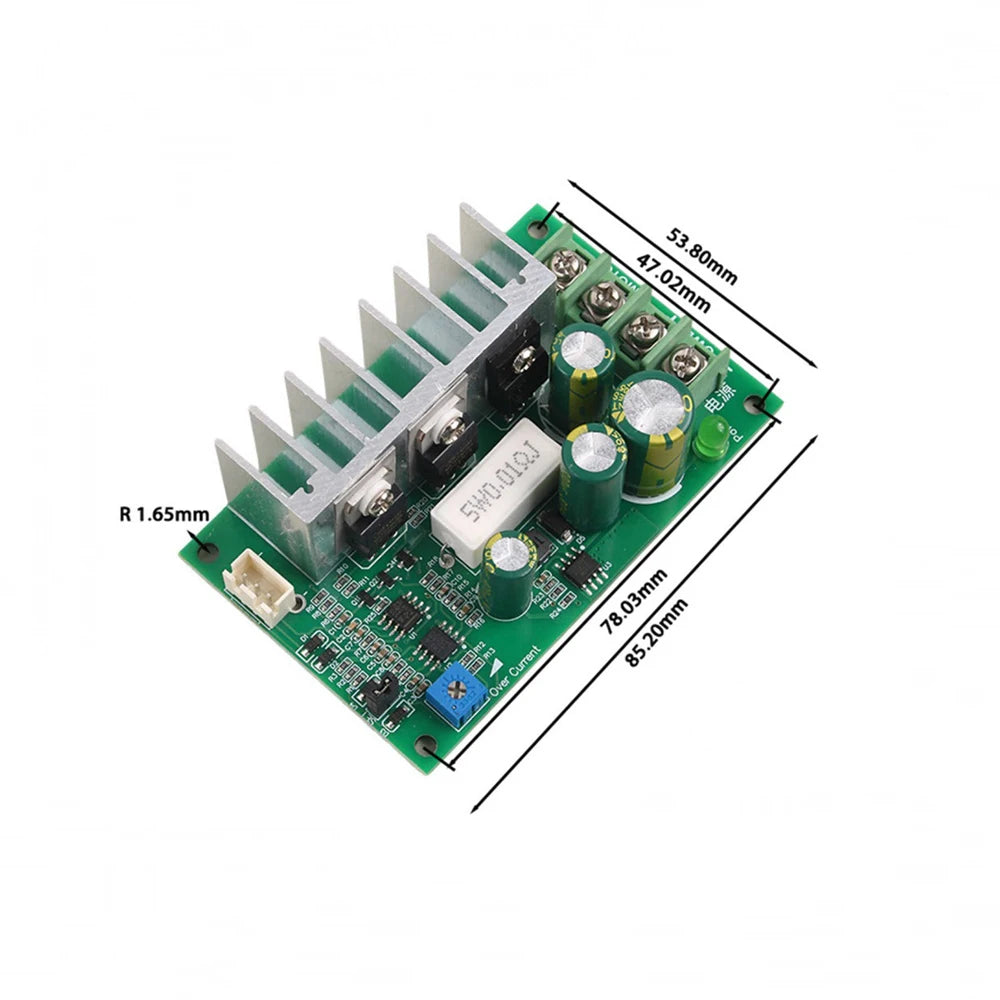

- Compact Footprint: 85.2mm × 53.8mm × 27mm — easy to integrate into any build
- Compatible With: 12V motors up to 120W and 24V motors up to 200W
- Made in Mainland China
Power Output Reference
| Voltage | Current | Max Power |
|---|---|---|
| 12V | 10A | 120W |
| 24V | 10A | 240W |
| 36V | 10A | 360W |
What's in the Box
- 1× PWM DC Motor Speed Controller / Regulator
Important Notes
- Actual color may vary slightly from images due to monitor and lighting differences.
- Please allow ±1mm–10mm tolerance due to manual measurement.
Learn More
For general electrical safety guidelines when working with DC motor controllers and circuits, visit the OSHA Electrical Safety resource. For standards related to electronic components and measurement, explore NIST Electronics resources.
Frequently Asked Questions
Q: What voltage range does this PWM DC motor speed controller support?
A: This controller supports a DC input voltage of 10V to 60V, with a recommended operating range of 12V to 48V for optimal performance and longevity.
Q: Does this motor speed regulator have overcurrent protection?
A: Yes. The controller features built-in overcurrent and overload protection with an adjustable current limiting range of 1A to 10A, helping safeguard both the controller and your connected motor.
Q: What size motors is this PWM controller compatible with?
A: It is compatible with 12V DC motors rated under 120W and 24V DC motors rated under 200W. Always ensure your motor's rated wattage falls within the supported range for your supply voltage.
Q: How does the PWM speed adjustment work?
A: The onboard B100K potentiometer allows you to smoothly adjust the PWM duty cycle from 0% to 100%, which in turn varies the effective voltage delivered to the motor — giving you full stepless speed control from a complete stop to maximum speed.
Q: What is the PWM frequency of this motor speed controller?
A: The controller operates at a PWM frequency of 21kHz, which is above the audible range for most listeners, resulting in quieter and more efficient motor operation compared to lower-frequency controllers.
