Portable Type-C Rechargeable Laser Indicator Module

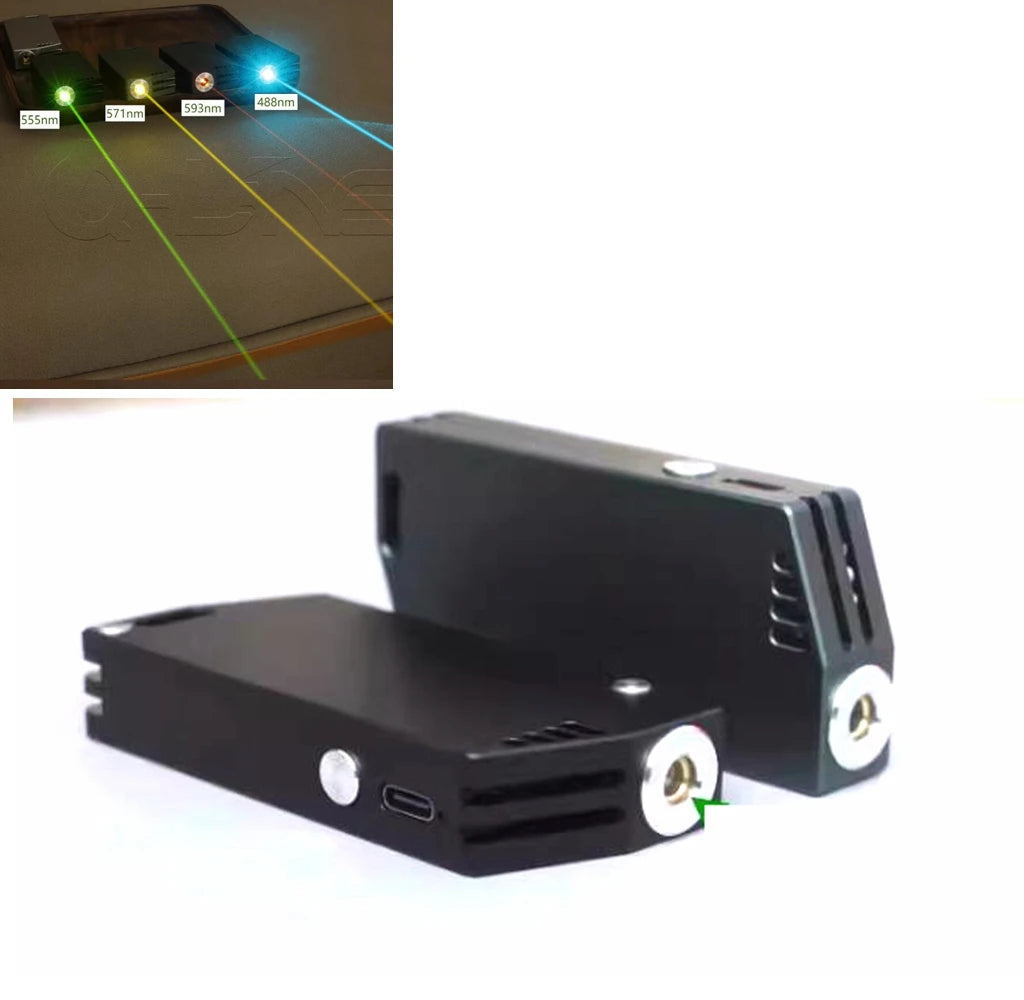

Whether you're a researcher, educator, hobbyist, or professional, this compact and powerful portable laser indicator module delivers precision multi-wavelength output in a sleek, pocket-sized design. With available wavelengths of 593nm, 571nm, 555nm, 638nm, and 532nm, this module covers a broad spectrum for demonstrations, alignment tasks, optical experiments, and more.
Key Features
- Premium 6061 Aviation Aluminum Shell — CNC-turned and milled with a three-level hard anodized finish for exceptional durability. Available in oxidized black or military green.
- Type-C Direct Charging — Built-in 1000mAh rechargeable polymer lithium battery with convenient USB-C charging. No external power source or battery swaps needed.
- Intuitive Touch Controls — Tap the button to power on; long-press for infinite smooth dimming. Light-touch self-locking switch for easy one-handed operation.
- Mini & Ultra-Portable — Compact dimensions of just 85 × 37 × 15.5mm — smaller than a standard cigarette box and weighing only 85–90g.
- High Conversion Efficiency — 5V boost driving circuit with over 93% voltage conversion efficiency for stable, consistent output.
- Continuous Linear Beam — Fixed-focus, dot-shaped spot approximately 8–12mm at 5 meters, delivering a clean continuous linear beam.
- Wide Operating Temperature — Performs reliably from -10°C to +60°C, suitable for a range of indoor environments.

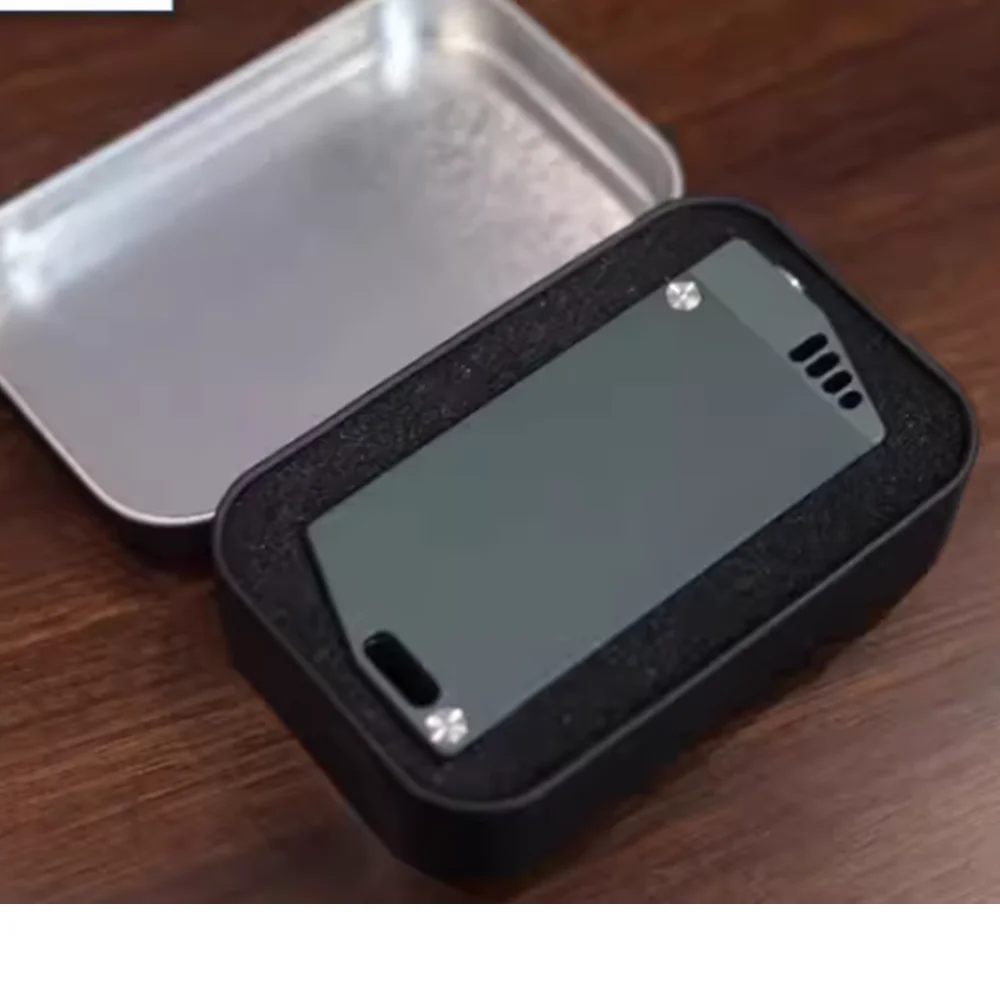

- Premium Packaging — Comes in a black or gold metal gift box, making it an impressive choice for collectors and professionals alike.
Technical Specifications
- Output Wavelengths: 593nm / 571nm / 555nm / 638nm / 532nm
- Shell Material: 6061 Aviation Aluminum
- Dimensions: 85 × 37 × 15.5mm
- Battery: Built-in 1000mAh polymer lithium rechargeable cell
- Working Voltage: DC 3.7V
- Working Current: 3.7V @ 100–380mA
- Starting Voltage: DC 2.5V
- Safety Class: Class 3B
- Spot Size: ~8–12mm at 5 meters
- Beam Style: Continuous linear, dot-shaped
- Focusing: Fixed focus, non-adjustable
- Waterproof Rating: Not waterproof
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -10°C to +40°C
- Net Weight: 85–90g | Gross Weight (with box): 120–125g
- Charging: Type-C direct charging
Note: The 593nm yellow wavelength requires a brief warm-up period when ambient temperature is below 25°C. All other wavelengths operate immediately without preheating.
Made in Mainland China.
⚠️ Laser Safety Notice: This module is rated Class 3B. Never point directly at eyes or skin. Always follow applicable laser safety guidelines. For laser safety standards and guidance, refer to the FDA – Laser Products and Instruments resource.
Frequently Asked Questions
Q: What wavelengths does this portable laser indicator module support?
A: This module is available in multiple wavelength options: 593nm (yellow), 571nm (yellow-green), 555nm (green), 638nm (red), and 532nm (green). Each variant is optimized for its specific wavelength and use case, such as optical demonstrations, alignment tasks, or scientific experiments.
Q: How do I charge the laser module?
A: Charging is simple and modern — just use any standard Type-C USB cable to charge the built-in 1000mAh polymer lithium battery directly. No special chargers or battery replacements are required.
Q: Is this laser module safe to use?
A: This device is rated Class 3B, which means it can cause eye injury if the beam is viewed directly. Always use with appropriate laser safety eyewear and follow established safety protocols. It is intended for use by informed adults familiar with laser safety practices. Refer to the FDA laser safety guidelines for best practices.
Q: How do I control the brightness of the laser module?
A: Simply tap the button to turn the laser on or off. To adjust brightness, long-press and hold the button — it will smoothly and infinitely cycle through power levels. The light-touch self-locking switch keeps your selected setting locked in during use.
Q: Is the laser module waterproof?
A: No, this module is not waterproof. Please keep it away from water, rain, and high-humidity environments to protect the internal electronics and battery.
