ASC Series Pneumatic One-Way Throttle Valve — Precision Flow Control for Pneumatic Systems
Take full command of airflow in your pneumatic setup with the ASC Series One-Way Throttle Valve. Available in four sizes — ASC100-06, ASC200-08, ASC300-10, and ASC300-15 — this adjustable flow control valve is engineered for professionals and hobbyists who demand reliable, smooth, and accurate gas flow regulation in pneumatic tools and automation systems.
Key Features
- High-Grade Aluminum Alloy Construction: Built to endure rigorous industrial and workshop use, the durable aluminum alloy body ensures long-lasting performance across a wide range of environments.
- Precision-Engineered Components: Meticulously crafted internals allow smooth, flexible one-way flow adjustment, giving you dependable control over gas flow and pressure with minimal effort.
- Broad Application Compatibility: Designed for pneumatic tools, automation systems, pipelines, and pneumatic components — the ASC series integrates seamlessly into existing setups for efficient operation.
- Wide Operating Range: Functions effectively at temperatures from -5°C to 60°C and nominal pressures from 0.05 MPa to 0.95 MPa, making it adaptable to varied working conditions.
- Mirror-Polished Finish: The sleek black, mirror-polished exterior delivers both a professional aesthetic and a clean, corrosion-resistant surface that looks great in any setup.
- G1/4 Interface Compatible: The ASC200 spec is compatible with standard G1/4 interfaces, ensuring easy and secure connections to your pneumatic pipeline.

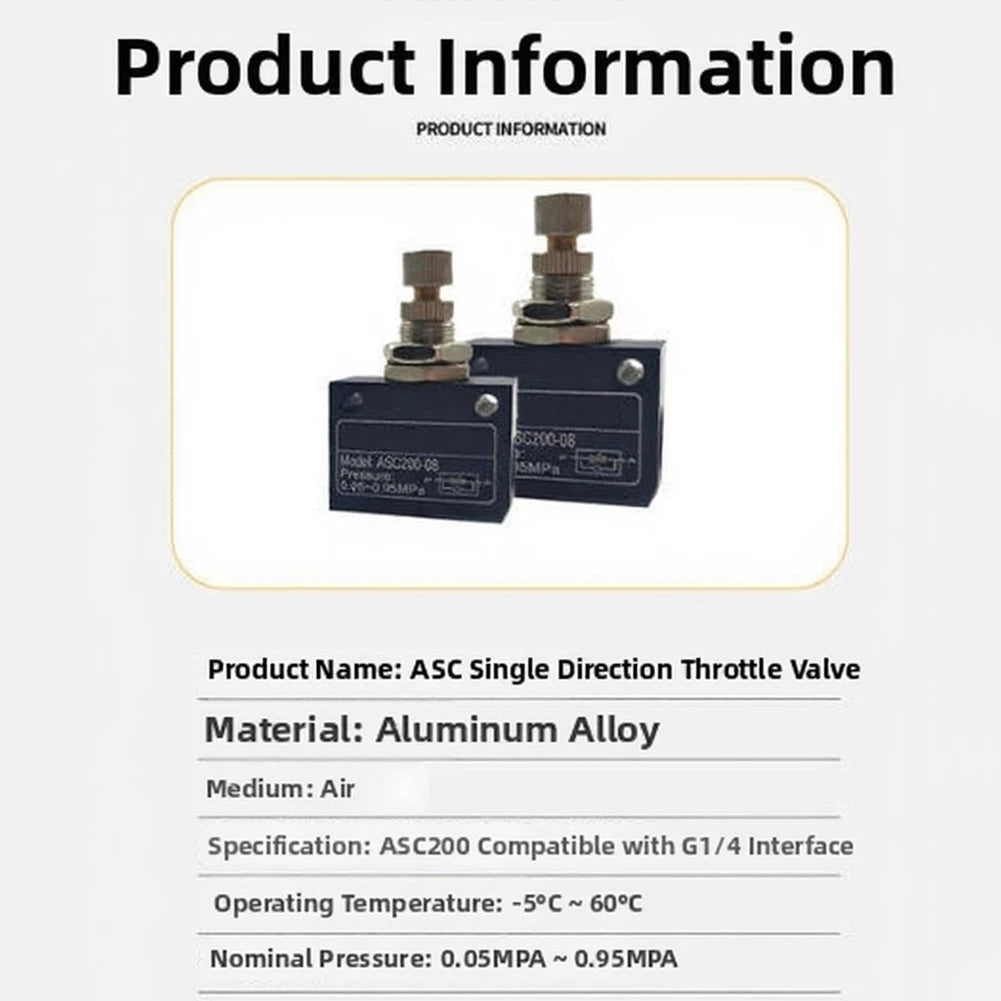

Specifications
| Product Name | One-Way Throttle Valve (ASC Series) |
| Material | Aluminum Alloy |
| Available Sizes | ASC100-06, ASC200-08, ASC300-10, ASC300-15 |
| Color | Black |
| Applicable Medium | Air |
| Interface | G1/4 (ASC200 spec) |
| Operating Temperature | -5°C to 60°C |
| Nominal Pressure | 0.05 MPa to 0.95 MPa |
| Country of Origin | Made in China |
Package Contents
- 1 × ASC Series One-Way Throttle Valve (size of your choice)
Note: Actual color may vary slightly from images due to monitor brightness and display settings. Please allow for minor measurement tolerances.
For guidance on pneumatic system safety and best practices, refer to OSHA's Pneumatic Tool Safety Guidelines.
Frequently Asked Questions
Q: What sizes are available for the ASC Series Pneumatic One-Way Throttle Valve?
A: The ASC Series throttle valve is available in four sizes: ASC100-06, ASC200-08, ASC300-10, and ASC300-15. Each size is suited for different pipeline dimensions and flow control requirements in pneumatic systems. Please select the appropriate model based on your system's port size and flow capacity needs.
Q: What is the operating pressure range for this pneumatic throttle valve?
A: This adjustable flow control valve operates within a nominal pressure range of 0.05 MPa to 0.95 MPa, making it suitable for a wide variety of pneumatic tools and automation system applications. It also handles operating temperatures between -5°C and 60°C.
Q: What type of medium is this throttle valve compatible with?
A: The ASC Series one-way throttle valve is designed for use with compressed air as the applicable medium. It is ideal for pneumatic tools, automation machinery, air cylinders, and pipeline systems requiring precise airflow regulation.
Q: Is the ASC200 spec compatible with standard fittings?
A: Yes, the ASC200 specification is compatible with the standard G1/4 interface, allowing for straightforward and secure integration with common pneumatic pipelines and fittings.
