Pneumatic Chamfering Machine — 45° Metal Deburring & Beveling Kit
Take your metalworking precision to the next level with this Manual Pneumatic Chamfering Machine. Designed for professionals and renovation teams alike, this compact air-powered tool delivers fast, accurate chamfering, beveling, and deburring on a wide range of metal workpieces — all with one-handed ease. Made in Mainland China.
Why Choose This Chamfering Tool?
- Double-Head Tungsten Steel Cutter: Dual cutting heads with sharp tungsten steel blades deliver exceptional cutting force, durability, and consistent results across metals.
- Adjustable Depth Control: Fine-tune chamfer depth from 0.1 mm to 0.9 mm to suit your exact project requirements.
- Versatile Chamfering Angles: Handles straight-edge chamfering, inner/outer round hole chamfering, irregular chamfering, keyway polygon chamfers, and more — all at up to 45°.

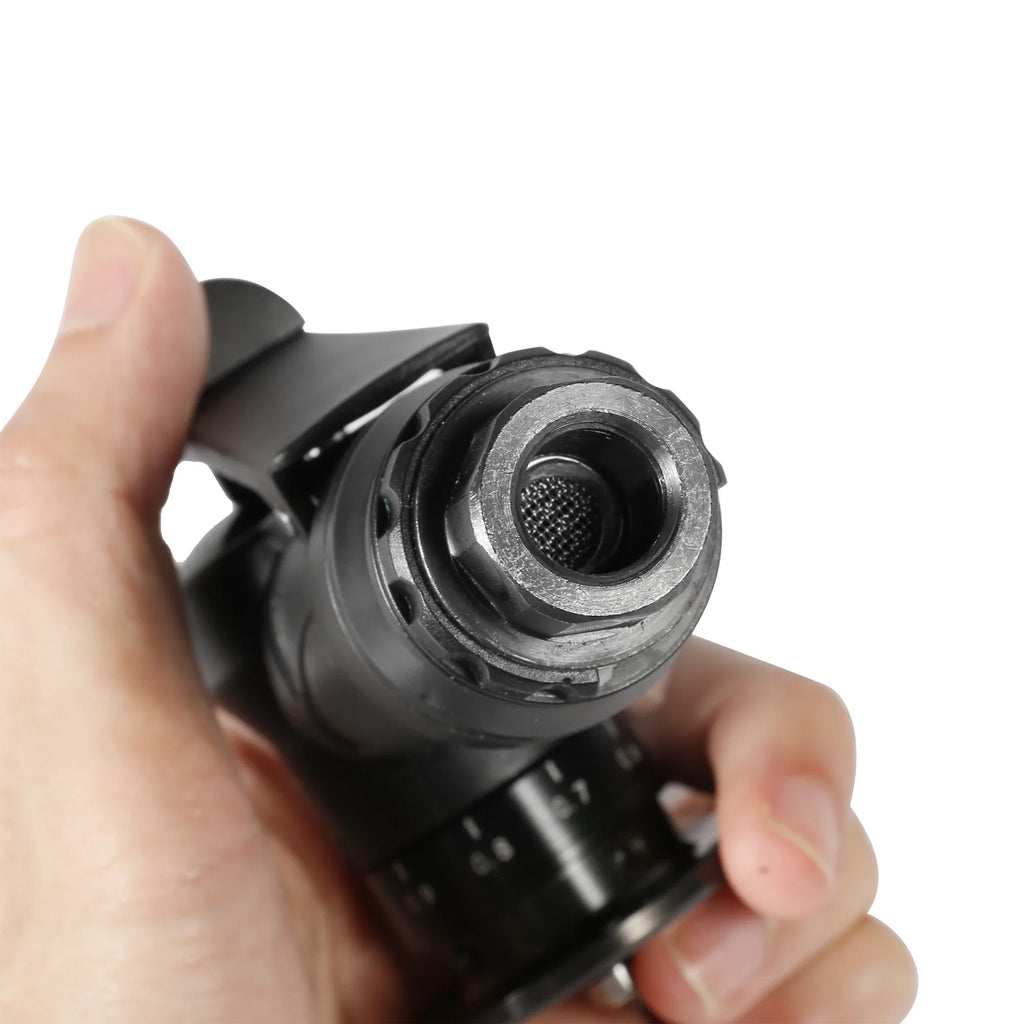

- Filtered 1/4" Air Inlet: Built-in inlet filter blocks foreign particles from entering the tool, protecting internal components and extending service life.
- 360° Rotating Exhaust Port: Quickly dissipates heat from the machine body, keeping operating temperatures low and performance stable during extended use.
- Compact One-Hand Design: At approximately 15 × 6 × 4.8 cm, the mini body is lightweight and easy to maneuver, even in narrow or shallow spaces — thanks to the ultra-thin 1 mm hex nut lock bearing.
- CE Certified: Meets European safety and performance standards for powered hand tools.
Technical Specifications
| No-Load Speed | 30,000 RPM |
| Chamfer Capacity | C0.1 – C1.5 |
| Adjustable Depth | 0.1 mm – 0.9 mm |
| Chamfering Hole Diameter | ≥ 8 mm |
| Minimum Plate Thickness | 3 mm |
| Air Connection | 1/4" |
| Average Air Consumption | 0.4 per min |
| Material | Metal (Black) |

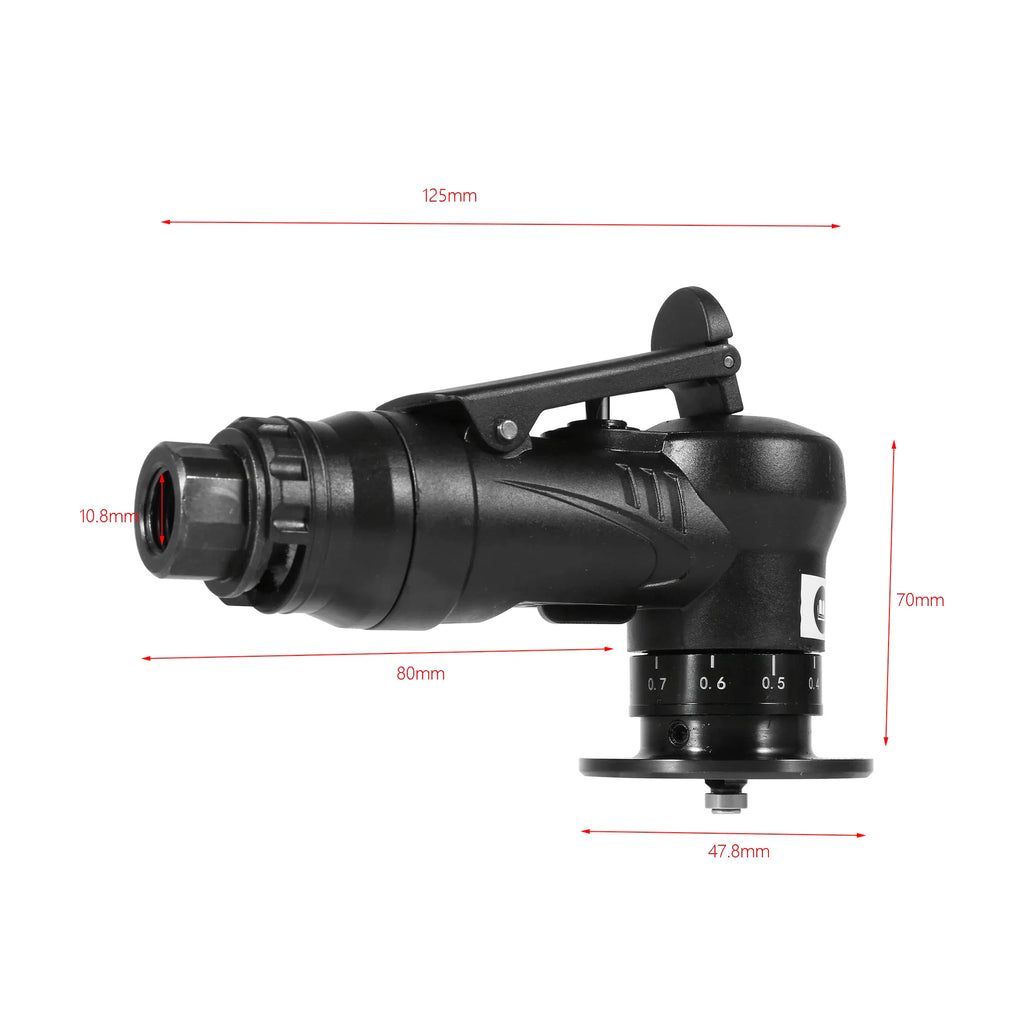

| Dimensions | ~15 × 6 × 4.8 cm |
| Certification | CE |
| Country of Origin | Made in Mainland China |

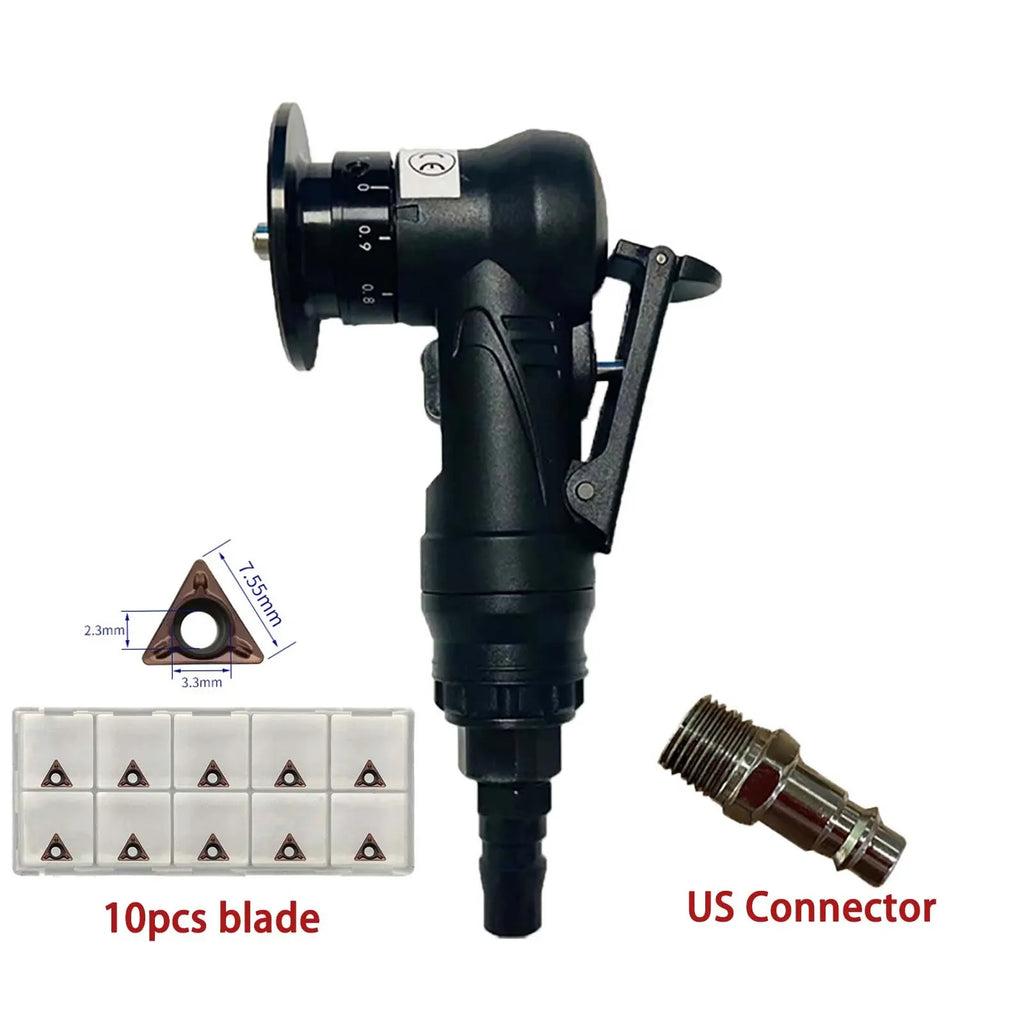

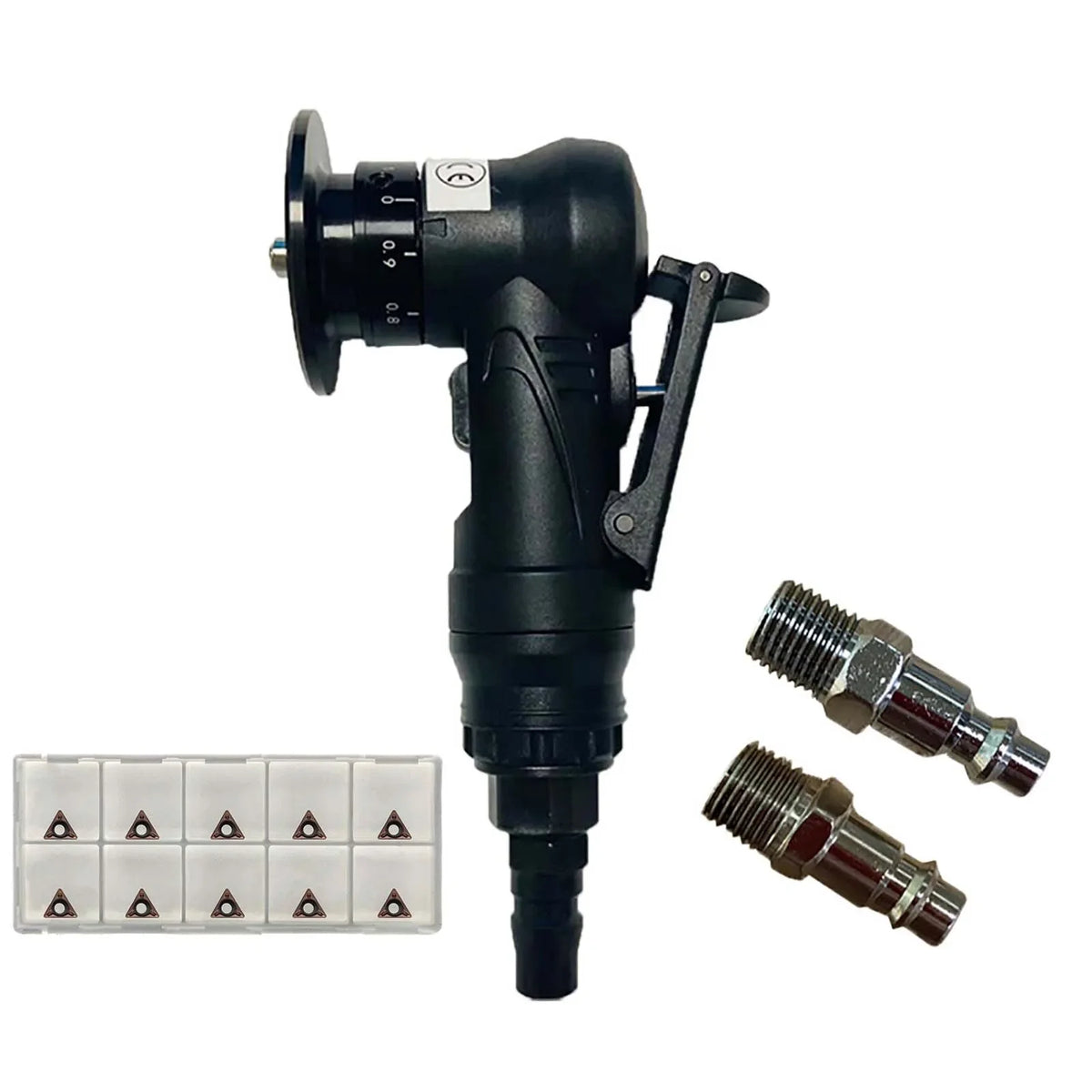

What's in the Box
- 1 × Mini Pneumatic Chamfering Machine
- 2 × Wrenches

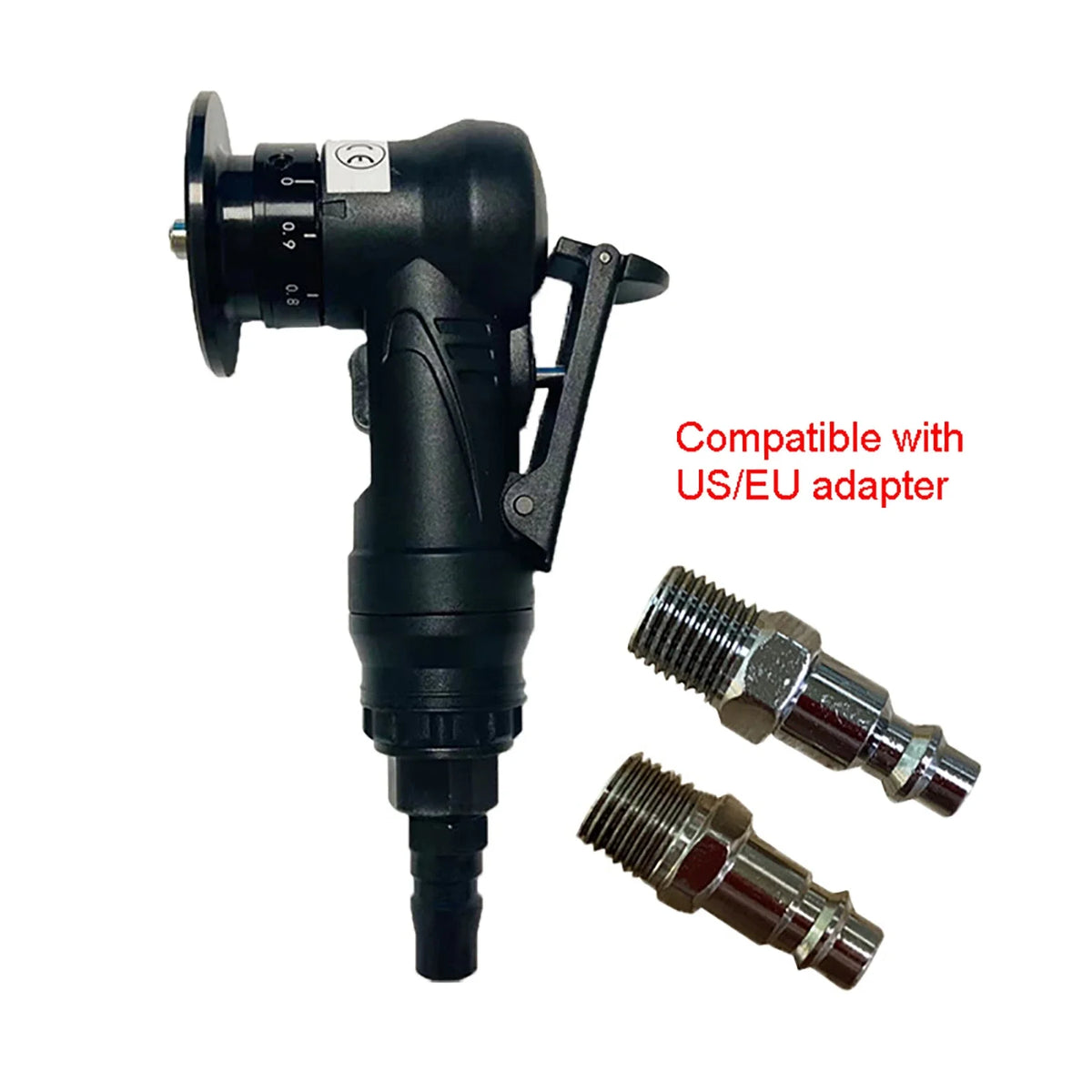

- 1 × US Adapter
- 4 × Replacement Blades
Safety & Best Practices
Always wear appropriate personal protective equipment (PPE) including safety glasses and gloves when operating pneumatic tools. Ensure your air compressor output is matched to the tool's 1/4" inlet requirements before use. For general power tool safety guidelines, visit the OSHA Power Tools Safety Resource.
Frequently Asked Questions
Q: What types of chamfering can this pneumatic chamfering machine perform?
A: This versatile chamfering tool handles straight-edge chamfering, inner and outer round hole chamfering, irregular chamfering, keyway chamfering, and polygon chamfering — all at up to 45°, making it ideal for a wide variety of metal fabrication and renovation tasks.
Q: What air compressor pressure is required to run this chamfering machine?
A: The tool uses a standard 1/4" air inlet connection. It is compatible with most workshop air compressors. Always ensure your compressor is set to the appropriate operating pressure for pneumatic hand tools and that the inline filter is kept clean for optimal performance.
Q: Can I adjust the chamfer depth on this machine?
A: Yes. The chamfer depth is fully adjustable from 0.1 mm to 0.9 mm, allowing you to achieve precise chamfer sizes across a chamfer capacity range of C0.1 to C1.5 depending on your workpiece requirements.
Q: Are replacement blades available, and how are they changed?
A: Yes — 4 replacement blades are included in the package. The two included wrenches make blade changes straightforward. The double cutter head uses tungsten steel blades for extended cutting life before replacement is needed.
