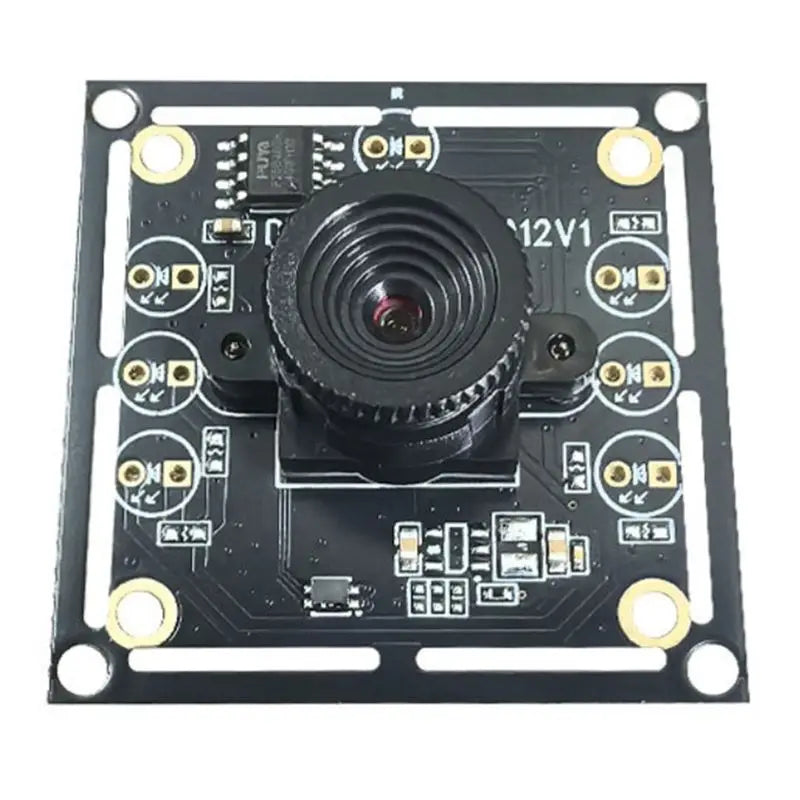

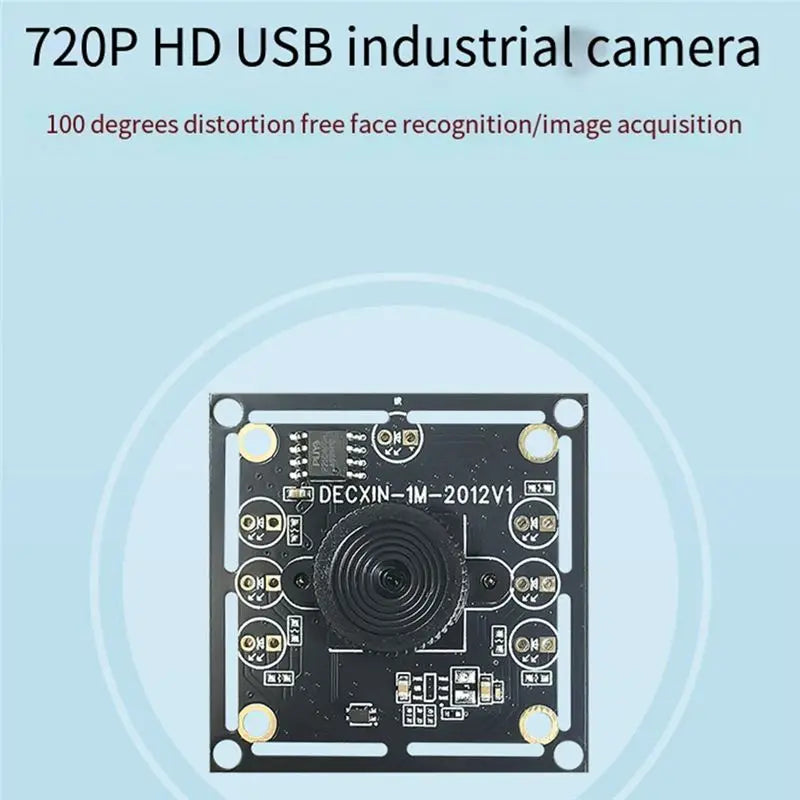

3-Pack OV9732 1MP USB Camera Module — 100° Wide-Angle, 1280×720 HD
Get three high-performance OV9732 1MP USB camera modules in one pack, each featuring a wide 100° field of view and crisp 1280×720 HD resolution. Plug-and-play with no drivers required — simply connect via USB 2.0 and start capturing on Windows XP, 7, 8, or 10 right away. Ideal for developers, makers, robotics projects, machine vision, and DIY imaging builds.
Made in Mainland China.
Key Features
- Sensor: OV9732 — 1/4-inch photosensitive film, 1MP effective pixels
- Resolution & Frame Rate: 1280×720 @ 30fps (MJPEG) / 10fps (YUV); 800×600 @ 30fps (MJPEG); 640×480 @ 30fps (MJPEG & YUV)

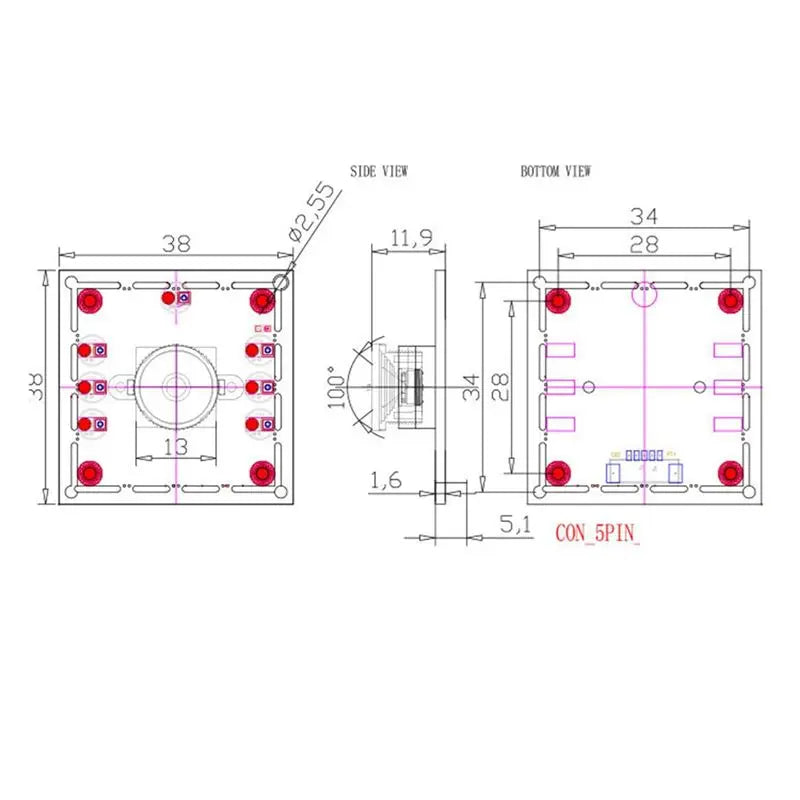

- Wide-Angle Lens: 100° diagonal FOV, F2.0 aperture, 2.84mm focal length, M12×P0.5 mount
- Output Format: MJPEG / YUV2 (YUYV)
- Interface: USB 2.0 High Speed — no driver installation needed

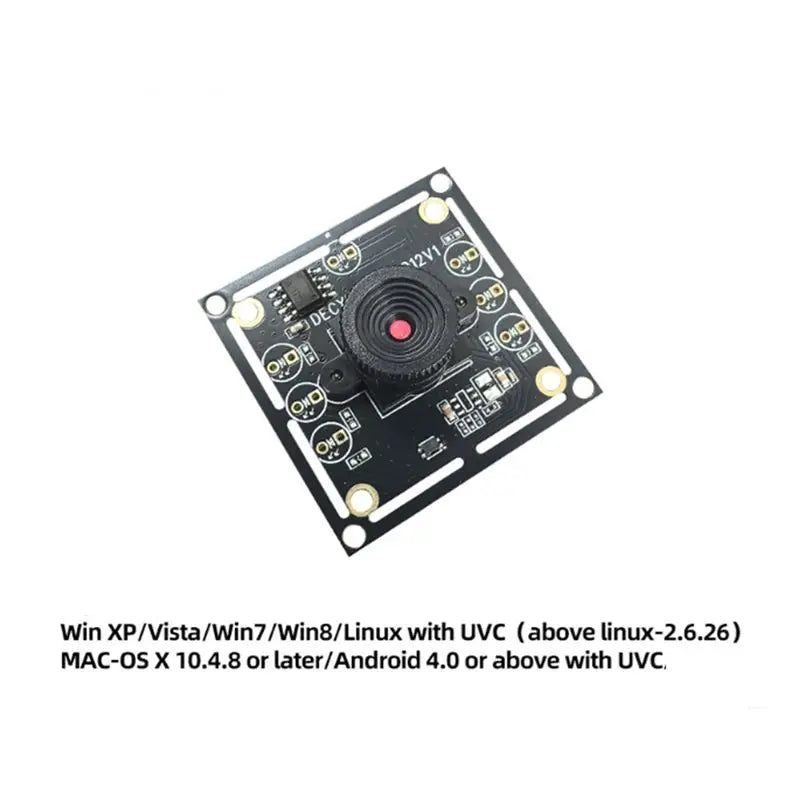

- OS Compatibility: Windows XP, 7, 8, 10
- Pixel Size: 3.0µm × 3.0µm | Image area: 5.7mm × 4.28mm
- Minimum Illumination: 0.5 lux
- Shutter: Electronic rolling shutter / Frame exposure
- Assembly Technology: SMT (Surface Mount Technology)
- Auto Controls: AEC (Auto Exposure), AWB (Auto White Balance), AGC (Auto Gain Control)
- Adjustable Parameters: Brightness, contrast, color saturation, sharpness, gamma, white balance, backlight contrast, exposure
- Cable: 0.6-meter USB cable included per module
- Material: PC

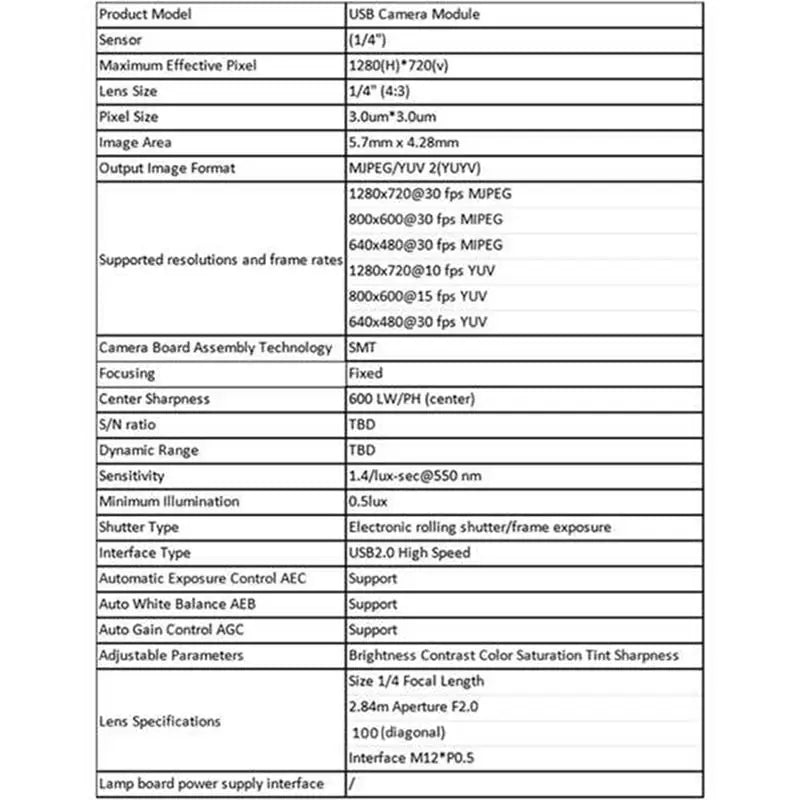

Technical Specifications
| Sensor | OV9732 (1/4 inch) |
| Effective Pixels | 1280 × 720 (1MP) |
| Lens FOV | 100° Diagonal |
| Aperture | F2.0 |
| Focal Length | 2.84mm |
| Interface | USB 2.0 High Speed |
| Sensitivity | 1.4V/lux-sec @ 550nm |
| Min. Illumination | 0.5 lux |
| Center Definition | 600 LW/PH (Center) |
| OS Support | Windows XP / 7 / 8 / 10 |
What's in the Box

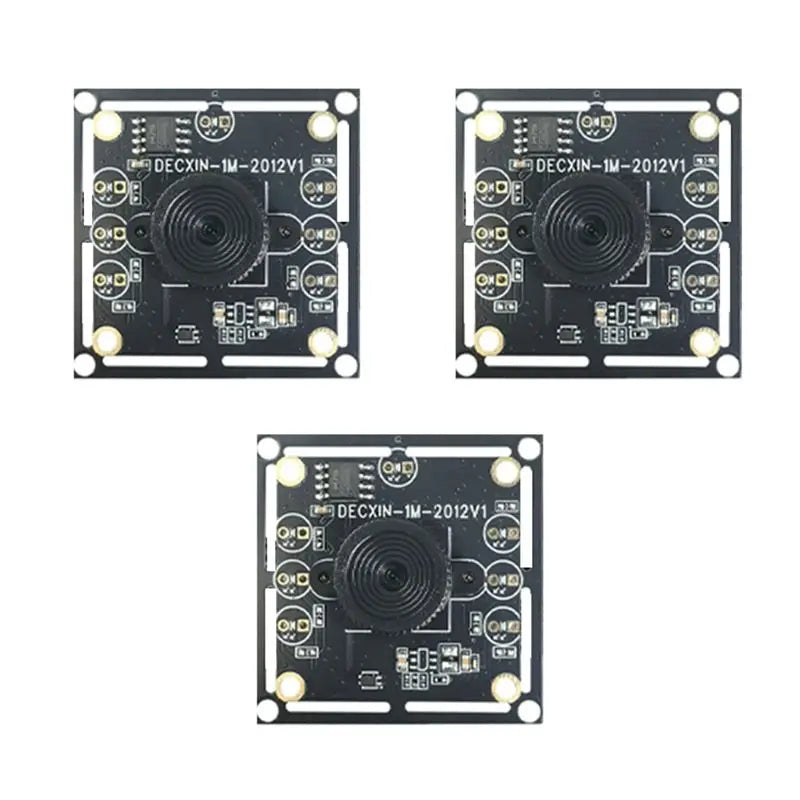

- 3 × OV9732 100° Camera Module
- 3 × 0.6-meter USB Cable
Note: Slight differences in circuit board printing may occur between units and do not affect performance. Color may vary slightly due to screen settings and lighting. Measurement tolerance: ±1–3cm.
For more information on USB camera standards and imaging technology, visit the NIST Intelligent Systems & Imaging Division.
Frequently Asked Questions
Q: Does the OV9732 USB camera module require driver installation on Windows 10?
A: No — this OV9732 camera module is plug-and-play and requires no driver installation on Windows XP, 7, 8, or 10. Simply connect the USB cable and the operating system recognizes it automatically as a UVC-compliant device.
Q: What resolutions and frame rates does this USB camera module support?
A: The OV9732 module supports 1280×720 at 30fps (MJPEG) or 10fps (YUV), 800×600 at 30fps (MJPEG) or 15fps (YUV), and 640×480 at 30fps in both MJPEG and YUV formats, giving you flexible options for your project requirements.
Q: How wide is the field of view, and what is the lens mount type?
A: The lens provides a 100° diagonal field of view with an F2.0 aperture and 2.84mm focal length. The lens mount is M12×P0.5, making it compatible with a wide range of M12 replacement lenses if you ever want to swap optics.
Q: Can this camera module be used for machine vision or robotics projects?
A: Yes — the OV9732 USB camera module's compact SMT board design, wide-angle 100° FOV, and driver-free USB 2.0 interface make it well-suited for robotics, machine vision, DIY security systems, and embedded imaging applications on Windows-based platforms.
