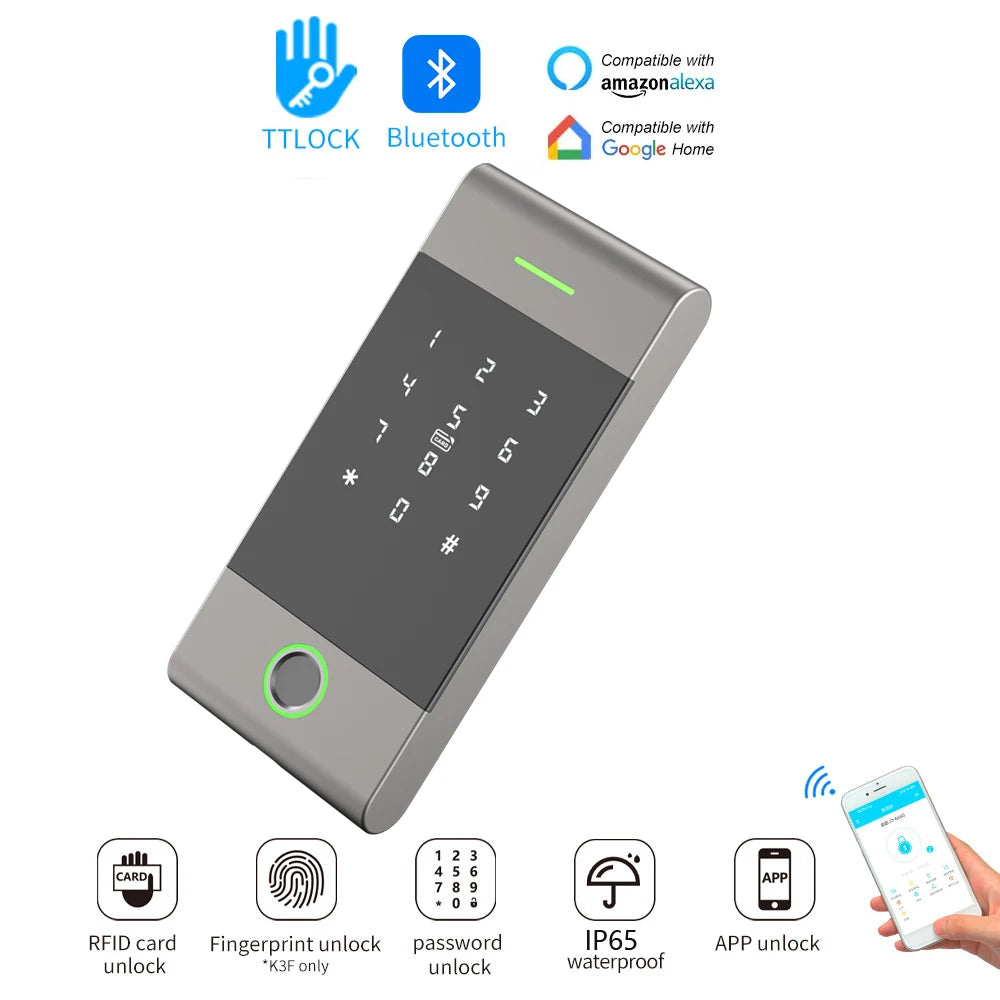

LUCKING DOOR MJ01 – Outdoor Smart Access Control Keypad
Take full command of your entryway with the LUCKING DOOR MJ01 Aluminum Alloy Smart Keypad. Built for outdoor use, this advanced access control system combines Bluetooth 5.0 BLE, 13.56MHz RFID card reading, capacitive fingerprint recognition, and NFC technology into one sleek, durable unit. Manage access from your smartphone, grant temporary codes to guests, and monitor entry logs — all from the TTLock app.
Made in Mainland China.
Key Features
- 5 Ways to Unlock: TTLock App, PIN password, fingerprint, RFID/NFC IC card, and remote control (via optional G2 TTLock Bluetooth gateway for Wi-Fi connectivity)
- Bluetooth 5.0 BLE: Fast, stable wireless connection with minimal power draw; compatible with Android 4.3+ and iOS 7.0+
- Capacitive Fingerprint Sensor: Stores up to 100 fingerprints with semiconductor-grade accuracy; unlocks in approximately 1.5 seconds
- High-Capacity Card Support: Stores up to 1,000 MIFARE M1 (13.56MHz) IC cards for offices, apartment buildings, and multi-user environments
- Flexible Password Management: Up to 250 custom/permanent passwords plus unlimited dynamic (one-time or time-limited) passwords generated directly from the app
- Time-Limited eKey Sharing: Share digital keys via the app with customizable authorization levels and expiry times — ideal for Airbnb hosts, offices, and property managers
- Smart Home Integration: Works with Amazon Alexa and Google Assistant for voice-command convenience
- Cloud Data Storage: User records, access history, and attendance logs stored securely in the cloud and accessible remotely
- Real-Time Push Notifications: Administrators receive instant alerts when the door is accessed; lockout protection triggers a 5-minute keypad freeze after 5 consecutive incorrect entries
- Pseudo Passcode Function: Enter any extra digits around your real code for added privacy and security
- Auto-Lock: Automatically re-locks within 5 seconds of each unlock event
- Rugged Construction: Aluminum alloy body with tempered glass panel; operates in temperatures from -20°C to +70°C (-4°F to 158°F)
- CE & FCC Certified: Meets international safety and electromagnetic compliance standards
Technical Specifications
| Brand | LUCKING DOOR |
| Model | MJ01 |
| Material | Aluminum Alloy & Tempered Glass Panel |
| Bluetooth Standard | Bluetooth 5.0 BLE |
| RFID Frequency | 13.56 MHz (MIFARE M1) |
| Fingerprint Capacity | 100 fingerprints |
| IC Card Capacity | 1,000 cards |
| Password Capacity | 250 custom/permanent + unlimited dynamic |
| Power Supply | DC 12V |
| Standby Current | ~85 µA |
| Working Current | ~1 A |
| Unlock Time | ~1.5 seconds |
| Operating Temperature | -20°C to +70°C |
| Key Type | Capacitive Touch |
| Security Mode | Fail Safe with Signal |
| Certifications | CE, FCC |
| App Compatibility | TTLock (Android 4.3+ / iOS 7.0+) |
| Smart Home | Amazon Alexa, Google Assistant |
| Origin | Mainland China |
Remote Control Note
For full remote access and control over the internet, a G2 TTLock Bluetooth Gateway (sold separately) is required to bridge the keypad to your Wi-Fi network.
For guidance on electronic access control standards and best practices, refer to the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Does the LUCKING DOOR MJ01 work without a smartphone nearby?
A: Yes! The MJ01 supports offline unlocking via fingerprint, PIN password, and RFID/NFC IC card — no phone connection is needed for day-to-day access. The TTLock app is required for initial setup, remote management, and generating time-limited passwords.
Q: Can I use this keypad for remote access control over the internet?
A: The MJ01 uses Bluetooth 5.0 BLE for local communication. To enable full remote access, real-time monitoring, and cloud-based user management over the internet, you will need to purchase the G2 TTLock Bluetooth-to-Wi-Fi Gateway separately.
Q: How many users can be added to the MJ01 access control system?

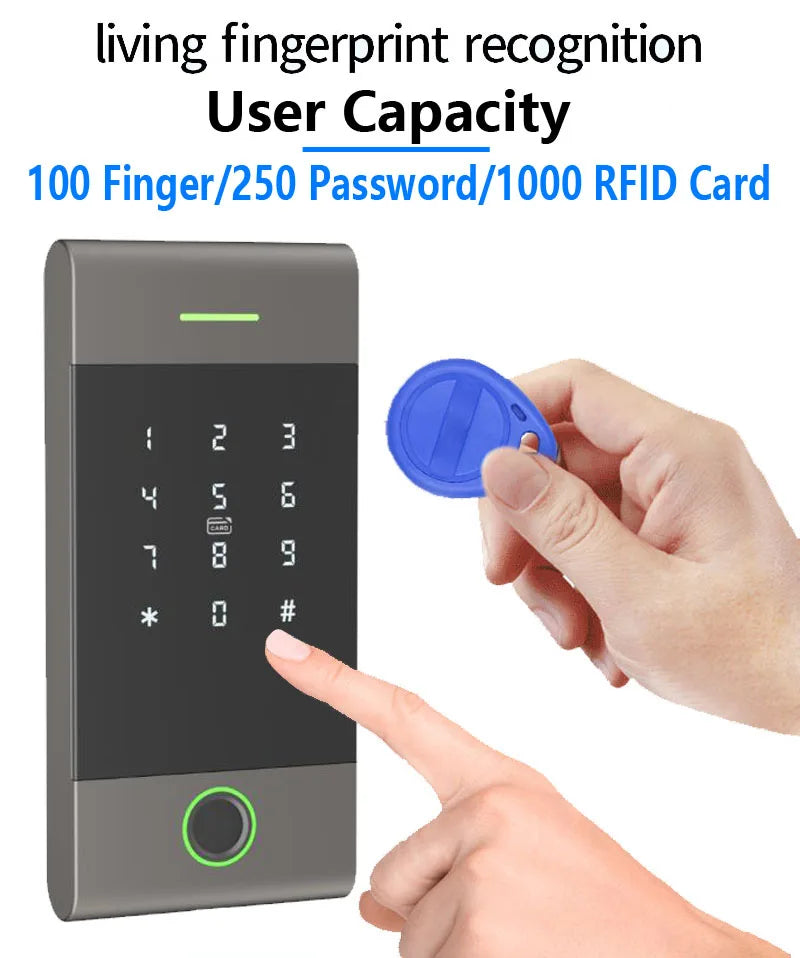

A: The system supports up to 100 fingerprints, 1,000 RFID/NFC IC cards, and 250 custom or permanent PIN passwords. Dynamic (time-limited or one-time) passwords are unlimited, making it highly scalable for offices, apartment blocks, and rental properties.
Q: Is the MJ01 keypad suitable for outdoor installation?
A: Yes. The MJ01 is purpose-built for outdoor use, featuring a durable aluminum alloy body and tempered glass panel. It operates reliably in temperatures ranging from -20°C to +70°C, making it suitable for a wide range of climates.
Q: What smart home systems are compatible with the MJ01?
A: The MJ01 integrates with Amazon Alexa and Google Assistant, allowing voice-activated control when connected via the G2 Wi-Fi gateway. It is managed primarily through the TTLock app, available for Android 4.3 and above, and iOS 7.0 and above.
