NX7 Biometric Face & Fingerprint Access Control System
NX7 Biometric Face & Fingerprint Access Control System
NX7 Biometric Face & Fingerprint Access Control System with Time Attendance

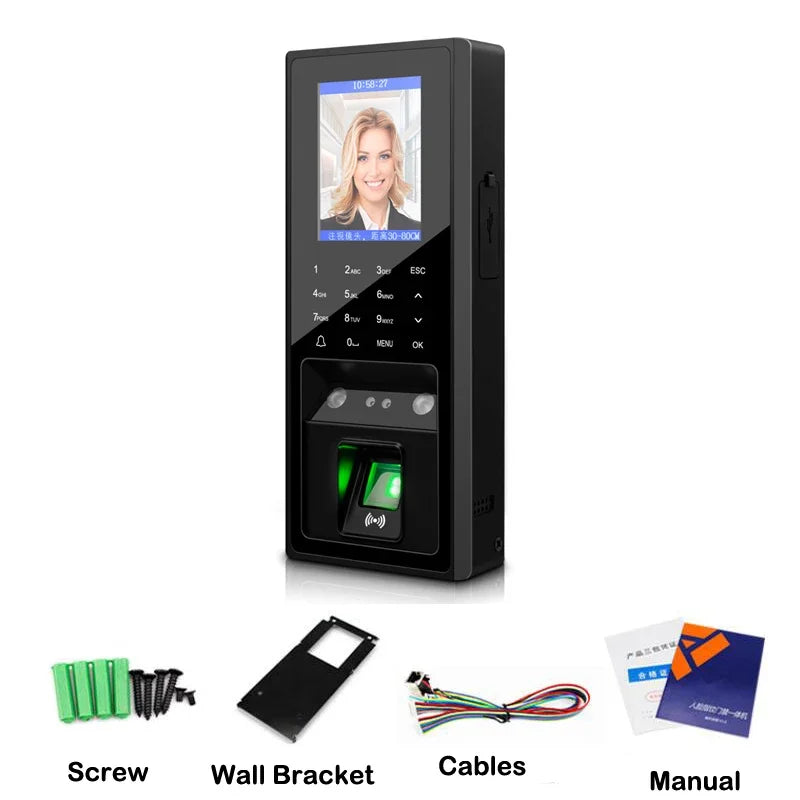

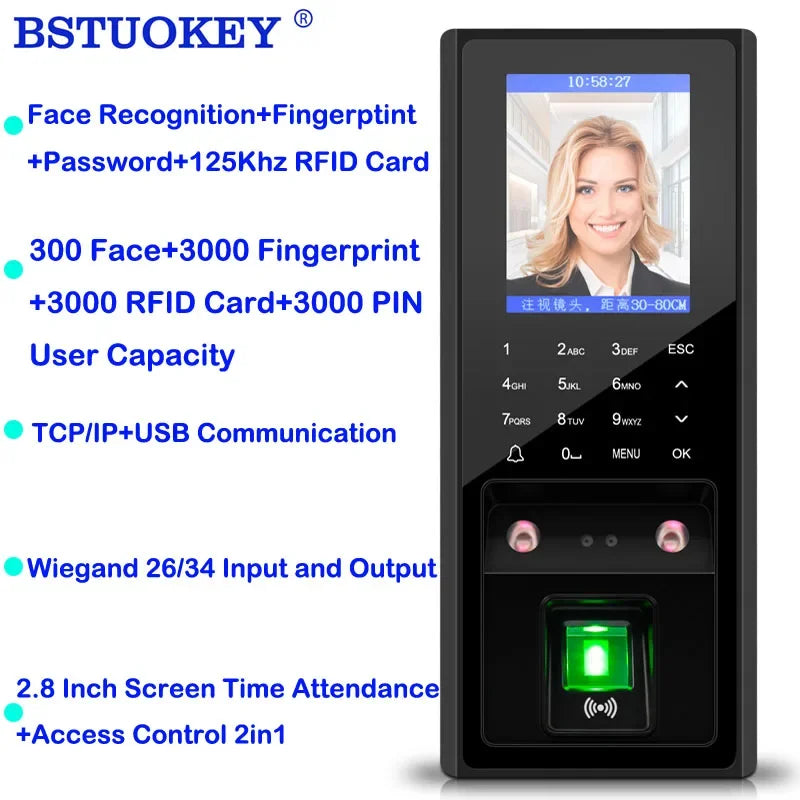

The NX7 is a compact, all-in-one biometric access control terminal designed for offices, warehouses, schools, and any facility that demands reliable, contactless entry management. With a crisp 2.8-inch LCD touchscreen, TCP/IP + USB connectivity, and support for up to 300 face profiles, 3,000 fingerprints, 3,000 RFID cards, and 3,000 passwords, this single device replaces multiple systems at a fraction of the cost.
Made in Mainland China.
Four Flexible Unlocking Methods

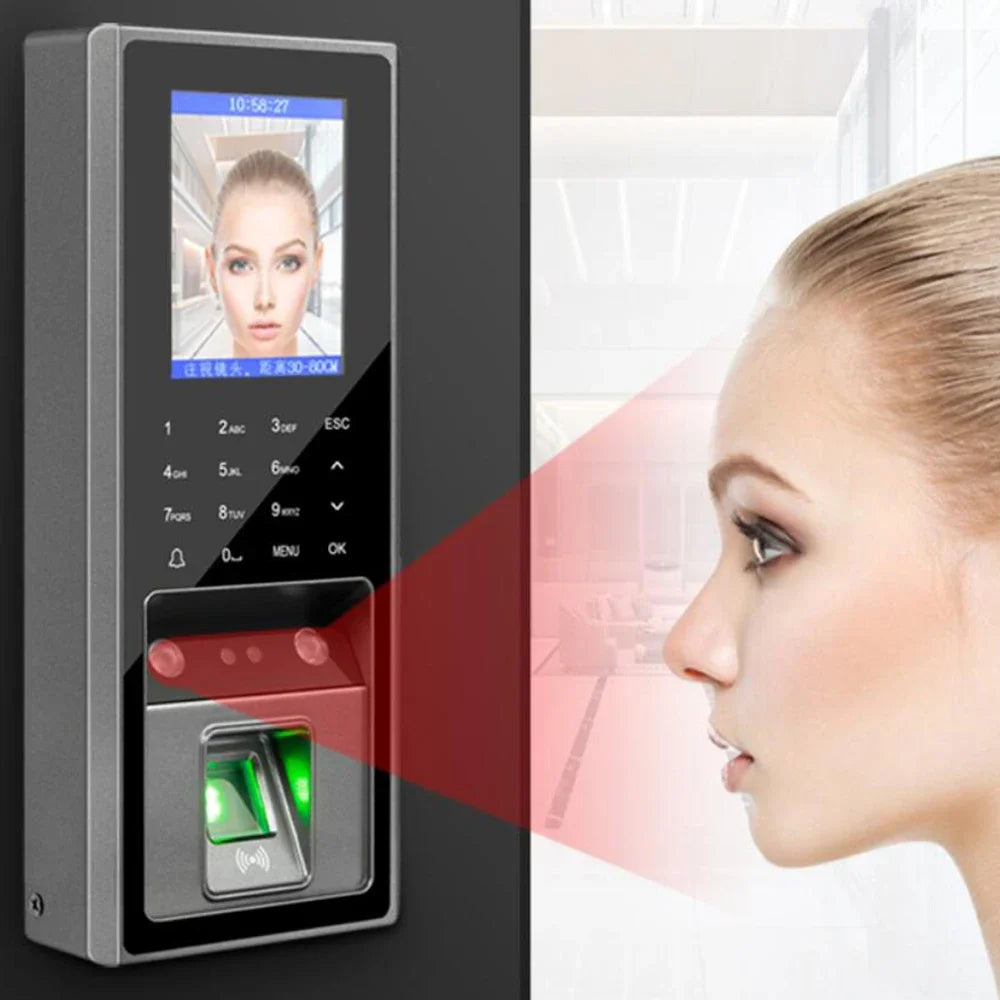

- Face Recognition – Hands-free, sub-1-second identification
- Fingerprint Scan – Optical sensor with advanced matching algorithm
- 125 kHz RFID Card – Standard proximity card compatibility
- Password Entry – Touch keypad backup for ultimate flexibility
Key Features
- 🖥️ 2.8-inch Color LCD with intuitive touch keypad for easy on-device setup
- 🌐 TCP/IP + USB communication – manage remotely via software or USB flash drive
- 👤 300 face / 3,000 fingerprint / 3,000 card / 3,000 password user capacity
- 📋 100,000 transaction records stored on device
- ⚡ Sub-1-second recognition speed with latest biometric algorithm
- 🔒 Wiegand WG26/WG34 input & output for third-party controller integration
- 🚨 Multiple alarm outputs – tamper alarm, door-open alarm, forced-entry alarm, and alarm linkage
- 🗓️ Dual-purpose operation – use as an access controller, a time & attendance terminal, or both simultaneously
- 🔔 Audio indicators for accepted and rejected credential events
- Supports third-party electric locks, door sensors, exit buttons, and doorbells
Technical Specifications
| Model | NX7 |
| Screen | 2.8-inch LCD |
| Keypad | Touch Keypad |
| Communication | TCP/IP + USB |
| Wiegand | WG26/34 Input & Output |
| Face Capacity | 300 Users |
| Fingerprint Capacity | 3,000 Users |
| Card Capacity | 3,000 (125 kHz RFID) |
| Password Capacity | 3,000 Users |
| Record Storage | 100,000 Transactions |
| Recognition Speed | < 1 Second |
| Origin | Mainland China |
Why Choose the NX7?
The NX7 eliminates the need for separate access control and attendance systems, reducing hardware investment and management overhead. Its software-driven configuration via TCP/IP means IT teams can enroll users, set time-zone permissions, and pull attendance reports without ever touching the device. Group authority controls and time-period restrictions keep sensitive areas secure around the clock.
For guidance on physical security best practices in workplaces, visit OSHA's Workplace Security Resources.
Frequently Asked Questions
Q: How many users can the NX7 biometric access control system support?
A: The NX7 supports up to 300 face recognition users, 3,000 fingerprint users, 3,000 RFID card users, and 3,000 password users simultaneously, making it suitable for small to mid-sized organizations.
Q: Can the NX7 be used as both an access control system and a time attendance terminal?
A: Yes. The NX7 is dual-purpose — it can manage door access and record employee attendance at the same time. You can also configure it for attendance-only mode without enabling door-unlock functions.
Q: What communication interfaces does the NX7 support?
A: The NX7 connects via TCP/IP (Ethernet network) and USB flash drive, allowing remote management through compatible software as well as offline data export via USB.
Q: Is the NX7 compatible with third-party door hardware?
A: Yes. The NX7 features Wiegand WG26/WG34 input and output, making it compatible with a wide range of third-party electric locks, door sensors, exit buttons, alarm systems, and doorbells.
Q: Does the NX7 have alarm capabilities?
A: Absolutely. The NX7 includes multiple alarm functions including tamper alarm, door-open alarm, forced-entry alarm, and alarm linkage output, providing comprehensive security event monitoring.
