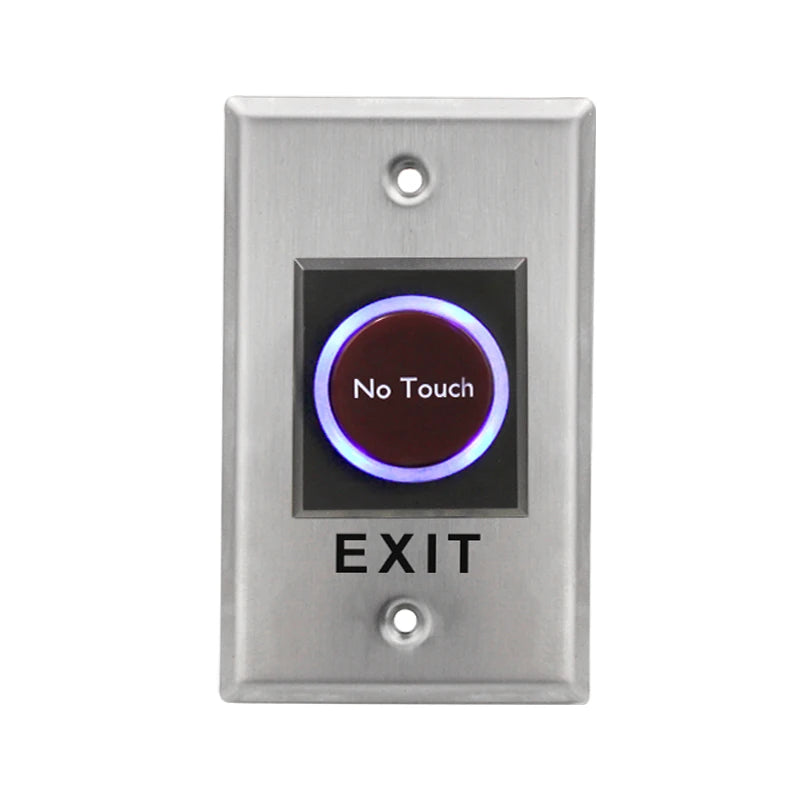

No-Touch Infrared Exit Button — Hands-Free Door Release for Any Access Control System
Upgrade your door access control setup with this intelligent no-touch infrared exit button. Using built-in infrared sensing technology, the switch detects hand proximity (0.1–10 cm) and triggers the door release without any physical contact — ideal for high-traffic environments where hygiene and convenience matter. Compatible with 12V DC (customizable to 24V), it works seamlessly with electric strikes, magnetic locks, and virtually all access control hardware.
Made in Mainland China.
Key Features
- Contactless Operation: Infrared proximity sensor activates the door release without touching the button — clean, hygienic, and effortless
- Triple Contact Output (NO / NC / COM): Flexible wiring options compatible with all common electric lock types

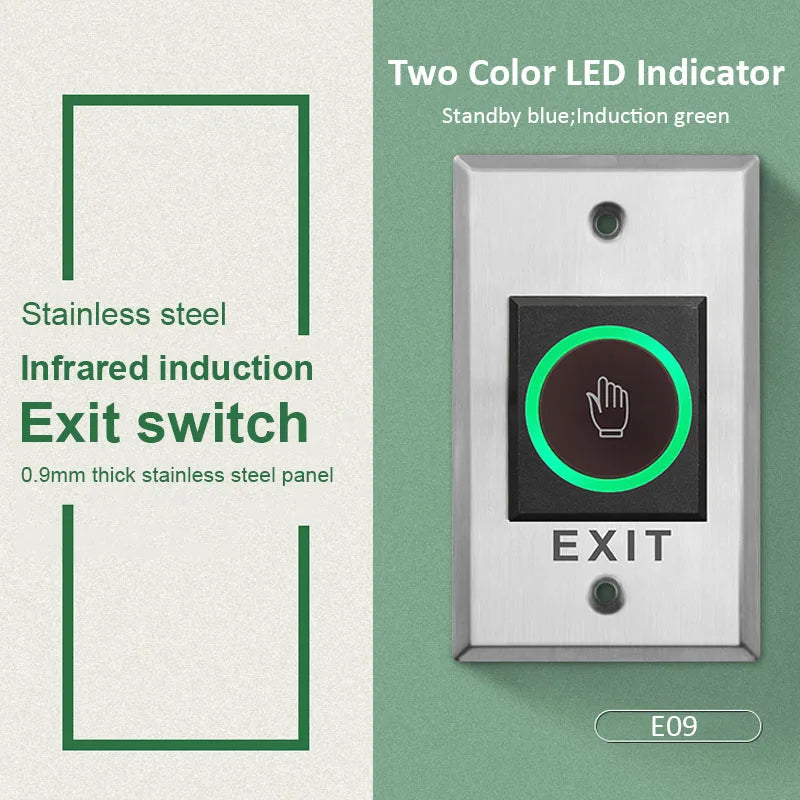

- Multi-Color LED Indicators: White = power off; Blue = powered/standby; Green = sensor triggered (inductive mode)
- Elegant Metal Panel: Durable metal construction with a modern finish — suits offices, residences, and commercial spaces
- 1,000,000-Cycle Tested: Engineered for long-term, high-volume use with exceptional reliability
- Wide Operating Conditions: Operates in temperatures from -10°C to +55°C (14°F–131°F) and humidity up to 95% (non-condensing)

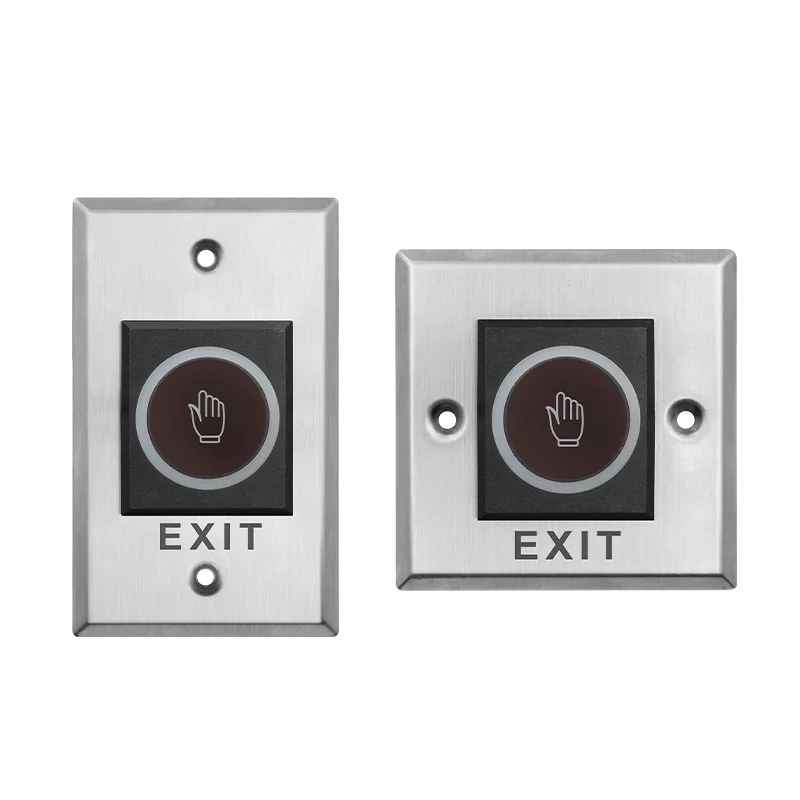

- Two Size Options: 86 × 86 × 26 mm or 115 × 70 × 26 mm — fits standard wall boxes
Technical Specifications
| Input Voltage | 12V DC (customizable to 24V DC) |
| Contact Rating | 3A @ 36V DC Max |
| Output Contact | NO / NC / COM |
| Detection Range | 0.1 – 10 cm |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Operating Humidity | 0 – 95% (non-condensing) |
| Dimensions | 86 × 86 × 26 mm / 115 × 70 × 26 mm |
| Model | E09 / E10 |
| Package Contents | 1 × Infrared Exit Button |
Where It's Used
This no-touch door release button is widely used in public buildings, government offices, banks, hospitals, schools, retail stores, apartment complexes, and corporate facilities — anywhere a reliable, hygienic exit solution is required.
For more information on building security and access control standards, visit the U.S. Consumer Product Safety Commission (CPSC) for guidance on safe installation of electrical hardware and fixtures.
Frequently Asked Questions
Q: Does this no-touch exit button work with both 12V and 24V access control systems?
A: Yes. The standard unit operates on 12V DC and can be customized to support 24V DC, making it compatible with most commercial and residential access control systems on the market.
Q: What types of locks are compatible with this door release switch?
A: This exit button features three contact outputs — NO (Normally Open), NC (Normally Closed), and COM (Common) — which makes it universally compatible with electric strikes, electromagnetic locks, and other access-controlled locking hardware.
Q: How does the no-touch infrared sensor work?
A: The built-in infrared proximity sensor detects the presence of a hand within a range of 0.1 to 10 cm. When motion is detected in that range, the switch activates and sends the release signal to the connected lock — no physical contact required.
Q: What do the LED indicator colors mean?
A: The LED provides three status signals: White indicates power is off; Blue indicates the unit is powered and in standby mode; Green indicates the infrared sensor has been triggered and the switch is active.
Q: What size wall box does this exit button fit into?
A: This button is available in two sizes — 86 × 86 × 26 mm (fits standard square wall boxes) and 115 × 70 × 26 mm (fits rectangular wall boxes) — covering the most common installation formats.
