Asia-Teco Stainless Steel No-Touch Door Exit Release Button

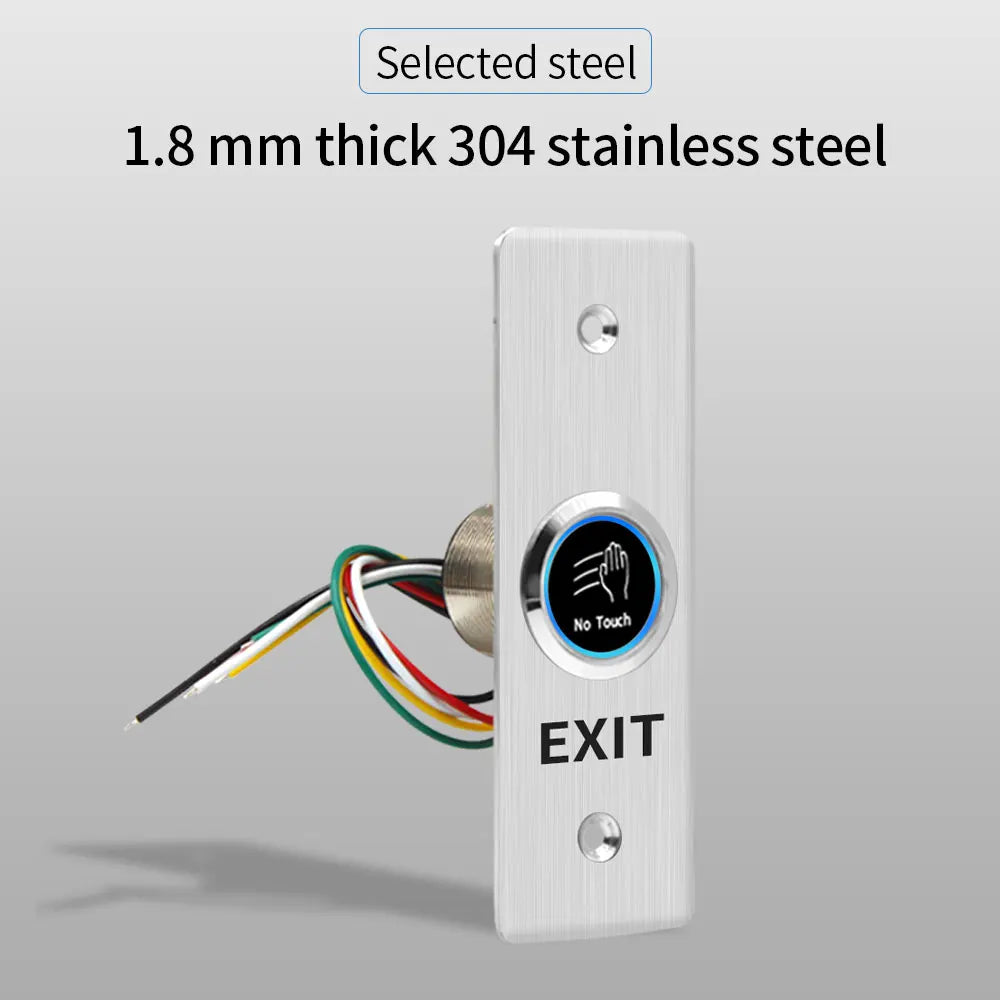

Upgrade your access control system with the Asia-Teco Infrared No-Touch Door Exit Release Button. Built from 1.8 mm thick 304 brushed stainless steel, this sleek panel switch offers a hygienic, hands-free way to trigger electric door locks — ideal for offices, hospitals, warehouses, retail entrances, and any high-traffic doorway. Made in Mainland China.
How It Works
Simply wave your hand near the infrared sensor — no physical contact needed. The sensor activates the internal relay circuit, momentarily short-circuiting the power controller to unlock the electric lock. Once the sensor clears, the power supply re-energizes for the configured hold time, completing the full door open-and-close cycle seamlessly.
Key Features
- No-Touch Infrared Sensor — Hygienic, contactless activation ideal for clean environments and high-traffic areas
- 304 Brushed Stainless Steel Panel — 1.8 mm thick, corrosion-resistant, and built to last
- Waterproof Construction — Suitable for indoor and sheltered outdoor installations
- Dual LED Indicators — Standby blue light shows the unit is ready; green light confirms successful activation
- Flexible Output Options — NO / NC / COM terminals for compatibility with most electric locks and access control panels
- Rated 3A @ 12VDC — Reliable electrical performance for standard access control systems
- English Text Indicating Pattern — Clear labeling for easy installation and user guidance
- Lightweight Design — Weighs just 0.15 kg for simple mounting
Specifications
| Brand | Asia-Teco |

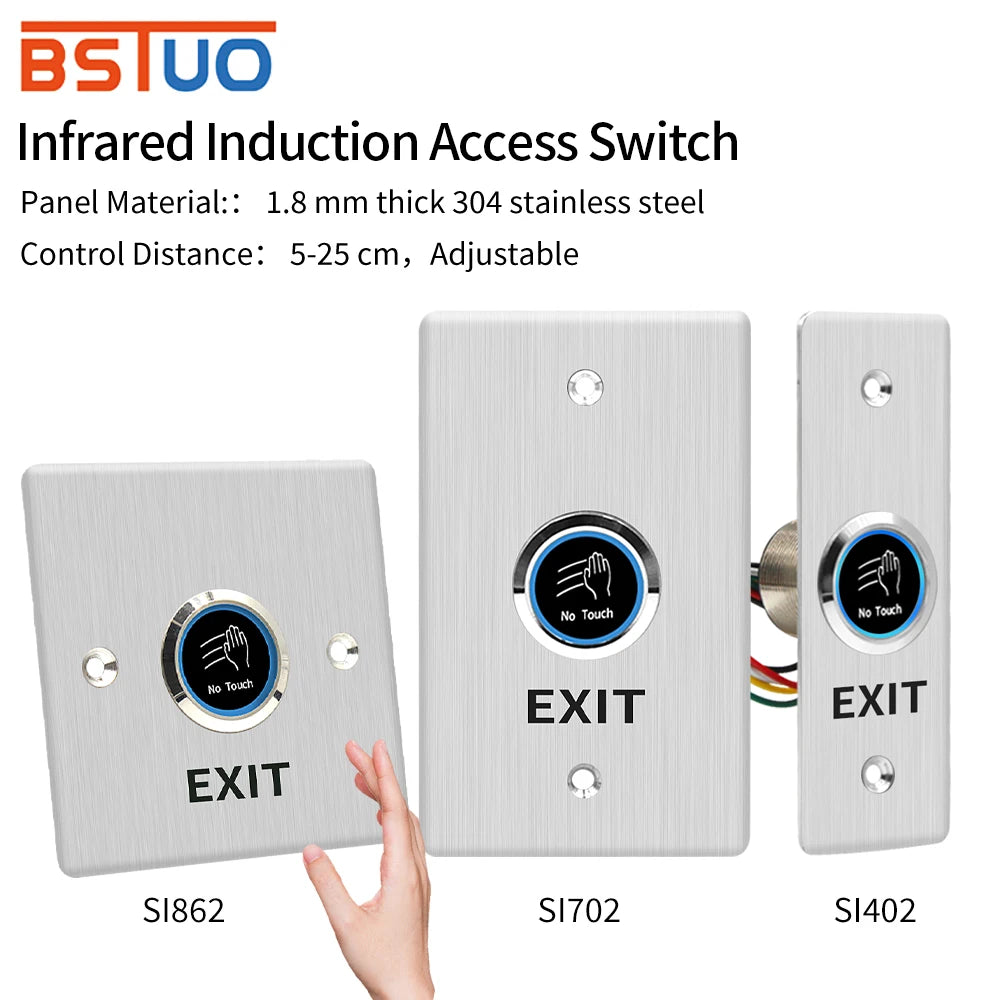

| Model Numbers | SI402 / SI862 / S1702 |
| Product Model | Stainless Steel Infrared Sensor Switch |
| Material | 1.8 mm thick 304 brushed stainless steel panel |
| Electrical Performance | 3A @ 12VDC |
| Output | NO / NC / COM |
| LED Indicator | Standby blue, activation green |
| Indicating Pattern | English text |
| Weight | 0.15 kg |
| Country of Origin | Mainland China |
Applications
- Office buildings and corporate lobbies
- Healthcare facilities and clean rooms
- Retail stores and shopping centers
- Warehouses and industrial facilities
- Residential gates and entry doors
For more information on best practices for electronic access control and physical security, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Does this no-touch exit button work with any electric door lock?
A: Yes — the Asia-Teco no-touch exit release button features NO / NC / COM output terminals, making it compatible with the vast majority of electric strikes, magnetic locks, and door access control panels rated at 12VDC.
Q: Is the infrared sensor exit button safe to use in wet or outdoor environments?
A: The stainless steel panel switch is designed with waterproof construction, making it suitable for sheltered outdoor installations such as building entryways, covered gateways, and parking garage doors, in addition to all indoor applications.
Q: How do I know the exit button has been triggered successfully?
A: The built-in dual LED indicator provides clear visual feedback — the blue LED glows during standby, and it switches to green when the infrared sensor detects your hand and the door release is activated.
Q: What is the panel material and how durable is it?
A: The panel is constructed from 1.8 mm thick grade 304 brushed stainless steel, which is highly resistant to corrosion, scratching, and everyday wear — ensuring a professional appearance and long service life even in demanding environments.
