NJTY T5 True RMS Digital Multimeter — Professional Accuracy for Every Electrical Task

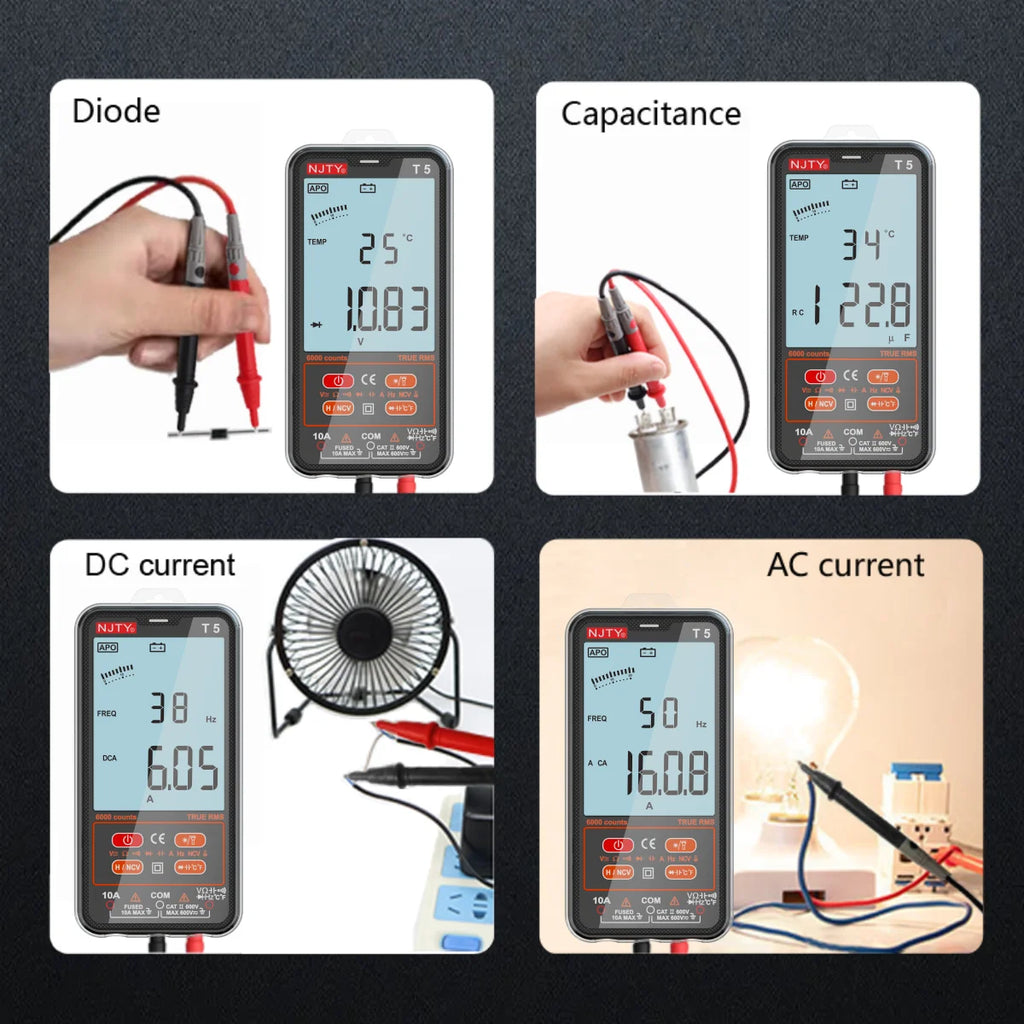

The NJTY T5 TRMS Smart Digital Multimeter puts professional-grade electrical measurement in the palm of your hand. With 6000-count resolution, True RMS technology, and intelligent auto-range switching, it instantly identifies DC/AC voltage, DC/AC current, resistance, frequency, and continuity — then automatically locks onto the correct range. Capacitance, temperature, diode testing, and NCV (non-contact voltage) detection are available via manual mode. Whether you're an electrician, hobbyist, or home DIYer, the T5 makes confident, accurate readings accessible without advanced physics knowledge.
Made in Mainland China.
Key Features
- ✅ True RMS (TRMS) — Accurate readings on non-sinusoidal waveforms (45–2000 Hz)

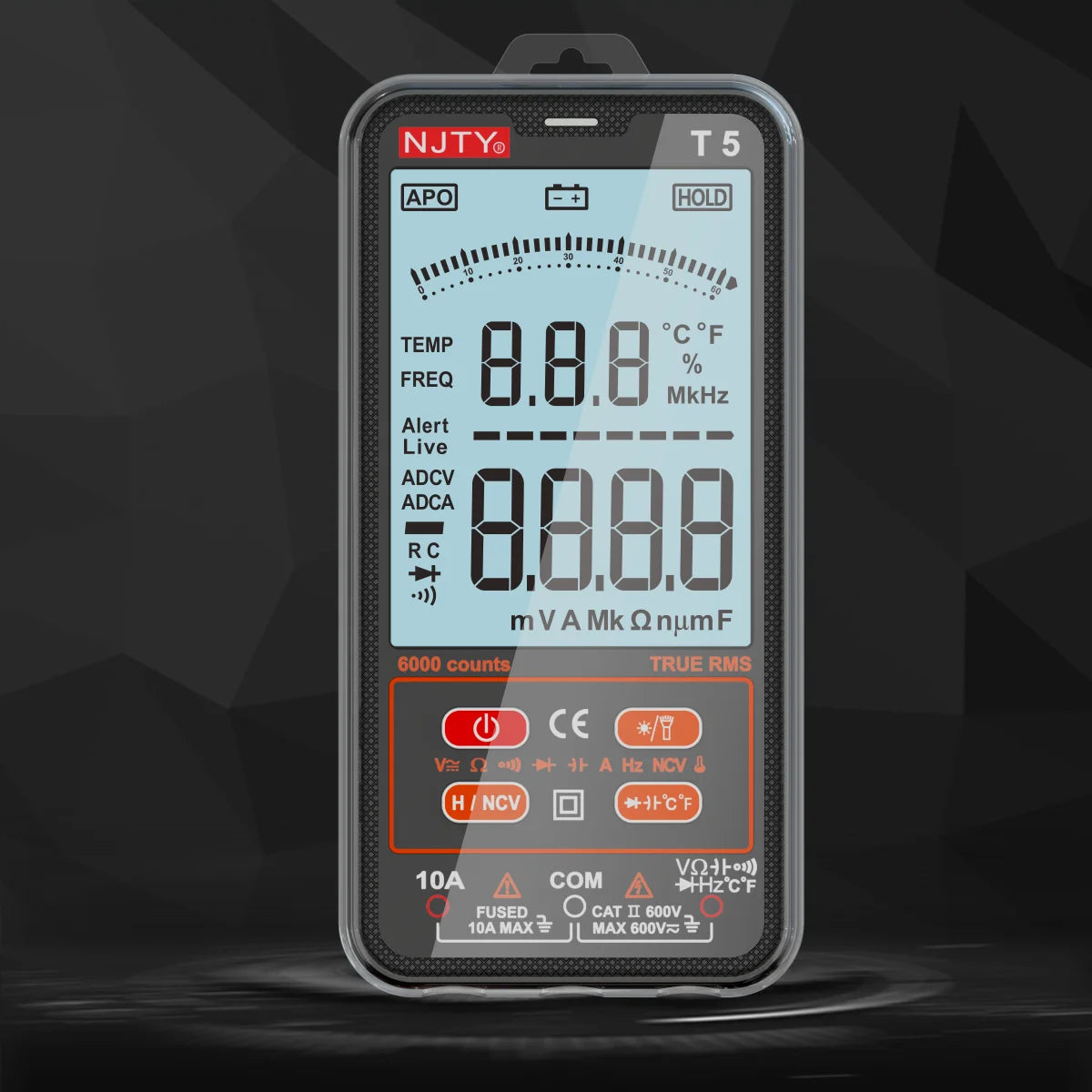

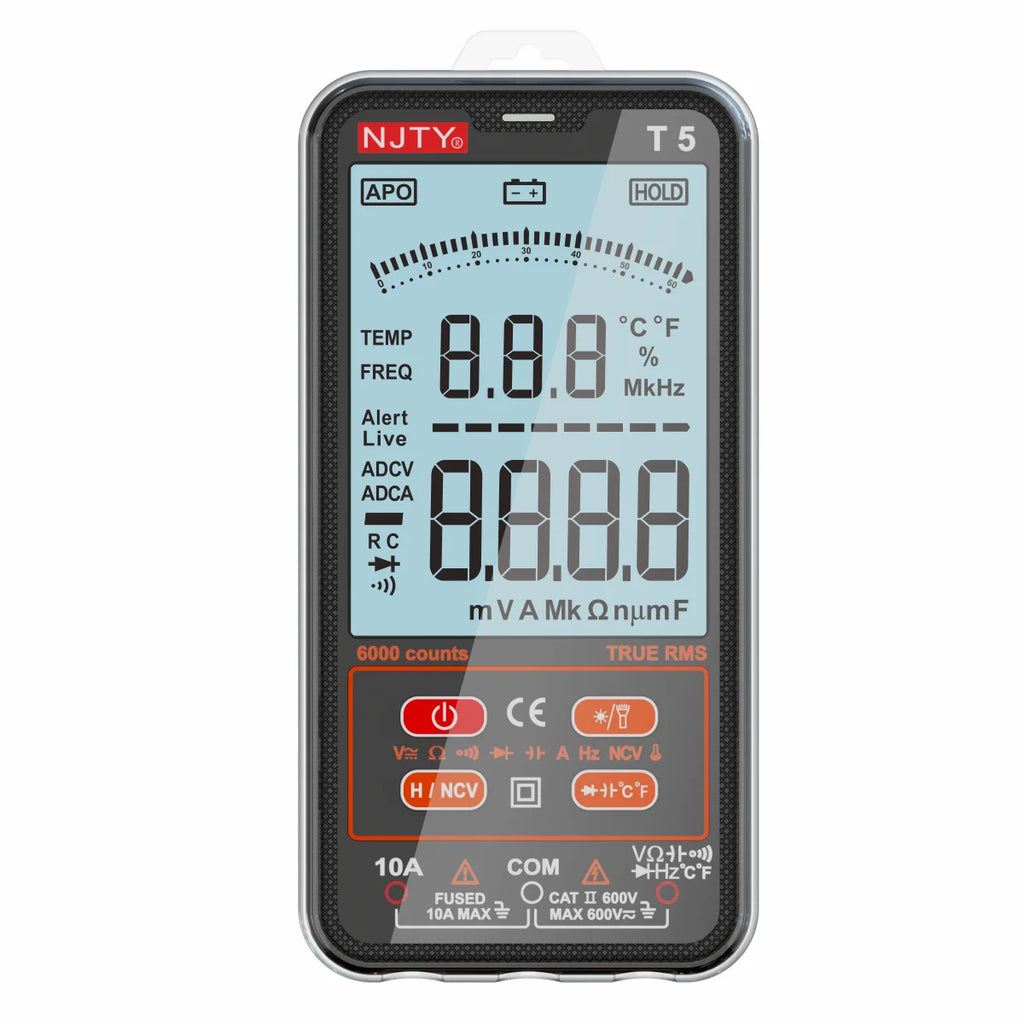

- ✅ 6000-Count Large Backlit LCD — Easy reading in bright or dim conditions; backlight auto-off after 30 seconds
- ✅ Auto-Range + Manual Mode — Smart switching for voltage, current & resistance; manual for capacitance, temperature & diode
- ✅ NCV Non-Contact Voltage Detection — Detects live wires safely without direct contact

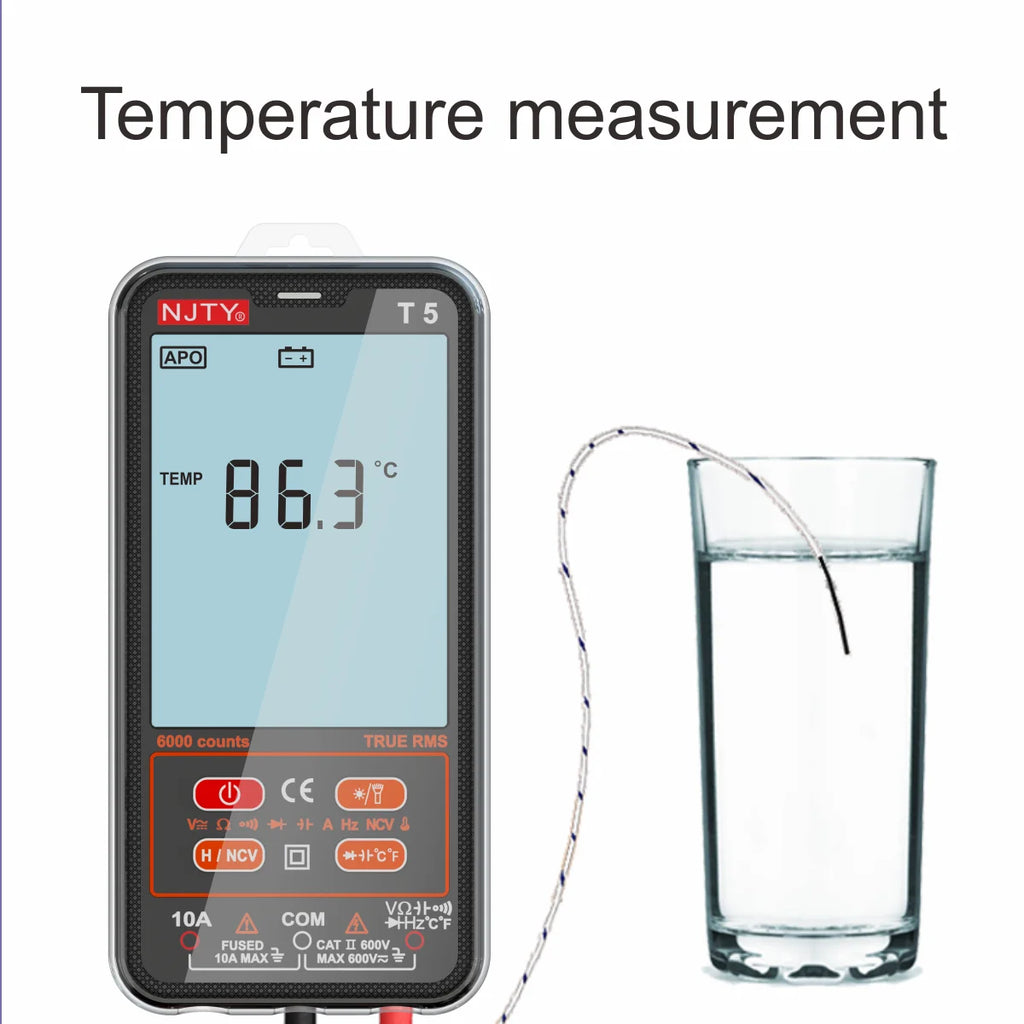

- ✅ Temperature Measurement — Covers -20 °C to 530 °C (-4 °F to 986 °F)
- ✅ Continuity Buzzer & Diode Test — Audible alert for circuit continuity; diode forward-drop up to 2.0 V
- ✅ Auto Power-Off — Shuts down after 10 minutes of inactivity to preserve battery life
- ✅ CE, RoHS & UL Certified — Meets international safety and environmental standards
- ✅ Compact & Portable — Slim 156 × 77 × 19.5 mm body fits tool bags and pockets
Full Specifications
| Function | Range | Resolution | Accuracy | Notes |
|---|---|---|---|---|
| DC Voltage | 0.8 V – 600 V | 0.001 V | ±(0.8%+5) | Input impedance: 10 MΩ |
| AC Voltage | 0.5 V – 600 V | 0.001 V | ±(1.0%+5) | Input impedance: 10 MΩ |
| Resistance | 0 Ω – 60 MΩ | 0.1 Ω | ±(1.0%+5) | Protection: 600 V AC/DC |
| DC Current | 5 mA – 10 A | 0.1 mA | ±(2.0%+5) | 10 A fuse |
| AC Current | 6 mA – 10 A | 0.1 mA | ±(2.0%+5) | 10 A fuse |
| Temperature | -20 °C – 530 °C (-4 °F – 986 °F) | 1 °C / 1 °F | ±(3.0%+5) | Overload protection: 250 V AC/DC |
| Capacitance | 0 – 100 mF | 0.001 nF – 0.1 mF | ±(4.0%+5) | Overload protection: 250 V AC/DC |
| Frequency | 10 Hz – 2000 Hz | 0.01 Hz – 1 Hz | ±(2.0%+5) | VPP > 2 V RMS |
| Max Display | 6000 counts | — | — | — |
| Auto Power-Off | After 10 min idle | — | — | — |
| Diode Test | Forward drop up to 2.0 V | — | — | — |
| True RMS | 45–2000 Hz | — | — | — |
In the Box
- 1 × NJTY T5 Digital Multimeter
- Test leads
- User manual

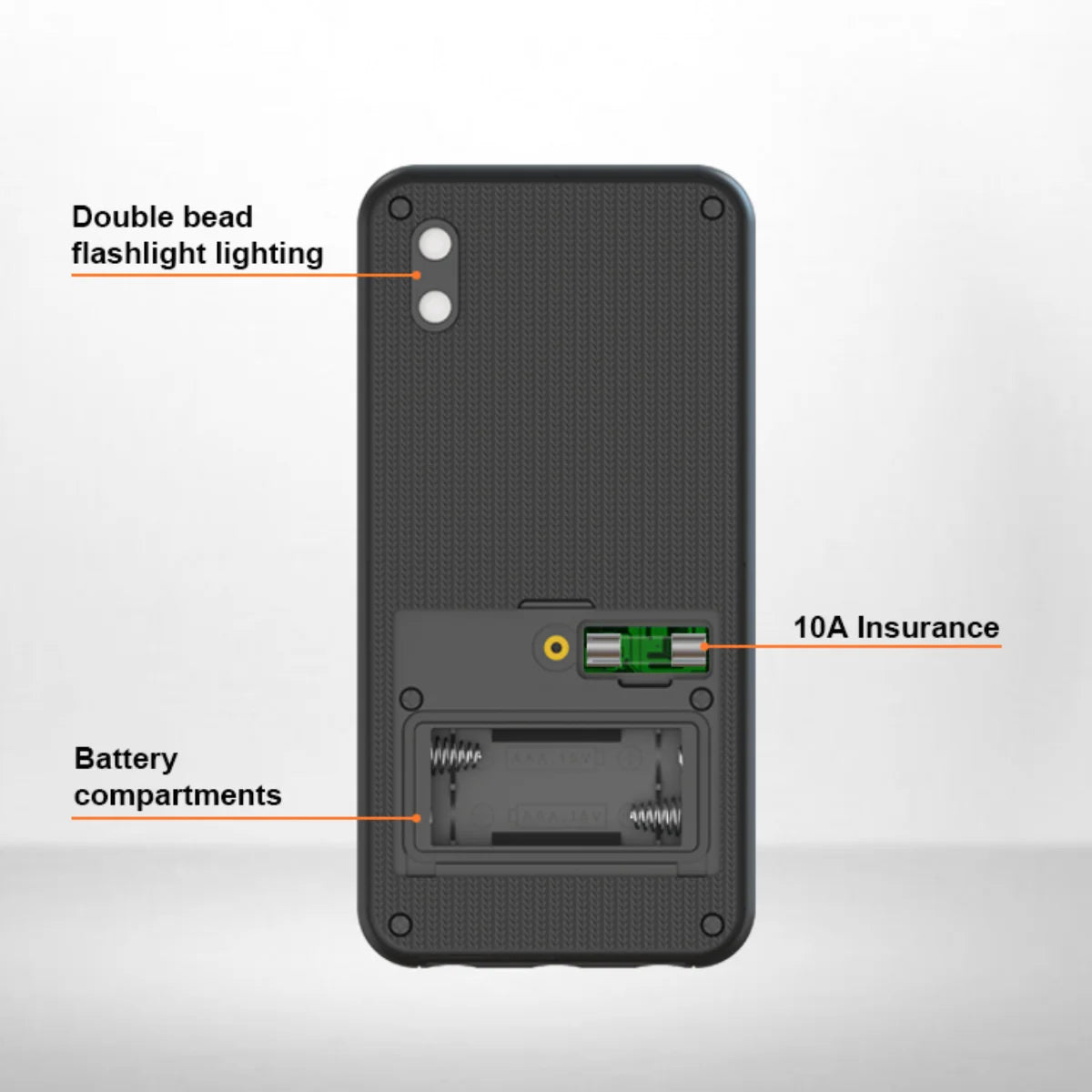

- Note: 2 × AAA 1.5 V batteries required, not included
Electrical Safety Resource
For guidance on safe electrical measurement practices, the U.S. Consumer Product Safety Commission provides helpful information at cpsc.gov.
Frequently Asked Questions
Q: Does the NJTY T5 multimeter support True RMS measurements?
A: Yes. The NJTY T5 features True RMS (TRMS) technology, which delivers accurate AC voltage and current readings even on non-sinusoidal waveforms — essential for modern electronics, variable-speed motors, and inverter-driven equipment. TRMS operates across 45–2000 Hz.
Q: What is the maximum voltage the NJTY T5 can safely measure?
A: The T5 measures up to 600 V AC and 600 V DC. The resistance and continuity inputs are protected up to 600 V AC/DC, and the current inputs are protected with a 10 A fuse for added safety.
Q: Does the NJTY T5 multimeter include NCV (non-contact voltage) detection?
A: Yes. The built-in NCV function lets you detect live AC voltage without direct probe contact. The indicator changes from strong to weak dashes as you move away from the source, making it a fast and convenient safety check before working on any circuit.
Q: What batteries does the NJTY T5 require, and are they included?
A: The meter runs on 2 × AAA 1.5 V batteries. Batteries are not included in the package. The auto power-off feature activates after 10 minutes of inactivity to extend battery life.
Q: Is the NJTY T5 certified for safety compliance?
A: Yes — the NJTY T5 holds CE, RoHS, and UL certifications, confirming it meets international electrical safety and environmental standards for consumer and professional use.
