NJTY Digital Multimeter – AC/DC Voltage & Current Tester
NJTY Digital Multimeter – AC/DC Voltage & Current Tester

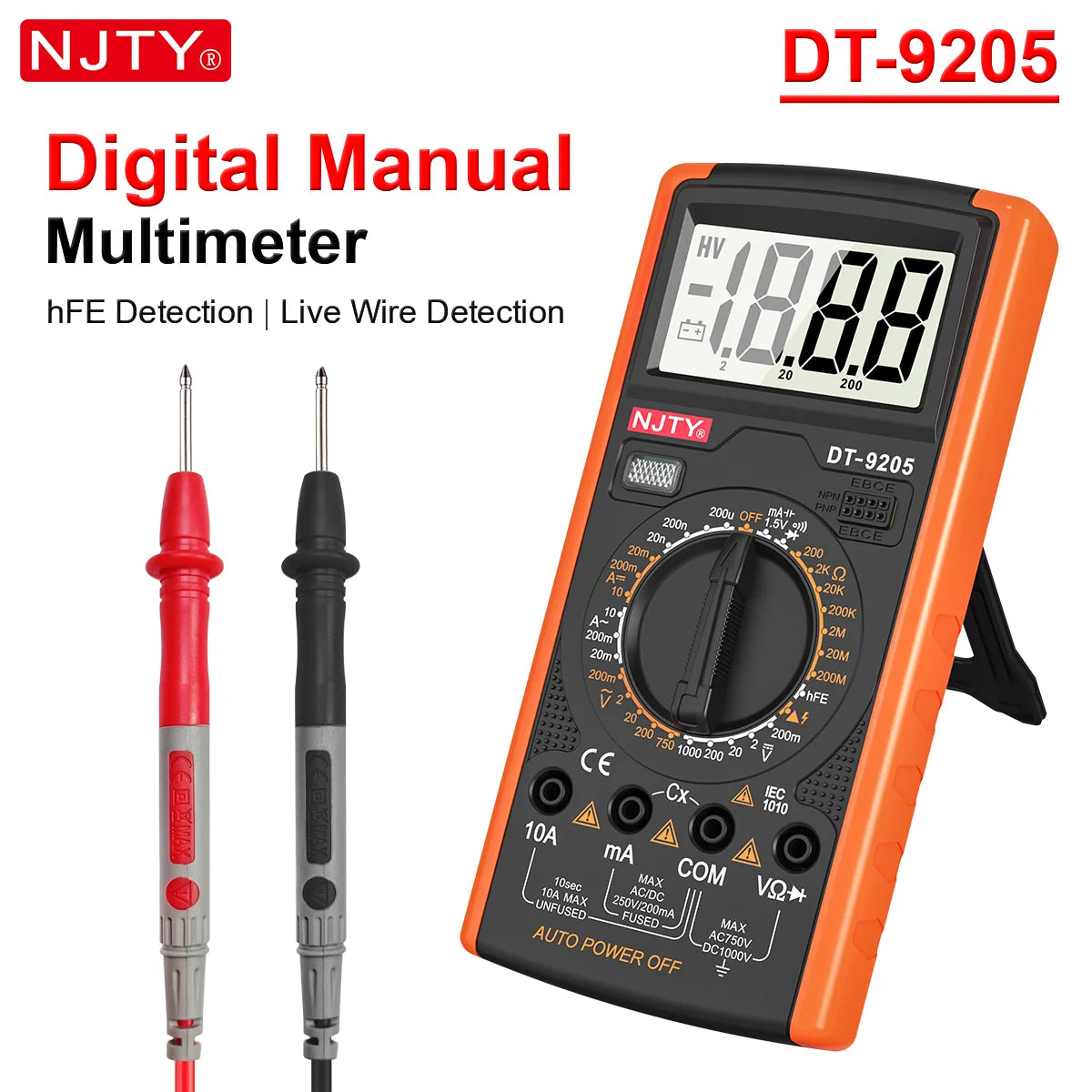

NJTY Professional Digital Multimeter – Manual Range, 1999 Counts
Meet your go-to electrical testing companion: the NJTY Digital Multimeter. Whether you're an electrician, engineer, hobbyist, or DIY enthusiast, this manual-range multimeter delivers accurate, reliable readings across a wide range of electrical measurements — all from a rugged, easy-to-use handheld device.
Made in Mainland China.
Why Choose This Multimeter?

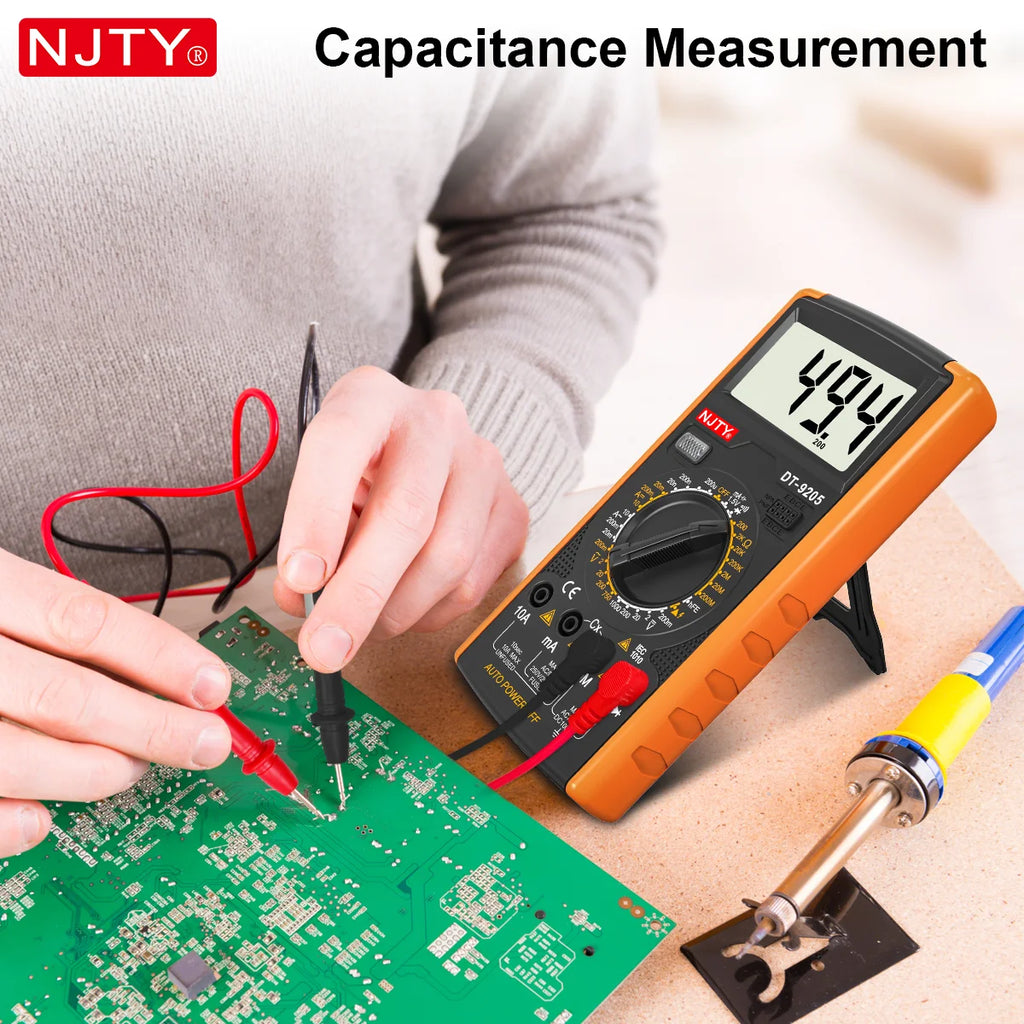

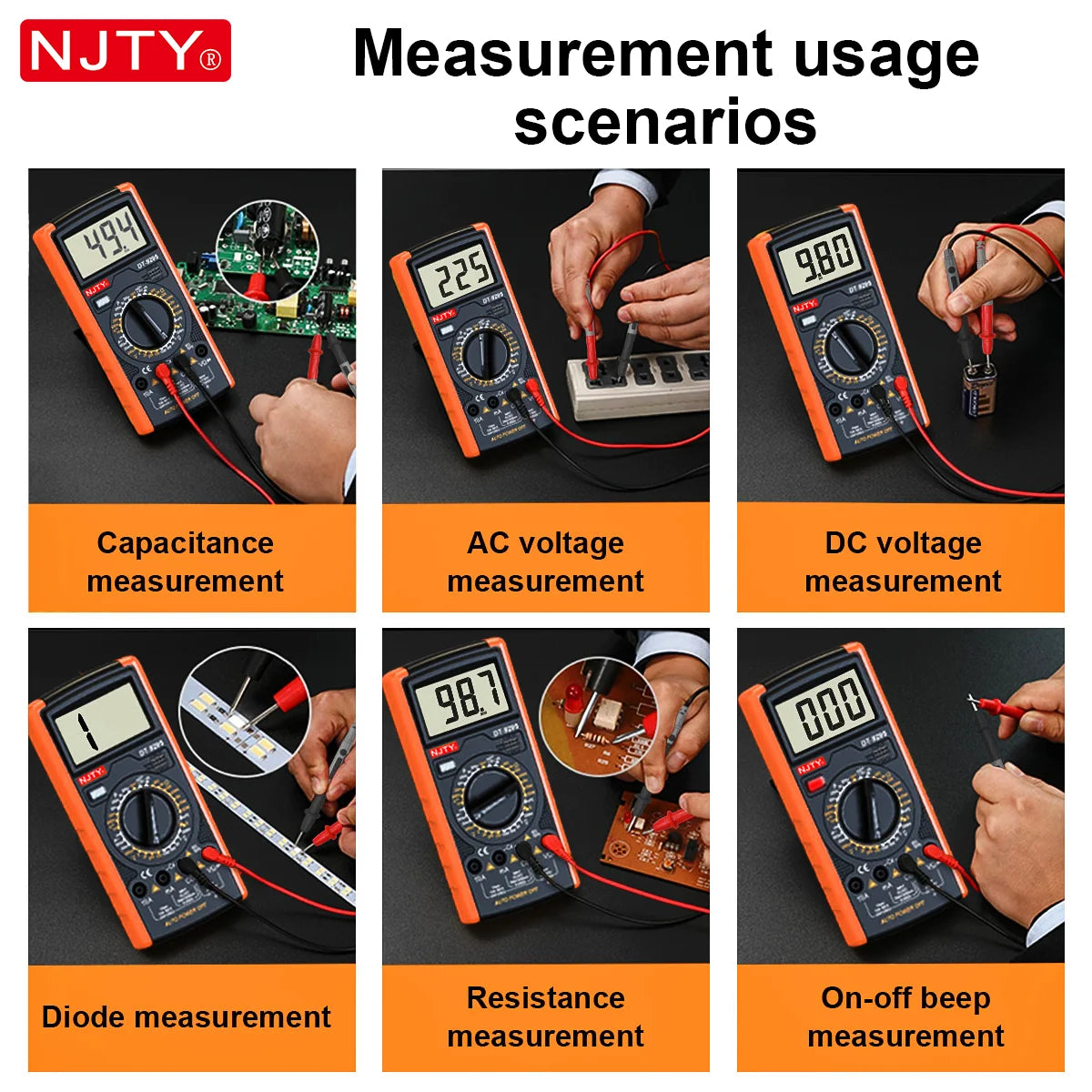

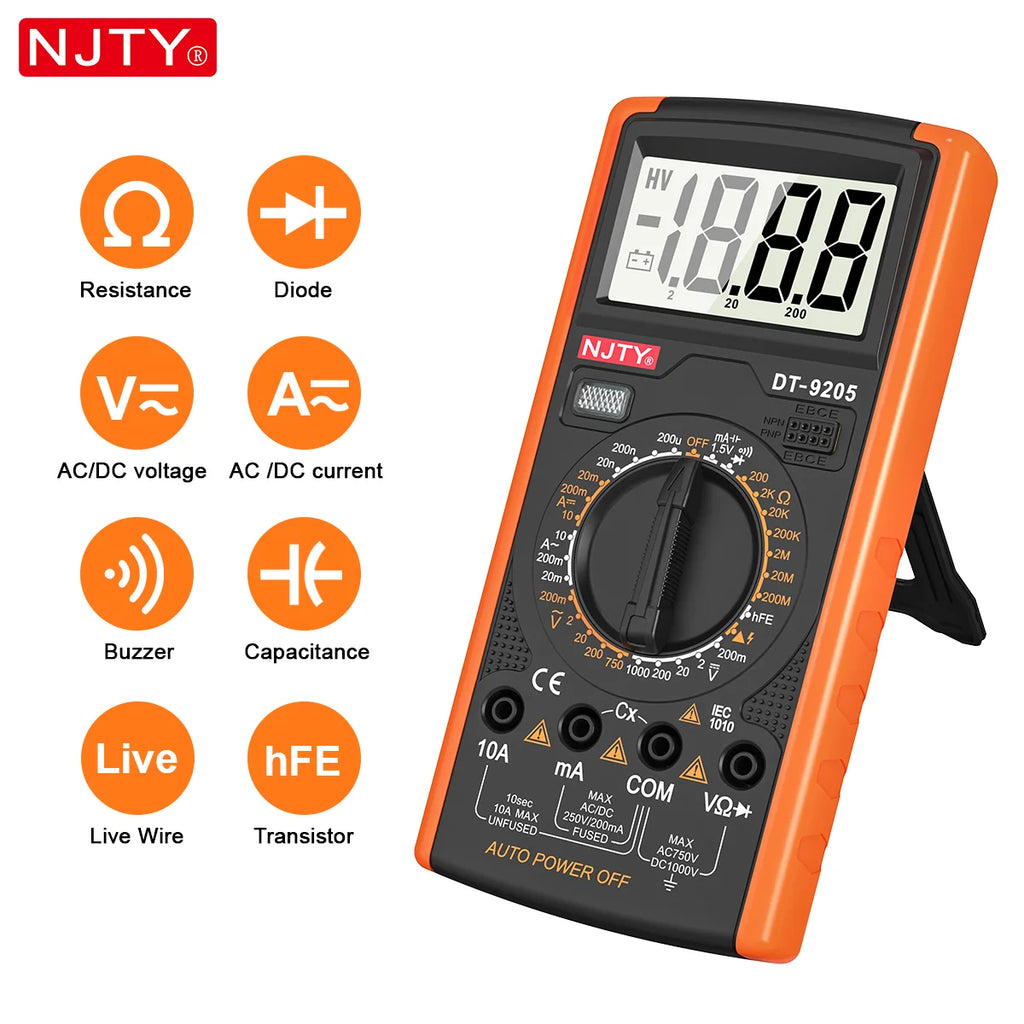

- Versatile Measurement Capabilities: Measures AC/DC voltage (200mV–1000V), AC/DC current (2mA–20A), resistance (200Ω–200MΩ), capacitance (2nF–2000uF), and frequency (2kHz–20kHz) — all in one compact tool.
- 1999-Count Digital Display: The large, clear digital display delivers easy-to-read results without complex interpretation, even in dimly lit work environments.
- Live Wire Detection: Safely identify live wires before you work, adding a critical layer of awareness to your electrical tasks.
- Manual Range Operation: Gives you precise, hands-on control over every test range — ideal for professionals who prefer direct command over their measurements.
- hFE & Diode Testing: Supports transistor hFE measurement and diode testing for electronics diagnostics and circuit work.
- Audible Continuity Buzzer: Quickly confirm circuit continuity with an instant audio signal — no need to keep your eyes on the display.

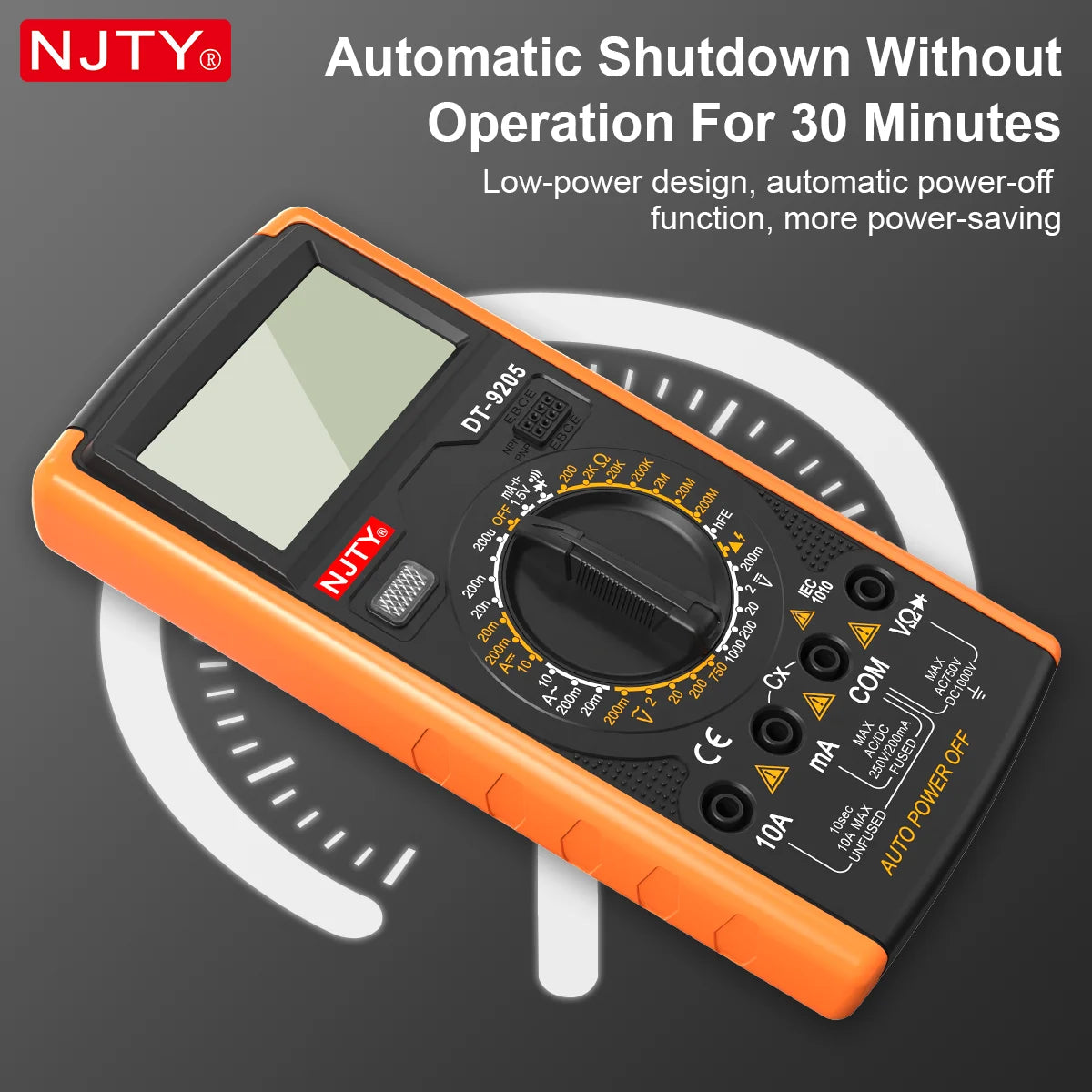

- Auto Shut-Off: Built-in automatic shutdown conserves battery life when the meter is not in use.
- Durable Construction: Engineered for long-term reliability in professional and workshop settings, with a robust housing that stands up to daily use.
- Standalone Operation: No smartphone, app, or smart device required — this meter works independently right out of the box.
Full Specifications
| Parameter | Range | Accuracy |
|---|---|---|
| DC Voltage | 200mV – 1000V | ±(1.2%+5) |
| AC Voltage | 200mV – 750V | ±(1.2%+3) |
| DC Current | 2mA – 10A | ±(2%+2) |
| AC Current | 2mA – 10A | ±(2%+2) |
| Resistance | 200Ω – 200MΩ | ±(5%+10) |
| Capacitance | 2nF – 2000µF | ±(4%+5) |
| Frequency | 2kHz – 20kHz | ±(1.5%+5) |
| Display | Digital (1999 Counts) | — |
| Auto Shut-Off | Supported | — |
| Diode Test | Supported | — |
| Continuity Buzzer | Supported | — |
| Battery Included | No | — |
| Origin | Mainland China | — |
Electrical Safety Resource
Safe electrical practices are essential when working with live circuits. For guidance on workplace electrical safety standards, visit OSHA's Electrical Safety page. For consumer electrical safety information, the U.S. Consumer Product Safety Commission (CPSC) offers valuable tips.
Frequently Asked Questions
Q: What types of measurements can this digital multimeter perform?
A: This NJTY digital multimeter measures AC and DC voltage (up to 1000V), AC and DC current (up to 20A), resistance (up to 200MΩ), capacitance (2nF–2000µF), and frequency (2kHz–20kHz). It also supports live wire detection, diode testing, transistor hFE measurement, and continuity testing with an audible buzzer.
Q: Does this multimeter come with a battery?
A: No, a battery is not included with this multimeter. You will need to supply your own battery before use. Please check the user manual for the correct battery type required.
Q: What does "manual range" mean on a multimeter?
A: Manual range means you select the measurement range yourself using the rotary dial rather than having the meter automatically detect it. This gives experienced users greater precision and control over readings, and is a common feature in professional-grade multimeters.
Q: Is this multimeter suitable for both home DIY projects and professional electrical work?
A: Yes. The NJTY digital multimeter is versatile enough for both home DIY electrical projects and professional applications. Its wide measurement ranges, live wire detection, and durable construction make it a reliable tool for electricians, technicians, and enthusiastic DIYers alike.
