Asia-Teco S30DC NFC RFID Access Control Keypad — 1000 Users, Dual Frequency, Wiegand
Upgrade your entry security with the Asia-Teco S30DC all-in-one access control keypad. Designed for homes, offices, and commercial spaces, this powerful unit supports up to 1,000 users and 1,000 unique passwords, giving you full control over who enters your space. With a sleek tempered glass touch screen, backlit keypad, and IP-rated waterproof construction, it's built to perform reliably indoors and outdoors alike.
Made in Mainland China.
Key Features

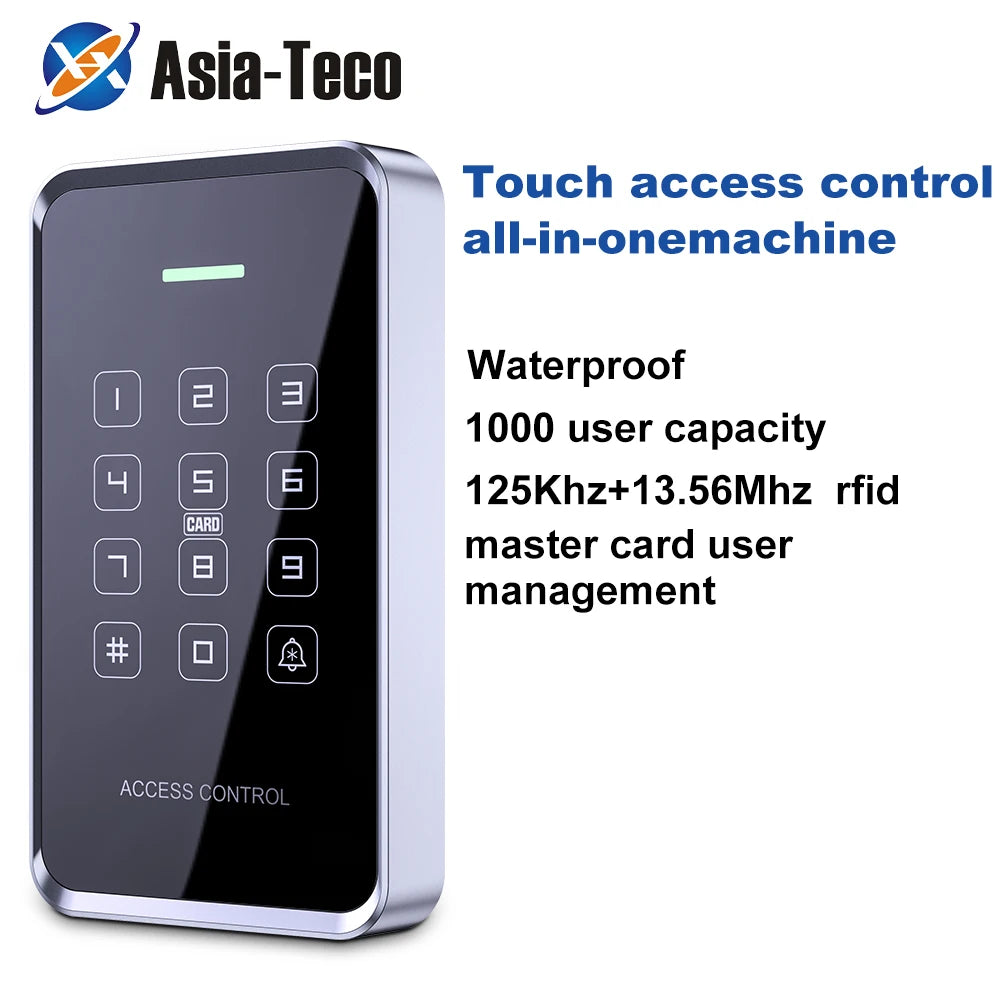

- Dual Frequency Card Support: Compatible with both 125KHz (ID) and 13.56MHz (IC/NFC) cards — one reader handles all your credentials.
- Mobile NFC Unlock: Use your smartphone as a key for fast, contactless entry.
- Multiple Unlock Methods: Password, card swipe, card + password combination, or NFC — choose what works best for your setup.
- Large Capacity: Stores up to 1,000 user cards and 1,000 passwords, perfect for small businesses, apartment buildings, or multi-user facilities.
- Wiegand Output: Integrates seamlessly with existing access control systems via standard Wiegand interface.
- Fast Recognition: Under 0.3 seconds card read time keeps traffic flowing smoothly.
- Adjustable Door Open Time: Set the unlock duration from 1 to 99 seconds to suit your door hardware.

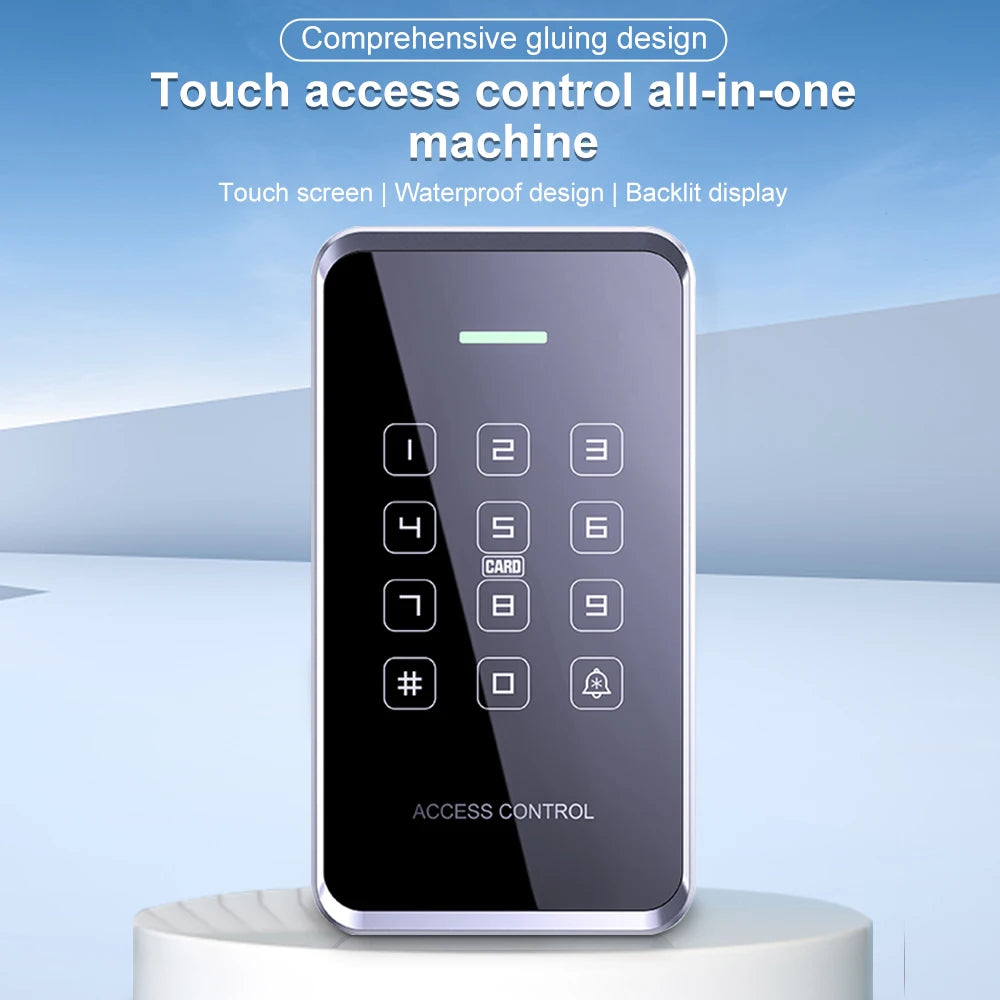

- Backlit Touch Screen: Tempered glass panel with backlight for easy use in low-light conditions.

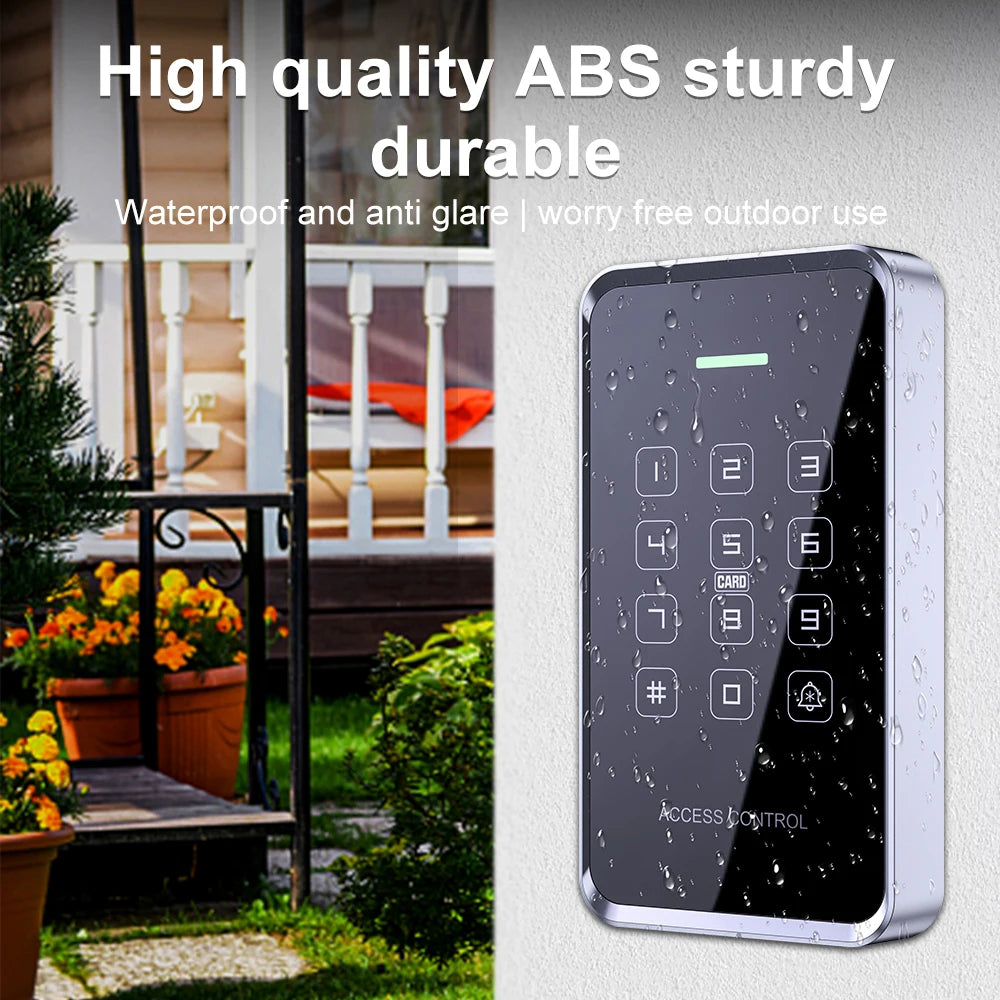

- Waterproof & Durable: ABS + tempered glass housing rated for humidity 10%–90% and temperatures from -40°C to 60°C.

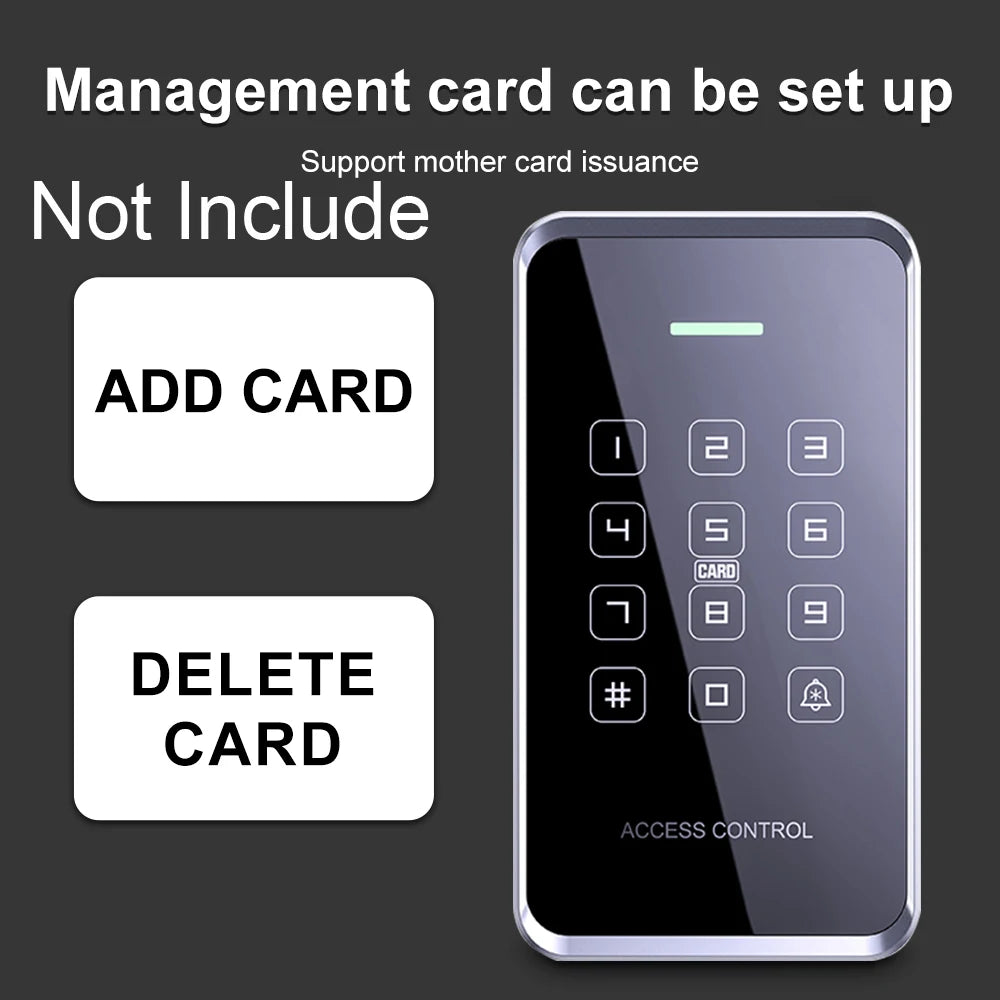

- Master Card Management: Add or delete users conveniently using master card, add card, and delete card functions.
Technical Specifications
| Model | S30DC |
| Card Capacity | 1,000 users |
| Password Capacity | 1,000 passwords + 1 public password |
| Card Type | 125KHz (ID) / 13.56MHz (IC/NFC) |
| Card Reading Distance | 2–5 cm |
| Recognition Speed | <0.3 seconds |
| Working Voltage | DC 12V |
| Standby Current | <30mA |
| Opening Time | 1–99 seconds (adjustable) |
| Unlock Methods | Password / Card / NFC |
| Material | ABS + Tempered Glass Panel |
| Dimensions | 124 × 86 × 18 mm |
| Operating Temperature | -40°C to 60°C |
| Operating Humidity | 10%–90% |
| Origin | Mainland China |
Who Is This For?
The Asia-Teco S30DC is ideal for offices, warehouses, apartment buildings, gyms, schools, and retail spaces that need a reliable, multi-user access solution without the complexity of a server-based system. Its Wiegand output makes it easy to integrate into existing door controllers and access management infrastructure.
For general guidance on electronic security systems and best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What card types are compatible with the Asia-Teco S30DC access control keypad?
A: The S30DC supports dual-frequency cards — both 125KHz (EM/ID-type) and 13.56MHz (IC/Mifare/NFC-type) — as well as NFC-enabled smartphones, giving you maximum flexibility with existing credentials.
Q: Can this keypad be used outdoors?
A: Yes. The S30DC features a waterproof ABS and tempered glass housing rated for operating temperatures from -40°C to 60°C and humidity levels of 10%–90%, making it suitable for outdoor entrances, gates, and exposed locations.
Q: How do I add or remove users on the S30DC?
A: User management is handled via the master card system. The keypad supports a dedicated master card, add card, and delete card for quick enrollment or removal of individual users — no PC or software required for basic management.
Q: Does this unit work with my existing access control system?
A: Yes. The S30DC outputs a standard Wiegand signal (compatible with most access controllers), allowing it to integrate seamlessly with a wide range of existing door controllers and access management systems.
Q: What is the maximum number of users supported?
A: The keypad stores up to 1,000 card users and 1,000 PIN passwords, plus one shared public password — making it well suited for medium-sized commercial or multi-tenant residential applications.
