NFC PM6 Dual-Frequency RFID Card Reader, Writer & Duplicator
The Asia-Teco NFC PM6 Smart Card Duplicator is a powerful, USB-connected dual-frequency device that reads, decodes, writes, and copies both low-frequency 125 kHz ID cards and high-frequency 13.56 MHz NFC/IC cards — all from one compact unit. Whether you're managing access control systems, duplicating key fobs, or working with blank writable cards (T5577, TK4100, EM4305, UID), this device streamlines the entire process with intuitive software included on the built-in USB flash drive.
Made in Mainland China.
Key Features
- Dual-Frequency Support: Handles 125 kHz (low-frequency ID) and 13.56 MHz (high-frequency NFC/IC) cards in one device
- Full Decode Function: Reads and decodes encrypted IC card data across all 16 sectors in hexadecimal format
- USB Plug-and-Play: Connects via Mini-5pin USB cable; software auto-loads from built-in USB flash drive — no additional installation required
- Automatic Card-Type Detection: Audible buzzer differentiates card types on placement — one beep (IC), two beeps (ID), three beeps (dual-type combo card)
- Data Comparison Tool: Import two dump files and compare sector-by-sector differences instantly
- Detection & Sniffing Mode: Compatible with 1st–3rd generation detection cards for key sniffing at access control readers
- Single Block Data Edit: Modify specific data blocks individually without re-writing an entire card
- Save & Import Dump Files: Store decoded card data for later use, backup, or batch writing
- Compatible Card Types: T5577, TK4100, EM4305, UID writable cards and standard ID/IC access control cards
- Visual & Audio Feedback: Indicator light (red = connected, green = active operation) plus buzzer alerts at every step
Specifications
| Model | NFC-PM6 |
| Brand | Asia-Teco |
| Material | ABS Plastic |
| Color | Black |
| Supported Frequencies | 125 kHz + 13.56 MHz |
| Interface | USB (Mini-5pin) |
| Item Dimensions | 96 × 62 × 10 mm |
| Item Weight | 67 g |
| Package Dimensions | 130 × 85 × 40 mm |
| Package Weight | 93 g |
| Origin | Mainland China |
How It Works
High-Frequency IC Card (13.56 MHz)
- Connect the device to your computer via USB — the indicator light turns red and the software USB drive mounts automatically.
- Open the bundled software and navigate to the High Frequency Card (IC) tab.
- Place the source card on the reader area; the device beeps once and the indicator turns green.
- Click Start Decoding — the software reads and decodes all 16 sectors (process typically takes seconds to a few minutes; do not move the device or card).
- Once decoding is complete, remove the source card, place a blank writable card (UID/CUID etc.), and click the appropriate Write Card button.
- Optionally, save the decoded dump file for future use or batch writing.
Low-Frequency ID Card (125 kHz)
- Open the software and switch to the Low Frequency Card (ID) tab.
- Place the source ID card on the reader area — the device beeps twice.
- Click Read Card; the card number is displayed instantly (no decryption wait time needed).
- Replace with a blank T5577/TK4100/EM4305 card and click Write Card to complete duplication.
- Manual hex entry is also supported if you already know the card number.
What's in the Box

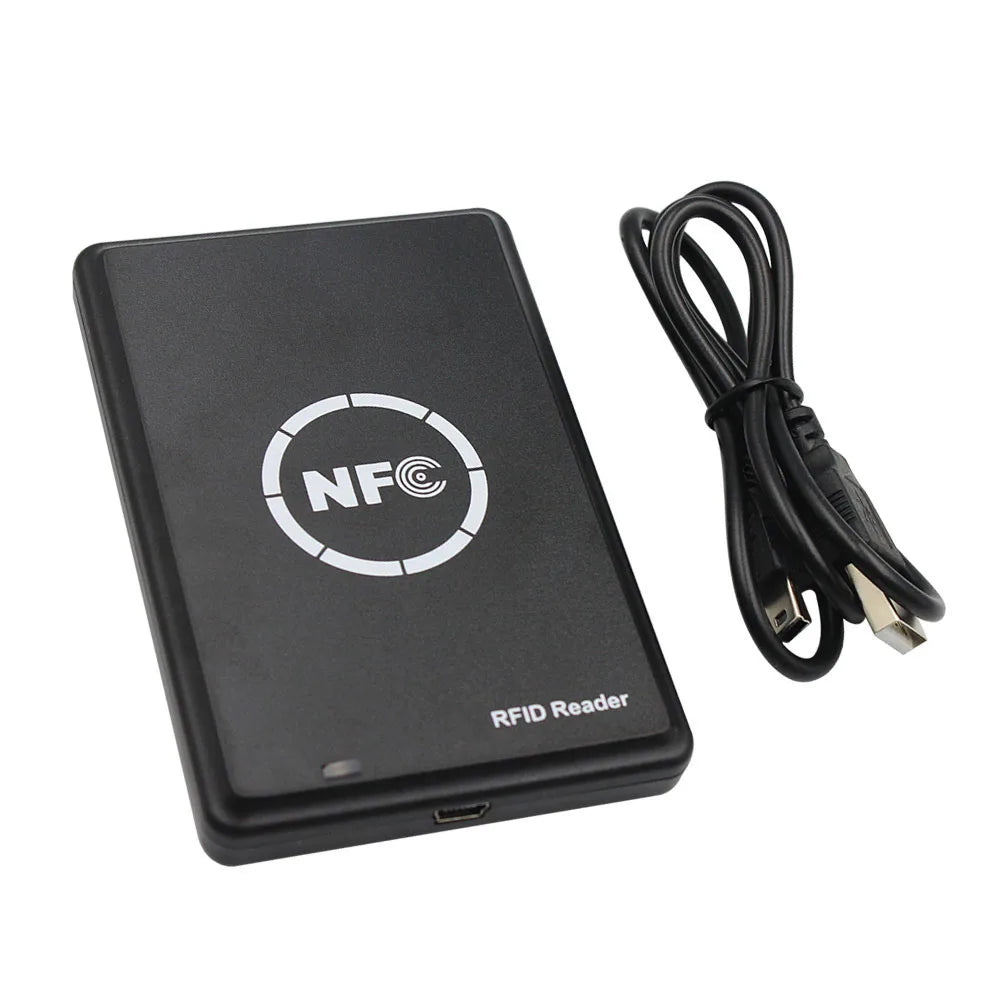

- 1× Asia-Teco NFC PM6 Dual-Frequency RFID Reader/Writer/Duplicator
- 1× Mini-5pin USB Data Cable
- Bundled software (stored on internal USB flash drive)
Note: Detection cards for sniffing mode are sold separately. Please verify local regulations regarding the duplication of access control cards before use.
For more information on RFID technology and security standards, visit the National Institute of Standards and Technology (NIST) — Cybersecurity.
Frequently Asked Questions
Q: What card types are compatible with the NFC PM6 RFID duplicator?
A: The NFC PM6 supports a wide range of card types across both frequencies. For 125 kHz low-frequency, it works with T5577, TK4100, EM4305, and most standard ID access control cards. For 13.56 MHz high-frequency, it is compatible with Mifare Classic UID and CUID writable blank cards, as well as common NFC/IC access control cards. Always confirm compatibility with your blank cards before purchasing.
Q: Does the NFC PM6 require any software installation on my computer?
A: No separate installation is needed. When you plug the device into your computer via the included Mini-5pin USB cable, it mounts as a USB flash drive containing the bundled software. Simply launch the application directly from the drive — no drivers or third-party downloads are required for standard operation.
Q: How long does the IC card decoding process take?
A: Decoding time varies depending on the encryption complexity of the source card. Most cards decode within a few seconds, while some heavily encrypted cards may take several minutes or longer. It is important not to move the device or card during the decoding process to ensure accuracy and avoid errors.
Q: Can I save decoded card data and write it to multiple blank cards later?
A: Yes. After a successful decode, you can click Save Data As to save the dump file to your computer. At any future time, use the Import Dump function to load that file and write it to a new blank card — making batch duplication or backup storage straightforward.
