Standalone NFC Access Control Keypad & Wiegand Card Reader (Model KT810M)
Upgrade your entry-point security with the KT810M Standalone NFC Access Control Keypad. This versatile unit combines a 13.56 MHz NFC card reader with a PIN keypad and full Wiegand output support, making it an ideal solution for offices, apartment buildings, warehouses, and residential gates. Store up to 1,000 cards, use password-based door opening, and enjoy sub-1-second card read speeds — all in a single, compact device.
Key Features

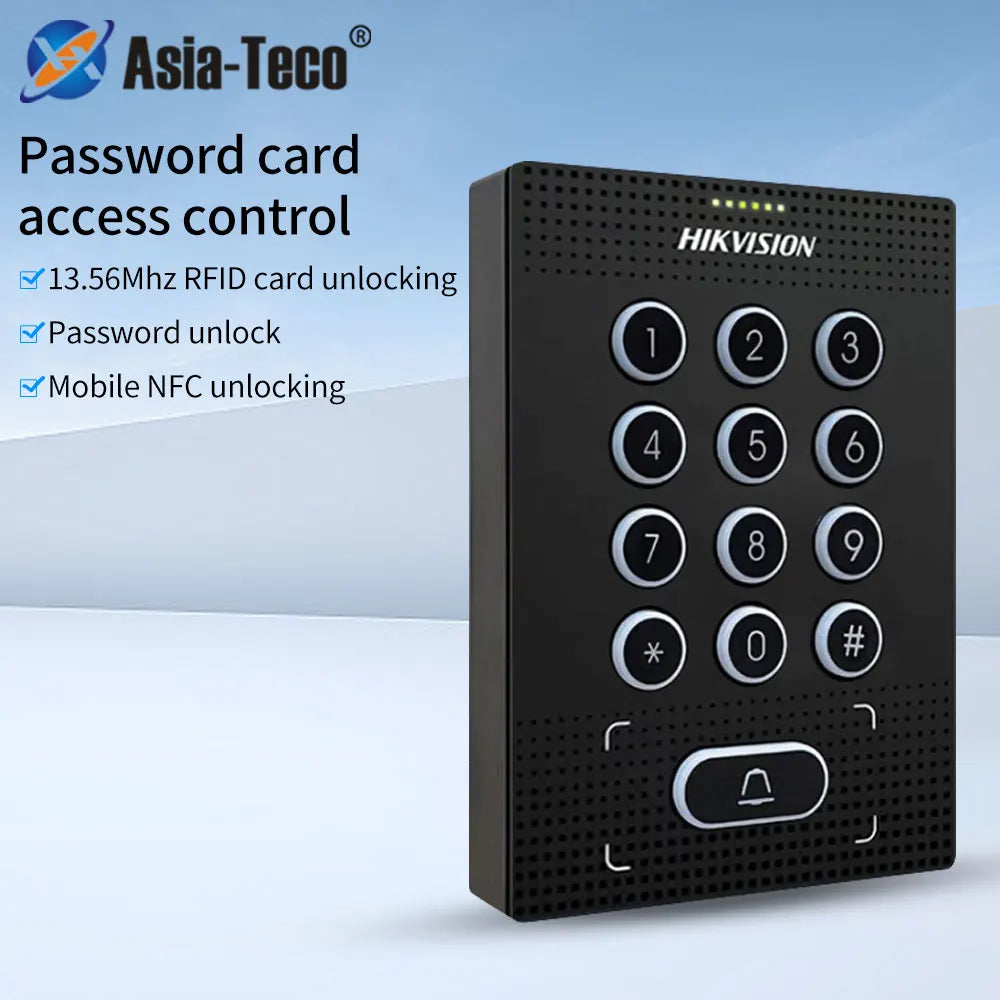

- Dual Authentication Modes: Supports M1 card, CPU card number reading, and PIN password entry for flexible access management.
- Fast NFC Reading: 13.56 MHz frequency with swipe time under 1 second — no fumbling at the door.
- Large Card Capacity: Stores up to 1,000 user cards locally — no internet or server required for standalone operation.
- Wiegand Output: Compatible with a wide range of third-party access control panels via standard Wiegand interface.
- Doorbell & Alarm Input: Built-in doorbell output and alarm input support for integrated entry management.
- Complete Door Control: Supports door lock output, door opening button, doorbell output, and power interface — all in one device.
- Wide Operating Range: Functions reliably from -10°C to 55°C and 15%–90% relative humidity, suitable for indoor and sheltered outdoor installations.
- Low Power Consumption: Runs on DC 12V with a maximum draw of only 6W, keeping operating costs minimal.
- CE Certified: Meets European safety and electromagnetic compatibility standards.
Technical Specifications
| Model | KT810M |
| Card Capacity | 1,000 cards |
| Card Reading Type | M1 card, CPU card number |
| Frequency | 13.56 MHz |
| Swipe Time | <1 second |

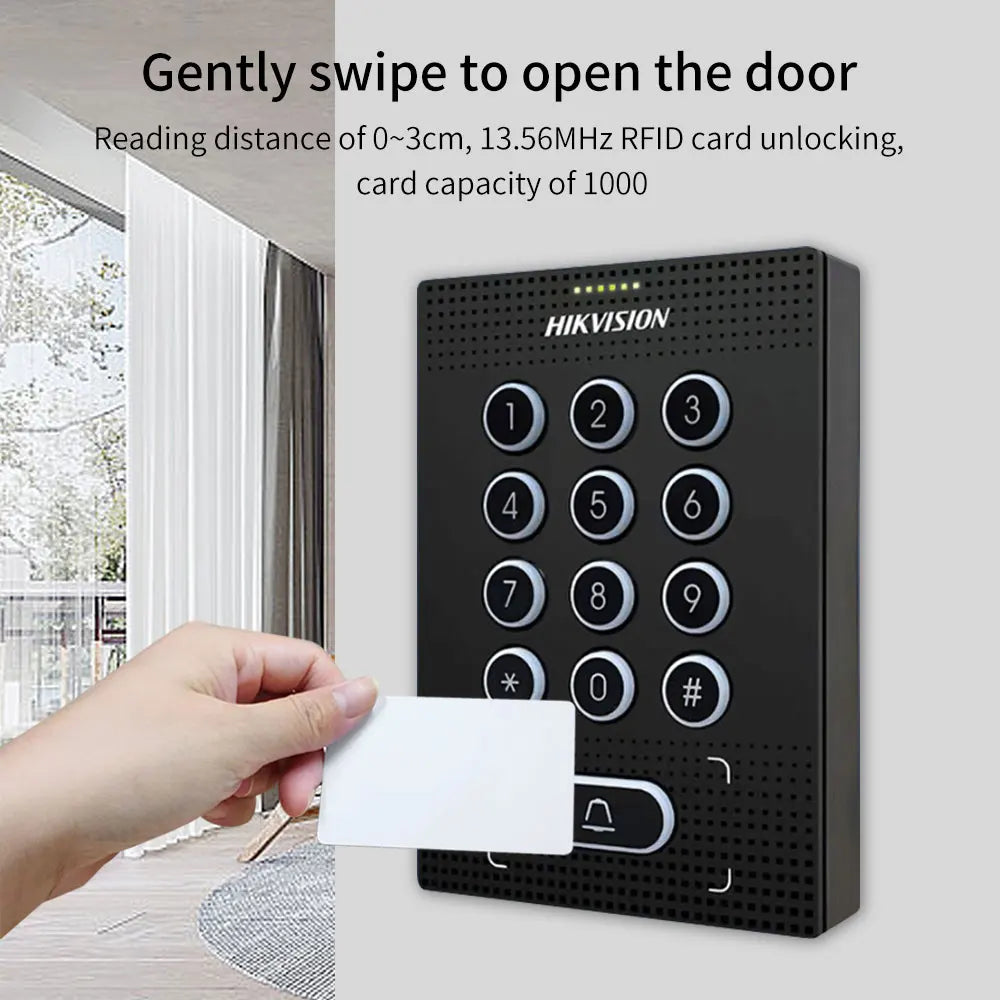

| Swipe Distance | 0–3 cm (white card); 0–2 cm (special shaped card) |
| Power Supply | DC 12V |
| Power Consumption | Max 6W |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 15%–90% RH |
| Supported Outputs | Door lock output, door opening button, doorbell output, power interface |
| Certification | CE |
| Country of Origin | Made in Mainland China |
Who Is This For?
The KT810M is perfect for small-to-medium installations where a standalone, networked-free access solution is needed. Property managers, small business owners, and home security enthusiasts will appreciate the combination of card and PIN access without the complexity or cost of a full networked system.
For more information on physical access control best practices, visit the Cybersecurity and Infrastructure Security Agency (CISA) resources. You can also learn about electronic security standards from the National Institute of Standards and Technology (NIST).
Frequently Asked Questions
Q: Does the KT810M NFC Access Control Keypad require an internet connection to operate?
A: No. The KT810M is a fully standalone access control unit. It stores up to 1,000 cards and operates entirely on its own without needing Wi-Fi, an internet connection, or a dedicated server, making it straightforward to install and manage.
Q: What card types are compatible with the KT810M Wiegand card reader?
A: The KT810M supports 13.56 MHz M1 cards and CPU card numbers. White cards have a read range of 0–3 cm, while special-shaped cards work within 0–2 cm. Standard Wiegand output also allows integration with many third-party access control panels.
Q: Can I use a PIN code instead of a card to open the door?
A: Yes. The built-in keypad supports password (PIN) entry as an alternative or supplementary authentication method to card swiping, giving users and administrators flexible access options.
Q: Is the KT810M suitable for outdoor installation?
A: The device is rated for operating temperatures from -10°C to 55°C and humidity levels of 15%–90%. It is well-suited for sheltered outdoor installations such as covered entrances, indoor lobbies, or protected gate posts. Check the product's IP rating for fully exposed outdoor environments.
