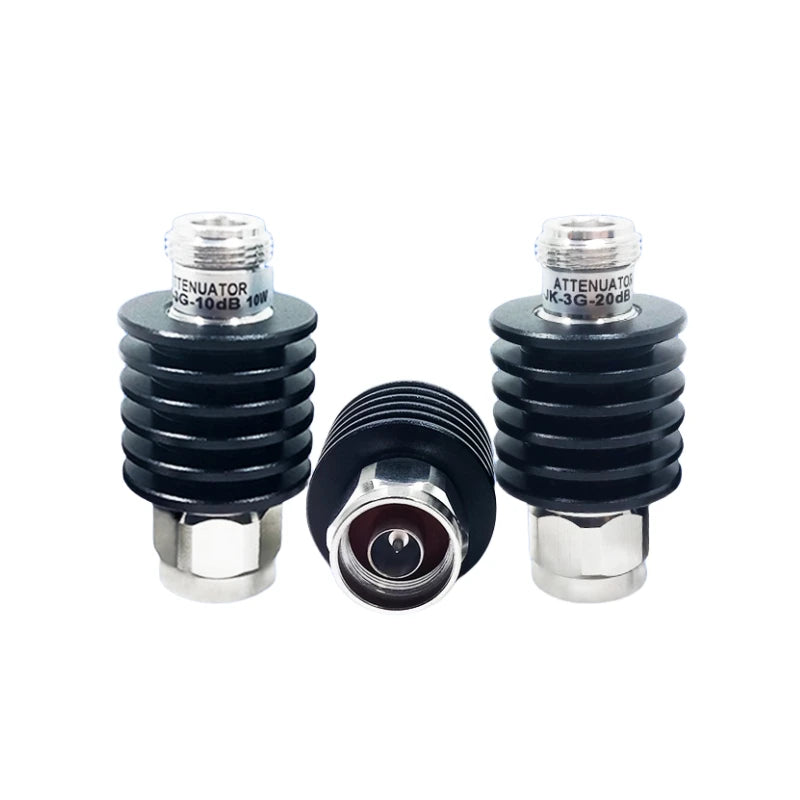

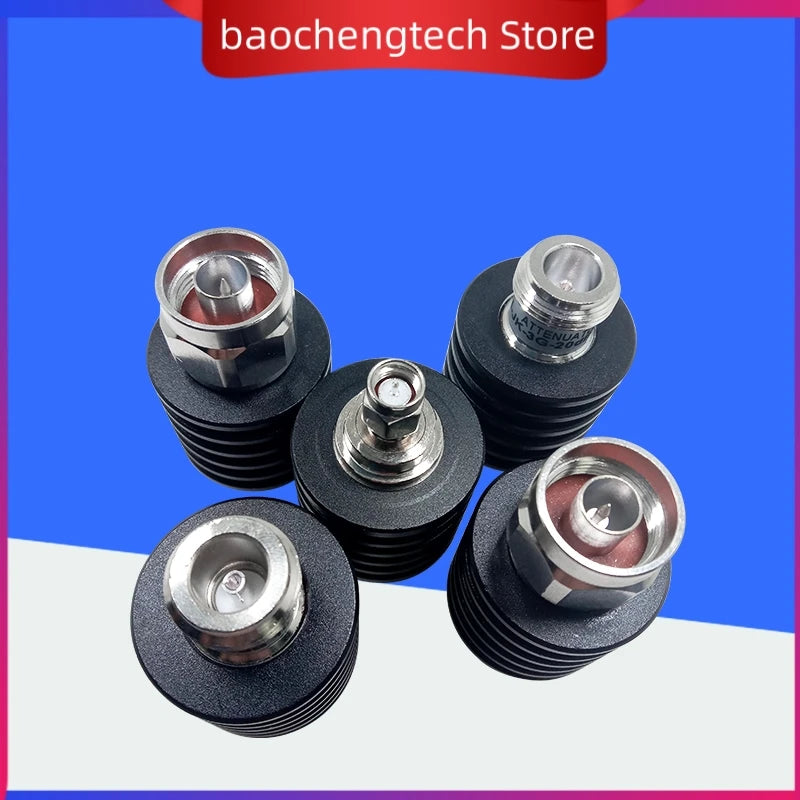

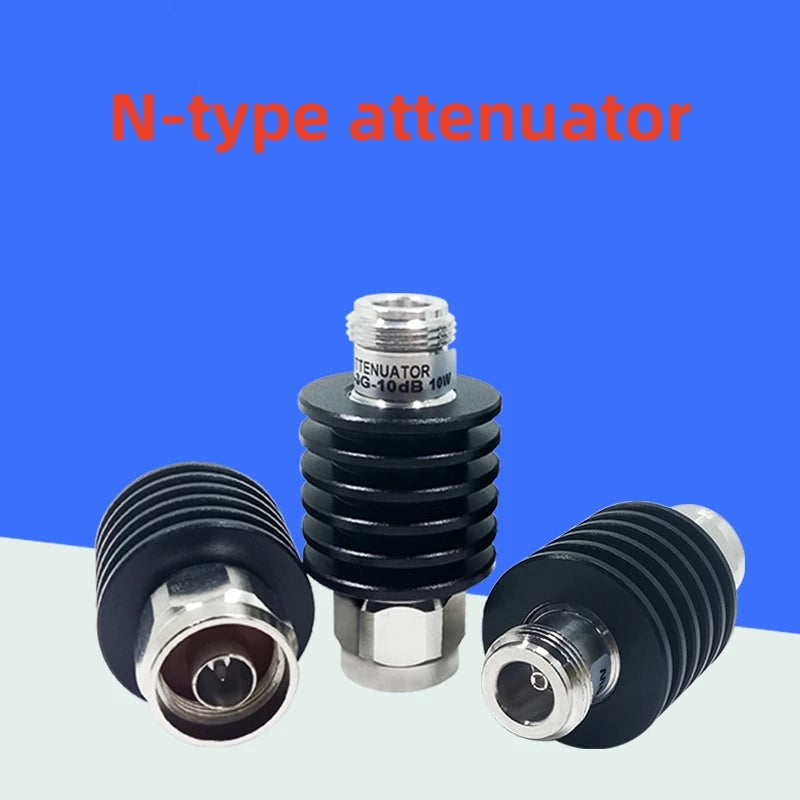

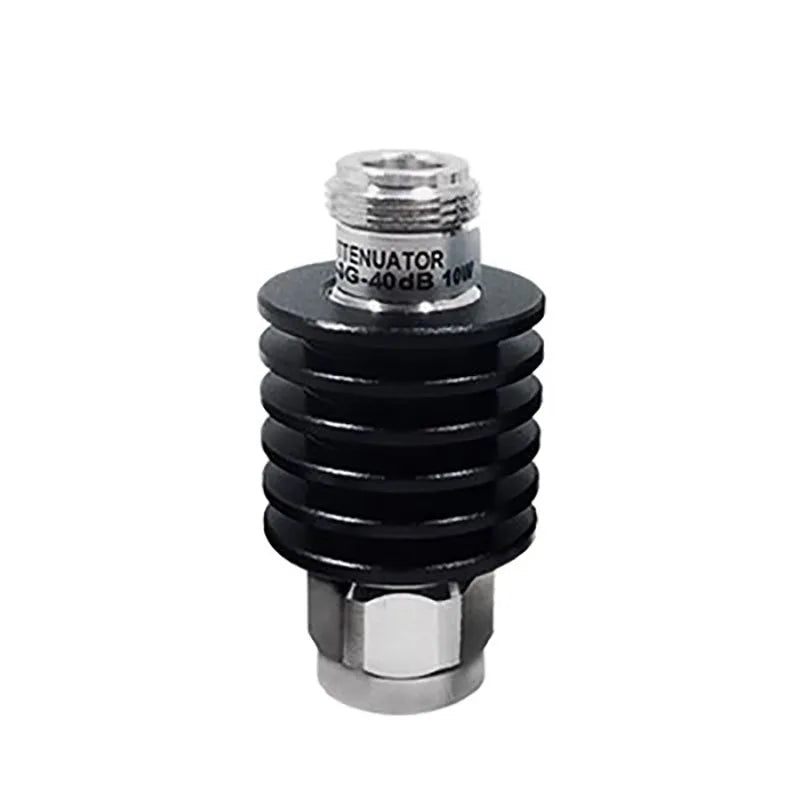

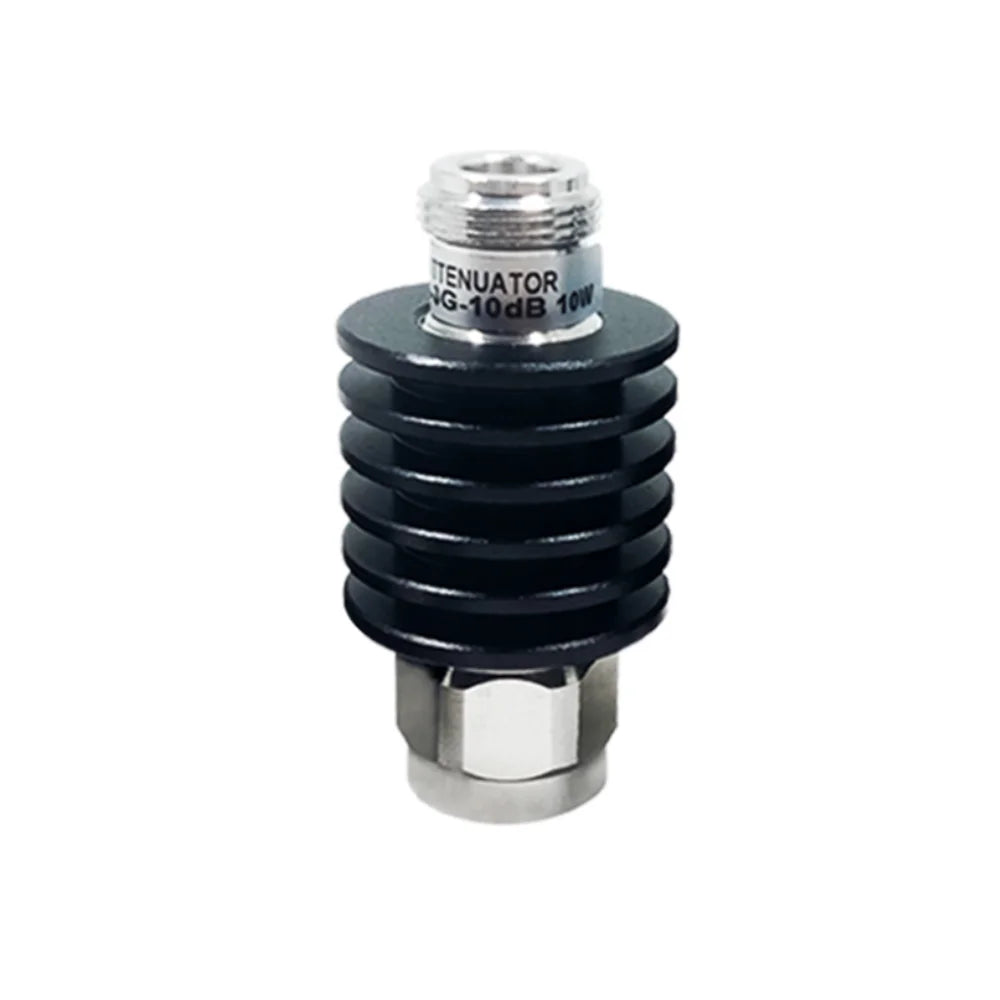

N-Type RF Fixed Coaxial Attenuator — DC to 4 GHz
Precision-engineered for RF engineers, hobbyists, and technicians, this N-Type Fixed Coaxial Attenuator delivers reliable signal attenuation from DC to 4 GHz. Available in a wide range of attenuation values (3 dB, 5 dB, 6 dB, 10 dB, 15 dB, 20 dB, 30 dB, 40 dB) and power ratings (2W, 5W, 10W, 20W), it's the go-to component for lab benches, antenna testing, signal balancing, and RF system design.
Key Features
- Wide Frequency Range: Operates from DC up to 4 GHz — compatible with most RF and microwave applications
- Multiple Attenuation Values: Choose from 3, 5, 6, 10, 15, 20, 30, or 40 dB to match your exact signal reduction needs
- Flexible Power Ratings: Available in 2W, 5W, 10W, and 20W configurations for low- to medium-power applications
- N-Type Connector: Industry-standard, weatherproof coaxial interface for secure, low-loss connections
- Compact & Rugged Body: Precision-machined metal housing ensures durability and excellent thermal dissipation
- Fixed Attenuation: Stable, consistent signal reduction — no calibration drift over time
- 50 Ohm Impedance: Matched to standard RF systems for minimal VSWR
Typical Applications
- RF lab testing and signal calibration
- Antenna measurement and matching
- Software-defined radio (SDR) setups
- Amateur (ham) radio stations
- Wireless communication system prototyping
- Reducing transmitter output power for receiver testing
Specifications Overview
| Parameter | Value |
|---|---|
| Connector Type | N-Type (Male to Female) |
| Frequency Range | DC – 4 GHz |
| Attenuation Values | 3, 5, 6, 10, 15, 20, 30, 40 dB |
| Power Handling | 2W, 5W, 10W, 20W (varies by model) |
| Impedance | 50 Ω |
| Body Material | Precision Machined Metal |
| Country of Origin | Made in China |
Why Choose an N-Type Fixed Attenuator?
Fixed attenuators are essential passive RF components used to reduce signal levels by a known, stable amount. Whether you're protecting sensitive receiver inputs, matching power levels between devices, or conducting repeatable lab measurements, a quality attenuator ensures your RF chain performs as designed. Learn more about RF passive components and measurement best practices from NIST's Communications Technology Laboratory.
Frequently Asked Questions
Q: What is an N-Type fixed RF attenuator used for?
A: An N-Type fixed RF attenuator is a passive coaxial component used to reduce signal power by a precise, fixed amount (measured in dB). It is commonly used in RF testing labs, antenna systems, SDR setups, and ham radio stations to control signal levels, protect sensitive components, or match power levels between different parts of an RF chain.
Q: What frequency range does this RF attenuator support?
A: This fixed coaxial attenuator operates from DC up to 4 GHz, making it suitable for a broad range of RF and microwave applications including Wi-Fi, cellular, UHF/VHF, and general lab use.
Q: What attenuation values and power ratings are available?
A: Available attenuation values include 3 dB, 5 dB, 6 dB, 10 dB, 15 dB, 20 dB, 30 dB, and 40 dB. Power ratings range from 2W and 5W for lighter-duty applications up to 10W and 20W for higher-power RF systems. Please select your required combination when ordering.
Q: Is this attenuator compatible with standard 50-ohm RF systems?
A: Yes. This N-Type coaxial attenuator is designed with a 50-ohm impedance, which is the industry standard for most RF test equipment, transceivers, and antenna systems, ensuring minimal VSWR and maximum power transfer efficiency.
