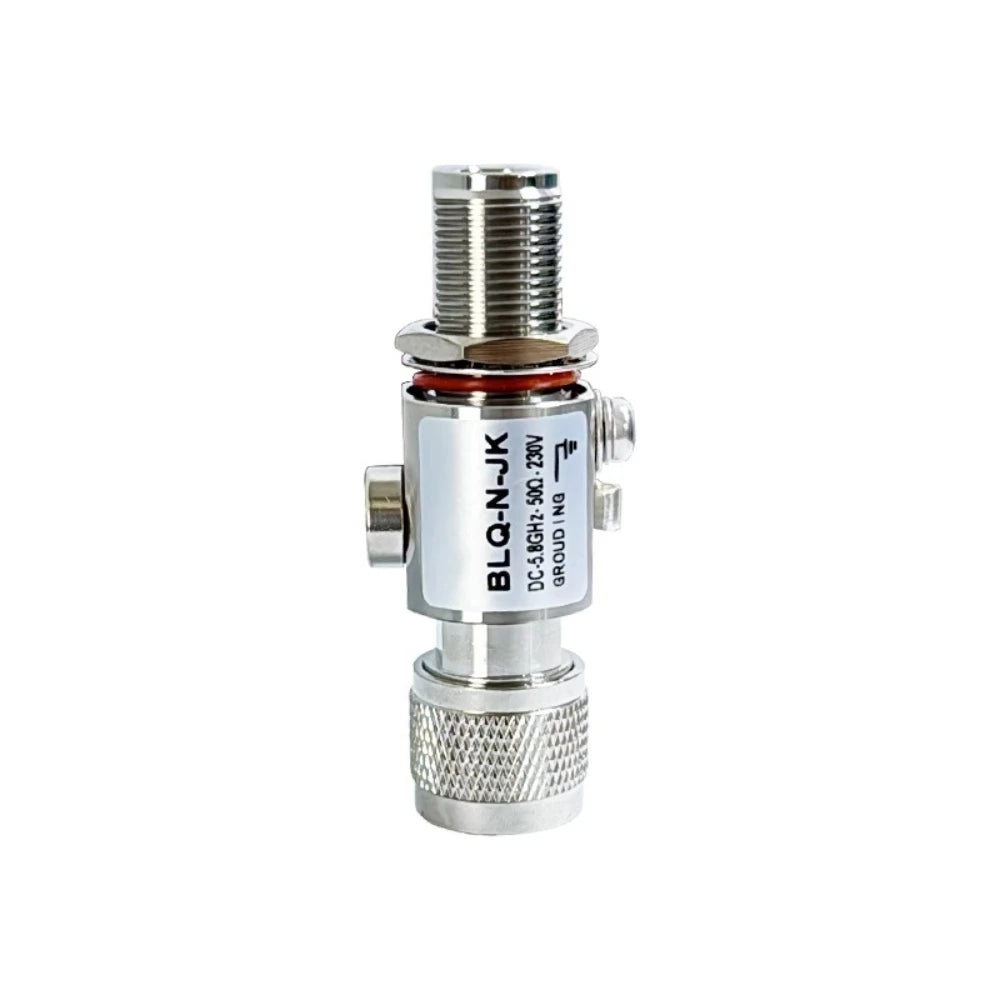

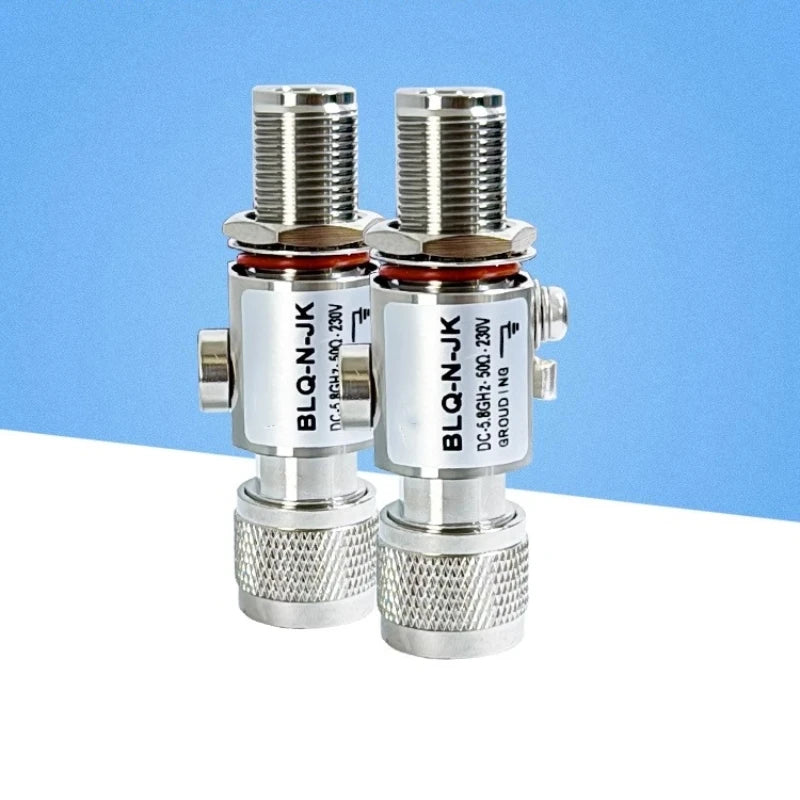

0–6GHz N-Type RF Coaxial Antenna Feeder Lightning Arrester (N-Male to N-Female)
Protect your wireless antenna installations from damaging voltage surges and lightning-induced transients with this heavy-duty N-Type RF Coaxial Lightning Arrester. Covering a wide frequency range of 0 to 6GHz, this arrester is fully compatible with popular wireless frequencies including 2.4GHz and 5.8GHz Wi-Fi, fixed wireless broadband, point-to-point links, and other RF antenna feeder systems. The inline N-Male to N-Female (N-JK) design makes installation fast and straightforward — simply insert it in-line on your coaxial feed line, no special tools required.
Made in Mainland China.
Key Features
- Wide Frequency Coverage: 0–6GHz supports Wi-Fi (2.4GHz & 5.8GHz), LTE, ISM bands, and more

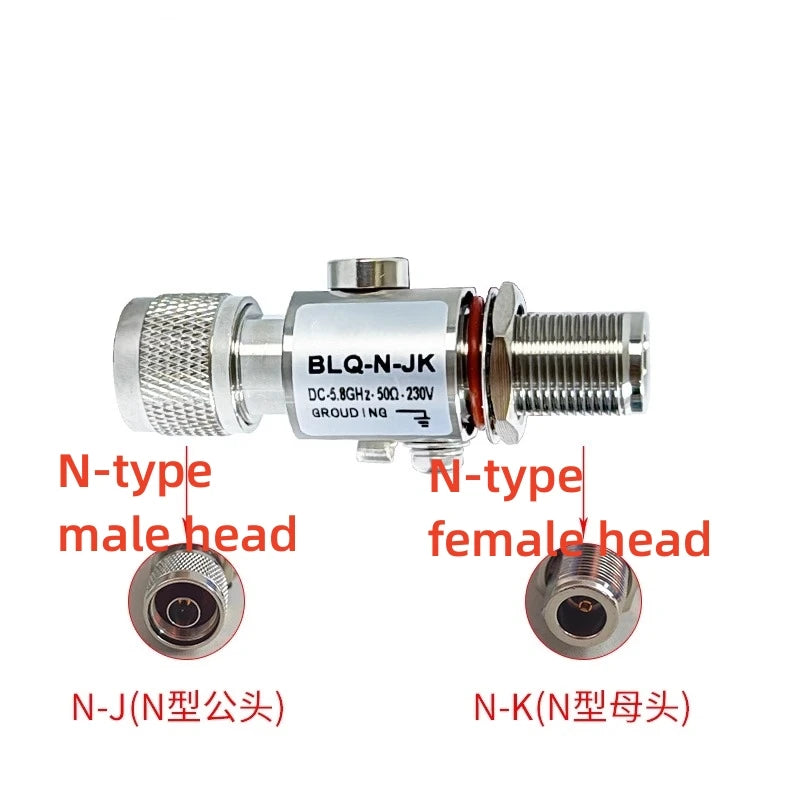

- N-Type Connectors: N-Male to N-Female (N-JK) inline configuration for easy coaxial integration
- Surge & Transient Protection: Diverts lightning-induced surges and voltage spikes away from sensitive RF equipment
- Robust RF Coaxial Design: Durable construction engineered for both indoor and outdoor antenna feeder lines

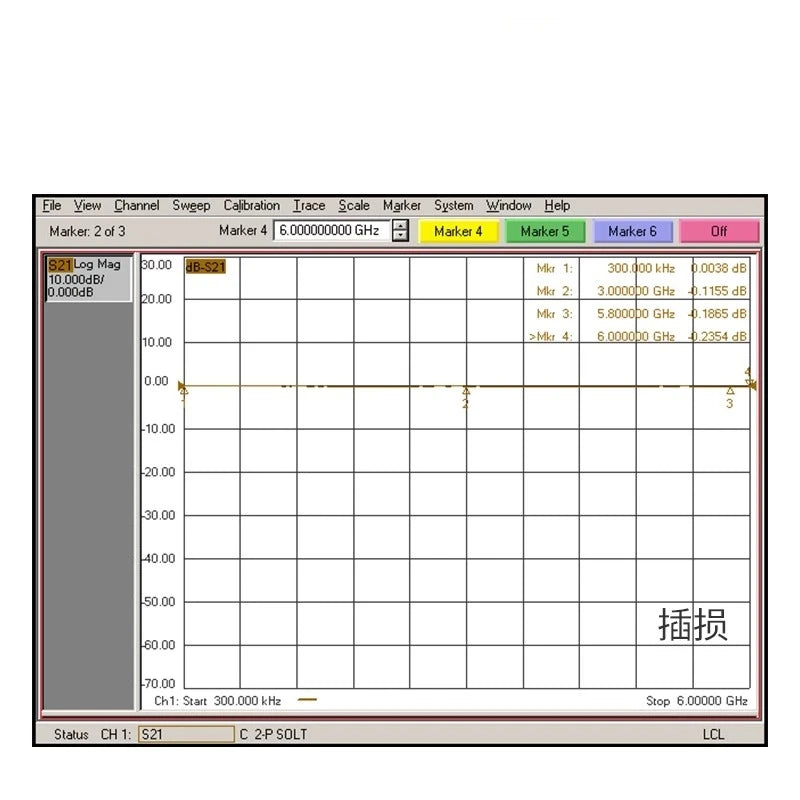

- Low Insertion Loss: Minimal signal attenuation across the supported frequency range
- Compact Inline Form Factor: Fits neatly between antenna cable runs without bulky hardware
- Compatible Applications: Outdoor access points, wireless bridges, CCTV antenna lines, amateur radio, base stations

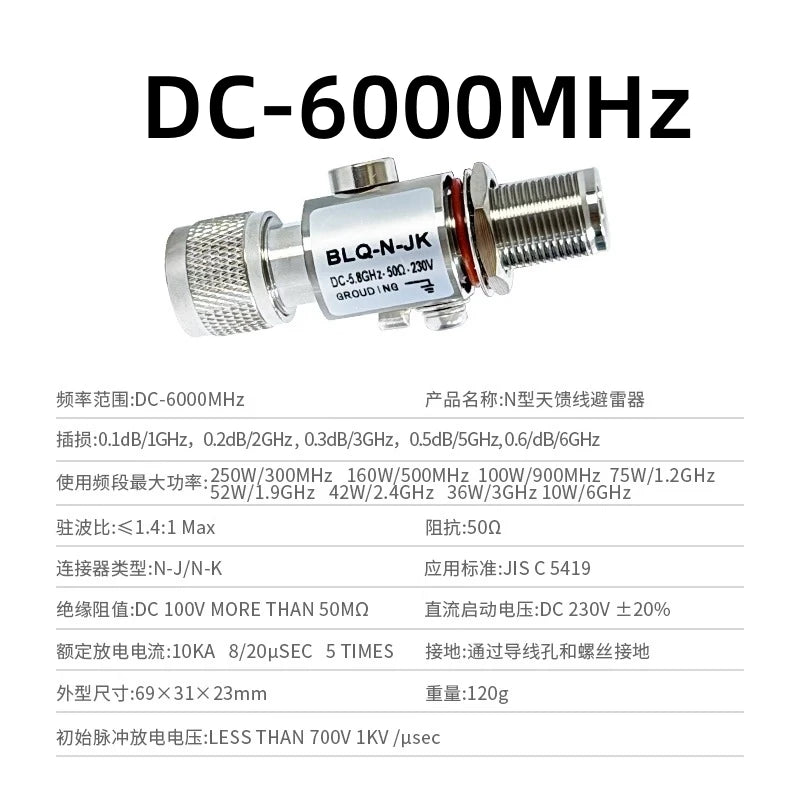

Specifications
| Frequency Range | 0 – 6 GHz |
| Connector Type | N-Male to N-Female (N-JK) |
| Supported Frequencies | 2.4GHz, 5.8GHz, and all bands 0–6GHz |
| Application | RF coaxial antenna feeder protection |
| Country of Origin | Mainland China |
Why Use an Antenna Lightning Arrester?
Outdoor antennas and their cable runs act as conductors that can carry dangerous lightning-induced surges directly into your valuable RF equipment. An inline lightning arrester on the coaxial feeder line provides a low-impedance path to ground for these surges, helping safeguard routers, access points, radios, and other connected hardware. For guidance on proper grounding and surge protection for antenna systems, refer to the U.S. Consumer Product Safety Commission (CPSC) Home Safety resources.
Frequently Asked Questions
Q: What frequency bands does this N-type lightning arrester support?
A: This RF coaxial lightning arrester covers a wide frequency range of 0 to 6GHz, making it compatible with 2.4GHz Wi-Fi, 5.8GHz Wi-Fi, fixed wireless, LTE, and other RF antenna feeder applications within that range.
Q: What connector type does this lightning arrester use?
A: It uses standard N-type connectors in an N-Male to N-Female (N-JK) inline configuration, allowing it to be inserted directly into any existing N-type coaxial feeder cable run without adapters.
Q: Is this lightning arrester suitable for outdoor installations?
A: Yes. This arrester is designed to be used on outdoor antenna feeder lines — exactly where surge and lightning protection is most needed. Always ensure the arrester is properly grounded according to local electrical codes to maximize protection effectiveness.
Q: Will this arrester cause significant signal loss on my antenna line?
A: No. This inline N-type lightning arrester is engineered for low insertion loss across its 0–6GHz operating range, so your antenna signal quality is maintained while your equipment stays protected from transient voltage surges.
