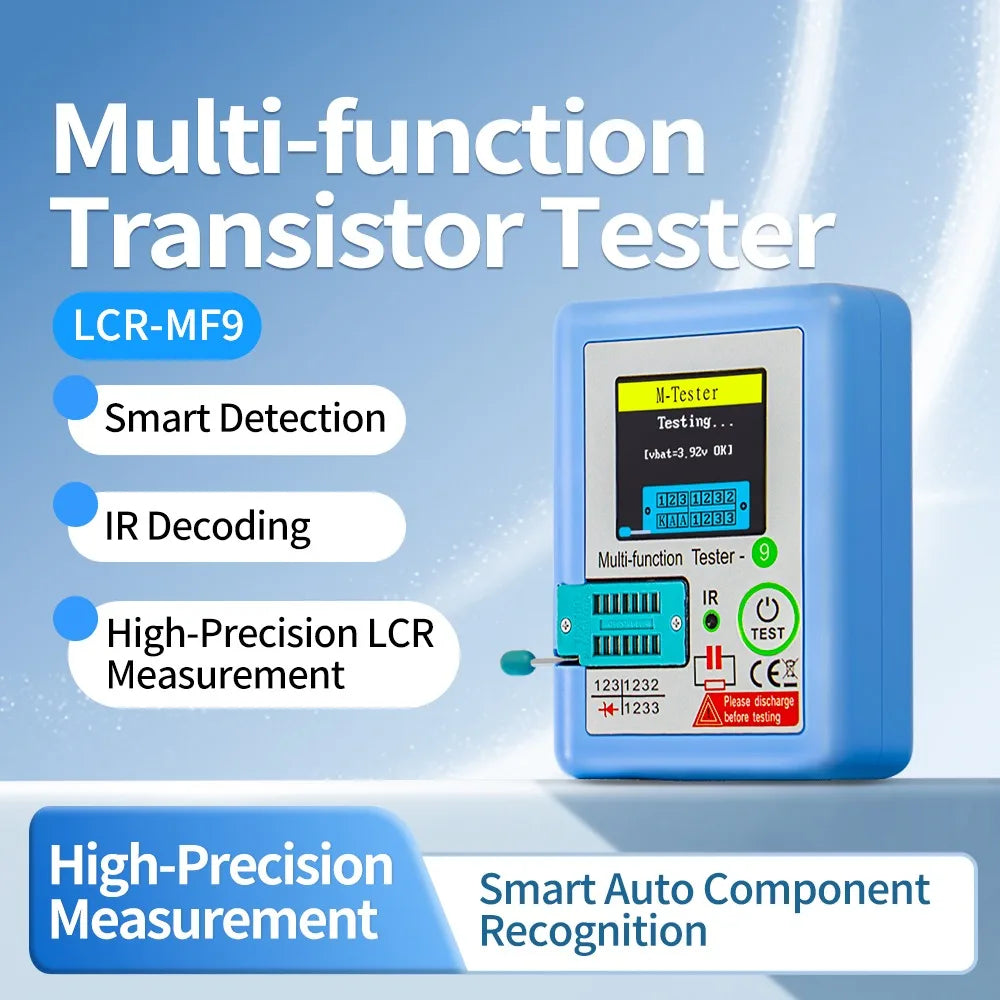

Multi-Function Transistor Tester & LCR Meter with 1.8" TFT Color Screen
Whether you're a hobbyist, electronics technician, or engineer, this all-in-one Multi-Function Transistor Tester and LCR Meter is the ultimate bench companion. With a vivid 1.8" TFT color display and one-click operation, it automatically identifies and tests a wide range of electronic components — from diodes and MOSFETs to capacitors, inductors, and even IR remote control signals. Made in Mainland China.
Key Features
- Automatic Component Detection: Instantly identifies NPN & PNP transistors, N-channel & P-channel MOSFETs, IGBT diodes (including double diodes), thyristors, resistors, capacitors, and inductors — no manual configuration needed.

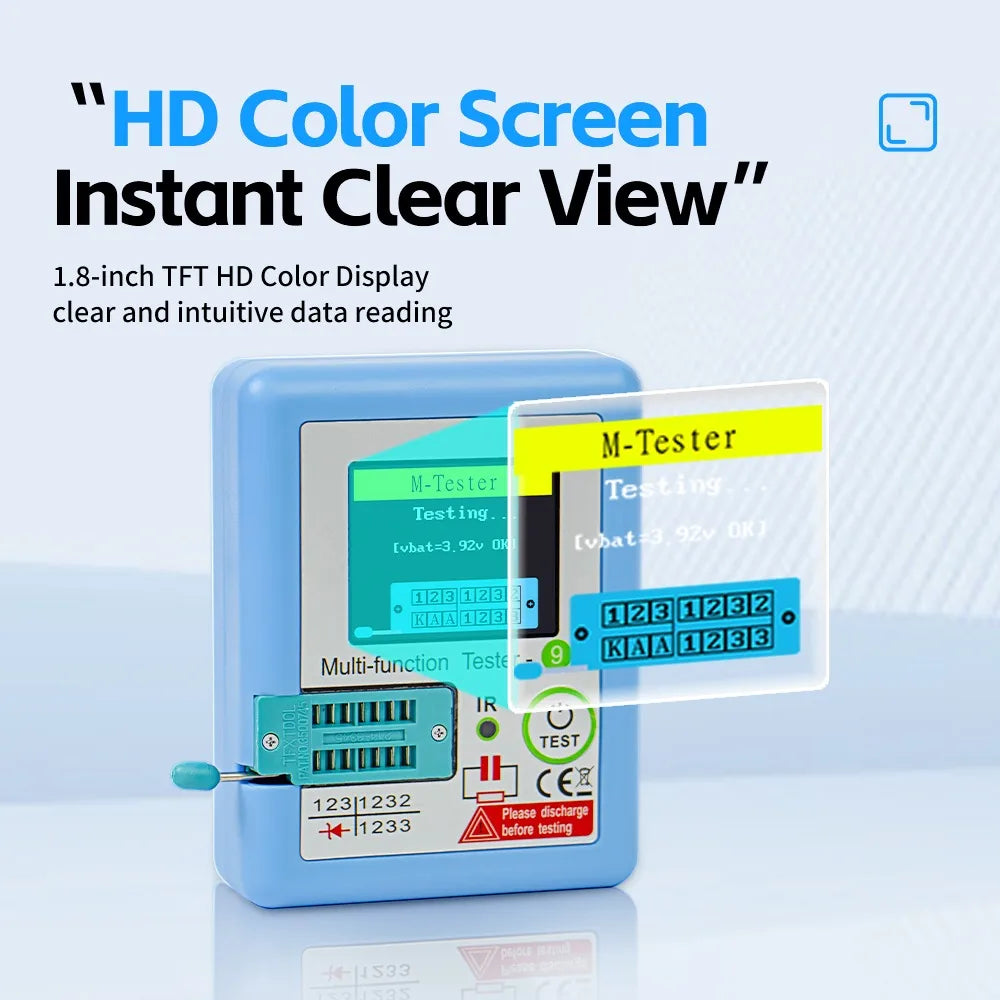

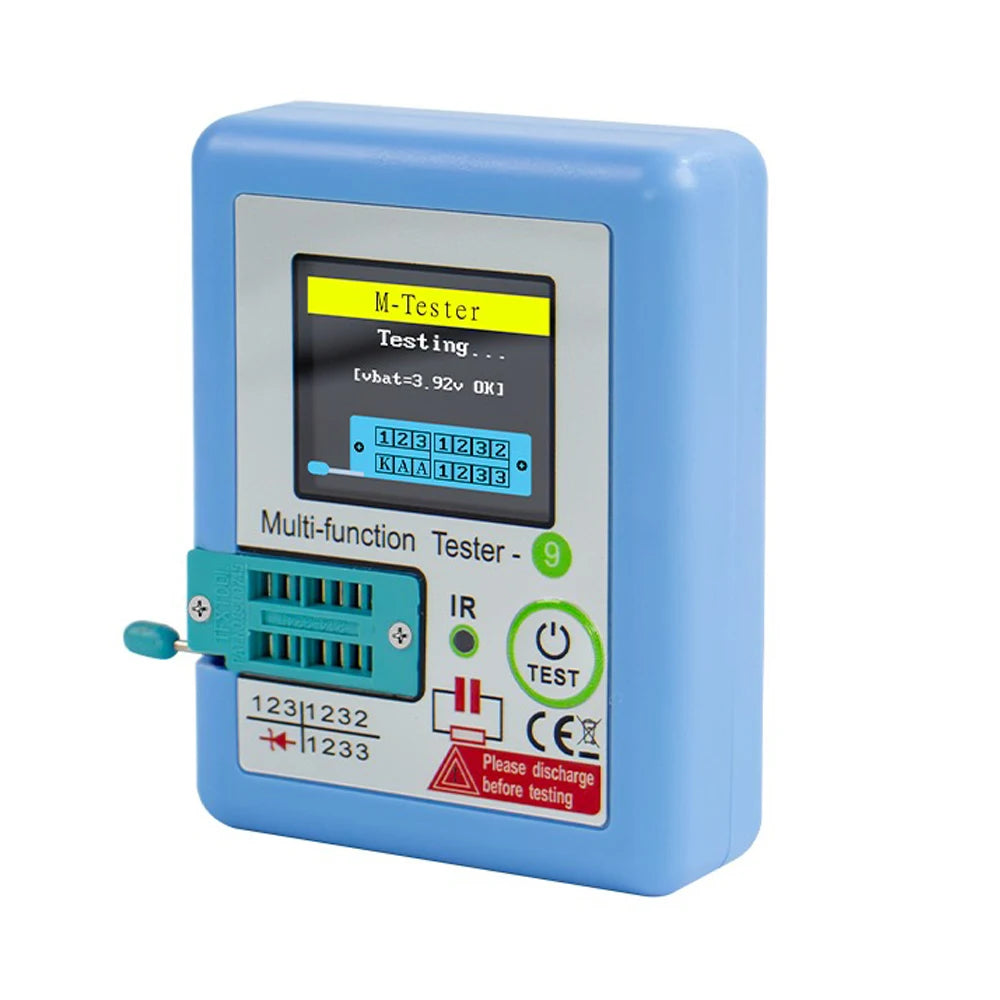

- 1.8" TFT Color Display: Graphically displays component parameters, pin layouts, and measurement results in a clear, easy-to-read color format.
-
Wide Measurement Ranges:
- Capacitance: 25pF – 100mF (with ESR measurement)
- Inductance: 0.01mH – 100mH
- Resistance: 0.01Ω – 50MΩ (resolution: 0.1Ω)
- Voltage Detection: 0.1V – 4.5V
- IR Remote Control Decoding: Detects and decodes NEC-format infrared remote control signals — great for troubleshooting IR devices.
- MOSFET Analysis: Distinguishes depletion-type from enhancement-type MOSFETs, and measures gate threshold voltage and gate capacitance.
- Advanced Capacitor Testing: For capacitors above 10µF, displays VOSS and ESR values for deeper analysis.
- Fast Test Speed: Most components are identified in approximately 2 seconds (large capacitors may require additional time).
- Built-in Rechargeable Battery: Equipped with a 300mAh 4.2V lithium battery for portable, cord-free use.
- One-Click Calibration: Includes a calibration needle for precise small-resistance measurements. One-click calibration makes setup effortless.
- Auto Power-Off: Automatic shutdown mode draws less than 20nA, preserving battery life when the device is not in use.
- Pin Layout Display: Automatically tests and graphically displays the pin layout of detected components on-screen.
Technical Specifications
| Display | 1.8-inch TFT Color Screen |
| Capacitance Range | 25pF – 100mF (with ESR) |
| Inductance Range | 0.01mH – 100mH |
| Resistance Range | 0.01Ω – 50MΩ |
| Voltage Detection | 0.1V – 4.5V |
| IR Decoding | NEC Format |
| Battery | Built-in 300mAh 4.2V Lithium (Rechargeable) |
| Off-Mode Power Draw | <20nA |
| Component Test Time | ~2 seconds (standard components) |
What's in the Box?

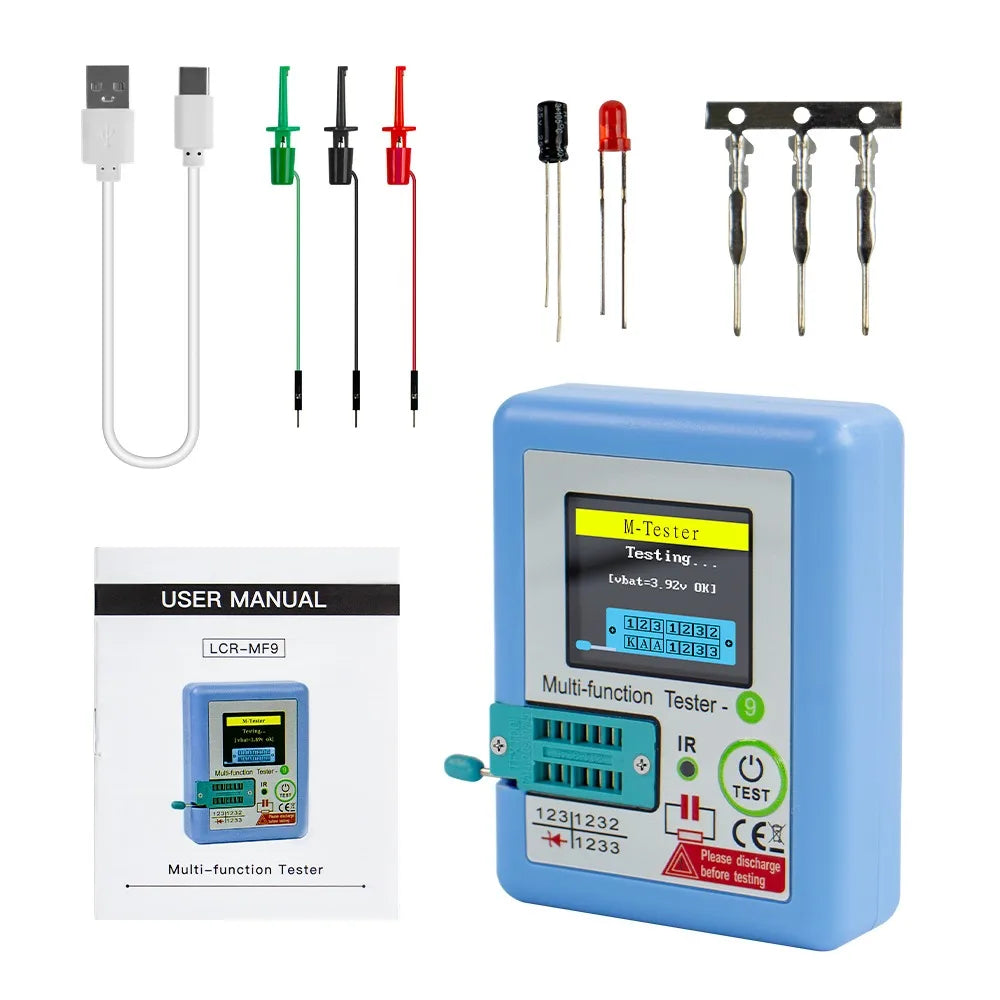

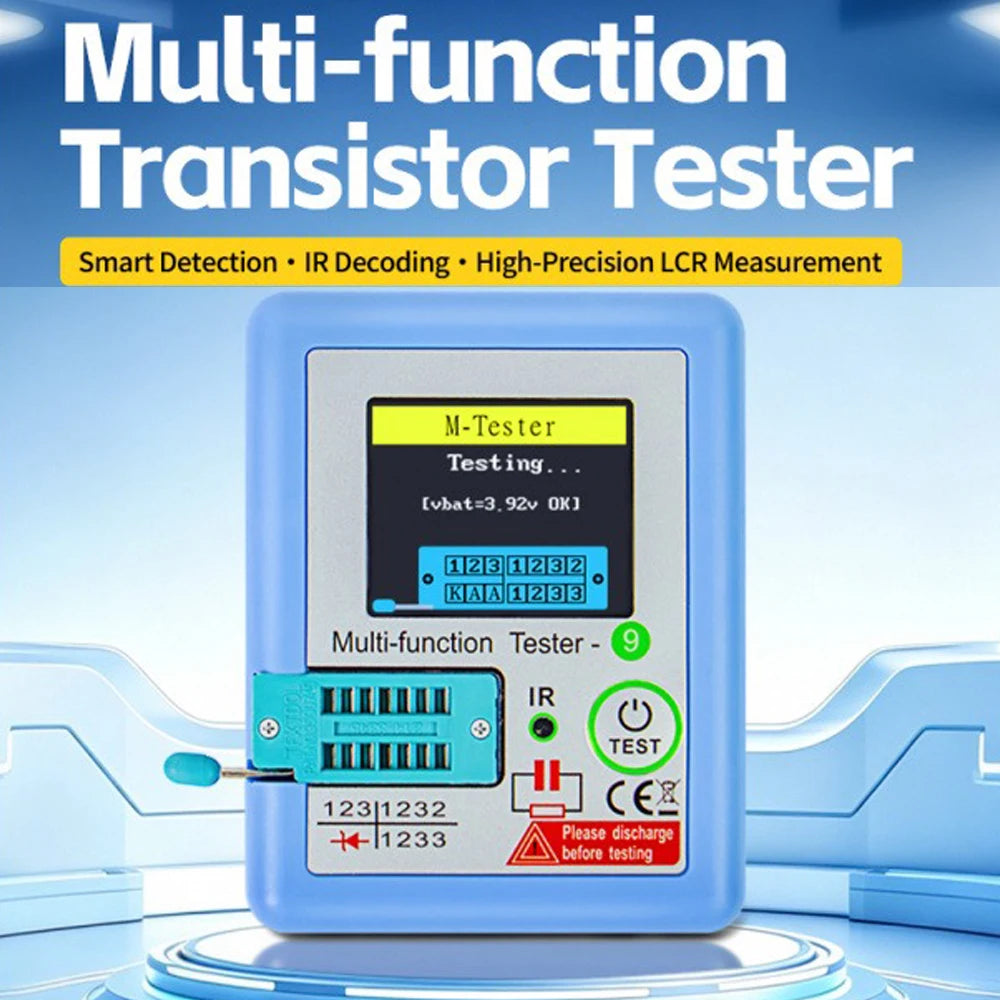

- 1× Multi-Function Transistor Tester Unit
- 1× Calibration Needle
Note: Due to screen and lighting variations, the actual color may differ slightly from product images. Please allow 1mm–1cm tolerance due to manual measurement.
For more information on safe use of electronic test equipment, visit the OSHA Electrical Safety guidelines.
Frequently Asked Questions
Q: What types of components can this transistor tester identify?
A: This multi-function tester automatically detects and identifies NPN and PNP bipolar transistors (BJT), N-channel and P-channel MOSFETs, IGBT diodes (including double diodes), thyristors, resistors, capacitors, inductors, and batteries. It also decodes NEC-format infrared remote control signals.
Q: Does the transistor tester come with a battery included?
A: Yes — the unit features a built-in 300mAh 4.2V rechargeable lithium battery. No separate battery purchase is required. The auto power-off feature (drawing less than 20nA in off mode) helps extend battery life significantly.
Q: How do I calibrate the LCR meter for accurate small-resistance readings?
A: The tester includes a calibration needle and supports one-click calibration. Simply use the included needle to short the test leads and press the button to calibrate. This ensures highly accurate measurements, especially for low-resistance components.
Q: Can this tester distinguish between depletion-type and enhancement-type MOSFETs?
A: Yes. The tester automatically distinguishes between depletion-type and enhancement-type MOSFETs and also measures gate threshold voltage and gate capacitance, making it ideal for in-depth MOSFET characterization.
